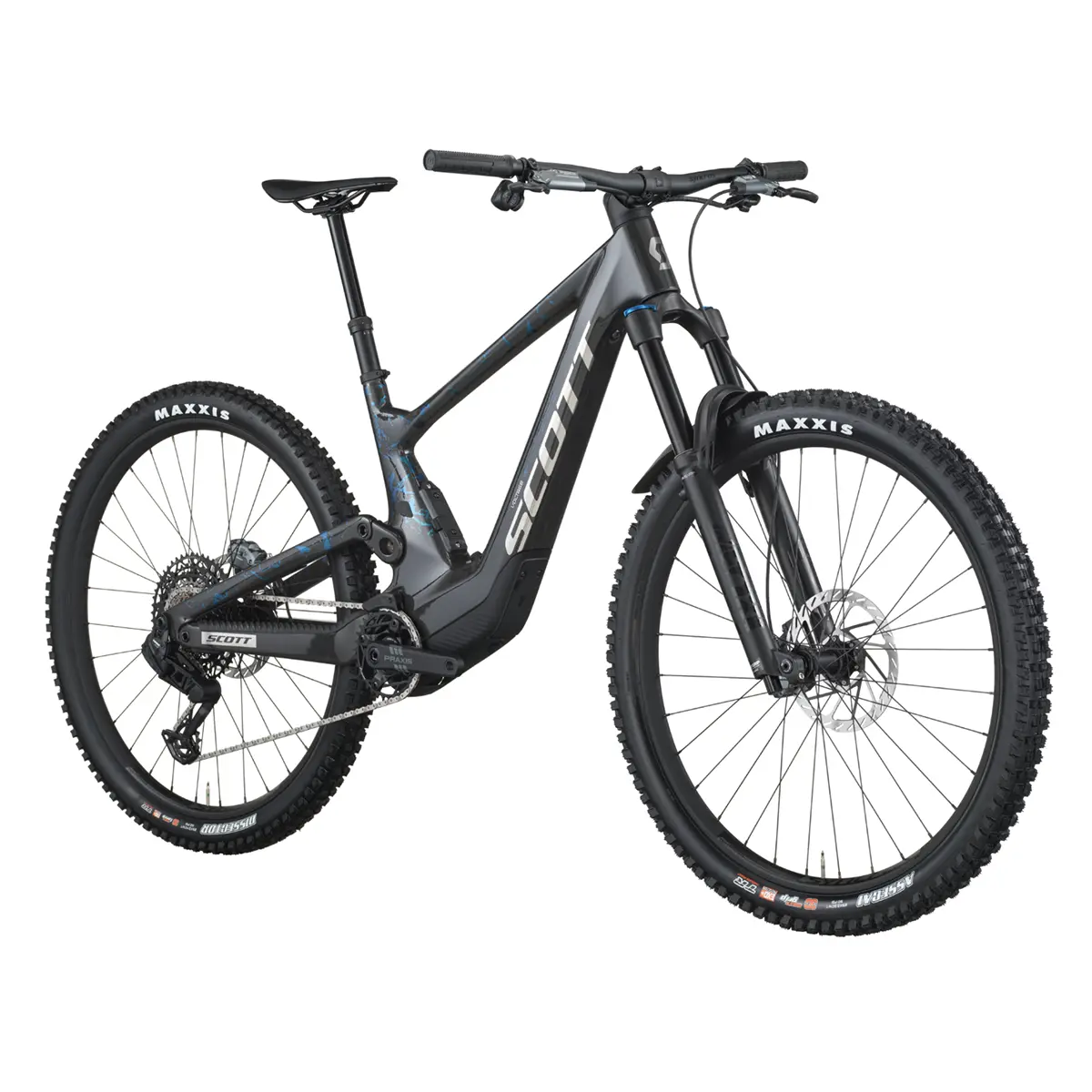

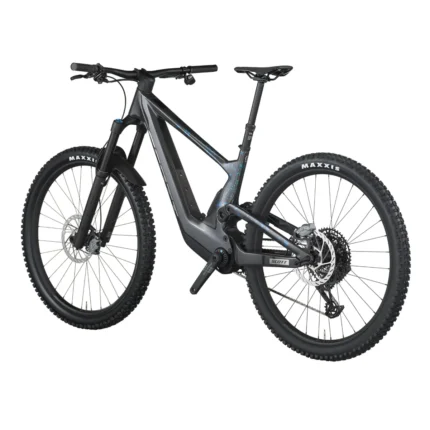

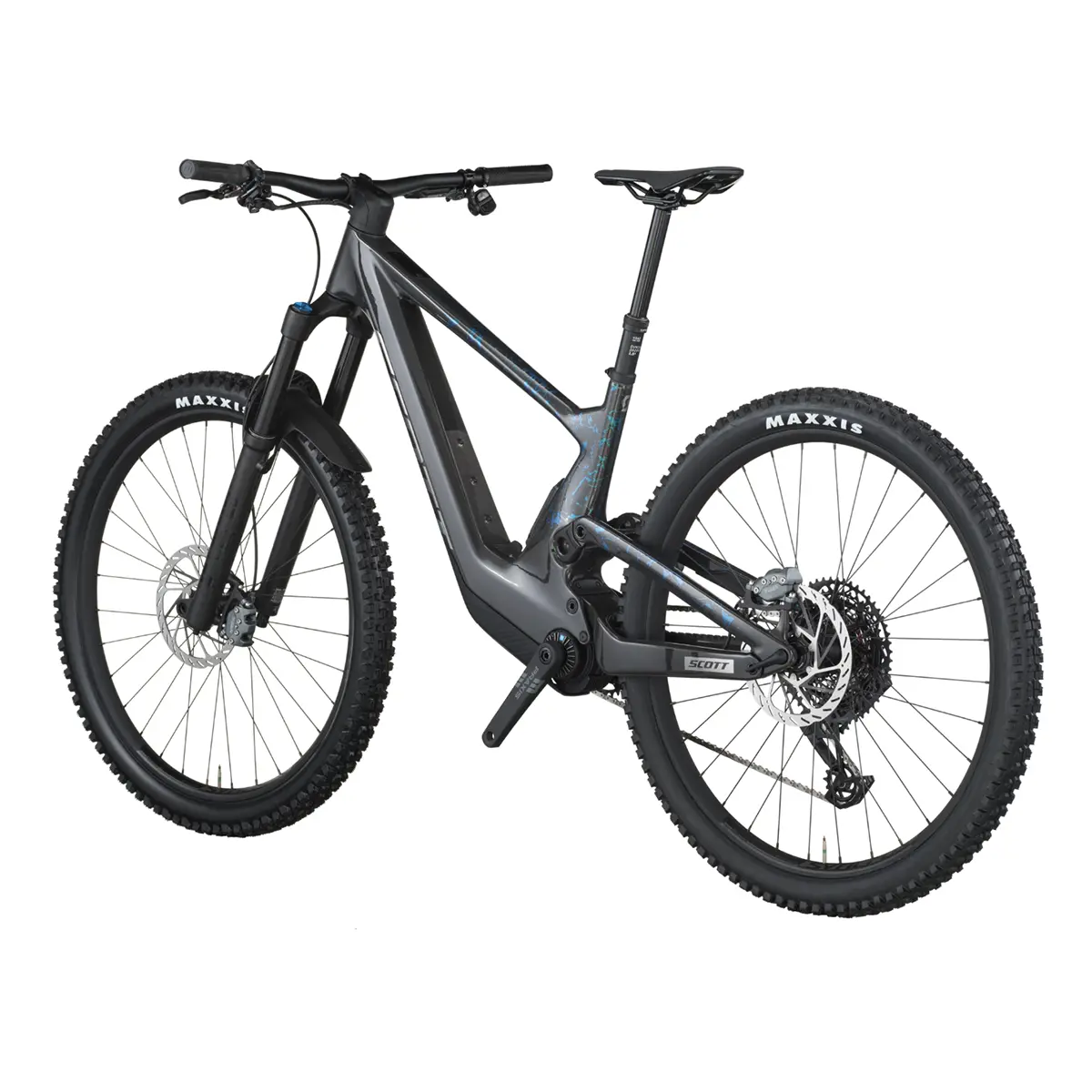

SCOTT Voltage 910 Bike

SCOTT Voltage 910 Bike Overview

The SCOTT Voltage 910 Bike is an electric mountain bike built with a Carbon HMF frame, TQ HPR60 mid-drive motor, 360Wh internal battery, 160Wh range extender, FOX 36 Rhythm 160mm fork, FOX FLOAT X NUDE rear shock, SRAM S1000 Eagle AXS Transmission, and SRAM Maven Bronze Stealth 4-piston brakes. The frame uses Integrated Suspension Technology, Virtual 4 Link kinematic suspension, adjustable head angle, Syncros Cable Integration System, UDH Interface, and 12x148mm rear spacing with a 55mm chainline.

The electric system uses a TQ HPR60 mid motor drive with 60Nm maximum torque. It is paired with a TQ Internal 360Wh battery and a TQ Range Extender 160Wh battery. The system also includes a TQ HPR display with Bluetooth, ANT+, a dedicated smartphone app, and a TQ 100-240V-4A charger.

Suspension is built around a FOX 36 Rhythm Air Grip fork with 160mm travel and a FOX FLOAT X NUDE EVOL Piggy Back Trunnion rear shock with 155mm rear travel. The rear shock offers 155-100-Climb travel settings and three modes: Climb, Ramp Control, and Descend. TracLoc Technology controls the rear suspension and dropper remote system with three rear suspension modes.

The drivetrain uses SRAM S1000 Eagle AXS Transmission wireless electronic shifting. It includes a SRAM AXS Rocker Pod Controller, Praxis alloy crankset, Praxis alloy spider, SRAM Eagle Transmission 34T chainring, SRAM CN GX Eagle Transmission chain, and SRAM Eagle XS 1270 Transmission 10-52 cassette.

Braking is handled by SRAM Maven Bronze Stealth 4-piston disc brakes with SRAM HS2 200mm rotors front and rear. The wheel and tire setup combines Formula hubs, Syncros X-30S 30mm tubeless-ready rims, and Maxxis Assegai 2.5″ front and Maxxis Dissector 2.5″ rear tires.

Key Features of SCOTT Voltage 910 Bike

• Carbon HMF frame uses Integrated Suspension Technology, Virtual 4 Link kinematic suspension, and adjustable head angle.
• TQ HPR60 mid-drive motor provides electric mountain bike support with 60Nm maximum torque.
• TQ Internal 360Wh battery is paired with a TQ Range Extender 160Wh battery.
• FOX 36 Rhythm Air Grip fork provides 160mm of front travel with sweep, rebound, and lockout adjustment.
• FOX FLOAT X NUDE rear shock provides 155-100-Climb travel settings with Climb, Ramp Control, and Descend modes.
• TracLoc Technology controls the rear suspension and dropper remote system.
• SRAM S1000 Eagle AXS Transmission delivers wireless 12-speed electronic shifting.
• SRAM Maven Bronze Stealth 4-piston brakes are paired with 200mm SRAM HS2 rotors front and rear.
• Syncros X-30S tubeless-ready rims are matched with Formula hubs and 30mm internal width.
• Maxxis Assegai and Dissector 2.5″ foldable tires complete the trail-focused wheel setup.

Ride Use

The SCOTT Voltage 910 Bike is built for electric mountain biking. Its Carbon HMF frame, TQ HPR60 motor, 160mm front travel, 155mm rear travel, SRAM S1000 Eagle AXS Transmission, SRAM Maven 4-piston brakes, and Maxxis 2.5″ tires support a long-travel electric trail mountain bike setup.

Why Choose This Bike

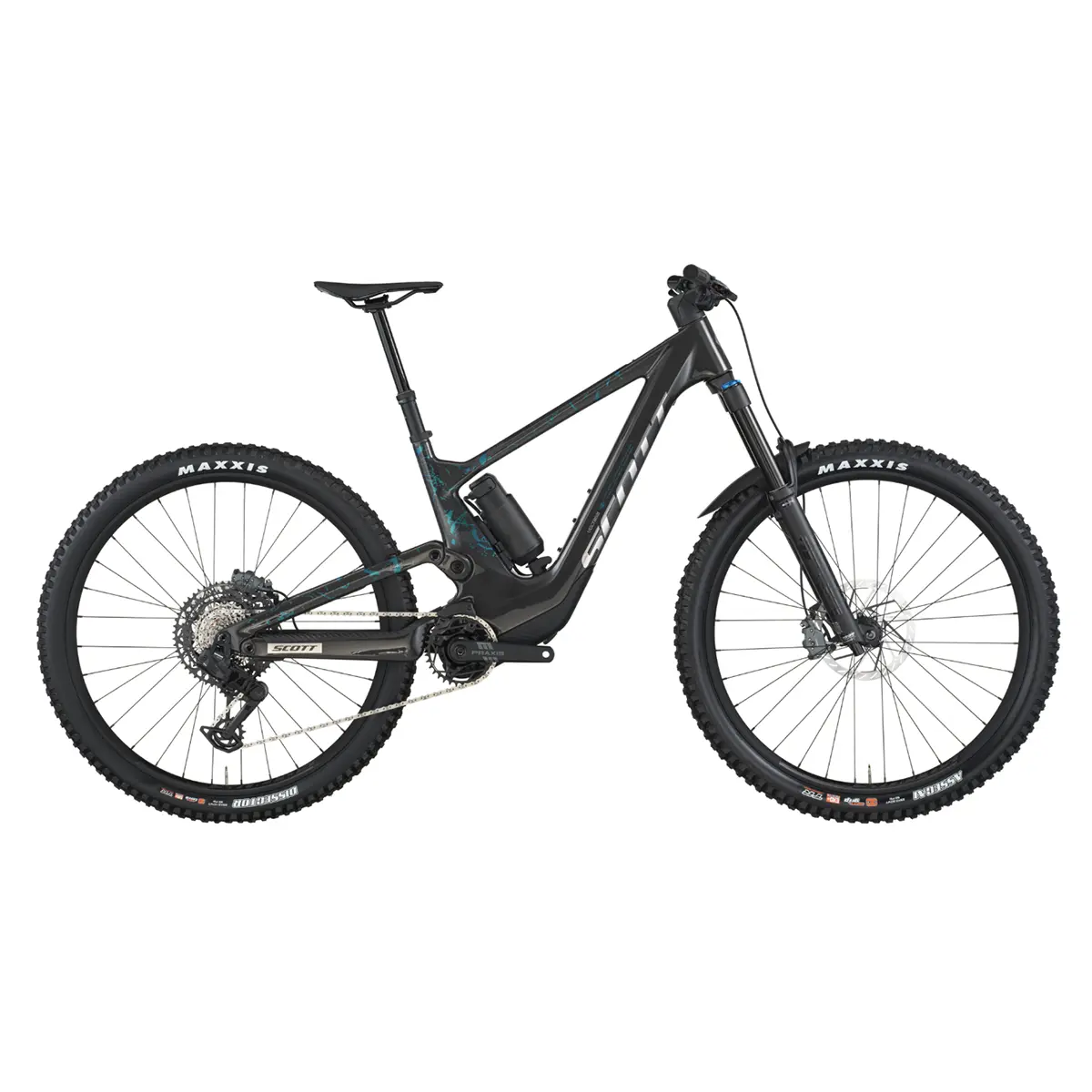

Choose the SCOTT Voltage 910 Bike if you want an electric mountain bike with a Carbon HMF frame, TQ HPR60 mid-drive motor, 360Wh internal battery, 160Wh range extender, FOX 36 Rhythm 160mm fork, FOX FLOAT X NUDE rear shock, SRAM S1000 Eagle AXS Transmission, SRAM Maven Bronze Stealth 4-piston brakes, Syncros X-30S rims, and Maxxis foldable tires. The bike comes in Carbon Black and is available in S, M, L, and XL sizes. SCOTT frames and rear ends are covered by a 5-year manufacturer guarantee. Category 5 frames/rear ends and SCOTT rigid forks are covered for 2 years.
