Canyon Spectral:ON CF 8
$2,699.00
The Canyon Spectral:ON CF 8 is an electric mountain bike with a full-carbon Spectral:ON CF frame, Shimano EP801 motor, Canyon BT010 battery, Fox suspension, Shimano 12-speed drivetrain, Shimano SLX brakes, DT Swiss HLN350 wheels, and Maxxis tires.
Canyon Spectral:ON CF 8 Overview
The Canyon Spectral:ON CF 8 is an electric mountain bike built with a Canyon Spectral:ON CF full-carbon trail e-MTB frame, Shimano EP801 motor, Canyon BT010 battery, Fox suspension, Shimano 12-speed drivetrain, Shimano SLX brakes, and DT Swiss HLN350 wheels. The carbon frame uses a 12×148 mm axle dimension and is designed as a progressive trail e-MTB platform.
The suspension setup pairs a Fox Float X Performance Evolution rear shock with a Fox 38 Rhythm fork. The fork has 160 mm travel, 38 mm stanchions, 15×110 mm axle spacing, a 44 mm offset, and a tapered 1 1/8″ – 1.5″ steerer tube.
Shifting is handled by a Shimano Deore XT M8100 rear derailleur, Shimano Deore SLX M7100 shift lever, Shimano Deore SLX CS-M7100 10-51T cassette, Shimano Steps crank, Canyon 34T chainring, and Shimano Deore M6100 chain. The bike also uses Shimano SLX M7120 disc brakes, 203 mm brake rotors, DT Swiss HLN350 aluminium wheels, and Maxxis Assegai and Maxxis Minion DHR II tires.
Key Features of Canyon Spectral:ON CF 8
- Canyon Spectral:ON CF full-carbon frame built for electric trail mountain biking.
- Shimano EP801 motor powers the electric mountain bike system.
- Canyon BT010 battery pairs with the Shimano motor system.
- Fox Float X Performance Evolution rear shock supports the trail suspension platform.
- Fox 38 Rhythm fork delivers 160 mm travel with 38 mm stanchions.
- Shimano Deore XT and SLX 12-speed drivetrain uses a wide-range 10-51T cassette.
- Shimano SLX M7120 disc brakes are paired with 203 mm brake rotors.
- DT Swiss HLN350 aluminium wheels are paired with Maxxis Assegai and Maxxis Minion DHR II tires.
Ride Use
This bike is built for electric mountain biking and trail riding. The Canyon Spectral:ON CF carbon frame, Shimano EP801 motor, Fox suspension, Shimano SLX brakes, DT Swiss HLN350 wheels, and Maxxis tires support trail-focused e-MTB use.
Why Choose This Bike
The Canyon Spectral:ON CF 8 combines a full-carbon trail e-MTB frame with Shimano EP801 motor support, a Canyon BT010 battery, Fox suspension, Shimano Deore XT and SLX shifting, Shimano SLX braking, DT Swiss HLN350 wheels, and Maxxis tires. The Stealth and Hint of Lime color options give the bike two finish choices, while the included Canyon Charger, VP-536 flat pedals, torque wrench, shock pump, and quick start guide add practical setup support.
Product Specifications
| Feature | Details |
|---|---|
| Frame | Canyon Spectral:ON CF full-carbon trail e-MTB frame, 12x148 mm axle dimension, 7.93 lbs |
| Rear Shock | Fox Float X Performance Evolution, CL, RM, Rezi LM tune, 0.62 lbs |
| Fork | Fox 38 Rhythm, 160 mm travel, 15x110 mm axle dimension, 38 mm stanchions, 44 mm offset, 1 1/8" - 1.5" steerer tube |
| Motor | Shimano EP801 |
| Battery | Canyon BT010 |
| Rear Derailleur | Shimano Deore XT M8100, long cage, 0.62 lbs |
| Shift Lever | Shimano Deore SLX M7100, 0.32 lbs |
| Cassette | Shimano Deore SLX CS-M7100, 12-speed, 10-51T |
| Crank | Shimano Steps, 1 chainring |
| Chainring | Canyon EP1110-01 Chainring 34T |
| Chain | Shimano Deore M6100 |
| Chainguide | Canyon Chainguide M091/M129 |
| Brakes | Shimano SLX M7120 disc brakes, 2-piston and 4-piston configuration |
| Brake Rotors | Shimano RT64 203 mm, RT SHIM EM600 203 CL W/LR INT 203 mm |
| Front Wheel | DT Swiss HLN350 15x110 30mm Centerlock, 15x110 mm axle dimension, Center Lock rotor mount, aluminium rim, 2.26 lbs |
| Rear Wheel | DT Swiss HLN350 12x142 30mm Centerlock, 12x142 mm axle dimension, Center Lock rotor mount, aluminium rim, 2.77 lbs |
| Tires | Maxxis Assegai 2.5", Maxxis Minion DHR II 27.5" x 2.60 WT |
| Thru Axle | Canyon Quixle Through Axle QR 148x12, 12x148 mm axle dimension |
| Stem | Canyon:ON ST0031 aluminium stem, 45 mm length, 1 1/8" steerer tube diameter, 35.0 mm clamp diameter |
| Handlebar | Canyon:ON HB0057 Riser bar, 35.0 mm clamp diameter, 30 mm rise |
| Grips | Canyon Lock-On |
| Saddle | Fizik Terra Aidon X5, unisex, 0.60 lbs |
| Seatpost | Iridium Dropper Post, 30.9 mm diameter, aluminium, 1.25 lbs |
| Lights | Reflector Set |
| Battery Charger | Canyon Charger |
| Pedals | VP-536 flat pedals |
| Included Accessories | Canyon Organza Bag, Wrench Tool 15mm, Canyon Assembly Paste, Canyon Torque Wrench, Canyon Shock Pump 300 Psi, Smallbox, Quick Start Guide Spectral:ON |

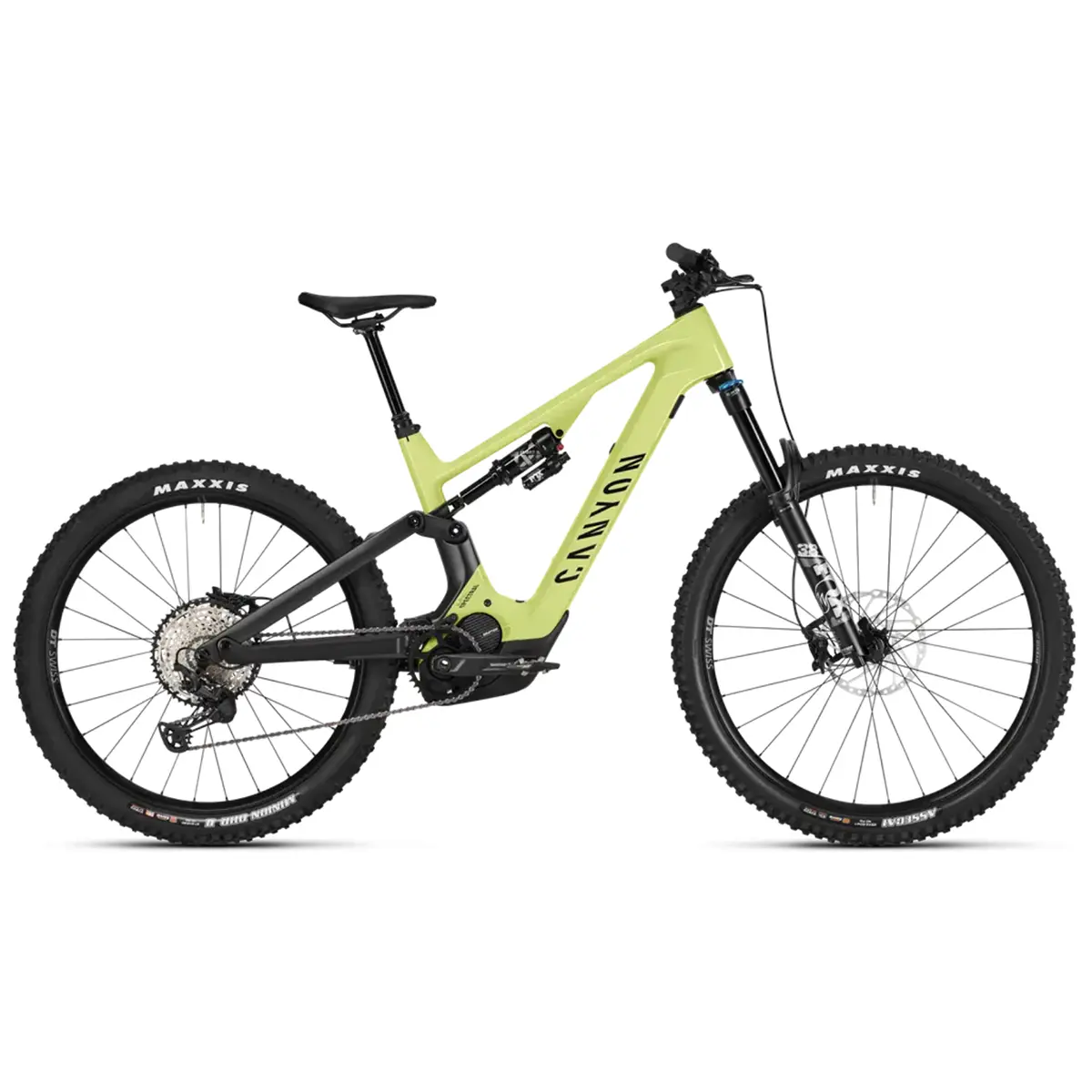

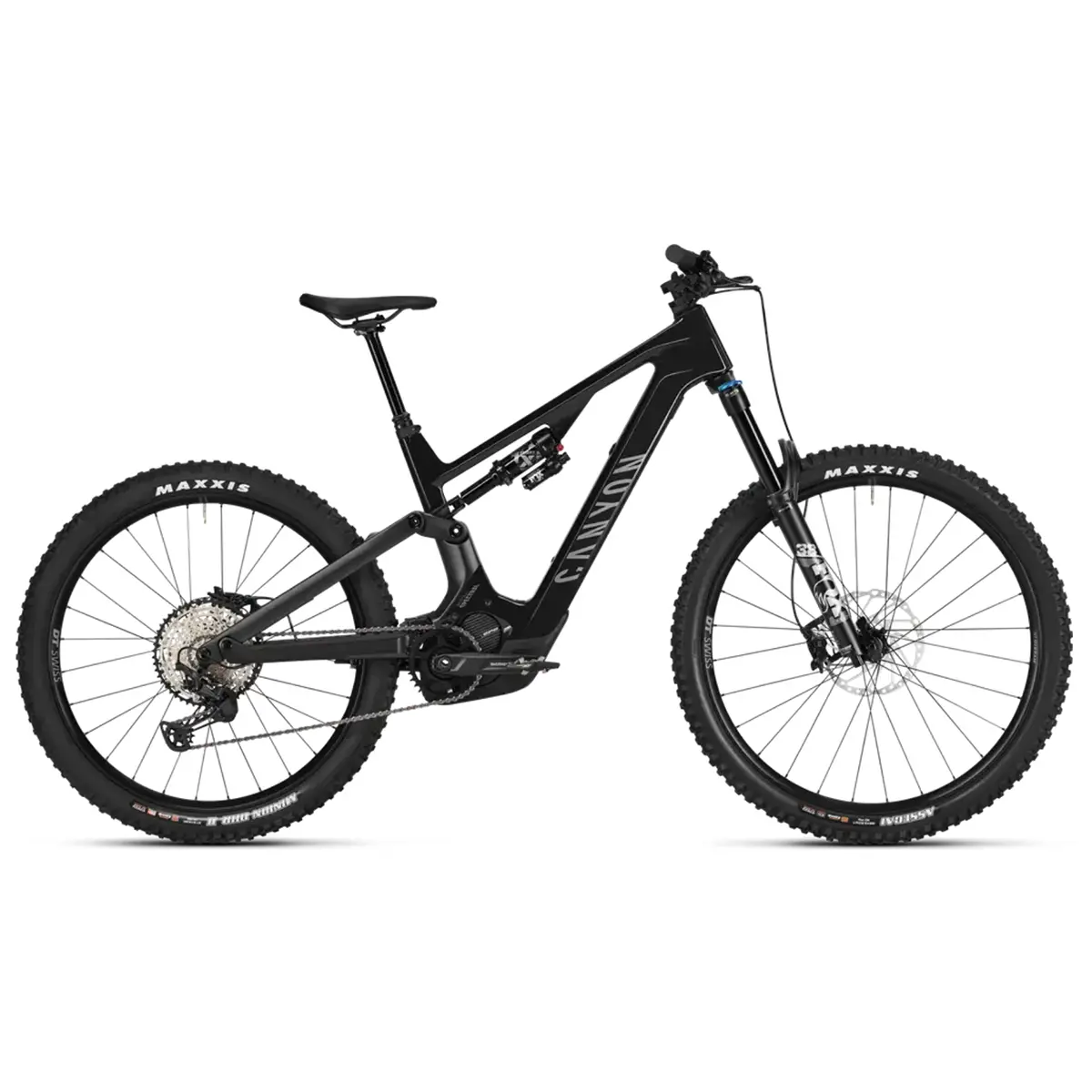

| Color | Stealth, Hint of Lime |
| Manufacturer Warranty | 6-year warranty on Canyon-manufactured parts |
FAQ's Canyon Spectral:ON CF 8
What frame does the Canyon Spectral:ON CF 8 use?
The Canyon Spectral:ON CF 8 uses a Canyon Spectral:ON CF full-carbon trail e-MTB frame. The frame has a 12x148 mm axle dimension and a frame weight of 7.93 lbs.
What motor and battery come with the Canyon Spectral:ON CF 8?
This bike uses a Shimano EP801 motor and a Canyon BT010 battery. A Canyon Charger is included with the bike.
What suspension comes on the Canyon Spectral:ON CF 8?
The bike uses a Fox Float X Performance Evolution rear shock and a Fox 38 Rhythm suspension fork. The fork has 160 mm travel, 38 mm stanchions, 15x110 mm axle spacing, and a 44 mm offset.
What items are included with the Canyon Spectral:ON CF 8?
The bike includes a reflector set, Canyon Charger, VP-536 flat pedals, Canyon Organza Bag, Wrench Tool 15mm, Canyon Assembly Paste, Canyon Torque Wrench, Canyon Shock Pump 300 Psi, Smallbox, and Quick Start Guide Spectral:ON.
