Giant Revolt 2 Gravel Bike 2026
$900.00
The Giant Revolt 2 Gravel Bike 2026 is an aluminum gravel bike with an ALUXX-grade frame, Advanced-grade composite fork, Shimano CUES or Shimano Sora 2×9 drivetrain, Shimano mechanical disc brakes, Giant S-X2 alloy wheels, CrossCut GRIP 1 700x45c tires, and flip chip tire clearance up to 53mm.
Giant Revolt 2 Gravel Bike 2026 Overview
The Giant Revolt 2 Gravel Bike 2026 is an aluminum gravel bike built for confident handling across rugged terrain. It uses an ALUXX-grade aluminum frame with a 12x142mm thru-axle, disc brake construction, and flip chip dropout. The Advanced-grade composite fork adds a full-composite OverDrive steerer and 12mm thru-axle construction.
The frame is designed with endurance positioning and shorter chainstays for precise handling, agility, and control. A longer reach, shorter stem, and lower bottom bracket drop improve stability on rugged terrain. The rear flip chip adjusts the wheelbase, with a short setting for quicker handling and acceleration or a long setting for improved stability at speed.
The drivetrain uses Shimano CUES U3030 2×9 or Shimano Sora 2×9 components, paired with a Shimano CS-LG300 11×36 cassette and Shimano FC-U6030-2 32/46 crankset. Shimano BR-RS305 mechanical disc brakes use Giant MPH 160mm rotors front and rear for braking control on gravel rides.
The build includes Giant S-X2 alloy rims, Giant alloy 12mm thru-axle hubs, stainless spokes, and CrossCut GRIP 1 700x45c tires. The D-Fuse alloy seatpost and Giant Contact XR Ergo-Control handlebar work with the dropped seatstay frame design to help absorb road shock and vibration.
Key Features of Giant Revolt 2 Gravel Bike 2026
- ALUXX-grade aluminum frame gives the bike a durable gravel platform with disc brake and thru-axle construction.
- Advanced-grade composite fork uses a full-composite OverDrive steerer and 12mm thru-axle.
- Endurance positioning, shorter chainstays, longer reach, shorter stem, and lower bottom bracket drop support stable gravel handling.
- Flip chip dropout adjusts the wheelbase and supports up to 53mm tire clearance in the long position.
- Shimano CUES U3030 or Shimano Sora 2×9 drivetrain pairs with an 11×36 cassette and 32/46 crankset.
- Shimano BR-RS305 mechanical disc brakes use 160mm Giant MPH rotors front and rear.
- Giant S-X2 alloy wheels use Giant alloy 12mm thru-axle hubs and stainless spokes.
- CrossCut GRIP 1 700x45c tires come with a tubeless prepared setup.
Ride Use
This bike is built for gravel riding, with an ALUXX-grade aluminum frame, Advanced-grade composite fork, disc brakes, 700x45c tires, and adjustable tire clearance. The flip chip dropout lets the setup prioritize quicker handling and acceleration or added stability with clearance up to 53mm in the long position.
Why Choose This Bike
The Giant Revolt 2 Gravel Bike 2026 combines an ALUXX-grade aluminum frame, Advanced-grade composite fork, Shimano 2×9 drivetrain components, Shimano mechanical disc brakes, Giant S-X2 alloy wheels, and CrossCut GRIP 1 700x45c tires. It also includes practical gravel details such as flip chip dropout adjustment, tubeless prepared setup, D-Fuse alloy seatpost, and Giant Lifetime Limited Warranty coverage for the original owner.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Giant |
| Model | Revolt 2 Gravel Bike 2026 |
| Bike Type | Gravel Bike |
| Sizes | XS, S, M, M/L, L, XL |

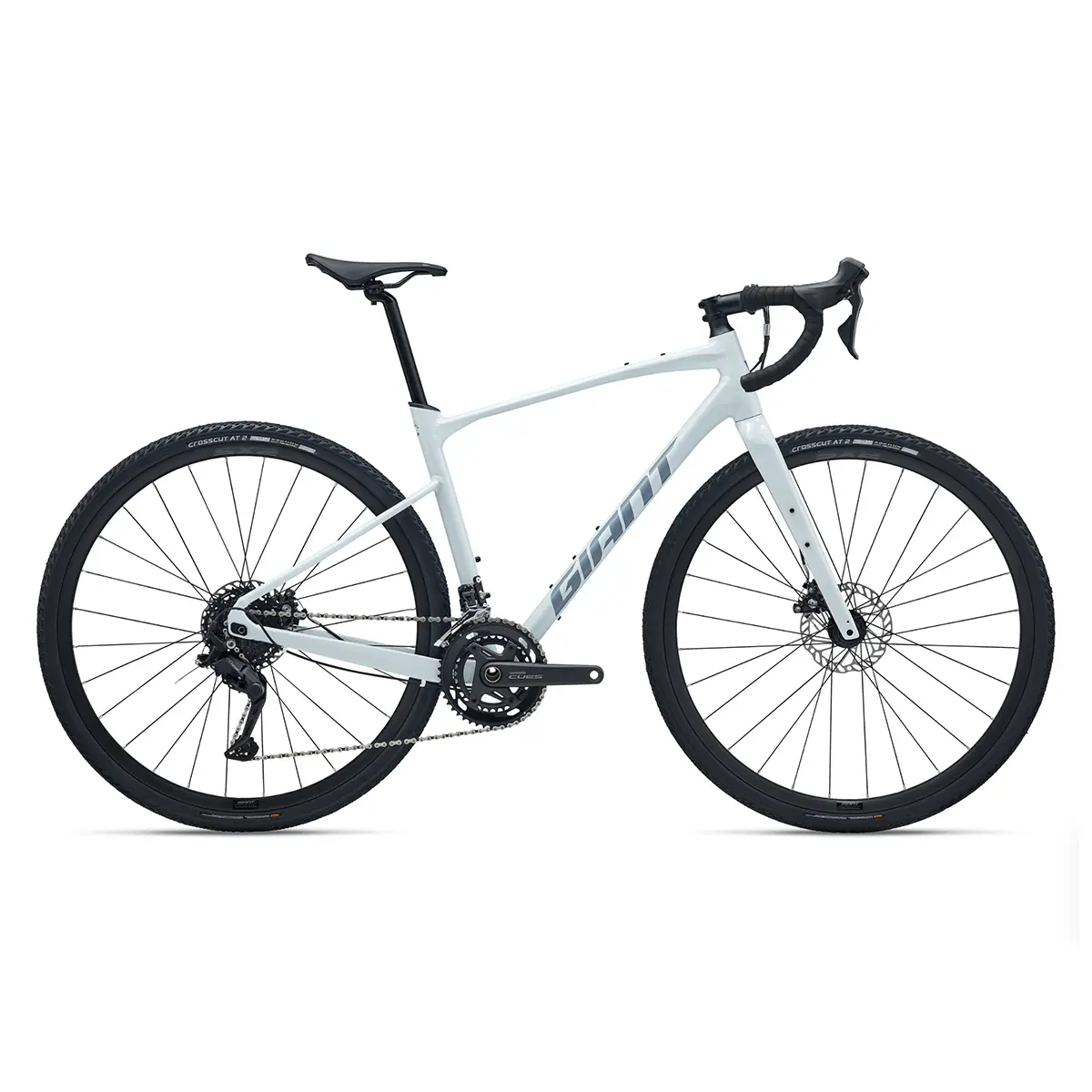

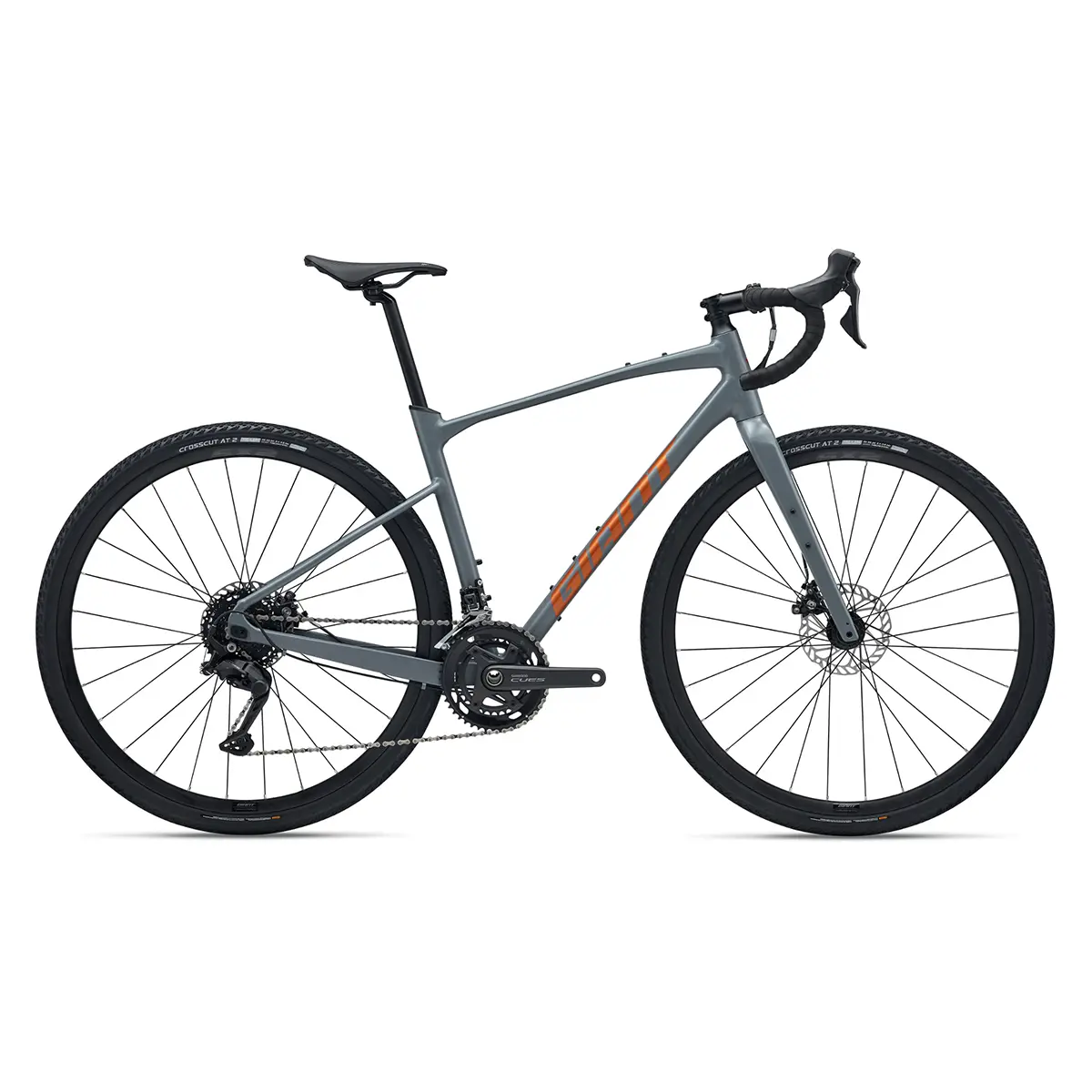

| Color | Ocean Storm, Icicle White |
| Frame | ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout |
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Handlebar | Giant Contact XR Ergo-Control, 31.8mm; XS: 42cm, S: 42cm, M: 44cm, M/L: 44cm, L: 46cm, XL: 46cm |
| Grips | Cork tape with gel |
| Stem | Giant Contact, 8-degree; XS: 50mm, S: 60mm, M: 70mm, M/L: 80mm, L: 80mm, XL: 90mm |
| Seatpost | Giant D-Fuse, alloy, 14mm offset |
| Saddle | Giant Grit |
| Shifters | Shimano CUES U3030, 2x9 or Shimano Sora, 2x9 |
| Front Derailleur | Shimano CUES U6030 or Shimano Sora |
| Rear Derailleur | Shimano CUES U4020 or Shimano Sora, long cage |
| Brakes | Shimano BR-RS305 mechanical, Giant MPH rotors 160mm front and rear |
| Brake Levers | Shimano CUES U3030 or Shimano Sora |
| Cassette | Shimano CS-LG300, 11x36 |
| Chain | KMC X11 |
| Crankset | Shimano FC-U6030-2, 32/46; XS: 170mm, S: 170mm, M: 172.5mm, M/L: 172.5mm, L: 175mm, XL: 175mm |
| Bottom Bracket | Shimano, threaded |
| Rims | Giant S-X2, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Stainless |
| Tires | CrossCut GRIP 1, 700x45c |
| Max Tire Clearance | 53mm |
| Extras | Tubeless prepared, 53mm max tire size in long flip chip position, 45mm max tire size in short flip chip position |
| Manufacturer Warranty | Giant Lifetime Limited Warranty for the original owner: lifetime frame warranty, 10-year rigid fork warranty, and limited coverage for original Giant parts. |
FAQ's Giant Revolt 2 Gravel Bike 2026
What frame does the Giant Revolt 2 Gravel Bike 2026 use?
The Giant Revolt 2 Gravel Bike 2026 uses an ALUXX-grade aluminum frame with a 12x142mm thru-axle, disc brake construction, and flip chip dropout. It is paired with an Advanced-grade composite fork with a full-composite OverDrive steerer and 12mm thru-axle.
What drivetrain comes on the Giant Revolt 2 Gravel Bike 2026?
The bike comes with Shimano CUES U3030 2x9 or Shimano Sora 2x9 drivetrain components. The drivetrain includes a Shimano CS-LG300 11x36 cassette and Shimano FC-U6030-2 32/46 crankset.
What is the maximum tire clearance on the Giant Revolt 2 Gravel Bike 2026?
The maximum tire clearance is 53mm. The long flip chip position supports up to 53mm tire clearance, while the short flip chip position supports up to 45mm tire clearance.
What wheels and tires are on the Giant Revolt 2 Gravel Bike 2026?
The bike comes with Giant S-X2 alloy rims, Giant alloy 12mm thru-axle hubs, and stainless spokes. It uses CrossCut GRIP 1 700x45c tires with a tubeless prepared setup.
