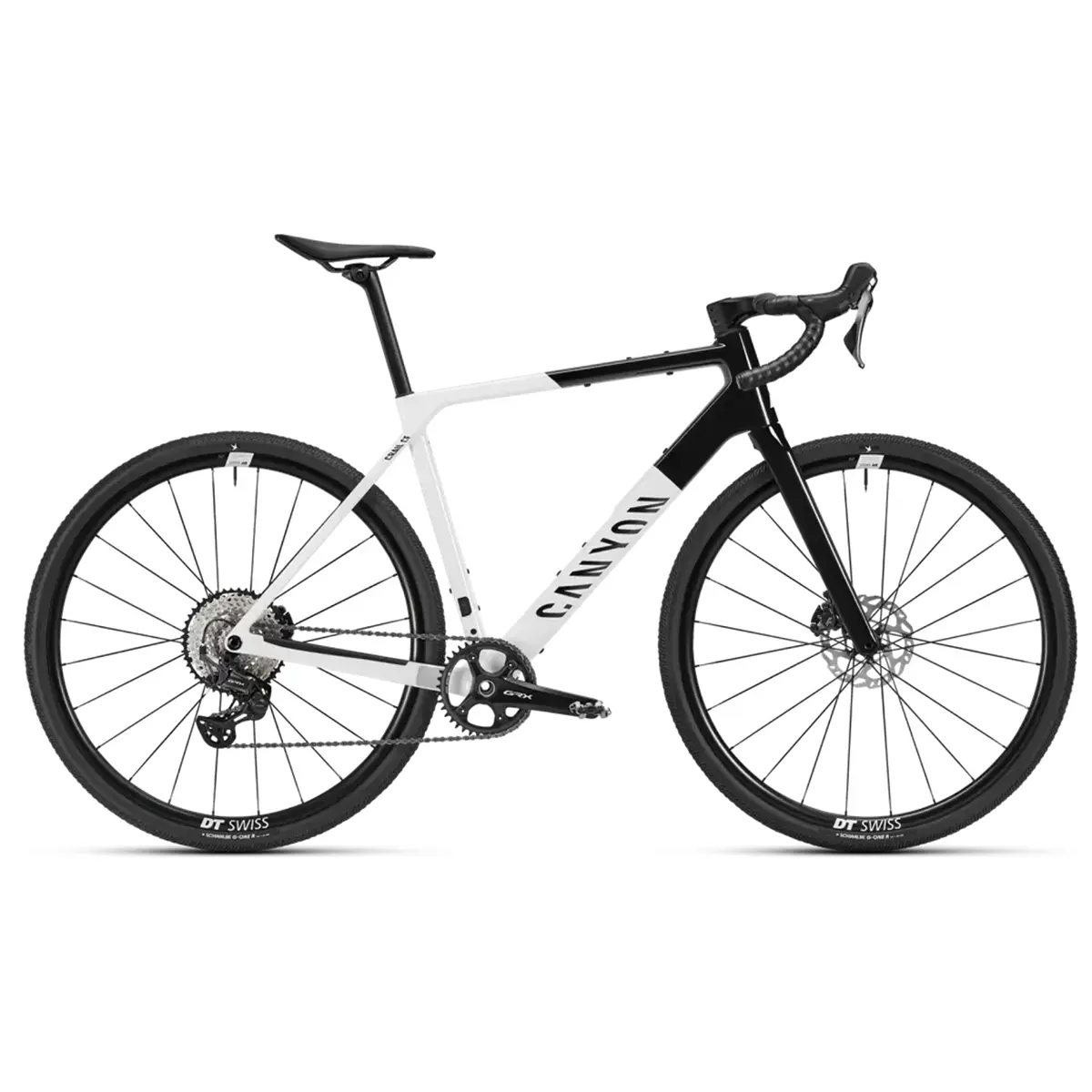

Canyon Grail CF 8 1by Gravel Bike

Canyon Grail CF 8 1by Gravel Bike Overview

The Canyon Grail CF 8 1by Gravel Bike is a carbon gravel bike built with a Canyon Grail CF SL frame, Canyon FK0117 CF Disc carbon fork, and Shimano GRX 1×12 drivetrain. The frame uses carbon construction, aero tube forms, top tube mounts, strapless bag compatibility, 12×142 mm rear axle dimension, and 42 mm tyre clearance.

The drivetrain includes a Shimano GRX RD-RX822 12-speed rear derailleur with medium cage, Shimano SLX CS-M7100 10-45 12-speed cassette, Shimano GRX FC-RX820 crank with 1 chainring, Shimano Pressfit BB-RS500 bottom bracket, and Shimano CN-M7100 12-speed chain. Braking is handled by Shimano GRX BL-RX820 shift/brake levers with Shimano SM-RT70 160 mm rotors.

The wheel setup uses DT Swiss G1800 Spline front and rear wheels with aluminium rims, 25 mm rim height, 24 mm inner width, Center Lock rotor mounts, and 12 mm thru-axle spacing. Schwalbe G-One R Performance 40 mm tyres complete the wheel and tyre package. The cockpit is a Canyon Cockpit CP0045 carbon one-piece unit with gravel ergonomics, 16° flare at the drops, and 5° backsweep on the tops.

Key Features of Canyon Grail CF 8 1by Gravel Bike

• Canyon Grail CF SL carbon frame with aero tube forms, top tube mounts, strapless bag compatibility, and 42 mm tyre clearance.
• Canyon FK0117 CF Disc carbon fork with 12×100 mm axle dimension and LOAD Fork Sleeve Quickloader compatibility.
• Shimano GRX 1×12 drivetrain with Shimano GRX RD-RX822 rear derailleur and medium cage.
• Shimano SLX CS-M7100 10-45 cassette provides a wide 12-speed gear range for the 1by setup.
• Shimano GRX BL-RX820 shift/brake levers paired with Shimano SM-RT70 160 mm rotors.
• DT Swiss G1800 Spline wheels with aluminium rims, 25 mm rim height, and 24 mm inner width.
• Schwalbe G-One R Performance 40 mm tyres matched with the frame and fork clearance.
• Canyon Cockpit CP0045 carbon one-piece cockpit with 16° drop flare and 5° backsweep.

Ride Use

The Canyon Grail CF 8 1by is a gravel bike with a carbon Grail CF SL frame, 42 mm tyre clearance, Shimano GRX 1×12 drivetrain, and Schwalbe G-One R Performance 40 mm tyres. Its confirmed category, frame details, drivetrain setup, and tyre width place it clearly in the gravel bike segment.

Why Choose This Bike

Choose the Canyon Grail CF 8 1by for a carbon gravel bike with a 1×12 Shimano GRX drivetrain, DT Swiss G1800 Spline wheels, and a Canyon Grail CF SL frame. The frame includes aero tube forms, top tube mounts, strapless bag compatibility, and 42 mm tyre clearance.

The build uses a Shimano SLX 10-45 12-speed cassette, Shimano GRX FC-RX820 1-chainring crank, Shimano GRX BL-RX820 levers, and Shimano SM-RT70 160 mm rotors. The carbon finishing kit includes a Canyon Cockpit CP0045 one-piece cockpit and Canyon SP0096-01 carbon seatpost. The bike comes in White Sprint and includes a reflector set, Canyon Organza Bag, Canyon Assembly Paste, Canyon Torque Wrench, Quick Start Guide, and Smallbox. Canyon-manufactured parts are covered by a 6-year warranty.
