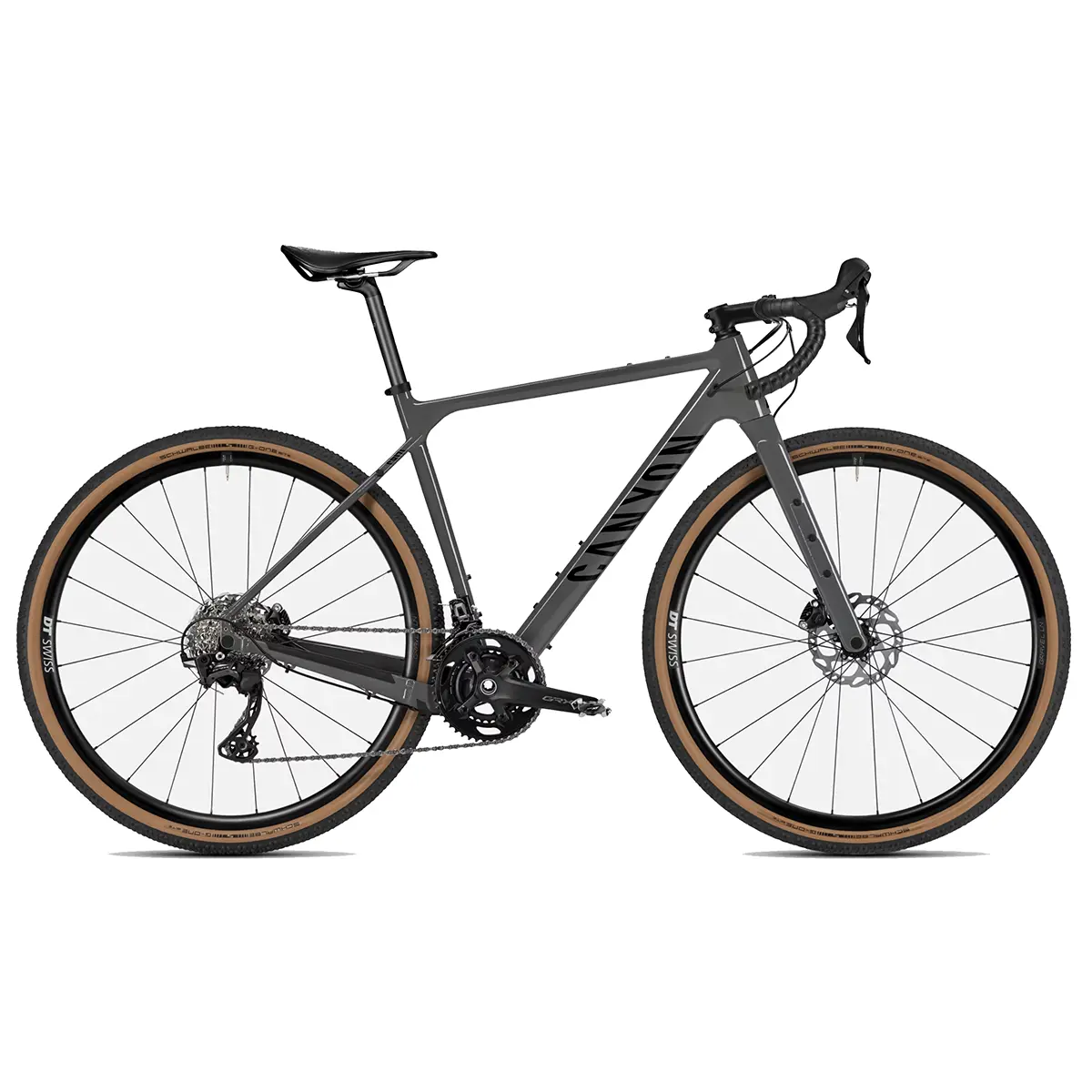

Canyon Grizl 7 RAW Gravel Bike

Canyon Grizl 7 RAW Gravel Bike Overview

The Canyon Grizl 7 RAW Gravel Bike is an aluminium gravel bike built with a Canyon Grizl AL frame, Canyon FK0087 CF Disc carbon fork, and Shimano GRX 2×12 drivetrain. The frame uses Gravel Pro geometry, mounting points, an extended wheelbase, 12×142 mm rear axle spacing, and 50 mm tyre clearance.

The Canyon FK0087 CF Disc fork is made from carbon and includes 3-screw mounting points on each side for bottle cages and Anything Cages. It has a 12×100 mm axle dimension, 1 1/4″ steerer tube diameter, and 54 mm tyre clearance.

The drivetrain includes a Shimano GRX RD-RX820 12-speed rear derailleur, Shimano GRX FD-RX820 front derailleur, Shimano CS-HG710 11-36 12-speed cassette, Shimano GRX FC-RX610 crank with 2 chainrings, Token Ninja Lite BB4124 bottom bracket, and Shimano Deore M6100 chain. Braking is handled by Shimano GRX BL-RX610 shift/brake levers with Shimano SM-RT70 160 mm rotors.

For wheels and tyres, the bike uses DT Swiss Gravel LN front and rear wheels with aluminium rims, 25 mm rim height, 24 mm inner width, and Center Lock rotor mounts. Schwalbe G-One Bite Performance 45 mm tyres complete the wheel setup. The cockpit includes a Canyon ST0035 aluminium stem, Canyon HB0064 Ergo aluminium handlebar with flared drops, Canyon Ergospeed Gel bar tape, and a Canyon SP0057 VCLS carbon seatpost.

Key Features of Canyon Grizl 7 RAW Gravel Bike

• Canyon Grizl AL aluminium frame with Gravel Pro geometry, mounting points, extended wheelbase, and 50 mm tyre clearance.
• Canyon FK0087 CF Disc carbon fork with 3-screw mounting points on each side and 54 mm tyre clearance.
• Shimano GRX 2×12 drivetrain with Shimano CS-HG710 11-36 cassette and Shimano GRX FC-RX610 crank.
• Shimano GRX BL-RX610 shift/brake levers paired with Shimano SM-RT70 160 mm rotors.
• DT Swiss Gravel LN wheels with aluminium rims, 24 mm inner width, and Center Lock rotor mounts.
• Schwalbe G-One Bite Performance 45 mm tyres matched with the gravel frame and fork clearance.
• Canyon HB0064 Ergo aluminium handlebar with flared drops for off-road control.
• Canyon SP0057 VCLS carbon seatpost with 20 mm setback and 27.2 mm diameter.

Ride Use

The Canyon Grizl 7 RAW is a gravel bike with an aluminium Grizl AL frame, Gravel Pro geometry, extended wheelbase, 50 mm frame tyre clearance, and 45 mm tyres. Its frame, fork mounting points, tyre clearance, and gravel category place it in the gravel bike segment with off-road-focused equipment.

Why Choose This Bike

Choose the Canyon Grizl 7 RAW for an aluminium gravel bike with a carbon fork, Shimano GRX 2×12 drivetrain, DT Swiss Gravel LN wheels, and Schwalbe G-One Bite Performance 45 mm tyres. The frame includes multiple mounting points and 50 mm tyre clearance, while the carbon fork adds 3-screw mounting points on each side.

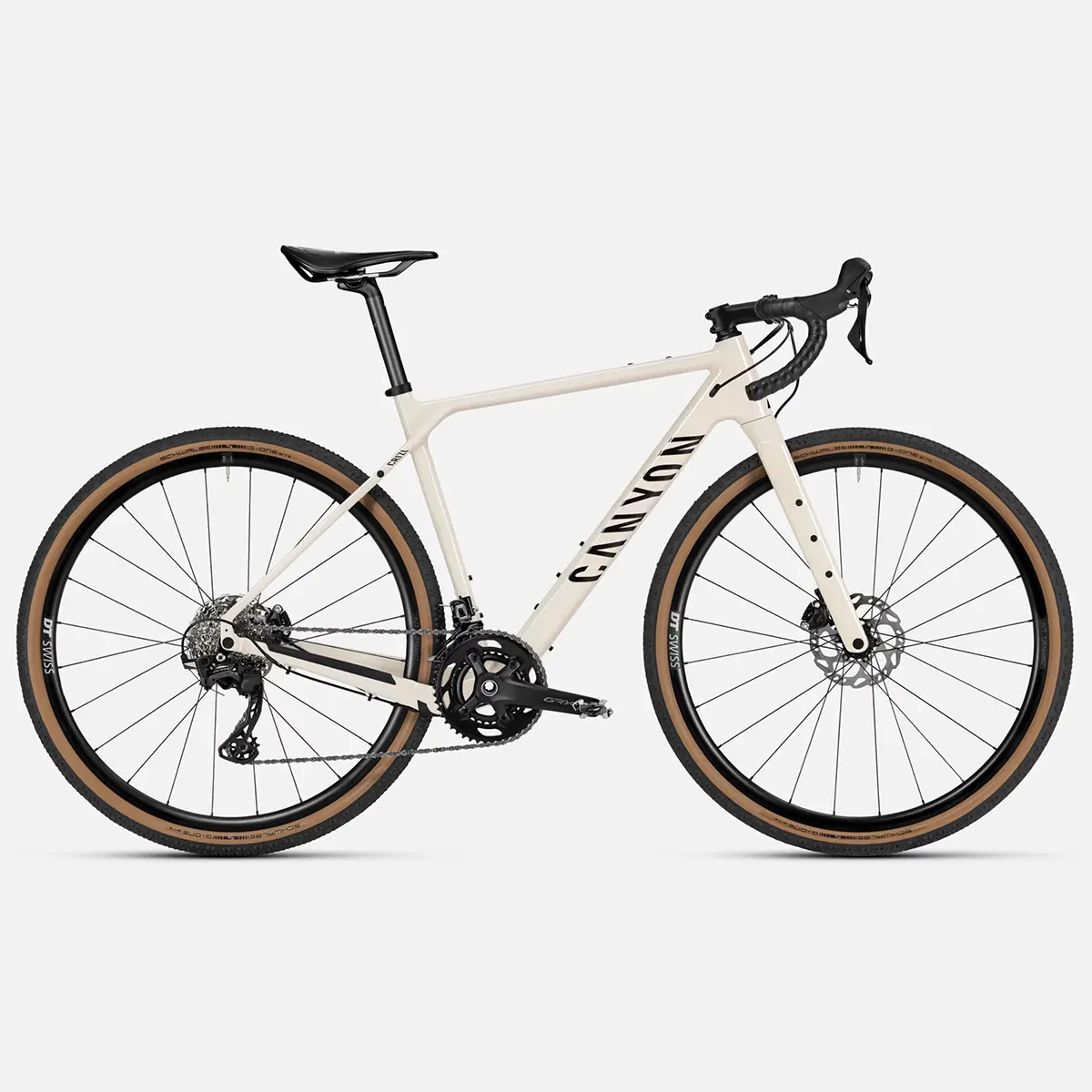

The component package is straightforward and clearly specified, with Shimano GRX shifting, Shimano 160 mm rotors, aluminium DT Swiss gravel wheels, an aluminium Canyon cockpit, and a carbon Canyon SP0057 VCLS seatpost. The bike is available in Darjeeling and Affogato. Canyon-manufactured parts are covered by a 6-year warranty.
