Trek Fuel+ EX 8 Gen 2

Trek Fuel+ EX 8 Gen 2 Overview

The Trek Fuel+ EX 8 Gen 2 is an aluminum electric mountain bike built with a TQ-HPR60 motor, TQ 580Wh battery, Fox suspension, SRAM Eagle 70 T-Type drivetrain, and Bontrager Line TLR 30 rims. The Alpha NEXT Platinum aluminum frame uses a removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148 spacing, and adaptable travel from 145mm to 160mm.

The suspension setup pairs a Fox Rhythm 36 fork with a Fox Performance Float X rear shock. The fork uses a Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110 spacing, 15mm Kabolt X axle, and 150mm travel. The rear shock includes a 2-position damper and measures 205mm x 60mm.

The electric system is built around a TQ-HPR60 motor with 60 Nm of torque, 250 watt maximum continuous rated power, and 350 watt peak power. It is paired with a TQ 580Wh battery, TQ 4A charger, and TQ LED display with Bluetooth and ANT+ connectivity. The bike is classified as a Class 1 e-bike.

The SRAM Eagle 70 T-Type drivetrain includes a SRAM Eagle 70 12-speed shifter, SRAM Eagle 70 T-Type rear derailleur, SRAM Eagle 70 crank, SRAM T-Type 32T alloy chainring, SRAM Eagle XS-1270 10-52T 12-speed cassette, and SRAM Eagle 70 T-Type 12-speed chain. SRAM DB 8 4-piston hydraulic disc brakes use SRAM Centerline 2.0 200mm rotors.

Key Features of Trek Fuel+ EX 8 Gen 2

• Alpha NEXT Platinum aluminum frame uses a removable battery design, ABP suspension, UDH, Boost148 spacing, and adaptable 145mm-160mm travel.
• TQ-HPR60 motor delivers 60 Nm of torque with 250 watt maximum continuous rated power and 350 watt peak power.
• TQ 580Wh battery works with a TQ 4A charger and TQ LED display with Bluetooth and ANT+ connectivity.
• Fox Rhythm 36 fork provides 150mm travel with Float EVOL air spring and GRIP damper.
• Fox Performance Float X rear shock includes a 2-position damper and measures 205mm x 60mm.
• SRAM Eagle 70 T-Type drivetrain pairs a 12-speed setup with a 10-52T cassette.
• Bontrager Line TLR 30 Tubeless Ready rims are paired with Bontrager sealed bearing hubs.
• SRAM DB 8 4-piston hydraulic disc brakes use SRAM Centerline 2.0 6-bolt 200mm rotors.

Ride Use

This bike is built for electric mountain biking, with an aluminum full-suspension frame, TQ-HPR60 motor, 580Wh battery, and Fox suspension. The SRAM Eagle 70 T-Type drivetrain, Bontrager Brevard Pro XR tires, Bontrager Line TLR 30 rims, and SRAM DB 8 4-piston brakes match its electric MTB build.

Why Choose This Bike

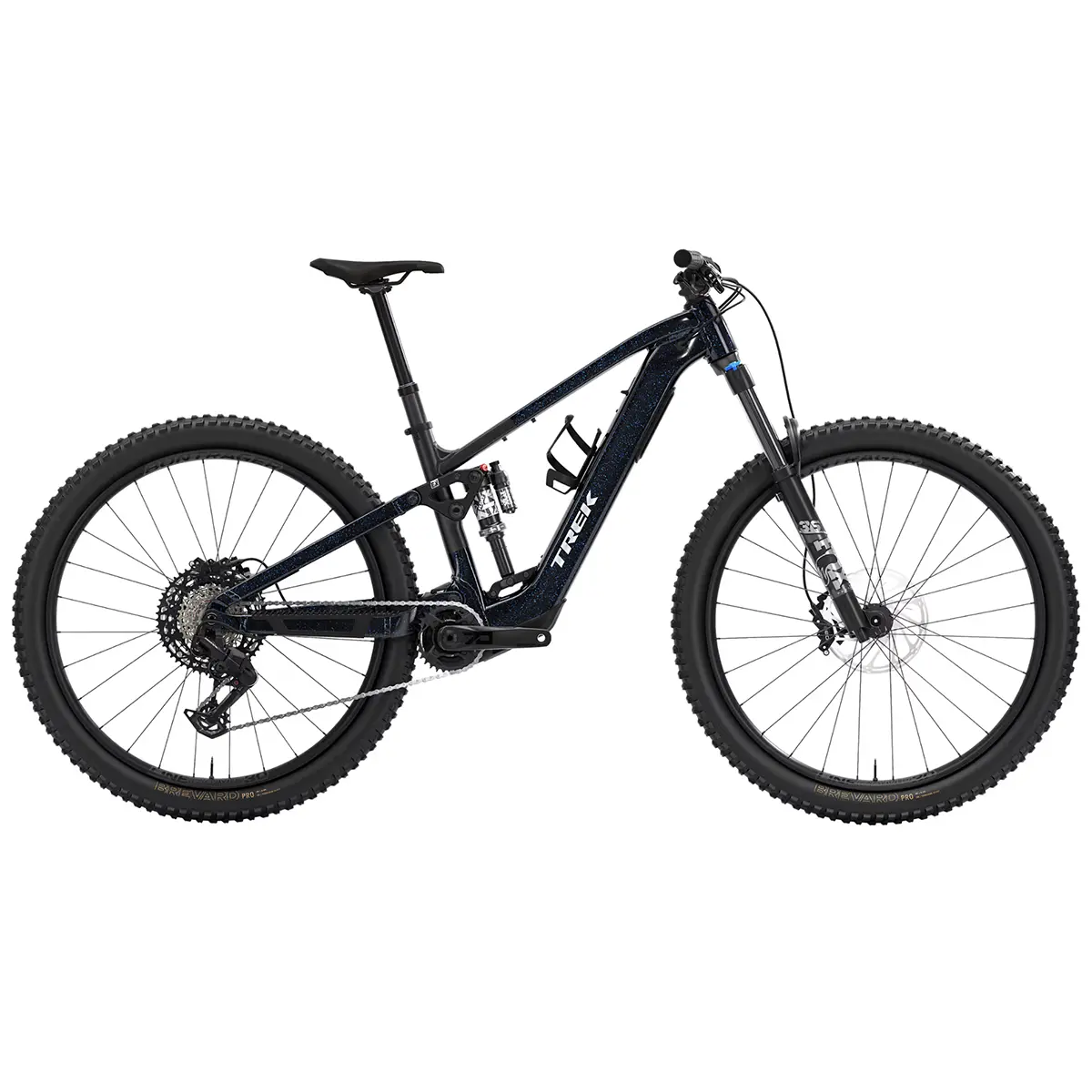

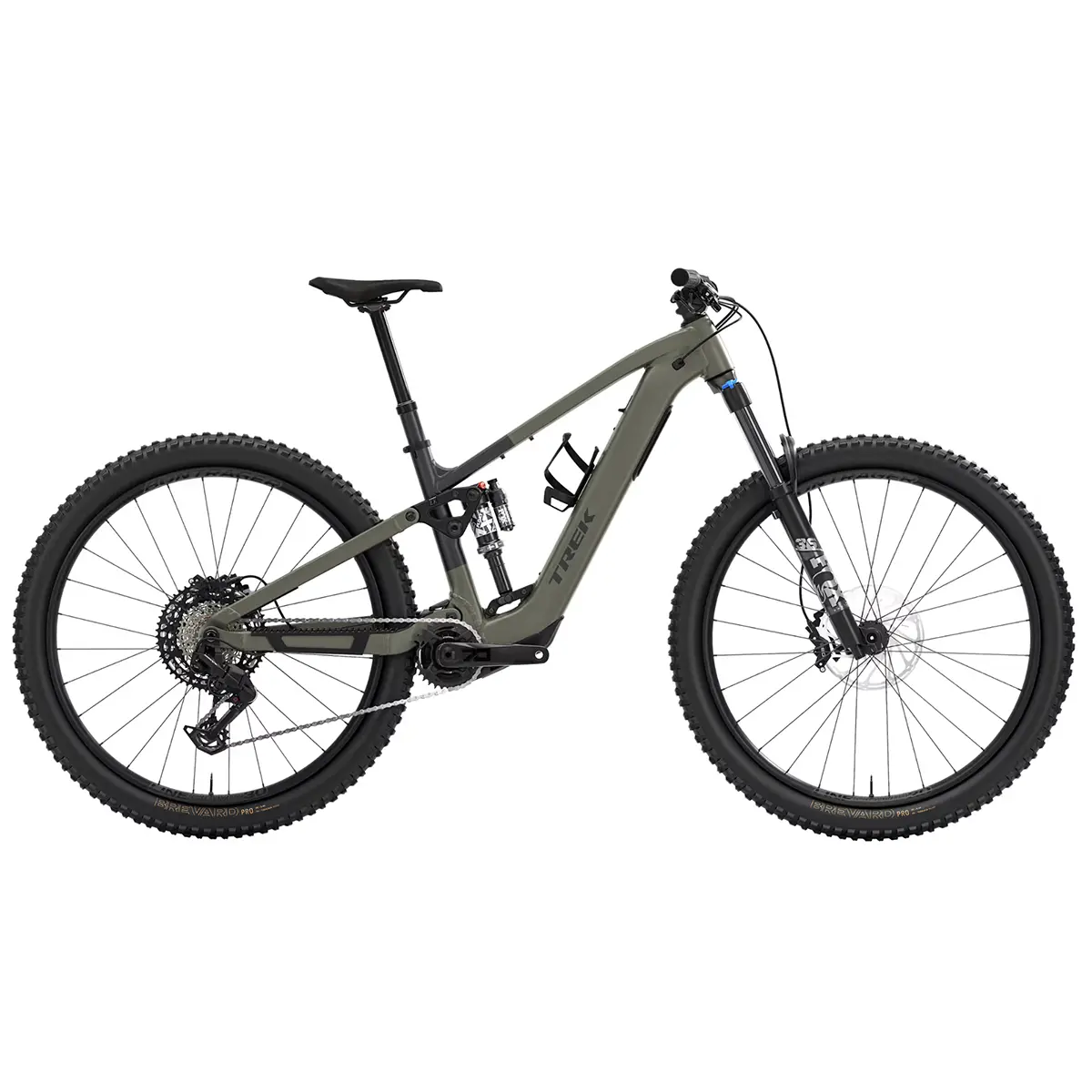

The Trek Fuel+ EX 8 Gen 2 combines a Trek aluminum e-MTB frame, TQ electric system, Fox Rhythm 36 fork, Fox Performance Float X rear shock, SRAM Eagle 70 T-Type drivetrain, Bontrager Line TLR 30 rims, Bontrager Brevard Pro XR tires, and SRAM DB 8 hydraulic disc brakes. It is available in Purple Flip Splatter and Matte Olive Grey, with a size M weight of 21.08 kg / 46.48 lbs with TLR sealant and no tubes. Trek frames and full-suspension swing arms are covered for the lifetime of the original owner, while other parts are covered under Trek’s limited warranty.
