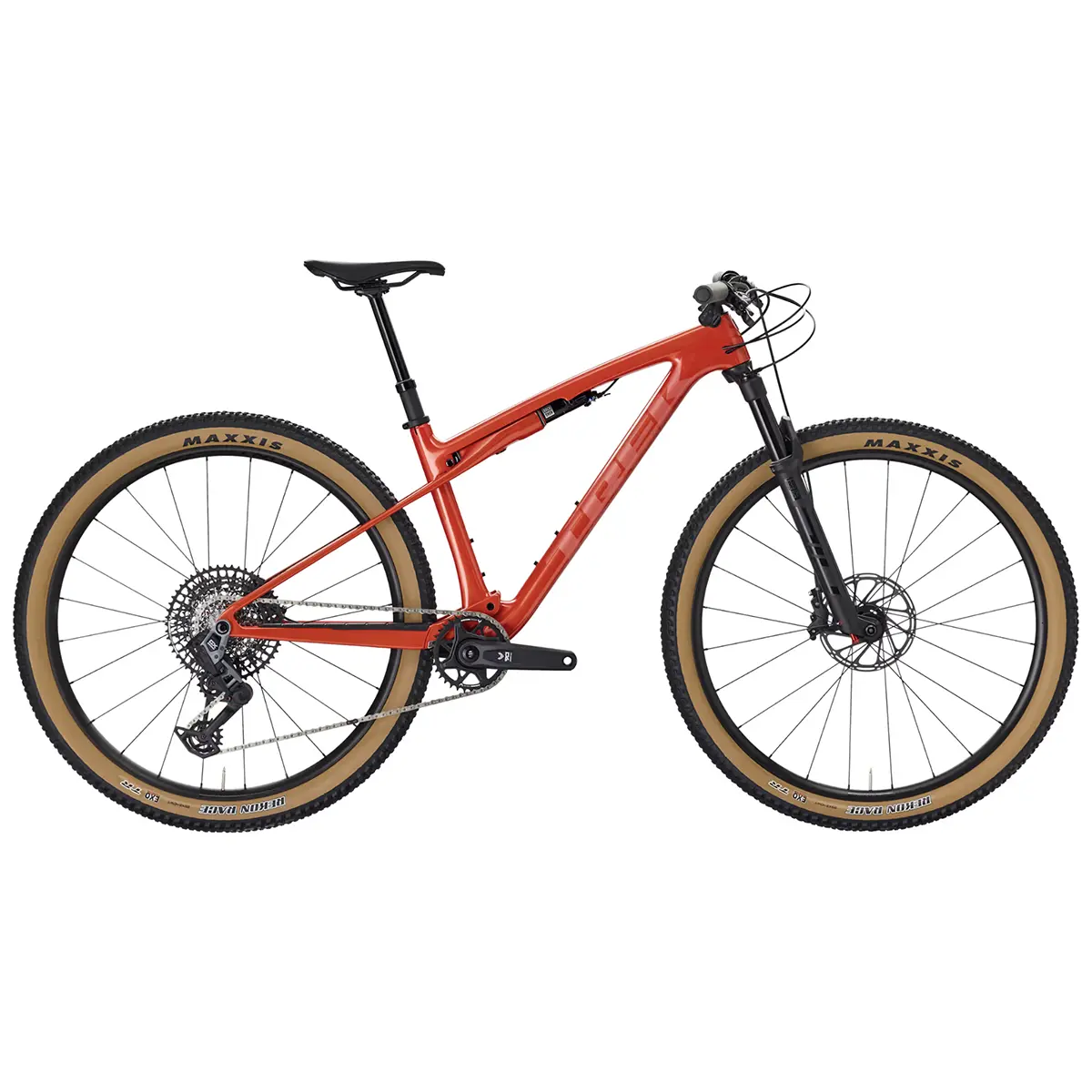

Trek Supercaliber SL 9.7 GX AXS Gen 2
$3,899.00
The Trek Supercaliber SL 9.7 GX AXS Gen 2 is a carbon cross-country mountain bike with an SL OCLV Mountain Carbon frame, IsoStrut suspension, RockShox SID 110mm fork, SRAM GX Eagle AXS T-Type drivetrain, Bontrager Kovee Comp 25 wheels, Maxxis Rekon Race tires, and SRAM Motive Bronze Stealth hydraulic disc brakes.
| Color | Lava |
|---|
Trek Supercaliber SL 9.7 GX AXS Gen 2 Overview
The Trek Supercaliber SL 9.7 GX AXS Gen 2 is a carbon cross-country mountain bike built with an SL OCLV Mountain Carbon frame, IsoStrut suspension, and SRAM GX Eagle AXS T-Type wireless shifting. The frame uses UDH, 80mm of rear travel, and a Trek IsoStrut with RockShox SIDLuxe 2-position remote damper.
Front suspension comes from a RockShox SID fork with DebonAir spring, Rush RL damper, remote lockout, tapered steerer, 44mm offset, Boost110 spacing, 15mm Maxle Stealth axle, and 110mm travel. The electronic drivetrain system includes a SRAM AXS battery pack with charger.
The drivetrain uses a SRAM AXS pod shifter, SRAM GX Eagle AXS T-Type rear derailleur, SRAM Eagle XS-1275 10-52T 12-speed cassette, and SRAM GX Eagle T-Type 12-speed chain. The SRAM Eagle 90 crankset uses T-Type construction, DUB, a 34T chainring, 55mm chainline, and size-specific crank lengths.
The wheel setup uses Bontrager Kovee Comp 25 29-inch wheels with Tubeless Ready construction. The front wheel uses 6-bolt mounting, Boost110 spacing, and a 15mm thru axle, while the rear wheel uses Rapid Drive 108, Boost148 spacing, and a 12mm thru axle. Maxxis Rekon Race 29×2.40” tubeless-ready tires use EXO casing, folding beads, and 60tpi construction.
Braking is handled by SRAM Motive Bronze Stealth 4-piston hydraulic disc brakes with SRAM CenterLine 6-bolt rotors. Finishing parts include a Verse Short Elite saddle with hollow magnesium rails, Bontrager Line Dropper seatpost, OCLV Carbon handlebar, Bontrager Elite stem, and FSA IS-2 headset. The bike comes in Lava, with a size M weight of 12.18 kg / 26.86 lbs with TLR sealant and no tubes.
Key Features of Trek Supercaliber SL 9.7 GX AXS Gen 2
- SL OCLV Mountain Carbon frame with IsoStrut gives the bike a carbon cross-country platform with 80mm of rear travel.
- RockShox SID fork uses DebonAir spring, Rush RL damper, remote lockout, and 110mm travel.
- Trek IsoStrut rear suspension is paired with a RockShox SIDLuxe 2-position remote damper.
- SRAM GX Eagle AXS T-Type drivetrain uses wireless shifting with a 10-52T 12-speed cassette.
- SRAM Eagle 90 crankset uses T-Type construction, DUB, a 34T chainring, and size-specific crank lengths.
- Bontrager Kovee Comp 25 29-inch wheels use Tubeless Ready construction and Boost spacing.
- Bontrager Line Dropper seatpost uses MaxFlow, internal routing, and size-specific travel.
- SRAM Motive Bronze Stealth 4-piston hydraulic disc brakes are paired with SRAM CenterLine 6-bolt rotors.
Ride Use
This bike fits the cross-country mountain bike category, with an SL OCLV Mountain Carbon frame, 80mm rear travel, a 110mm RockShox SID fork, and 29-inch tubeless-ready wheels. The SRAM GX Eagle AXS T-Type drivetrain, 10-52T cassette, Maxxis Rekon Race tires, and remote suspension controls support XC riding with a focused off-road component package.
Why Choose This Bike
Choose this bike for a carbon cross-country build centered on Trek’s SL OCLV Mountain Carbon Supercaliber frame, IsoStrut rear suspension, RockShox SID fork, and SRAM GX Eagle AXS T-Type drivetrain. It also includes Bontrager Kovee Comp 25 29-inch tubeless-ready wheels, Maxxis Rekon Race 29×2.40” tires, SRAM Motive Bronze Stealth 4-piston hydraulic disc brakes, a Bontrager Line Dropper seatpost, and OCLV Carbon handlebar options. It comes in Lava, with a size M weight of 12.18 kg / 26.86 lbs with TLR sealant and no tubes.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Trek |
| Model | Supercaliber SL 9.7 GX AXS Gen 2 |
| Bike Type | Cross Country Mountain Bike |
| Frame | SL OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel |
| Fork | RockShox SID, DebonAir spring, Rush RL damper, remote lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 110mm travel |
| Shock | Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper |
| Front Wheel | Bontrager Kovee Comp 25, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' |
| Rear Wheel | Bontrager Kovee Comp 25, Tubeless Ready, Rapid Drive 108, Boost148, 12mm thru axle, 29'' |
| Rear Skewer | Bontrager Switch thru axle, removable lever |
| Tire | Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.40'' |
| Tire Part | Bontrager TLR sealant, 6oz |
| Rim Strip | Bontrager TLR |
| Max Tire Size | Frame: 29x2.40", Fork: see manufacturer |
| Battery | SRAM AXS battery pack with charger |
| Shifter | SRAM AXS pod |
| Rear Derailleur | SRAM GX Eagle AXS, T-Type |
| Crankset | SRAM Eagle 90, T-Type, DUB, 34T, 55mm chainline. 170mm length on S, M, and ML; 175mm length on L and XL. |
| Bottom Bracket | SRAM DUB, 92mm, PressFit |
| Cassette | SRAM Eagle XS-1275, T-Type, 10-52, 12 speed |
| Chain | SRAM GX Eagle, T-Type, 12 speed |
| Max Chainring Size | 1x: 38T, min 30T |
| Saddle | Verse Short Elite, hollow magnesium rails, 145mm width |
| Seatpost | Bontrager Line Dropper, MaxFlow, internal routing, 31.6mm. 100mm travel and 310mm length on S; 150mm travel and 410mm length on M, ML, and L; 170mm travel and 450mm length on XL. |
| Handlebar | Bontrager Kovee Pro, OCLV Carbon, 35mm, 5mm rise, 720mm width on S. Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width on M, ML, L, and XL. |
| Stem | Bontrager Elite, 35mm, 13-degree. 60mm length on S and M; 70mm length on ML; 80mm length on L; 90mm length on XL. |
| Headset | FSA IS-2, 1-1/8'' top, 1.5'' bottom |
| Brake | SRAM Motive Bronze Stealth 4-piston hydraulic disc |
| Brake Rotor | SRAM CenterLine, 6-bolt, round edge, 160mm and 180mm |
| Rotor Size | Max brake rotor sizes - Frame: 160mm |
| Tool | Bontrager Switch thru axle, removable lever |
| Weight | M - 12.18 kg / 26.86 lbs, with TLR sealant, no tubes |
| Weight Limit | Maximum total weight limit: 300 pounds / 136 kg, combined weight of bicycle, rider, and cargo |
| Color | Lava |
| Manufacturer Warranty | Trek frames and full-suspension swing arms are covered for the lifetime of the original owner. Other parts are covered under Trek’s limited warranty. |
FAQ's Trek Supercaliber SL 9.7 GX AXS Gen 2
What frame does the Trek Supercaliber SL 9.7 GX AXS Gen 2 use?
This bike uses an SL OCLV Mountain Carbon frame with IsoStrut, UDH, and 80mm of rear travel. The rear suspension uses a Trek IsoStrut with RockShox SIDLuxe 2-position remote damper.
What drivetrain is on the Trek Supercaliber SL 9.7 GX AXS Gen 2?
The bike uses a SRAM GX Eagle AXS T-Type drivetrain with a SRAM AXS pod shifter. It includes a SRAM Eagle XS-1275 T-Type 10-52T 12-speed cassette, SRAM GX Eagle T-Type 12-speed chain, and SRAM AXS battery pack with charger.
What wheels and tires come on the Trek Supercaliber SL 9.7 GX AXS Gen 2?
The bike uses Bontrager Kovee Comp 25 29-inch wheels with Tubeless Ready construction. It comes with Maxxis Rekon Race 29x2.40'' tubeless-ready tires with EXO casing, folding beads, and 60tpi construction.
What is the weight of the Trek Supercaliber SL 9.7 GX AXS Gen 2?
The size M weight is 12.18 kg / 26.86 lbs with TLR sealant and no tubes. The maximum total weight limit is 300 pounds / 136 kg, including the bicycle, rider, and cargo.
