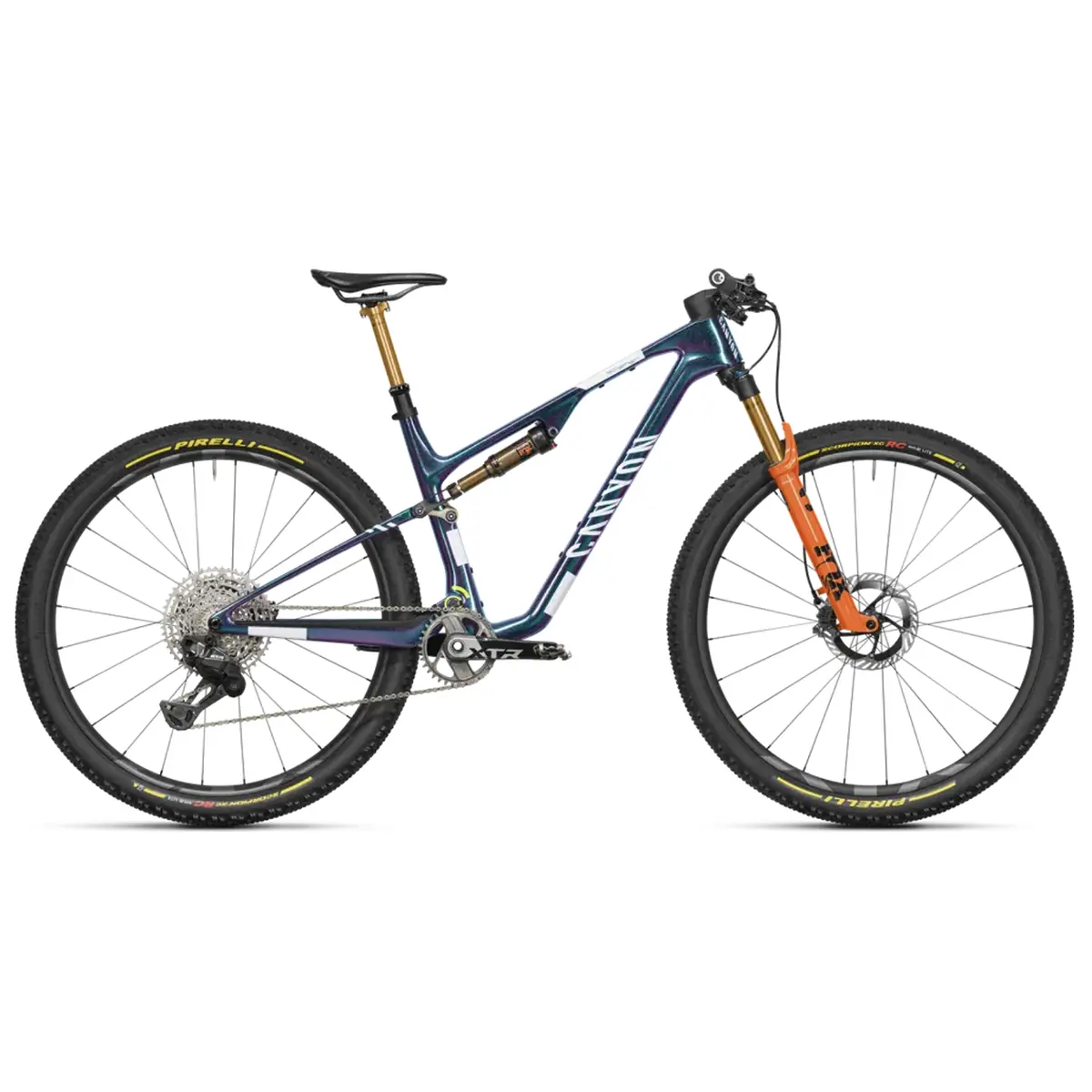

Canyon Lux World Cup CFR XTR Di2
$5,699.00
The Canyon Lux World Cup CFR XTR Di2 is a CFR carbon cross country mountain bike with FOX Factory suspension, Shimano XTR Di2 12-speed drivetrain, Shimano XTR braking, Shimano WH-M9200 carbon wheels, Canyon carbon cockpit, and Pirelli Scorpion XC RC Race Lite tire.
| Color | Team |
|---|
Canyon Lux World Cup CFR XTR Di2 Overview
The Canyon Lux World Cup CFR XTR Di2 is a cross country mountain bike built with a Canyon Lux WC CFR carbon frame, FOX Factory suspension, Shimano XTR Di2 drivetrain, Shimano XTR braking, and Shimano WH-M9200 carbon wheels. The CFR carbon frame uses a 12×148 mm rear axle dimension and has a frame weight of 3.26 lbs.
The suspension setup pairs a FOX Float SL Factory 3-Pos Remote rear shock with a FOX 34 SL Factory fork. The fork has 120 mm travel, 34 mm stanchions, 15×110 mm axle spacing, a 44 mm offset, and a tapered 1 1/8″ – 1.5″ steerer tube.
Shifting is handled by Shimano XTR Di2 with a Shimano BT-DN320 battery, Shimano XTR 12-speed 10-51T cassette, Shimano FC-M9200 crank, Shimano Pressfit BB71 bottom bracket, and Shimano XTR chain. The bike also uses Shimano 4-piston disc brakes, Shimano RT-CL900 rotors, Shimano WH-M9200 carbon wheels, and a Pirelli Scorpion XC RC Race Lite 2.4″ tire.
Key Features of Canyon Lux World Cup CFR XTR Di2
- Canyon Lux WC CFR carbon frame built for cross country mountain biking.
- FOX Float SL Factory 3-Pos Remote rear shock supports the full-suspension XC platform.
- FOX 34 SL Factory fork delivers 120 mm travel with 34 mm stanchions.
- Shimano XTR Di2 drivetrain uses electronic shifting with a Shimano BT-DN320 battery.
- Shimano XTR 12-speed cassette provides a 10-51T gear range.
- Shimano 4-piston disc brakes are paired with Shimano RT-CL900 160 mm and 180 mm rotors.
- Shimano WH-M9200 carbon wheels use 29 mm inner width rims and Center Lock rotor mounts.
- Canyon CP0036 carbon cockpit includes semi-integrated cable routing and a high-grip bar centre.
Ride Use
This bike is built for cross country mountain biking. The CFR carbon frame, FOX Factory remote suspension, Shimano XTR Di2 drivetrain, Shimano carbon wheels, and Pirelli Scorpion XC RC Race Lite tire support XC riding with a performance-focused build.
Why Choose This Bike
The Canyon Lux World Cup CFR XTR Di2 combines a CFR carbon frame with FOX Factory suspension, Shimano XTR Di2 electronic shifting, Shimano XTR braking, Shimano WH-M9200 carbon wheels, Canyon carbon cockpit, and Ergon contact points. The Team color gives the bike a distinctive finish, while the included Shimano charger, Canyon torque wrench, shock pump, quick start guide, and smallbox add practical setup support.
Product Specifications
| Feature | Details |
|---|---|
| Frame | Canyon Lux WC CFR carbon frame, 12x148 mm axle dimension, 3.26 lbs |
| Rear Shock | FOX Float SL Factory 3-Pos Remote, 0.65 lbs |
| Fork | FOX 34 SL Factory, 120 mm travel, 15x110 mm axle dimension, 34 mm stanchions, 44 mm offset, 1 1/8" - 1.5" steerer tube, 3.35 lbs |
| Battery | Shimano BT-DN320 |
| Rear Derailleur | Shimano XTR Di2 Groupset, long cage, 0.75 lbs |
| Shift Lever | Shimano XTR Di2, 0.22 lbs |
| Cassette | Shimano XTR, 12-speed, 10-51T |
| Crank | Shimano FC-M9200, 1 chainring |
| Bottom Bracket | Shimano Pressfit BB71, PF 89.5/92, 0.16 lbs |
| Chain | Shimano XTR |
| Brakes | Shimano BR-M9220 4-piston disc brake, Shimano XTR Brakes M9220/9200 4-piston disc brake |
| Brake Rotors | Shimano RT-CL900 160 mm, Shimano RT-CL900 180 mm |
| Front Wheel | Shimano WH-M9200 XTR Wheelset, 15x110 mm axle dimension, Center Lock rotor mount, 29 mm inner width, carbon rim, 1.68 lbs |
| Rear Wheel | Shimano WH-M9200, 12x148 mm axle dimension, Center Lock rotor mount, 29 mm inner width, carbon rim |
| Tire | Pirelli Scorpion XC RC Race Lite 2.4", 1.52 lbs |
| Thru Axle | Canyon Quixle Through Axle QR 148x12, 12x148 mm axle dimension |
| Cockpit | Canyon CP0036 carbon cockpit with semi-integrated cable routing and high-grip surface in the bar centre, 0.60 lbs |
| Grips | Ergon GXR |
| Saddle | Ergon SRS Pro Carbon, unisex, 0.38 lbs |
| Seatpost | Fox Transfer SL Factory aluminium seatpost, 31.6 mm diameter, 0.94 lbs |
| Lights | Reflector Set |
| Battery Charger | Shimano EC-DN100 |
| Pedals | None included |
| Included Accessories | Canyon Organza Bag, Canyon Assembly Paste, Canyon Torque Wrench, Canyon Shock Pump 300 Psi, QSG 073-V01 M195 LUX WC, Smallbox |
| Color | Team |
| Manufacturer Warranty | 6-year warranty on Canyon-manufactured parts |
FAQ's Canyon Lux World Cup CFR XTR Di2
What frame does the Canyon Lux World Cup CFR XTR Di2 use?
The Canyon Lux World Cup CFR XTR Di2 uses a Canyon Lux WC CFR carbon frame. The frame has a 12x148 mm rear axle dimension and a frame weight of 3.26 lbs.
What suspension comes on the Canyon Lux World Cup CFR XTR Di2?
The bike uses a FOX Float SL Factory 3-Pos Remote rear shock and a FOX 34 SL Factory suspension fork. The fork has 120 mm travel, 34 mm stanchions, 15x110 mm axle spacing, and a 44 mm offset.
What drivetrain is fitted to the Canyon Lux World Cup CFR XTR Di2?
The bike uses a Shimano XTR Di2 drivetrain with a Shimano BT-DN320 battery. It includes a Shimano XTR 12-speed 10-51T cassette, Shimano FC-M9200 crank, Shimano Pressfit BB71 bottom bracket, and Shimano XTR chain.
What items are included with the Canyon Lux World Cup CFR XTR Di2?
The bike includes a reflector set, Shimano EC-DN100 battery charger, Canyon Organza Bag, Canyon Assembly Paste, Canyon Torque Wrench, Canyon Shock Pump 300 Psi, QSG 073-V01 M195 LUX WC, and Smallbox. Pedals are not included.
