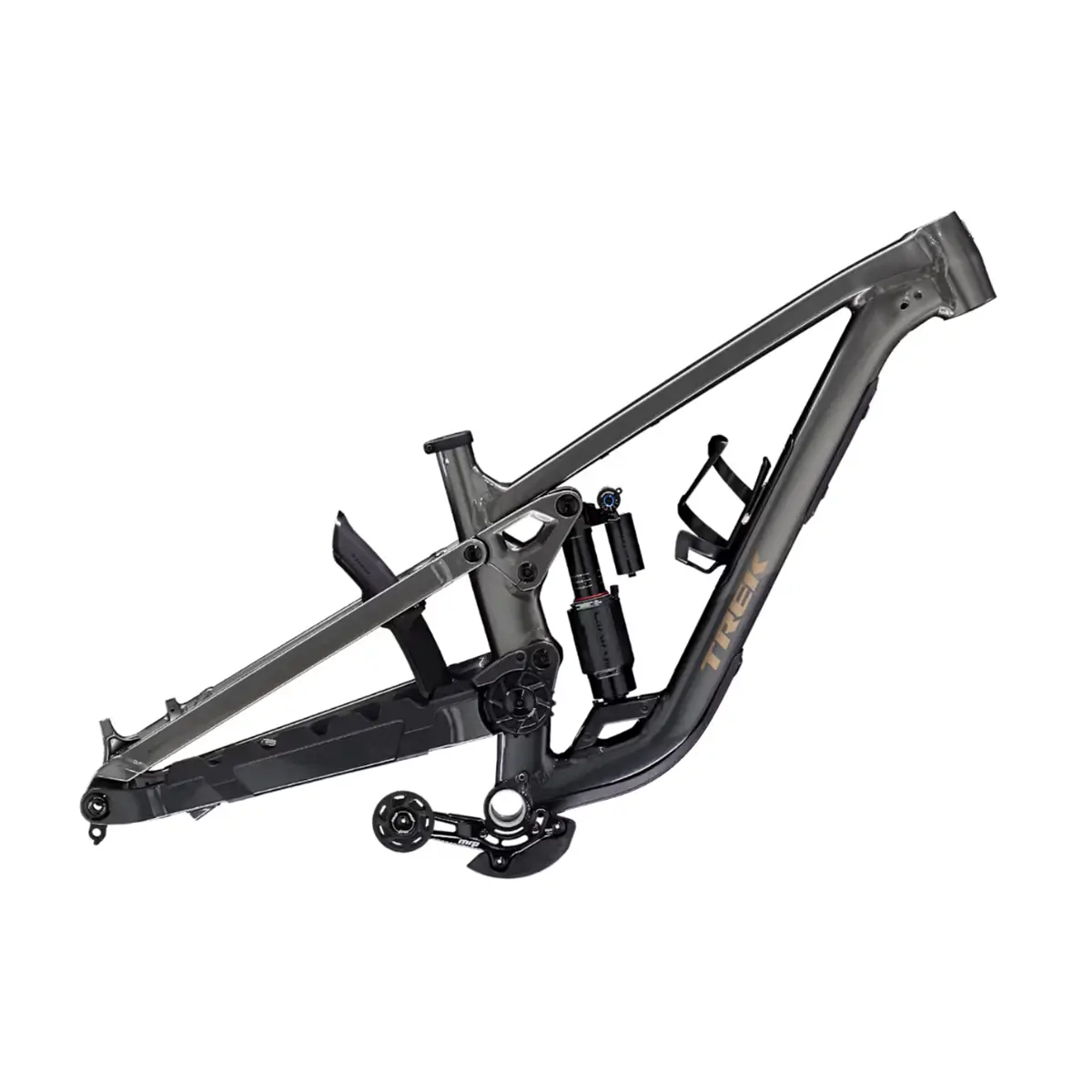

Trek Slash AL Gen 6 Frameset
$1,769.00
The Trek Slash AL Gen 6 Frameset is a full suspension mountain bike frameset built with Alpha Platinum Aluminum, high main pivot suspension, an idler pulley, internal storage, Active Braking Pivot, UDH, and 170mm travel. It includes a RockShox Vivid Select+ rear shock and Bontrager BITS Internal Frame Storage Bag.
| Color | Mercury |
|---|
Trek Slash AL Gen 6 Frameset Overview
The Trek Slash AL Gen 6 Frameset is a full suspension mountain bike frameset built with Alpha Platinum Aluminum, high main pivot suspension, an idler pulley, and 170mm travel. The frame features internal storage, an angle-adjust headset, adjustable leverage rate, integrated frame protection, internal routing, Active Braking Pivot, UDH, and a 148x12mm thru axle. It includes a RockShox Vivid Select+ rear shock and a Bontrager BITS Internal Frame Storage Bag.
Key Features of Trek Slash AL Gen 6 Frameset
- Alpha Platinum Aluminum frame construction gives the frameset an aluminum chassis for a full suspension mountain bike build.
- High main pivot suspension with an idler pulley is built into the frame layout.
- 170mm travel defines the frame’s rear suspension platform.
- RockShox Vivid Select+ rear shock is included in a 230mm x 65mm size.
- Internal storage works with the included Bontrager BITS Internal Frame Storage Bag.
- Angle-adjust headset compatibility supports the frame’s headset adjustment system.
- UDH and 148x12mm thru axle support the stated rear dropout and axle standard.
- Integrated frame protection, internal routing, adjustable leverage rate, and alloy rocker link are built into the frame design.
Frame Use
This frameset is designed for a full suspension mountain bike build using Alpha Platinum Aluminum and 170mm travel. Its high main pivot layout, idler pulley, Active Braking Pivot, adjustable leverage rate, and RockShox Vivid Select+ shock define the suspension platform. Internal storage, integrated frame protection, UDH, and a 148x12mm thru axle support the frame setup.
Why Choose This Frameset
The Trek Slash AL Gen 6 Frameset gives riders an aluminum full suspension mountain bike foundation with Alpha Platinum Aluminum, high main pivot suspension, 170mm travel, and a RockShox Vivid Select+ rear shock. It also includes internal storage, a Bontrager BITS Internal Frame Storage Bag, internal routing, integrated frame protection, an angle-adjust headset, UDH, and a 148x12mm thru axle. The frameset comes in Mercury, weighs 5.30 kg / 11.69 lbs in size M, and Trek frames are covered for the lifetime of the original owner.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Trek |
| Model | Slash AL Gen 6 Frameset |
| Product Type | Full Suspension Mountain Bike Frameset |
| Frame Material | Alpha Platinum Aluminum |
| Frame | Alpha Platinum Aluminum, high main pivot, idler pulley, internal storage, angle-adjust headset, adjustable leverage rate, integrated frame protection, internal routing, alloy rocker link, ISCG 05, Active Braking Pivot, UDH, 148x12mm thru axle, 170mm travel |
| Rear Shock | RockShox Vivid Select+, 230mm x 65mm |
| Suspension Travel | 170mm |
| Rear Axle | Bontrager Switch thru axle, removable lever |
| Axle Standard | 148x12mm thru axle |
| Dropout | UDH |
| Headset | Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible |
| Routing | Internal routing |
| Storage | Internal storage |
| Max Tire Size | Frame: 2.50", Fork: See manufacturer |
| Max Chainring Size | 1x: 34T round, 32T oval, min 28T |
| Rotor Size | Max brake rotor sizes - Frame: 220mm, Fork: see fork manufacturer |
| Accessory | Bontrager BITS Internal Frame Storage Bag |
| Color | Mercury |
| Weight | M - 5.30 kg / 11.69 lbs |
| Weight Limit | Maximum total weight limit, combined weight of bicycle, rider, and cargo: 300 pounds / 136 kg |
| Manufacturer Warranty | Trek frames are covered for the lifetime of the original owner. |
FAQ's Trek Slash AL Gen 6 Frameset
Is the Trek Slash AL Gen 6 Frameset a complete bike?
No. The Trek Slash AL Gen 6 Frameset is a frameset, not a complete bicycle. It includes the frame, RockShox Vivid Select+ rear shock, and Bontrager BITS Internal Frame Storage Bag.
What frame material does the Trek Slash AL Gen 6 Frameset use?
The frame uses Alpha Platinum Aluminum. It also features a high main pivot, idler pulley, internal storage, angle-adjust headset, integrated frame protection, Active Braking Pivot, UDH, and 170mm travel.
What rear shock is included with this frameset?
This frameset includes a RockShox Vivid Select+ rear shock. The shock size is 230mm x 65mm.
What is the maximum tire size for this frame?
The frame supports a maximum tire size of 2.50". Fork tire clearance depends on the fork manufacturer.
