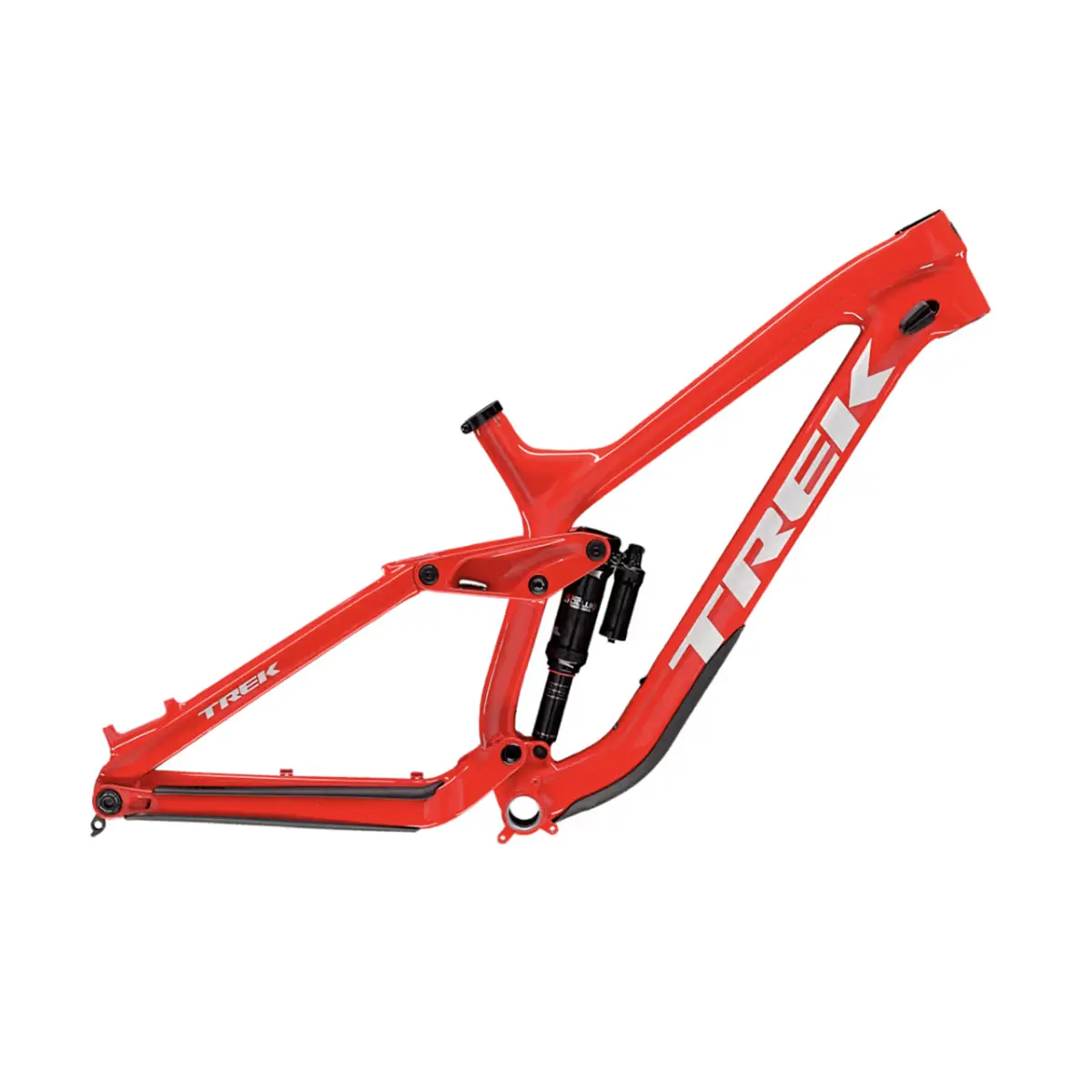

Trek Session C 29 Frameset
$1,079.00
The Trek Session C 29 Frameset is a full suspension mountain bike frameset built with an OCLV Mountain Carbon main frame and stays, ABP suspension, Control Freak internal routing, 12x157mm thru axle, and 190mm travel. It includes a RockShox Super Deluxe Ultimate DH rear shock.
| Color | Viper Red |
|---|
Trek Session C 29 Frameset Overview
The Trek Session C 29 Frameset is a full suspension mountain bike frameset built with an OCLV Mountain Carbon main frame and stays, ABP suspension, and 190mm travel. The frame features a tapered head tube, integrated frame protection, Control Freak internal routing, magnesium rocker link, Mino Link, ISCG mount, and a 12x157mm thru axle. It comes in Viper Red and includes a RockShox Super Deluxe Ultimate DH rear shock with RC damper.
Key Features of Trek Session C 29 Frameset
- OCLV Mountain Carbon main frame and stays provide a carbon chassis for a full suspension mountain bike build.
- 190mm travel defines the frame’s rear suspension platform.
- RockShox Super Deluxe Ultimate DH rear shock is included with an RC damper and 225mm x 70mm sizing.
- ABP suspension, magnesium rocker link, and Mino Link are built into the frame design.
- Control Freak internal routing keeps cable routing contained through the frame.
- Integrated frame protection adds built-in coverage for key contact areas.
- 12x157mm thru axle and Bontrager Switch rear thru axle support the rear axle setup.
- FSA Orbit sealed cartridge headset includes geometry adjust angled cups.
Frame Use
This frameset is designed for a full suspension mountain bike build using an OCLV Mountain Carbon main frame and stays with 190mm travel. Its ABP suspension, magnesium rocker link, Mino Link, RockShox Super Deluxe Ultimate DH shock, and 12x157mm thru axle define the frame platform. Control Freak internal routing, integrated frame protection, and ISCG mount add practical frame features for the build.
Why Choose This Frameset
The Trek Session C 29 Frameset gives riders a carbon full suspension mountain bike foundation with an OCLV Mountain Carbon main frame and stays, ABP suspension, 190mm travel, and a RockShox Super Deluxe Ultimate DH rear shock. It also includes Control Freak internal routing, integrated frame protection, a tapered head tube, magnesium rocker link, Mino Link, ISCG mount, and a Bontrager Switch rear thru axle with removable lever. The frameset comes in Viper Red, weighs 3.24 kg / 7.14 lbs in size M, and Trek frames are covered for the lifetime of the original owner.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Trek |
| Model | Session C 29 Frameset |
| Product Type | Full Suspension Mountain Bike Frameset |
| Frame Material | OCLV Mountain Carbon |
| Frame | OCLV Mountain Carbon main frame & stays, tapered head tube, integrated frame protection, Control Freak internal routing, magnesium rocker link, Mino Link, ISCG mount, ABP, 12x157mm thru axle, 190mm travel |
| Rear Shock | RockShox Super Deluxe Ultimate DH, RC damper, 225mm x 70mm |
| Suspension Travel | 190mm |
| Rear Axle | Bontrager Switch thru axle, removable lever |
| Axle Standard | 12x157mm thru axle |
| Headset | FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, includes geometry adjust angled cups |
| Routing | Control Freak internal routing |
| Max Tire Size | 29x2.50" |
| Max Chainring Size | 36T |
| Color | Viper Red |
| Weight | M - 3.24 kg / 7.14 lbs |
| Weight Limit | Maximum total weight limit, combined weight of bicycle, rider, and cargo: 300 pounds / 136 kg |
| Manufacturer Warranty | Trek frames are covered for the lifetime of the original owner. |
v
FAQ's Trek Session C 29 Frameset
Is the Trek Session C 29 Frameset a complete bike?
No. The Trek Session C 29 Frameset is a frameset, not a complete bicycle. It includes the frame and RockShox Super Deluxe Ultimate DH rear shock.
What frame material does the Trek Session C 29 Frameset use?
The frame uses an OCLV Mountain Carbon main frame and stays. It also features a tapered head tube, integrated frame protection, Control Freak internal routing, magnesium rocker link, Mino Link, ISCG mount, ABP, and 190mm travel.
What rear shock is included with this frameset?
This frameset includes a RockShox Super Deluxe Ultimate DH rear shock. The shock uses an RC damper and measures 225mm x 70mm.
What is the maximum tire size for this frame?
The frame supports a maximum tire size of 29x2.50". This tire clearance applies to the frame.
