Trek Marlin+ 6

Trek Marlin+ 6 Overview

The Trek Marlin+ 6 is an aluminum electric mountain bike built with a Bosch Active Line Plus motor, Bosch CompactTube 400Wh battery, SR Suntour XCM 34 fork, Shimano CUES drivetrain, and Bontrager Connection rims. The Alpha Gold Aluminum frame uses a tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148 spacing, and a 12mm thru axle. Size XS uses a curved top tube.

The fork is an SR Suntour XCM 34 with air spring, lockout, tapered steerer, 44mm offset, Boost110 spacing, and a 15mm thru axle. Size XS uses 100mm travel, while sizes S, M, L, and XL use 120mm travel. The wheel setup uses Shimano TC500 centerlock hubs and Bontrager Connection double-wall rims.

The electric system uses a Bosch Active Line Plus motor with a Bosch CompactTube 400Wh battery. It is paired with a Bosch standard 2A 110V smart system charger and Bosch Purion 200 computer. The bike is classified as a Class 1 e-bike.

The drivetrain uses Shimano CUES components, including a Shimano U4000 9-speed shifter, Shimano CUES U4000 rear derailleur, FSA CK-220 crank, FSA 32T steel chainring, Shimano LINKGLIDE LG300 11-46T 9-speed cassette, and Shimano LG500 chain. Tektro HD-M275 hydraulic disc brakes use Tektro 203mm centerlock rotors.

Key Features of Trek Marlin+ 6

• Alpha Gold Aluminum frame includes internal routing, rack, fender, and kickstand mount, UDH, Boost148 spacing, and a 12mm thru axle.
• Bosch Active Line Plus motor is paired with a Bosch CompactTube 400Wh battery.
• Bosch Purion 200 computer works with the Bosch smart system charger setup.
• SR Suntour XCM 34 fork uses an air spring, lockout, tapered steerer, and size-specific travel.
• Shimano CUES 9-speed drivetrain uses a Shimano LINKGLIDE LG300 11-46T cassette.
• Bontrager Connection double-wall rims are paired with Shimano TC500 centerlock hubs.
• Bontrager Montrose Comp tires use 27.5-inch sizing on XS and S, and 29-inch sizing on M, L, and XL.
• Tektro HD-M275 hydraulic disc brakes use 203mm centerlock rotors.

Ride Use

This bike is built for electric mountain biking, with an aluminum frame, Bosch Active Line Plus motor, 400Wh battery, and SR Suntour XCM 34 fork. The Shimano CUES drivetrain, Bontrager Montrose Comp tires, Bontrager Connection rims, and Tektro hydraulic disc brakes match its electric MTB build.

Why Choose This Bike

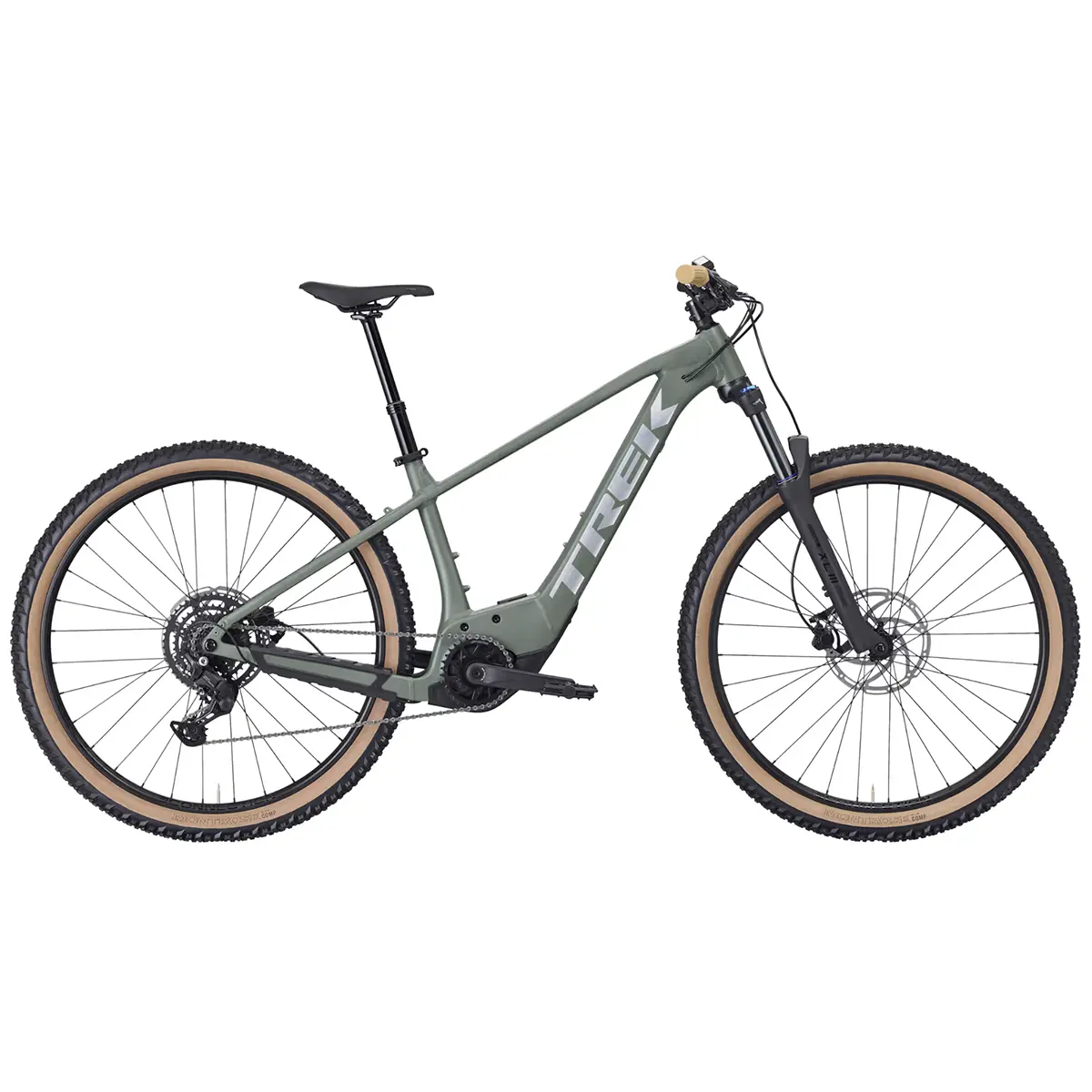

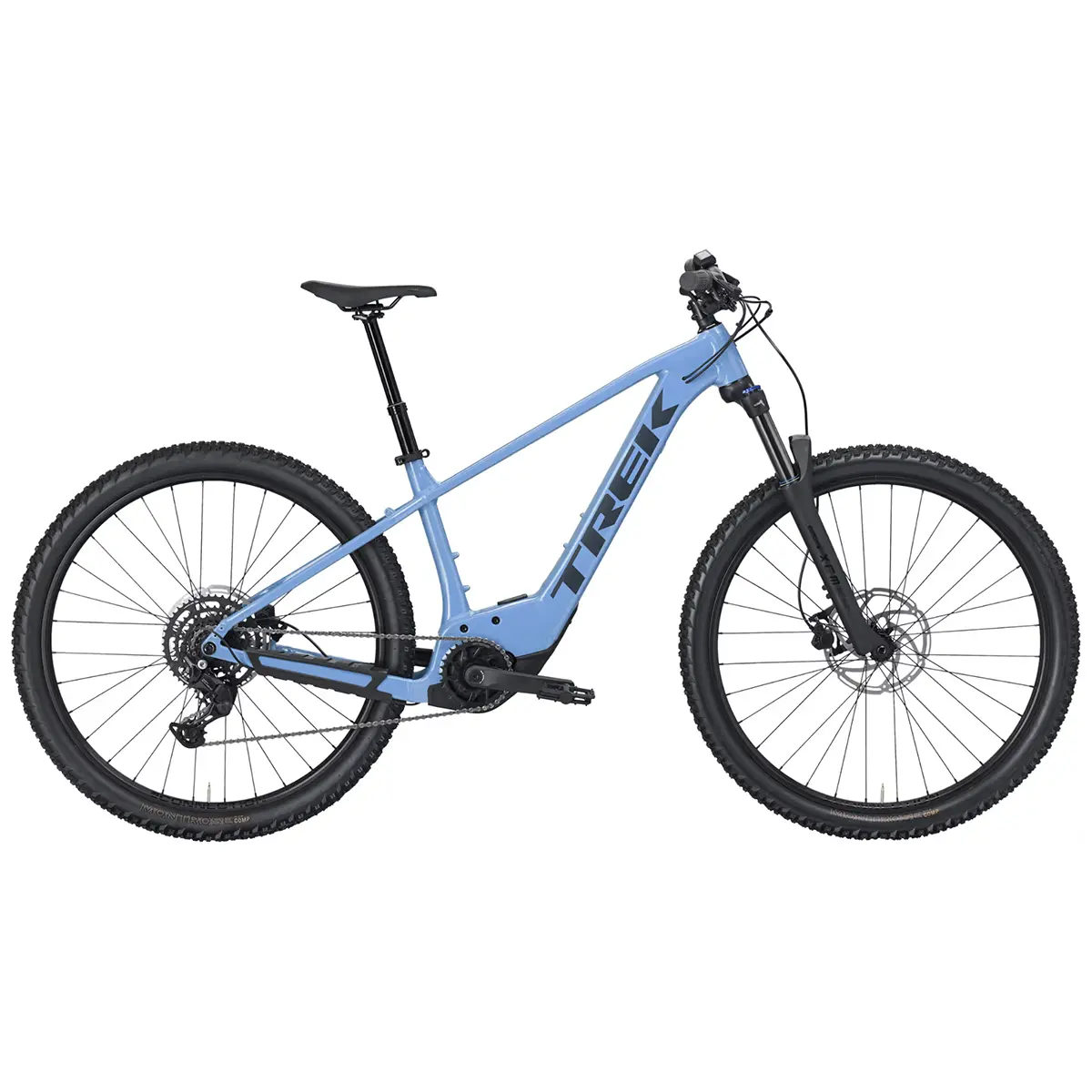

The Trek Marlin+ 6 combines a Trek aluminum e-MTB frame, Bosch Active Line Plus motor, Bosch CompactTube 400Wh battery, SR Suntour XCM 34 fork, Shimano CUES 9-speed drivetrain, Bontrager Connection rims, Bontrager Montrose Comp tires, and Tektro hydraulic disc brakes. It is available in Fjord Blue and Matte Keswick Green, with a size M weight of 22.90 kg / 50.49 lbs with tubes. Trek frames and full-suspension swing arms are covered for the lifetime of the original owner, while other parts are covered under Trek’s limited warranty.
