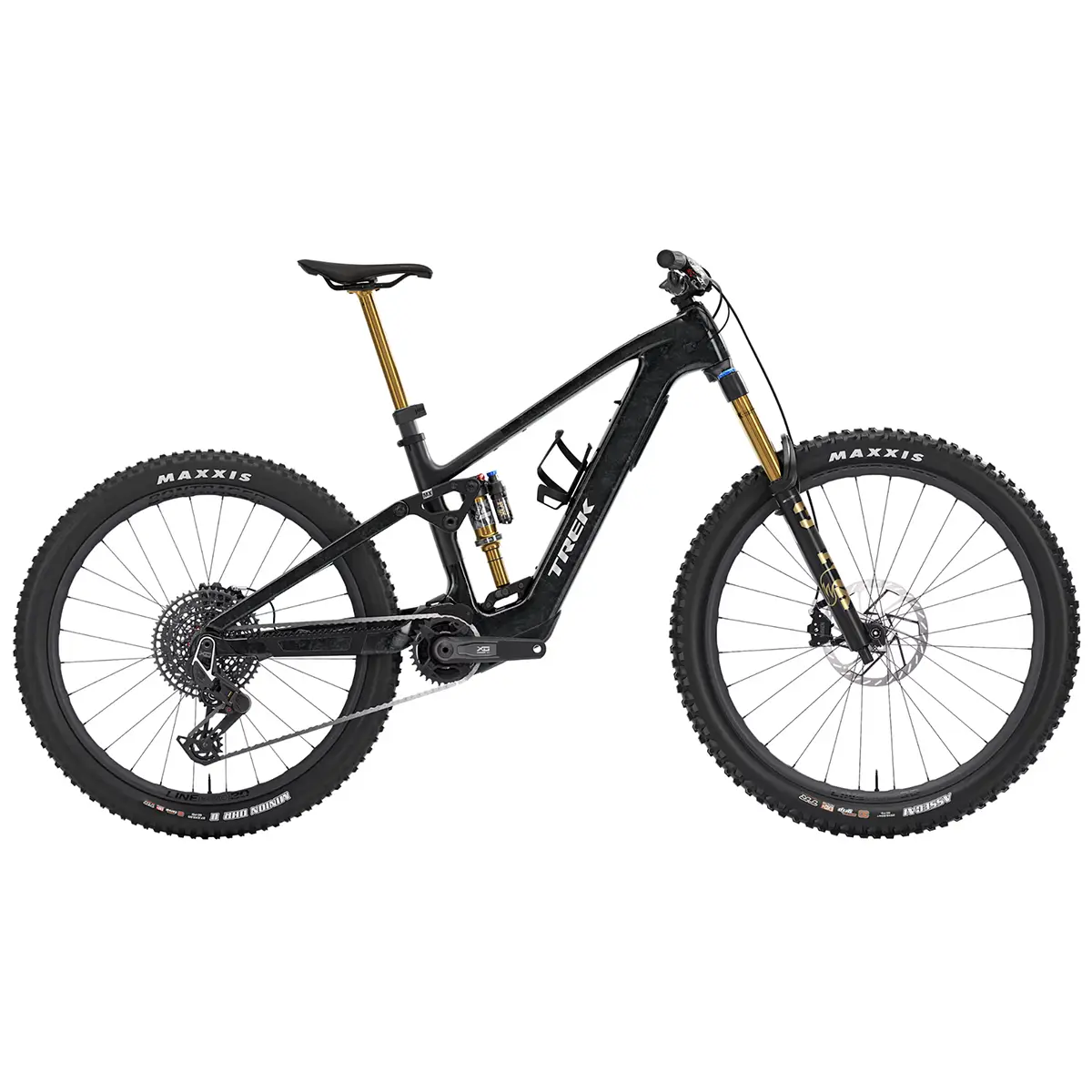

Trek Fuel+ MX 9.9 X0 AXS Gen 2

Trek Fuel+ MX 9.9 X0 AXS Gen 2 Overview

The Trek Fuel+ MX 9.9 X0 AXS Gen 2 is a carbon electric mountain bike built with a TQ-HPR60 motor, TQ 580Wh battery, Fox Factory suspension, SRAM wireless shifting, and Bontrager carbon wheels. The OCLV Mountain Carbon frame uses a removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148 spacing, and adaptable travel from 145mm to 160mm.

The suspension package uses a Fox Factory 36 fork with 160mm travel and a Fox Factory Float X rear shock sized at 205mm x 60mm. The fork includes a Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost110 spacing, and a 15mm Kabolt X axle.

The electric system is built around a TQ-HPR60 motor with 60 Nm of torque, 250 watt maximum continuous rated power, and 350 watt peak power. It is paired with a TQ 580Wh battery, TQ 4A charger, and TQ color LED display with Bluetooth and ANT+ connectivity. The bike is classified as a Class 1 e-bike.

The SRAM X0 Eagle AXS T-Type drivetrain includes a SRAM AXS pod shifter, SRAM X0 Eagle AXS rear derailleur, SRAM X0 Eagle crank, SRAM T-Type 32T alloy chainring, SRAM Eagle XS-1295 10-52T 12-speed cassette, and SRAM X0 Eagle T-Type chain. The mixed-wheel setup uses a 29-inch Bontrager Line Pro 30 carbon front wheel and a 27.5-inch Bontrager Line Pro 30 carbon rear wheel. SRAM Maven Silver 4-piston hydraulic disc brakes with SRAM HS2 200mm rotors handle braking.

Key Features of Trek Fuel+ MX 9.9 X0 AXS Gen 2

• OCLV Mountain Carbon frame uses a removable battery design, ABP suspension, UDH, Boost148 spacing, and adaptable 145mm-160mm travel.
• TQ-HPR60 motor delivers 60 Nm of torque with 250 watt maximum continuous rated power and 350 watt peak power.
• TQ 580Wh battery works with a TQ 4A charger and TQ color LED display with Bluetooth and ANT+ connectivity.
• Fox Factory 36 fork provides 160mm travel with Float EVOL air spring and GRIP X2 damper.
• Fox Factory Float X rear shock is sized at 205mm x 60mm.
• SRAM X0 Eagle AXS T-Type drivetrain gives wireless shifting with a 10-52T 12-speed cassette.
• Bontrager Line Pro 30 OCLV Mountain Carbon wheels use a 29-inch front and 27.5-inch rear setup.
• SRAM Maven Silver 4-piston hydraulic disc brakes use SRAM HS2 6-bolt 200mm rotors.

Ride Use

This bike is built for electric mountain biking, with a carbon full-suspension frame, TQ-HPR60 motor, 580Wh battery, and Fox Factory suspension. The 29-inch front and 27.5-inch rear wheel setup, SRAM X0 Eagle AXS T-Type drivetrain, Maxxis tires, and SRAM Maven 4-piston brakes match its electric MTB build.

Why Choose This Bike

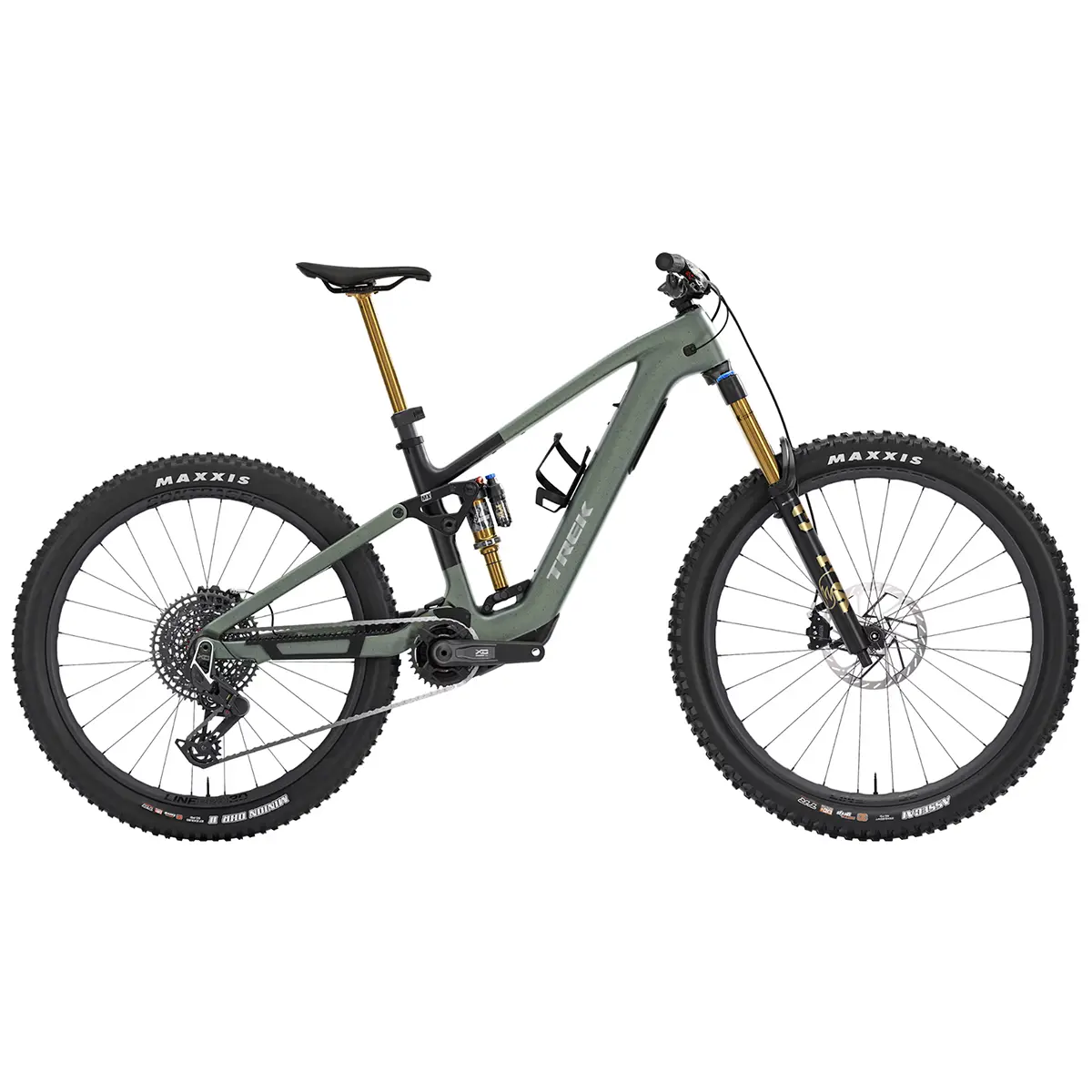

The Trek Fuel+ MX 9.9 X0 AXS Gen 2 combines a carbon Trek e-MTB frame, TQ electric system, Fox Factory 36 fork, Fox Factory Float X rear shock, SRAM wireless T-Type drivetrain, Bontrager carbon wheels, Maxxis tires, and SRAM Maven hydraulic disc brakes. It is available in Gloss Navy Smoke, Lichen Green, and Carbon Smoke, with a size M weight of 19.02 kg / 41.94 lbs with TLR sealant and no tubes. Trek frames and full-suspension swing arms are covered for the lifetime of the original owner, while other parts are covered under Trek’s limited warranty.
