Trek Fuel LX 9.9 X0 AXS Gen 7
$5,219.00
The Trek Fuel LX 9.9 X0 AXS Gen 7 is a carbon trail mountain bike with an OCLV Mountain Carbon frame, Fox Factory 38 170mm fork, Fox DHX2 shock, SRAM X0 Eagle AXS drivetrain, Bontrager Line Pro 30 carbon wheels, and SRAM Maven Silver 4-piston hydraulic disc brakes.
Trek Fuel LX 9.9 X0 AXS Gen 7 Overview
The Trek Fuel LX 9.9 X0 AXS Gen 7 is a carbon full-suspension trail mountain bike built around an OCLV Mountain Carbon frame with adaptable 145mm-160mm travel. The frame includes internal storage, a ZS headset, adjustable leverage rate, guided internal routing, an interchangeable alloy rocker link, an interchangeable lower shock mount, a downtube guard, shuttle guard, ABP suspension design, UDH, Boost148 spacing, and BSA 73 bottom bracket standard.
The suspension package pairs a Fox Factory 38 fork with 170mm travel and a Fox DHX2 coil shock. The drivetrain uses SRAM X0 Eagle AXS T-Type components, including a SRAM AXS pod shifter, SRAM X0 Eagle AXS rear derailleur, SRAM Eagle XS-1295 10-52 cassette, and SRAM X0 Eagle T-Type 12-speed chain. Bontrager Line Pro 30 OCLV Mountain Carbon wheels, Maxxis 29×2.5″ tires, and SRAM Maven Silver 4-piston hydraulic disc brakes complete the trail-focused build.
Key Features of Trek Fuel LX 9.9 X0 AXS Gen 7
- OCLV Mountain Carbon frame includes internal storage, guided internal routing, downtube guard, shuttle guard, ABP, UDH, and Boost148 spacing.
- Adaptable 145mm-160mm frame travel gives the bike a configurable full-suspension platform.
- Fox Factory 38 fork uses a Float EVOL air spring, GRIP X2 damper, 44mm offset, and 170mm travel.
- Fox DHX2 coil shock is paired with size-specific Fox steel coil springs.
- SRAM X0 Eagle AXS T-Type drivetrain delivers wireless 12-speed shifting with a 10-52 cassette.
- Bontrager Line Pro 30 OCLV Mountain Carbon wheels are Tubeless Ready and use Boost hub spacing.
- Maxxis Assegai and Maxxis Minion DHR II 29×2.5″ tires give the bike a matched trail tire setup.
- SRAM Maven Silver 4-piston hydraulic disc brakes use SRAM HS2 6-bolt rotors.
Ride Use
This bike is built for trail mountain biking, supported by its OCLV Mountain Carbon full-suspension frame, adaptable 145mm-160mm travel, Fox Factory 38 170mm fork, and Fox DHX2 shock. The SRAM X0 Eagle AXS drivetrain, carbon 29″ wheels, 29×2.5″ Maxxis tires, and 4-piston hydraulic disc brakes match the trail-focused category.
Why Choose This Bike
The Trek Fuel LX 9.9 X0 AXS Gen 7 combines a carbon trail frame, Fox Factory suspension, SRAM X0 Eagle AXS T-Type wireless shifting, Bontrager Line Pro 30 carbon wheels, and SRAM Maven Silver 4-piston hydraulic disc brakes in one complete build. It also includes a Race Face ERA carbon handlebar, Race Face Turbine R stem, Verse Short Pro saddle, Fox Transfer NEO wireless dropper post, and three color options: Gloss Chameleon Green, Purple Phaze, and Gloss Dark Carmine. Trek frames and full-suspension swing arms are covered for the lifetime of the original owner, with other parts covered according to Trek’s limited warranty.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Trek |
| Model | Fuel LX 9.9 X0 AXS Gen 7 |
| Bike Type | Trail Mountain Bike |

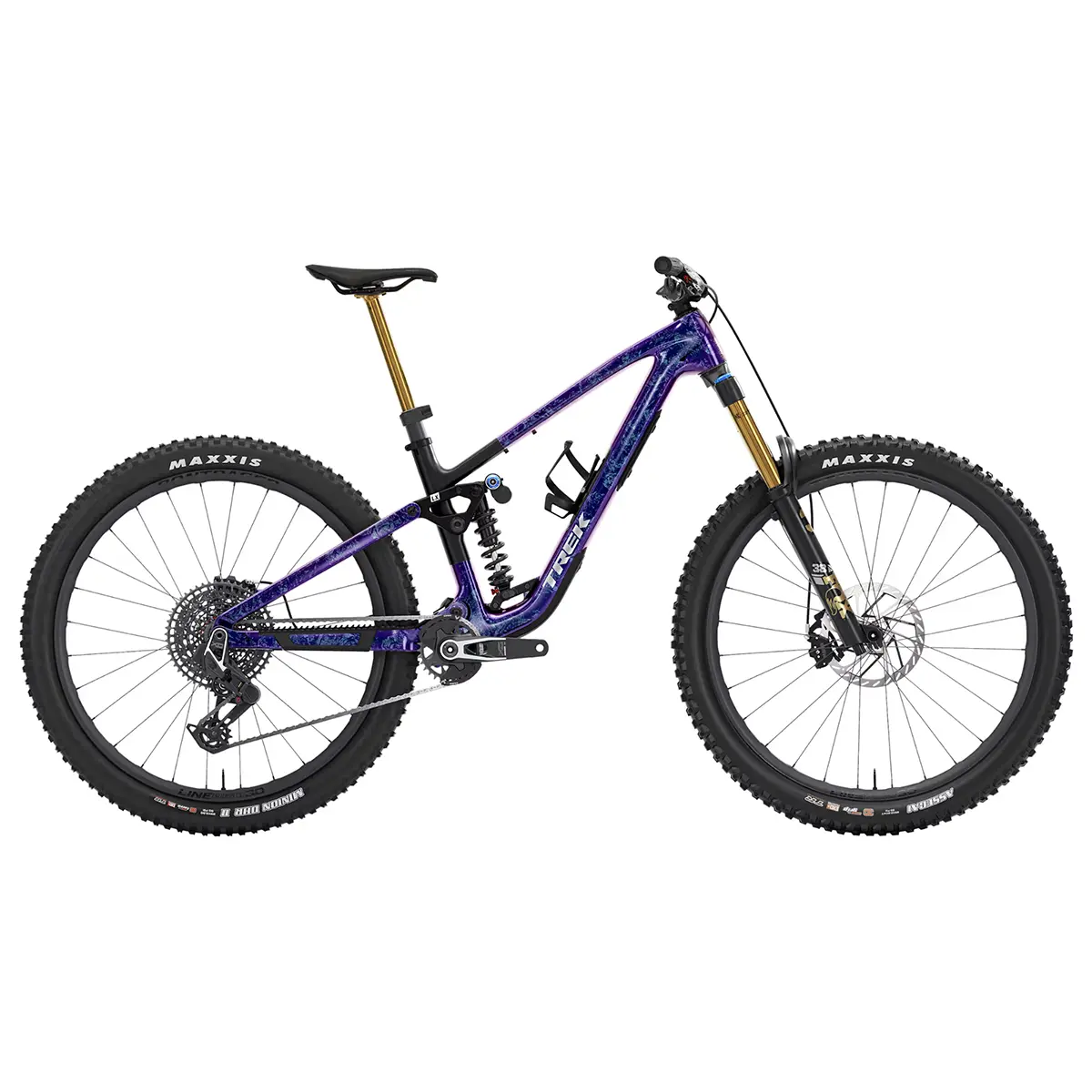

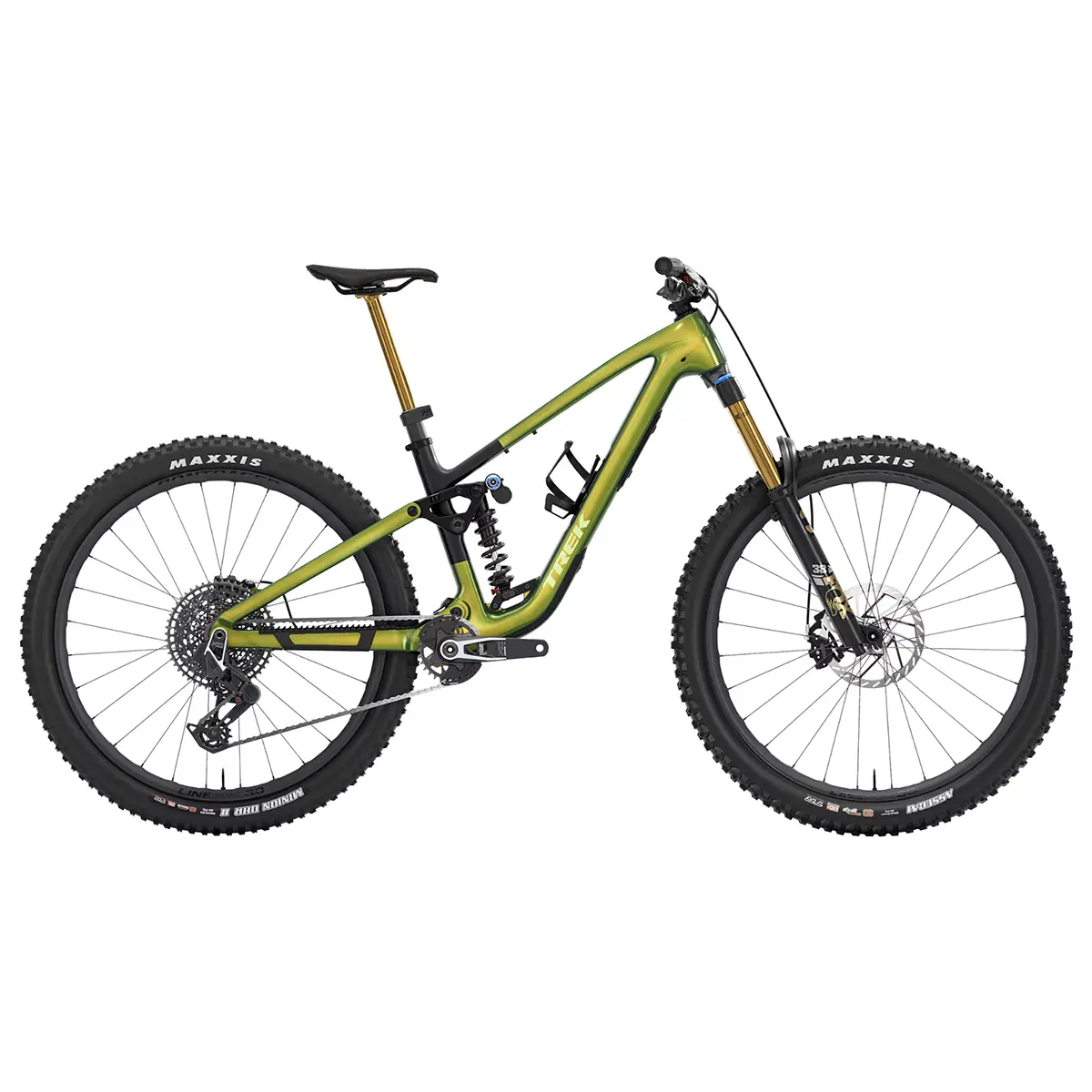

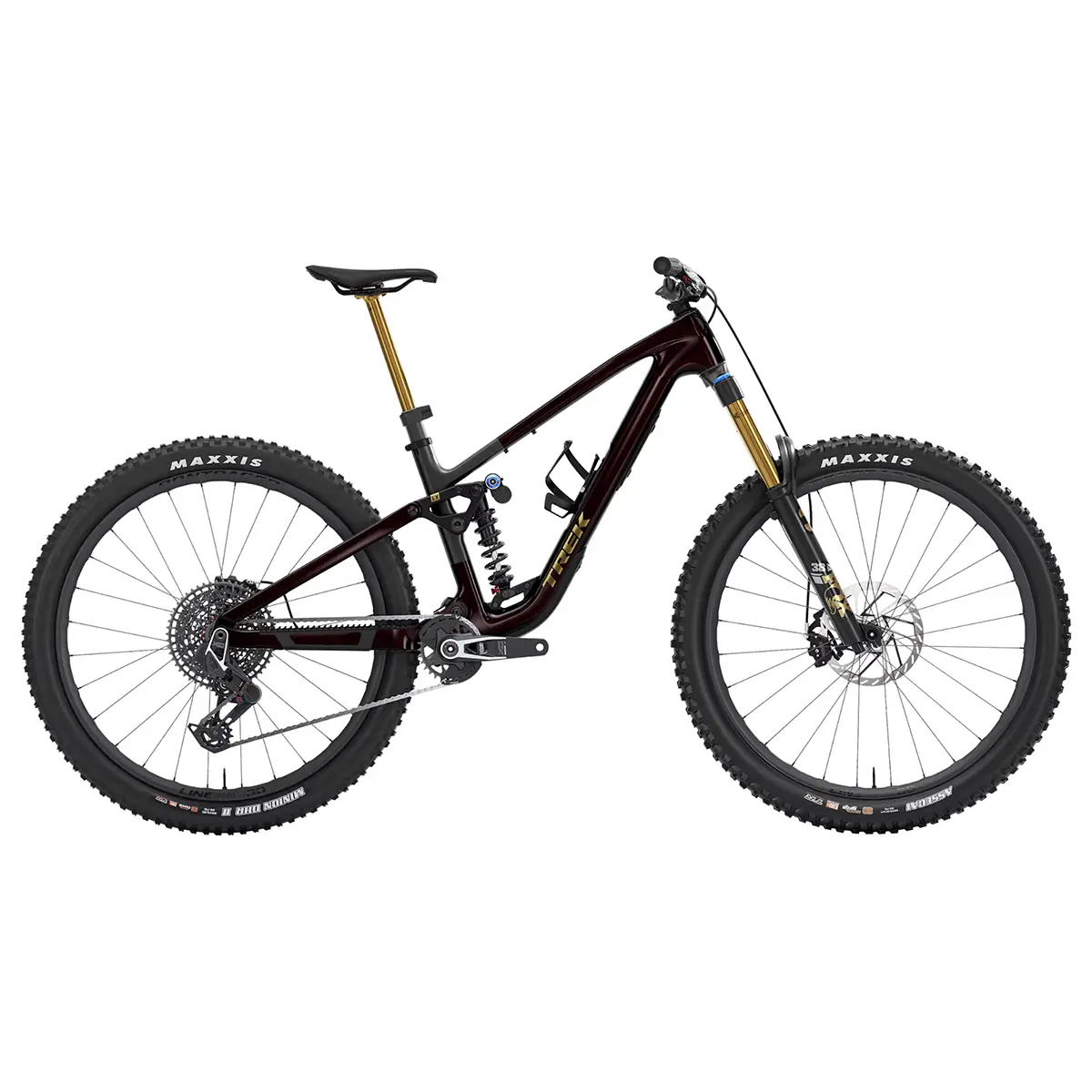

| Color | Gloss Chameleon Green, Purple Phaze, Gloss Dark Carmine |
| Frame | OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm |
| Fork | Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost110, 15mm Kabolt X axle, 170mm travel |
| Shock | Fox DHX2, 205mm x 65mm |
| Suspension Spring | Size S: Fox steel coil spring, 250lbs; Size M: 350lbs; Size L: 400lbs; Size XL: 450lbs; Size XXL: 500lbs |
| Shifter | SRAM AXS pod |
| Rear Derailleur | SRAM X0 Eagle AXS, T-Type |
| Crank | SRAM X0 Eagle, DUB, 30T, T-Type, 55mm chainline, 170mm length |
| Bottom Bracket | SRAM DUB MTB Wide, 73mm, BSA threaded |
| Cassette | SRAM Eagle XS-1295, T-Type, 10-52, 12-speed |
| Chain | SRAM X0 Eagle, T-Type, 12-speed |
| Battery | SRAM AXS battery pack with charger |
| Brakes | SRAM Maven Silver 4-piston hydraulic disc |
| Brake Rotors | SRAM HS2, 6-bolt, 180mm and 200mm |
| Wheels | Bontrager Line Pro 30 OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110 front, Boost148 rear, Rapid Drive 108 rear hub |
| Wheel Size | 29" front and rear |
| Tires | Maxxis Assegai 29x2.5", tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead; Maxxis Minion DHR II 29x2.5", tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead |
| Handlebar | Race Face ERA carbon, 35mm, 40mm rise, 800mm width |
| Stem | Race Face Turbine R, 35mm, 0 degree, 40mm length |
| Grips | Trek Line Elite, lock-on |
| Saddle | Verse Short Pro, carbon rails, 145mm width |
| Seatpost | Fox Transfer NEO wireless, 34.9mm; 150mm travel on S, 175mm travel on M, 200mm travel on L, XL, and XXL |
| Weight | M - 15.27 kg / 33.67 lbs with TLR sealant, no tubes |
| Weight Limit | 300 pounds / 136 kg combined weight of bicycle, rider, and cargo |
| Manufacturer Warranty | Trek frames and full-suspension swing arms are covered for the lifetime of the original owner. Other parts are covered according to Trek’s limited warranty. |
FAQ's Trek Fuel LX 9.9 X0 AXS Gen 7
What frame does the Trek Fuel LX 9.9 X0 AXS Gen 7 use?
The bike uses an OCLV Mountain Carbon frame with internal storage, guided internal routing, adjustable leverage rate, and adaptable 145mm-160mm travel. The frame also includes ABP, UDH, Boost148 spacing, a downtube guard, shuttle guard, interchangeable alloy rocker link, and interchangeable lower shock mount.
What drivetrain comes on the Trek Fuel LX 9.9 X0 AXS Gen 7?
This model uses a SRAM X0 Eagle AXS T-Type wireless drivetrain. The build includes a SRAM AXS pod shifter, SRAM X0 Eagle AXS rear derailleur, SRAM Eagle XS-1295 10-52 12-speed cassette, SRAM X0 Eagle T-Type chain, and SRAM X0 Eagle DUB crank.
What wheels and tires are used on the Trek Fuel LX 9.9 X0 AXS Gen 7?
The bike uses Bontrager Line Pro 30 OCLV Mountain Carbon Tubeless Ready wheels in 29" front and rear sizes. The tire setup includes a Maxxis Assegai 29x2.5" tire and a Maxxis Minion DHR II 29x2.5" tire, both tubeless ready with EXO+ casing.
What is the weight of the Trek Fuel LX 9.9 X0 AXS Gen 7?
The size M bike weighs 15.27 kg / 33.67 lbs with TLR sealant and no tubes. The maximum total weight limit is 300 pounds / 136 kg, including the bicycle, rider, and cargo.
