Trek Fuel EX 9.9 X0 AXS Gen 7
$5,099.00
The Trek Fuel EX 9.9 X0 AXS Gen 7 is a carbon trail mountain bike with an OCLV Mountain Carbon frame, RockShox Lyrik Ultimate 150mm fork, RockShox Deluxe Ultimate shock, SRAM X0 Eagle AXS drivetrain, Bontrager Line Pro 30 carbon wheels, and SRAM Maven Silver 4-piston hydraulic disc brakes.
Trek Fuel EX 9.9 X0 AXS Gen 7 Overview
The Trek Fuel EX 9.9 X0 AXS Gen 7 is a carbon full-suspension trail mountain bike built around an OCLV Mountain Carbon frame with adaptable 145mm-160mm travel. The frame includes internal storage, a ZS headset, adjustable leverage rate, guided internal routing, an interchangeable alloy rocker link, an interchangeable lower shock mount, a downtube guard, shuttle guard, ABP suspension design, UDH, Boost148 spacing, ISCG 05, and a BSA 73 bottom bracket standard.
The suspension package uses a RockShox Lyrik Ultimate fork with 150mm travel and a RockShox Deluxe Ultimate RC2T shock. The drivetrain uses SRAM X0 Eagle AXS T-Type components, including a SRAM AXS pod shifter, SRAM X0 Eagle AXS rear derailleur, SRAM Eagle XS-1295 10-52 cassette, and SRAM X0 Eagle T-Type 12-speed chain. Bontrager Line Pro 30 OCLV Mountain Carbon wheels, Maxxis Minion tires, and SRAM Maven Silver 4-piston hydraulic disc brakes complete the build.
Key Features of Trek Fuel EX 9.9 X0 AXS Gen 7
- OCLV Mountain Carbon frame includes internal storage, guided internal routing, downtube guard, shuttle guard, ABP, UDH, and Boost148 spacing.
- Adaptable 145mm-160mm frame travel gives the bike a configurable full-suspension platform.
- RockShox Lyrik Ultimate fork uses DebonAir+ with ButterCups, Charger 3.1 RC damper, and 150mm travel.
- RockShox Deluxe Ultimate RC2T shock is sized at 205mm x 60mm.
- SRAM X0 Eagle AXS T-Type drivetrain delivers wireless 12-speed shifting with a 10-52 cassette.
- Bontrager Line Pro 30 OCLV Mountain Carbon wheels are Tubeless Ready and use Boost hub spacing.
- Maxxis Minion DHF and Minion DHR II tires give the bike a trail-focused tubeless-ready tire setup.
- SRAM Maven Silver 4-piston hydraulic disc brakes use SRAM HS2 6-bolt rotors.
Ride Use
This bike is built for trail mountain biking, supported by its OCLV Mountain Carbon full-suspension frame, adaptable 145mm-160mm travel, RockShox Lyrik Ultimate 150mm fork, and RockShox Deluxe Ultimate RC2T shock. The SRAM X0 Eagle AXS drivetrain, carbon wheels, Maxxis Minion tires, and 4-piston hydraulic disc brakes match the trail-focused category.
Why Choose This Bike
The Trek Fuel EX 9.9 X0 AXS Gen 7 combines a carbon trail frame, RockShox suspension, SRAM X0 Eagle AXS T-Type wireless shifting, Bontrager Line Pro 30 carbon wheels, and SRAM Maven Silver 4-piston hydraulic disc brakes in one complete build. It also includes a Race Face ERA carbon handlebar, Race Face Turbine R stem, Verse Short Pro saddle, RockShox Reverb AXS wireless dropper post, and three color options: Gloss Chameleon Green, Purple Phaze, and Gloss Dark Carmine. Trek frames and full-suspension swing arms are covered for the lifetime of the original owner, with other parts covered under Trek’s limited warranty.
| Feature | Details |
|---|---|
| Brand | Trek |
| Model | Fuel EX 9.9 X0 AXS Gen 7 |
| Bike Type | Trail Mountain Bike |

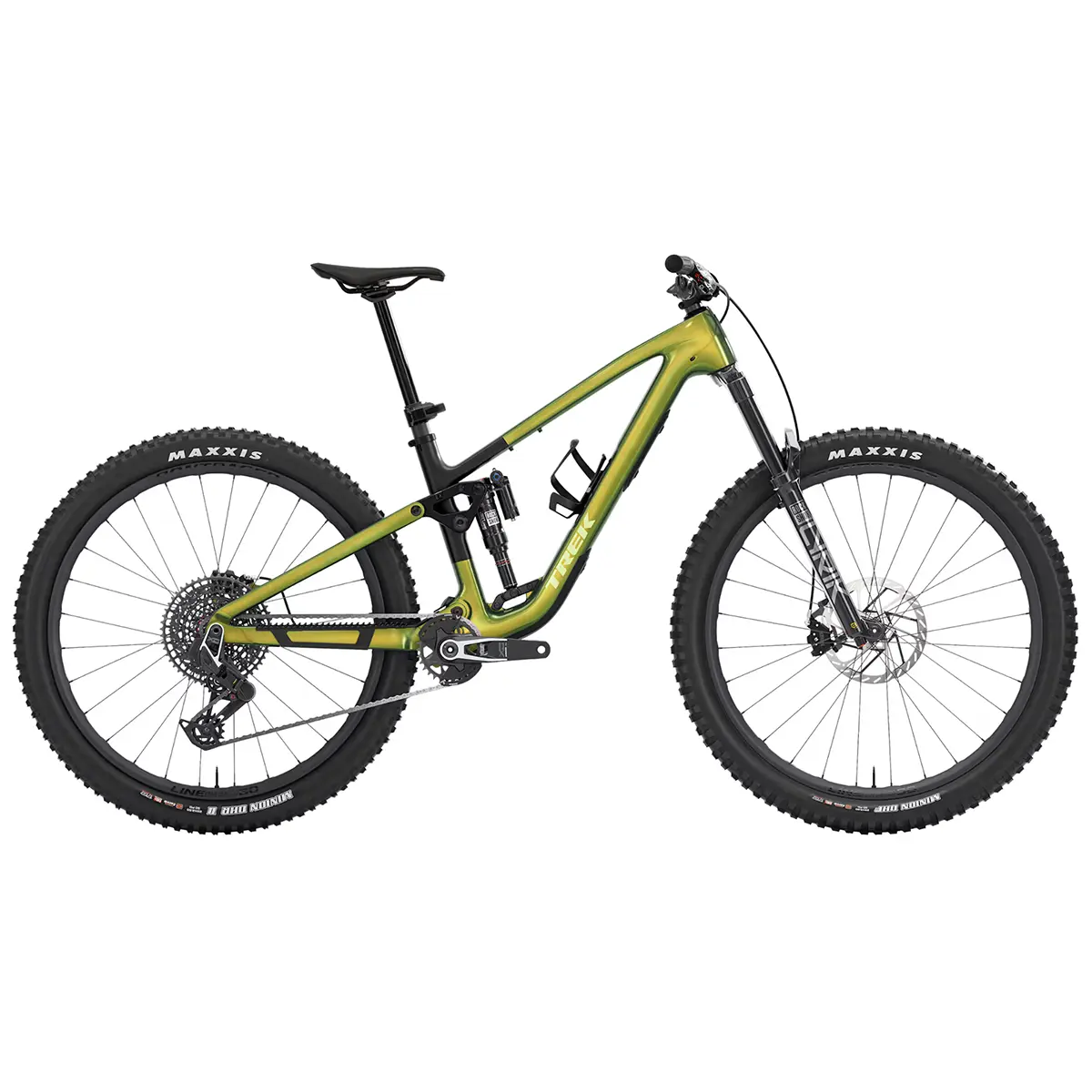

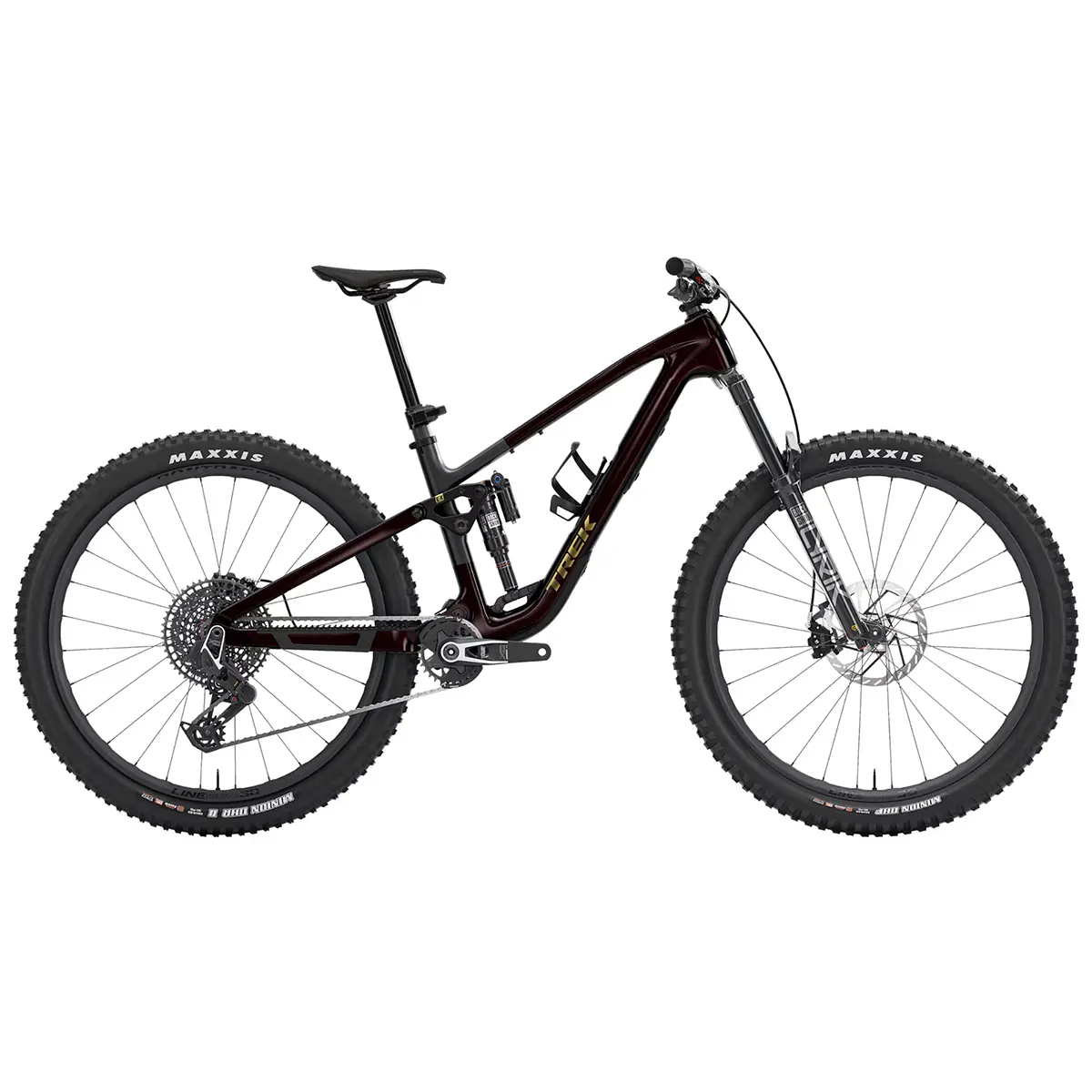

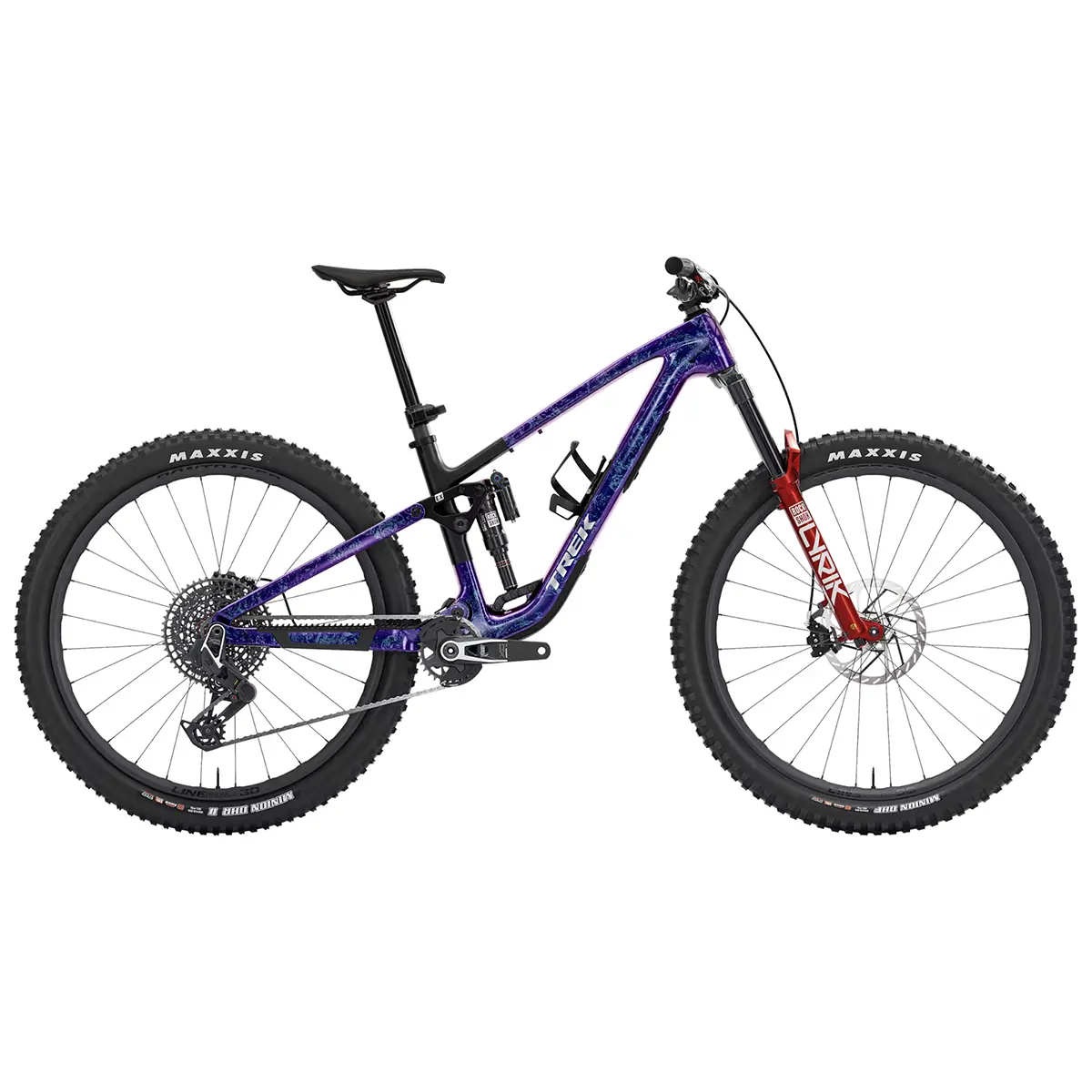

| Color | Gloss Chameleon Green, Purple Phaze, Gloss Dark Carmine |
| Frame | OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm |
| Fork | RockShox Lyrik Ultimate, DebonAir+ with ButterCups, Charger 3.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel |
| Shock | RockShox Deluxe Ultimate RC2T, 205mm x 60mm |
| Shifter | SRAM AXS pod |
| Rear Derailleur | SRAM X0 Eagle AXS, T-Type |
| Crank | SRAM X0 Eagle, DUB, 30T, T-Type, 55mm chainline, 170mm length |
| Bottom Bracket | SRAM DUB MTB Wide, 73mm, BSA threaded |
| Cassette | SRAM Eagle XS-1295, T-Type, 10-52, 12-speed |
| Chain | SRAM X0 Eagle, T-Type, 12-speed |
| Battery | SRAM AXS battery pack with charger |
| Brakes | SRAM Maven Silver 4-piston hydraulic disc |
| Brake Rotors | SRAM HS2, 6-bolt, 180mm and 200mm |
| Wheels | Bontrager Line Pro 30 OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110 front, Boost148 rear, Rapid Drive 108 rear hub |
| Wheel Size | 29" front; Size S: 27.5" rear; Size M, L, XL, XXL: 29" rear |
| Tires | Maxxis Minion DHF 29x2.5", tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead; Maxxis Minion DHR II 27.5x2.5" on size S rear; Maxxis Minion DHR II 29x2.5" on size M, L, XL, and XXL rear |
| Handlebar | Race Face ERA carbon, 35mm, 40mm rise, 800mm width |
| Stem | Race Face Turbine R, 35mm, 0 degree, 40mm length |
| Grips | Trek Line Elite, lock-on |
| Saddle | Verse Short Pro, carbon rails, 145mm width |
| Seatpost | RockShox Reverb AXS wireless, 34.9mm; 150mm travel on S, 175mm travel on M, 200mm travel on L, XL, and XXL |
| Weight | M - 14.08 kg / 31.05 lbs with TLR sealant, no tubes |
| Weight Limit | 300 pounds / 136 kg combined weight of bicycle, rider, and cargo |
| Manufacturer Warranty | Trek frames and full-suspension swing arms are covered for the lifetime of the original owner. Other parts are covered under Trek’s limited warranty. |
FAQ's Trek Fuel EX 9.9 X0 AXS Gen 7
What frame does the Trek Fuel EX 9.9 X0 AXS Gen 7 use?
The bike uses an OCLV Mountain Carbon frame with internal storage, guided internal routing, adjustable leverage rate, and adaptable 145mm-160mm travel. The frame also includes ABP, UDH, Boost148 spacing, a downtube guard, shuttle guard, interchangeable alloy rocker link, and interchangeable lower shock mount.
What drivetrain comes on the Trek Fuel EX 9.9 X0 AXS Gen 7?
This model uses a SRAM X0 Eagle AXS T-Type wireless drivetrain. The build includes a SRAM AXS pod shifter, SRAM X0 Eagle AXS rear derailleur, SRAM Eagle XS-1295 10-52 12-speed cassette, SRAM X0 Eagle T-Type chain, and SRAM X0 Eagle DUB crank.
What wheels and tires are used on the Trek Fuel EX 9.9 X0 AXS Gen 7?
The bike uses Bontrager Line Pro 30 OCLV Mountain Carbon Tubeless Ready wheels. It has a 29" front wheel, with a 27.5" rear wheel on size S and a 29" rear wheel on sizes M, L, XL, and XXL. The tire setup includes Maxxis Minion DHF and Maxxis Minion DHR II tubeless-ready tires.
What is the weight of the Trek Fuel EX 9.9 X0 AXS Gen 7?
The size M bike weighs 14.08 kg / 31.05 lbs with TLR sealant and no tubes. The maximum total weight limit is 300 pounds / 136 kg, including the bicycle, rider, and cargo.
