Trek Fuel+ LX 9.8 Eagle 90 Gen 2

Trek Fuel+ LX 9.8 Eagle 90 Gen 2 Overview

The Trek Fuel+ LX 9.8 Eagle 90 Gen 2 is a carbon electric mountain bike built with a TQ-HPR60 motor, TQ 580Wh battery, Fox Factory suspension, SRAM Eagle 90 T-Type drivetrain, and 29-inch Bontrager wheels. The OCLV Mountain Carbon frame uses a removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148 spacing, and adaptable travel from 145mm to 160mm.

The suspension package pairs a Fox Factory 38 fork with 170mm travel and a Fox DHX2 rear shock sized at 205mm x 65mm. The fork uses a Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost110 spacing, and a 15mm Kabolt X axle. Fox steel coil spring rates are matched by size, from 250lbs on size S to 500lbs on size XXL.

The electric system uses a TQ-HPR60 motor with 60 Nm of torque, 250 watt maximum continuous rated power, and 350 watt peak power. It is paired with a TQ 580Wh battery, TQ 4A charger, and TQ color LED display with Bluetooth and ANT+ connectivity. The bike is classified as a Class 1 e-bike.

The drivetrain uses SRAM Eagle 90 T-Type 12-speed components, including a SRAM Eagle 90 shifter, SRAM Eagle 90 T-Type rear derailleur, SRAM Eagle 90 e-MTB crank arms, SRAM T-Type 32T alloy chainring, SRAM Eagle XS-1275 10-52T 12-speed cassette, and SRAM GX Eagle T-Type 12-speed chain. SRAM Maven Bronze 4-piston hydraulic disc brakes with SRAM HS2 200mm rotors handle braking.

Key Features of Trek Fuel+ LX 9.8 Eagle 90 Gen 2

• OCLV Mountain Carbon frame uses a removable battery design, ABP suspension, UDH, Boost148 spacing, and adaptable 145mm-160mm travel.
• TQ-HPR60 motor delivers 60 Nm of torque with 250 watt maximum continuous rated power and 350 watt peak power.
• TQ 580Wh battery works with a TQ 4A charger and TQ color LED display with Bluetooth and ANT+ connectivity.
• Fox Factory 38 fork provides 170mm travel with Float EVOL air spring and GRIP X2 damper.
• Fox DHX2 rear shock is sized at 205mm x 65mm and uses size-specific Fox steel coil springs.
• SRAM Eagle 90 T-Type drivetrain pairs a 12-speed shifter with a 10-52T cassette.
• Bontrager Line Comp 30 Tubeless Ready wheels use 29-inch sizing front and rear.
• SRAM Maven Bronze 4-piston hydraulic disc brakes use SRAM HS2 6-bolt 200mm rotors.

Ride Use

This bike is built for electric mountain biking, with a carbon full-suspension frame, TQ-HPR60 motor, 580Wh battery, and Fox Factory suspension. The SRAM Eagle 90 T-Type drivetrain, Maxxis 29×2.5″ tires, Bontrager Line Comp 30 wheels, and SRAM Maven 4-piston brakes match its electric MTB build.

Why Choose This Bike

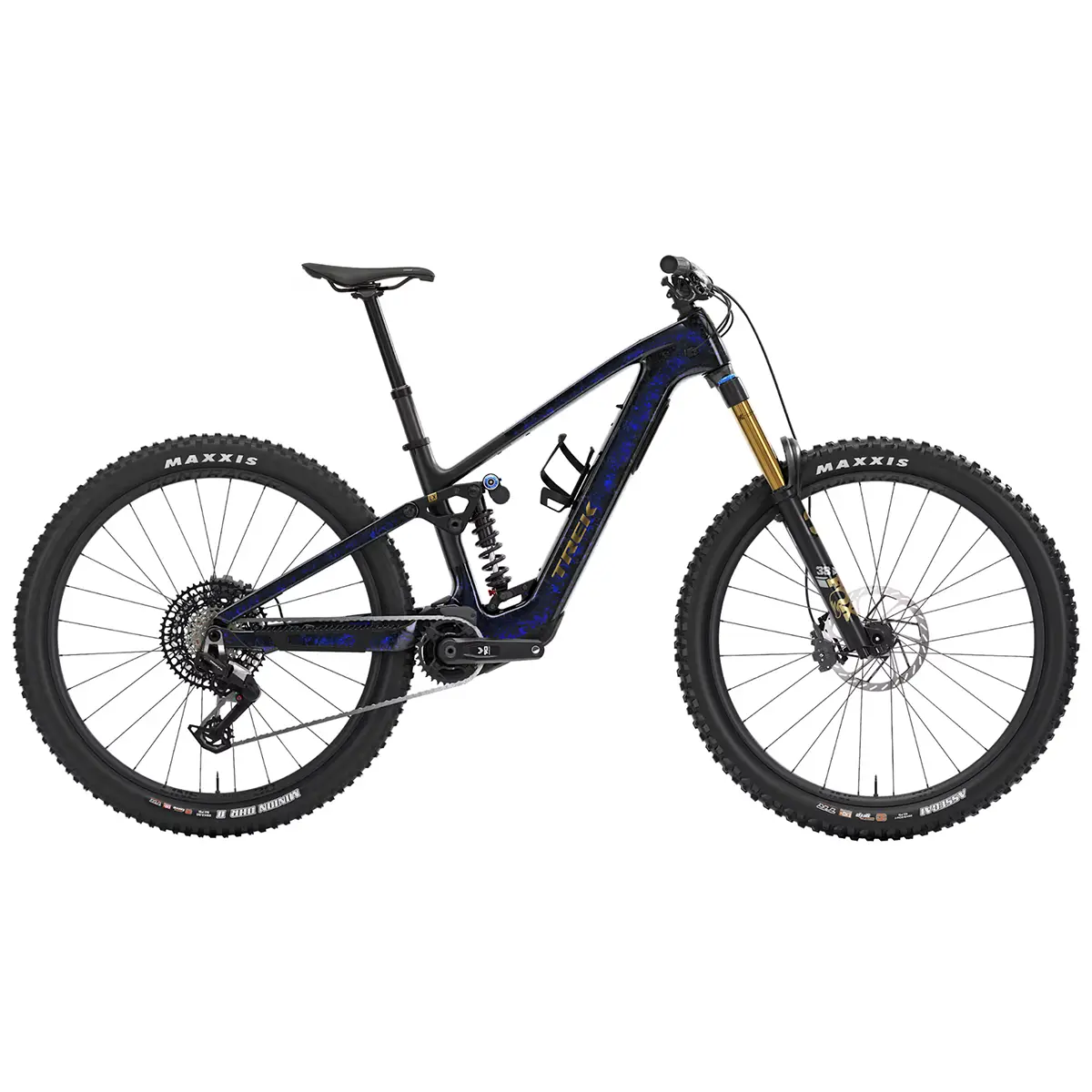

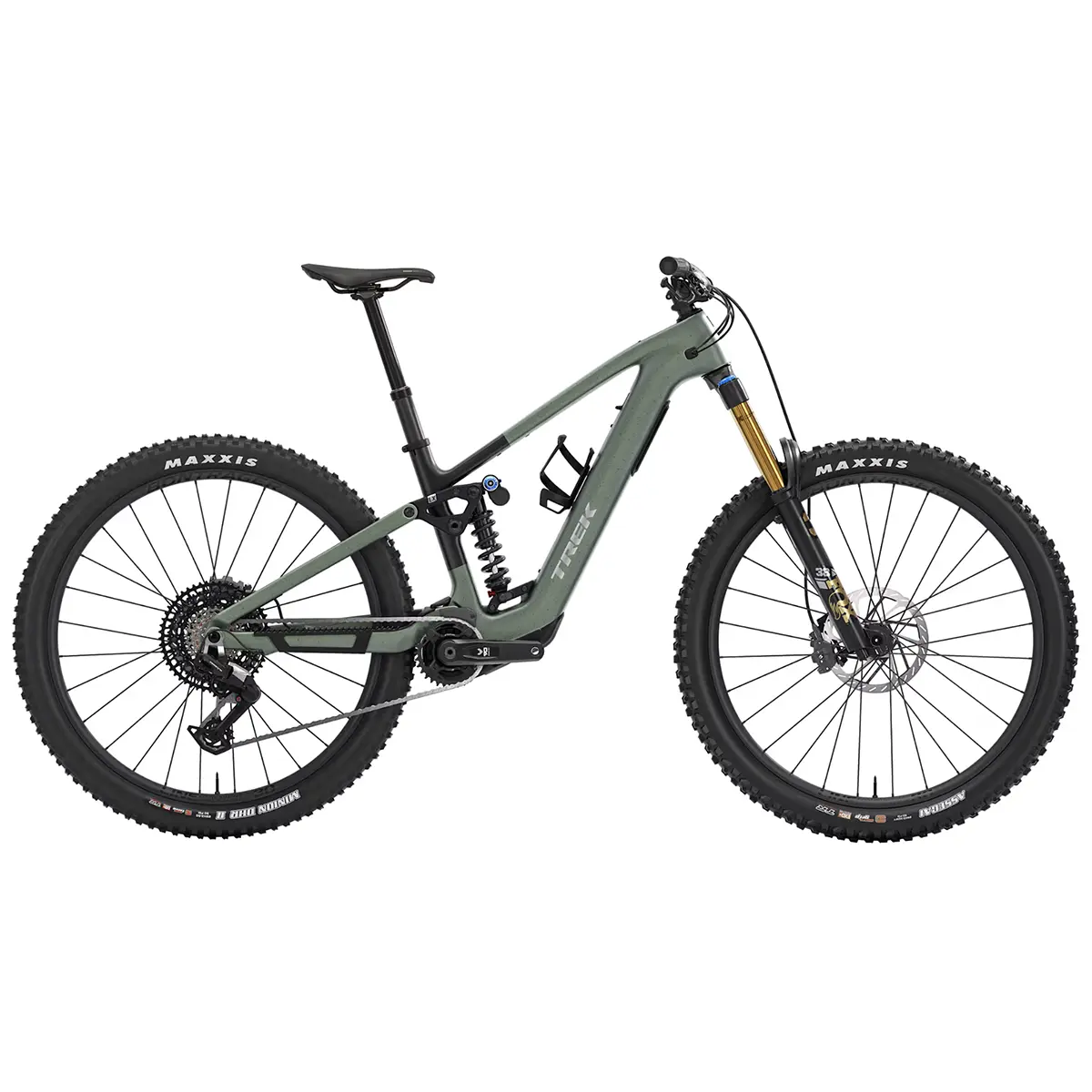

The Trek Fuel+ LX 9.8 Eagle 90 Gen 2 combines a carbon Trek e-MTB frame, TQ electric system, Fox Factory 38 fork, Fox DHX2 rear shock, SRAM Eagle 90 T-Type drivetrain, Bontrager Line Comp 30 wheels, Maxxis tires, and SRAM Maven Bronze hydraulic disc brakes. It is available in Gloss Navy Smoke, Lichen Green, and Carbon Smoke, with a size M weight of 20.88 kg / 46.04 lbs with TLR sealant and no tubes. Trek frames and full-suspension swing arms are covered for the lifetime of the original owner, while other parts are covered under Trek’s limited warranty.
