Trek Fuel EX C Gen 6 Frameset
$2,099.00
The Trek Fuel EX C Gen 6 Frameset is a full suspension mountain bike frameset built with OCLV Mountain Carbon, internal storage, guided internal routing, ABP, UDH, Boost148 spacing, and 140mm travel. It includes a Fox Factory Float X rear shock and Bontrager BITS Internal Frame Storage Bag.
Trek Fuel EX C Gen 6 Frameset Overview

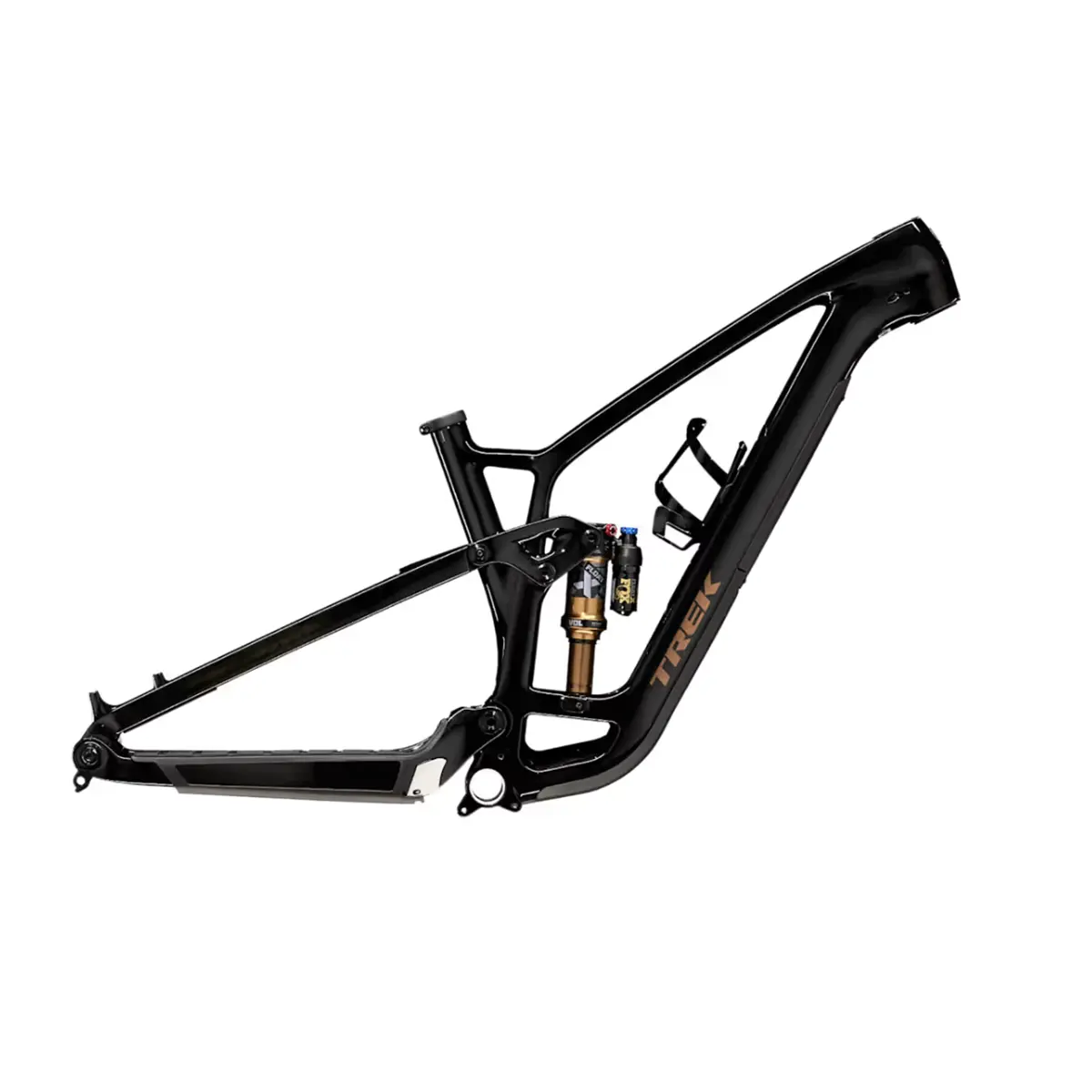

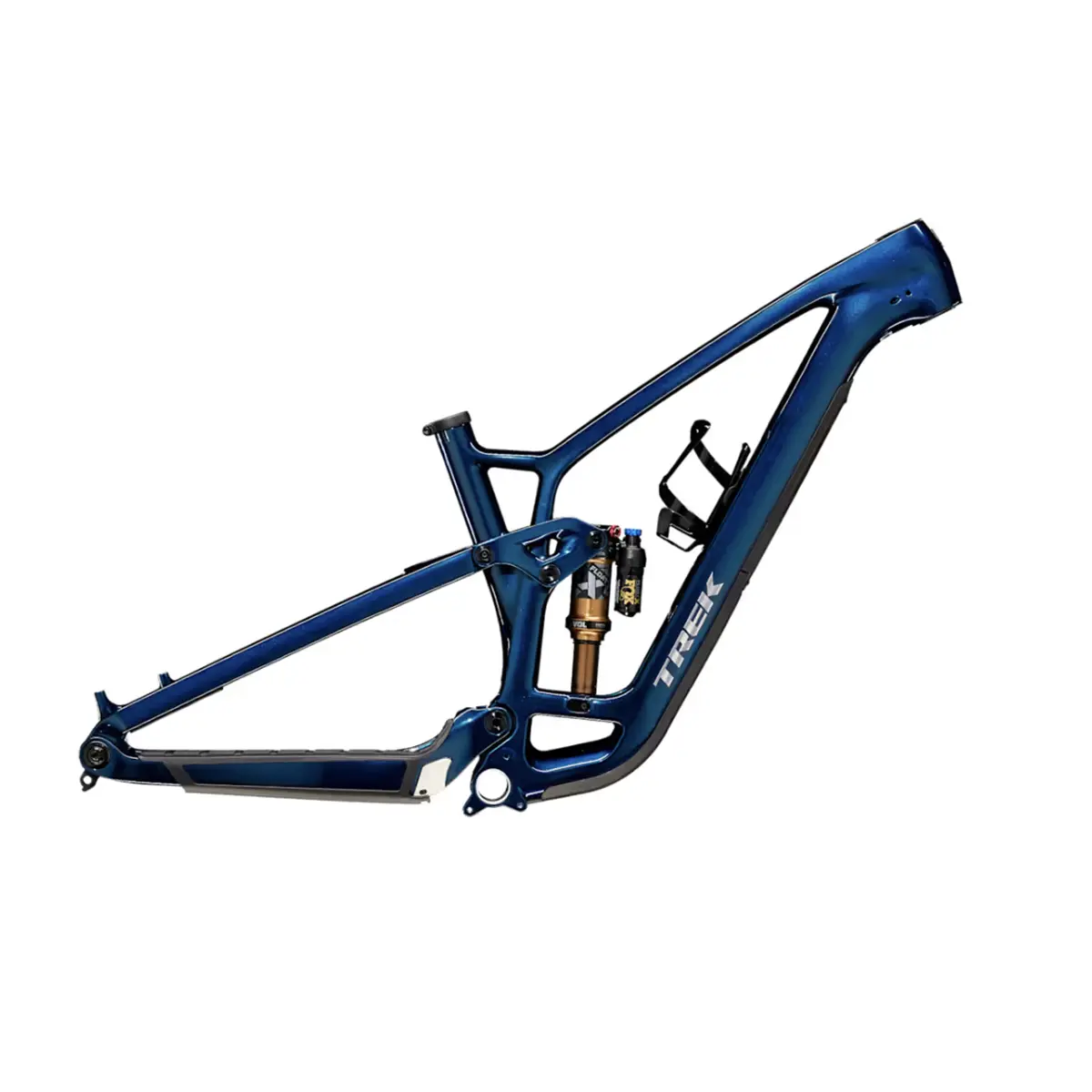

The Trek Fuel EX C Gen 6 Frameset is a full suspension mountain bike frameset built with OCLV Mountain Carbon, internal storage, and 140mm travel. The frame features an angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, and Boost148 spacing. It comes in Deep Smoke and Mulsanne Blue, with a Fox Factory Float X rear shock and Bontrager BITS Internal Frame Storage Bag.
Key Features of Trek Fuel EX C Gen 6 Frameset
- OCLV Mountain Carbon frame construction gives the frameset a carbon chassis for a full suspension mountain bike build.
- 140mm travel defines the frame’s rear suspension platform.
- Fox Factory Float X rear shock is included with a 2-position damper and 185mm x 55mm sizing.
- Internal storage works with the included Bontrager BITS Internal Frame Storage Bag.
- Guided internal routing keeps cable routing clean through the frame.
- Mino Link adjustable geometry and adjustable leverage rate are built into the frame design.
- ABP, UDH, and Boost148 spacing support the frame’s suspension and rear axle setup.
- Downtube guard and shuttle guard add frame protection in key contact areas.
Frame Use
This frameset is designed for a full suspension mountain bike build using OCLV Mountain Carbon and 140mm travel. Its ABP suspension, Mino Link adjustable geometry, adjustable leverage rate, Fox Factory Float X shock, and Boost148 spacing define the frame platform. Internal storage, guided internal routing, UDH, BSA 73, downtube guard, and shuttle guard add practical frame features for the build.
Why Choose This Frameset
The Trek Fuel EX C Gen 6 Frameset gives riders a carbon full suspension mountain bike foundation with OCLV Mountain Carbon, 140mm travel, ABP suspension, and a Fox Factory Float X rear shock. It also includes internal storage, a Bontrager BITS Internal Frame Storage Bag, guided internal routing, an angle-adjust headset, Mino Link adjustable geometry, BSA 73 bottom bracket, ISCG 05, UDH, Boost148 spacing, and a Bontrager Switch rear thru axle with removable lever. The frameset comes in Deep Smoke and Mulsanne Blue, weighs 3.40 kg / 7.5 lbs in size M, and Trek frames are covered for the lifetime of the original owner.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Trek |
| Model | Fuel EX C Gen 6 Frameset |
| Product Type | Full Suspension Mountain Bike Frameset |
| Frame Material | OCLV Mountain Carbon |
| Frame | OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel |
| Rear Shock | Fox Factory Float X, 2-position damper, 185mm x 55mm |
| Suspension Travel | 140mm |
| Rear Axle | Bontrager Switch thru axle, removable lever |
| Axle Standard | Boost148 |
| Dropout | UDH |
| Bottom Bracket | BSA 73 |
| Headset | Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible |
| Routing | Guided internal routing |
| Storage | Internal storage |
| Max Tire Size | Frame: 29x2.50" / XS & S: 27.5x2.50", Fork: See manufacturer |
| Max Chainring Size | 1x: 34T round, 32T oval, min 28T |
| Rotor Size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |
| Accessory | Bontrager BITS Internal Frame Storage Bag |
| Color | Deep Smoke, Mulsanne Blue |
| Weight | M - 3.40 kg / 7.5 lbs |
| Weight Limit | Maximum total weight limit, combined weight of bicycle, rider, and cargo: 300 pounds / 136 kg |
| Manufacturer Warranty | Trek frames are covered for the lifetime of the original owner. |
FAQ's Trek Fuel EX C Gen 6 Frameset
Is the Trek Fuel EX C Gen 6 Frameset a complete bike?
No. The Trek Fuel EX C Gen 6 Frameset is a frameset, not a complete bicycle. It includes the frame, Fox Factory Float X rear shock, and Bontrager BITS Internal Frame Storage Bag.
What frame material does the Trek Fuel EX C Gen 6 Frameset use?
The frame uses OCLV Mountain Carbon. It also features internal storage, an angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, ABP, UDH, Boost148, and 140mm travel.
What rear shock is included with this frameset?
This frameset includes a Fox Factory Float X rear shock. The shock has a 2-position damper and measures 185mm x 55mm.
What is the maximum tire size for this frame?
The frame supports a maximum tire size of 29x2.50". Sizes XS and S support 27.5x2.50", and fork tire clearance depends on the fork manufacturer.
