Trek Fuel+ EX 9.8 XT Di2 Gen 2

Trek Fuel+ EX 9.8 XT Di2 Gen 2 Overview

The Trek Fuel+ EX 9.8 XT Di2 Gen 2 is a carbon electric mountain bike built with a TQ-HPR60 motor, TQ 580Wh battery, Fox Factory suspension, Shimano XT Di2 shifting, and Bontrager Line Comp 30 wheels. The OCLV Mountain Carbon frame uses a removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148 spacing, and adaptable travel from 145mm to 160mm.

The suspension package uses a Fox Factory 36 fork with 150mm travel and a Fox Factory Float X rear shock sized at 205mm x 60mm. The fork includes a Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost110 spacing, and a 15mm Kabolt X axle.

The electric system is built around a TQ-HPR60 motor with 60 Nm of torque, 250 watt maximum continuous rated power, and 350 watt peak power. It is paired with a TQ 580Wh battery, TQ 4A charger, and TQ color LED display with Bluetooth and ANT+ connectivity. The bike is classified as a Class 1 e-bike.

The drivetrain uses Shimano XT Di2 12-speed components, including a Shimano XT Di2 M8250 shifter and Shimano XT Di2 M8260 rear derailleur. The crank setup includes an E*thirteen E*spec Plus 160mm crank arm, E*Thirteen Helix Core Steel 32T chainring, Shimano XT M8200 10-51T 12-speed cassette, and Shimano Ultegra/XT M8100 chain. Shimano XT M8220 4-piston hydraulic disc brakes with Shimano RT86 203mm rotors handle braking.

Key Features of Trek Fuel+ EX 9.8 XT Di2 Gen 2

• OCLV Mountain Carbon frame uses a removable battery design, ABP suspension, UDH, Boost148 spacing, and adaptable 145mm-160mm travel.
• TQ-HPR60 motor delivers 60 Nm of torque with 250 watt maximum continuous rated power and 350 watt peak power.
• TQ 580Wh battery works with a TQ 4A charger and TQ color LED display with Bluetooth and ANT+ connectivity.
• Fox Factory 36 fork provides 150mm travel with Float EVOL air spring and GRIP X2 damper.
• Fox Factory Float X rear shock is sized at 205mm x 60mm.
• Shimano XT Di2 12-speed drivetrain pairs XT Di2 shifting with a 10-51T cassette.
• Bontrager Line Comp 30 Tubeless Ready wheels use a 29-inch front wheel, with rear wheel size matched by frame size.
• Shimano XT M8220 4-piston hydraulic disc brakes use Shimano RT86 6-bolt 203mm rotors.

Ride Use

This bike is built for electric mountain biking, with a carbon full-suspension frame, TQ-HPR60 motor, 580Wh battery, and Fox Factory suspension. The Shimano XT Di2 drivetrain, Maxxis Minion tires, Bontrager Line Comp 30 wheels, and Shimano XT 4-piston brakes match its electric MTB build.

Why Choose This Bike

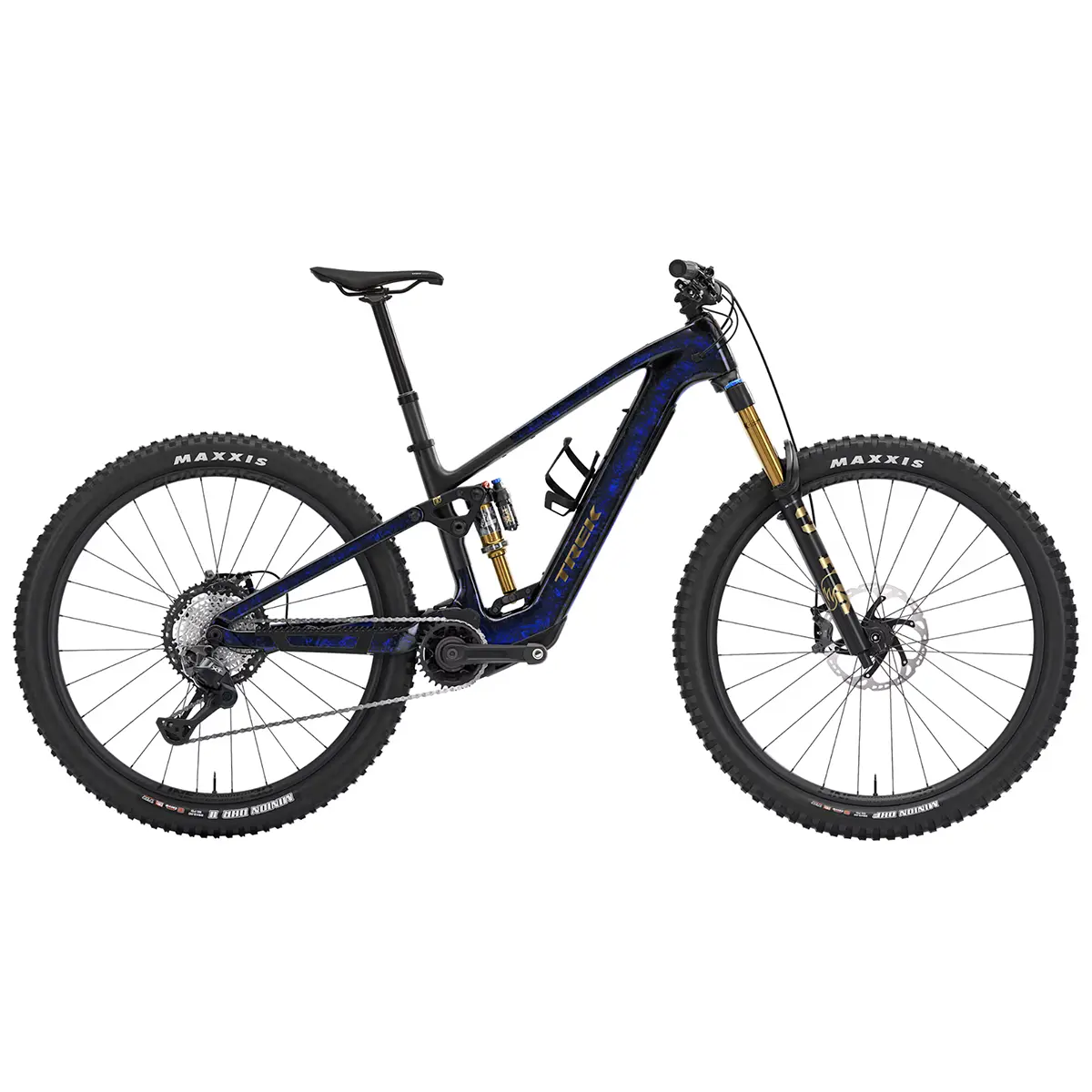

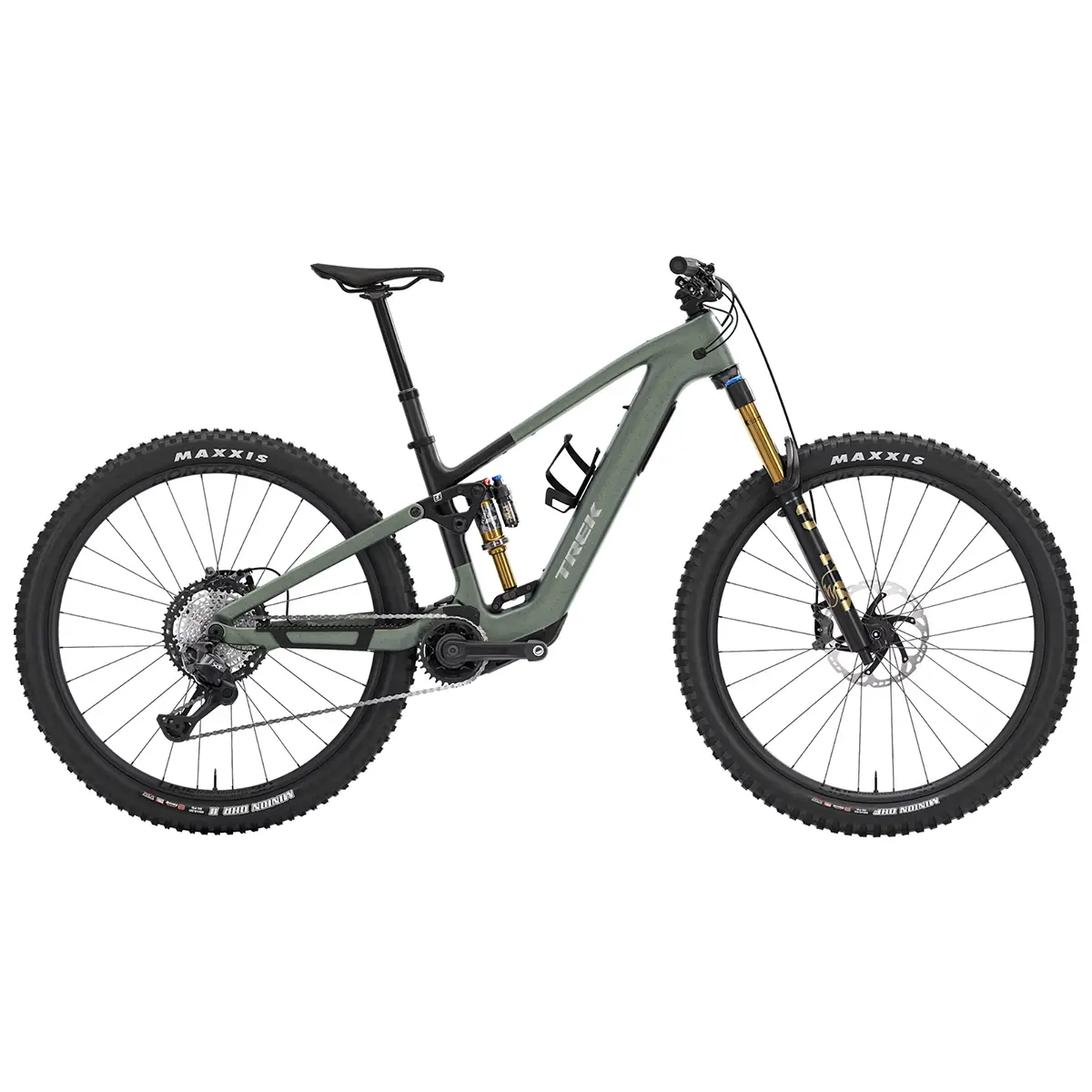

The Trek Fuel+ EX 9.8 XT Di2 Gen 2 combines a carbon Trek e-MTB frame, TQ electric system, Fox Factory 36 fork, Fox Factory Float X rear shock, Shimano XT Di2 drivetrain, Bontrager Line Comp 30 wheels, Maxxis Minion tires, and Shimano XT hydraulic disc brakes. It is available in Gloss Navy Smoke, Lichen Green, and Carbon Smoke, with a size M weight of 20.18 kg / 44.49 lbs with TLR sealant and no tubes. Trek frames and full-suspension swing arms are covered for the lifetime of the original owner, while other parts are covered under Trek’s limited warranty.
