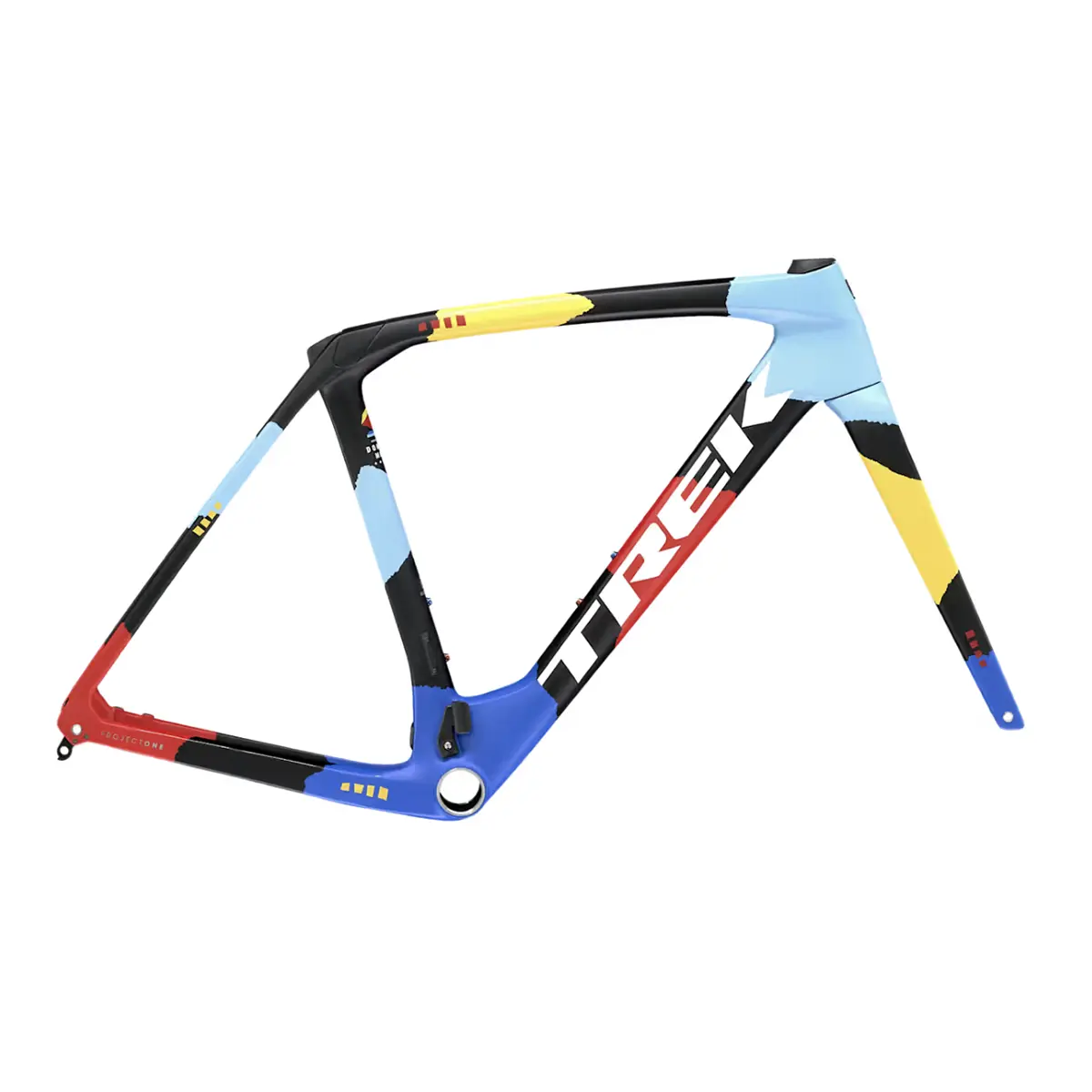

Trek Domane RSL Gen 4 Frameset

Trek Domane RSL Gen 4 Frameset Overview

The Trek Domane RSL Gen 4 Frameset is a carbon frameset built with an 800 Series OCLV Carbon frame and a Domane SLR carbon fork. The frame includes IsoSpeed, a tapered head tube, internal cable routing, a 3S chain keeper, flat mount disc compatibility, and a 142x12mm rear thru axle.

The fork uses a tapered carbon steerer, internal brake routing, fender mounts, flat mount disc compatibility, carbon dropouts, and a 12x100mm front thru axle. Tire clearance is 35mm, and the frame is specified for a maximum chainring size of 54T in a 1x setup or 54/40 in a 2x setup. The Trek Black finish is paired with a painted 56cm frame weight of 1057g and a painted fork weight of 401g.

Key Features of Trek Domane RSL Gen 4 Frameset

• 800 Series OCLV Carbon frame gives the frameset a carbon foundation.
• IsoSpeed is built into the frame for the Domane RSL Gen 4 platform.
• Tapered head tube supports the frameset’s front-end structure.
• Internal cable routing helps keep the frame layout clean.
• 3S chain keeper is integrated into the frame design.
• Domane SLR carbon fork includes a tapered carbon steerer, internal brake routing, and carbon dropouts.
• Fender mounts on the fork add a practical mounting option.
• Flat mount disc compatibility supports brake rotor sizes up to 160mm front and rear.

Frame Use

This frameset is made for a gravel frame build based on the supplied frame category, carbon construction, 35mm tire clearance, and fork fender mounts. The 800 Series OCLV Carbon frame, Domane SLR carbon fork, internal routing, and flat mount disc standard provide a clean platform for a custom frameset build. The 142x12mm rear thru axle and 12x100mm front thru axle define the axle layout.

Why Choose This Frameset

The Trek Domane RSL Gen 4 Frameset combines an 800 Series OCLV Carbon frame with IsoSpeed, a Domane SLR carbon fork, internal cable and brake routing, flat mount disc compatibility, and thru axle standards. It includes a tapered head tube, 3S chain keeper, carbon fork dropouts, 35mm maximum tire size, and support for up to 160mm brake rotors front and rear. The frameset comes in Trek Black with a 1057g painted 56cm frame weight and a 401g painted fork weight. Trek frames are covered for the lifetime of the original owner.
