Trek Check-OUT SL Frameset

Trek Check-OUT SL Frameset Overview

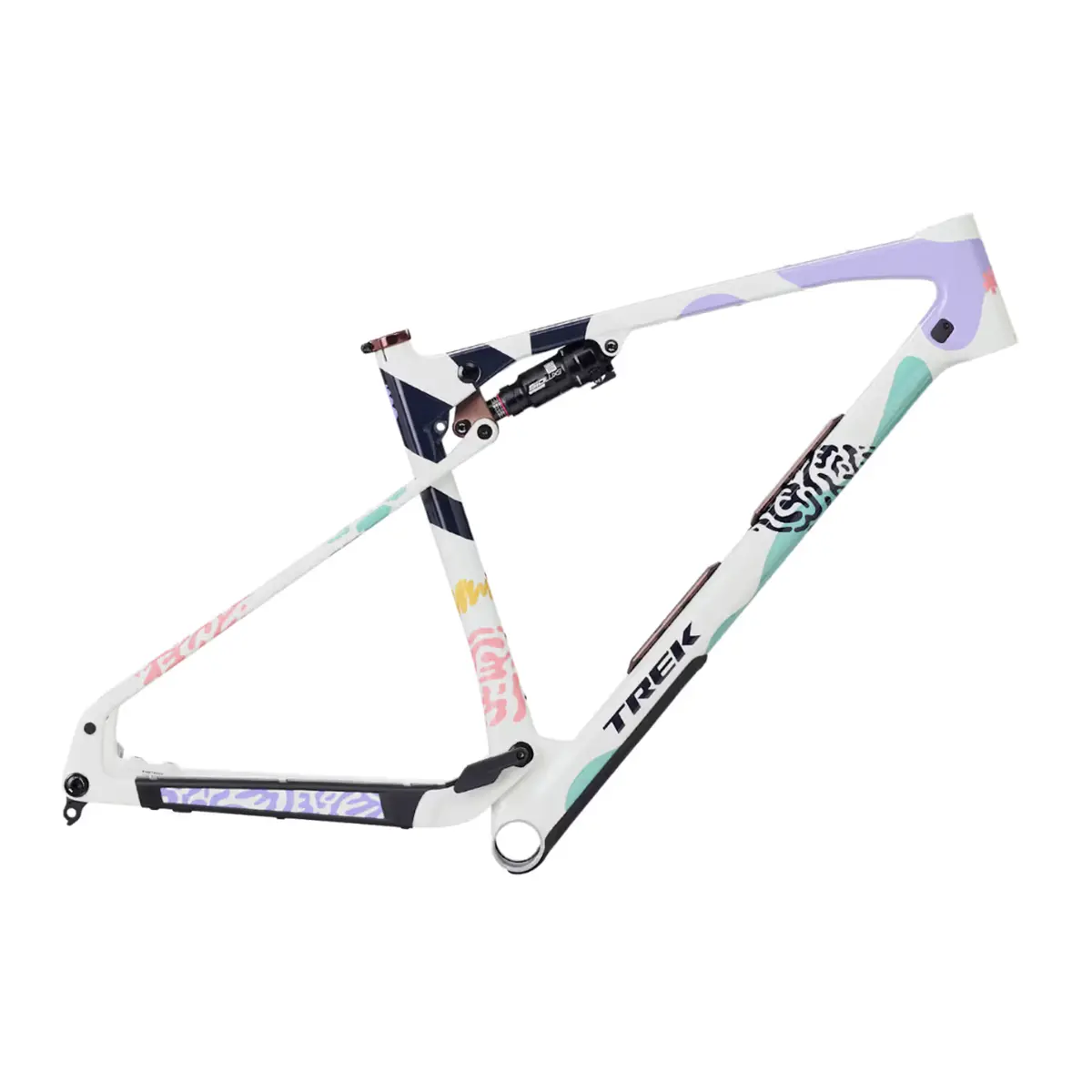

The Trek Check-OUT SL Frameset is a carbon gravel frameset built with a 500 Series OCLV Carbon frame, 55mm travel, and a RockShox SIDluxe Ultimate 3P shock. The frame includes integrated frame bag mounts, an integrated rack, T47 bottom bracket standard, UDH, and a 142x12mm chamfered rear thru axle.

This frameset gives a clear platform for a gravel build with rear suspension travel and integrated carrying features built into the frame design. The Era White finish is paired with an ML frame weight of 2.40 kg / 5.3 lbs. Tire clearance supports up to 56mm / 2.20″, and the frame is specified for a 1x maximum chainring size of 38T.

Key Features of Trek Check-OUT SL Frameset

• 500 Series OCLV Carbon frame gives the frameset a carbon foundation for a gravel build.
• 55mm travel is built into the frame platform for this Check-OUT SL frameset.
• RockShox SIDluxe Ultimate 3P shock is included with a 170mmx27.5mm specification.
• Integrated frame bag mounts provide built-in mounting points for frame storage.
• Integrated rack adds a carrying feature directly to the frame design.
• T47 bottom bracket standard gives the frame a defined bottom bracket platform.
• UDH supports the frame’s dropout standard.
• Clearance for up to 56mm / 2.20″ tires supports a wide gravel tire setup.

Frame Use

This frameset is made for a gravel frame build using its 500 Series OCLV Carbon frame, 55mm travel, rear shock, integrated frame bag mounts, and integrated rack. The 56mm / 2.20″ maximum tire size gives the build room for a wide gravel tire setup. The T47 bottom bracket, UDH, and 142x12mm rear thru axle define the frame platform for a custom gravel frameset build.

Why Choose This Frameset

The Trek Check-OUT SL Frameset combines a 500 Series OCLV Carbon frame with 55mm travel, a RockShox SIDluxe Ultimate 3P shock, integrated frame bag mounts, and an integrated rack. It also includes T47, UDH, a 142x12mm chamfered rear thru axle, clearance for up to 56mm / 2.20″ tires, and a Trek Adjustable Multi-Mount bracket. The frameset comes in Era White with an ML weight of 2.40 kg / 5.3 lbs. Trek frames are covered for the lifetime of the original owner.
