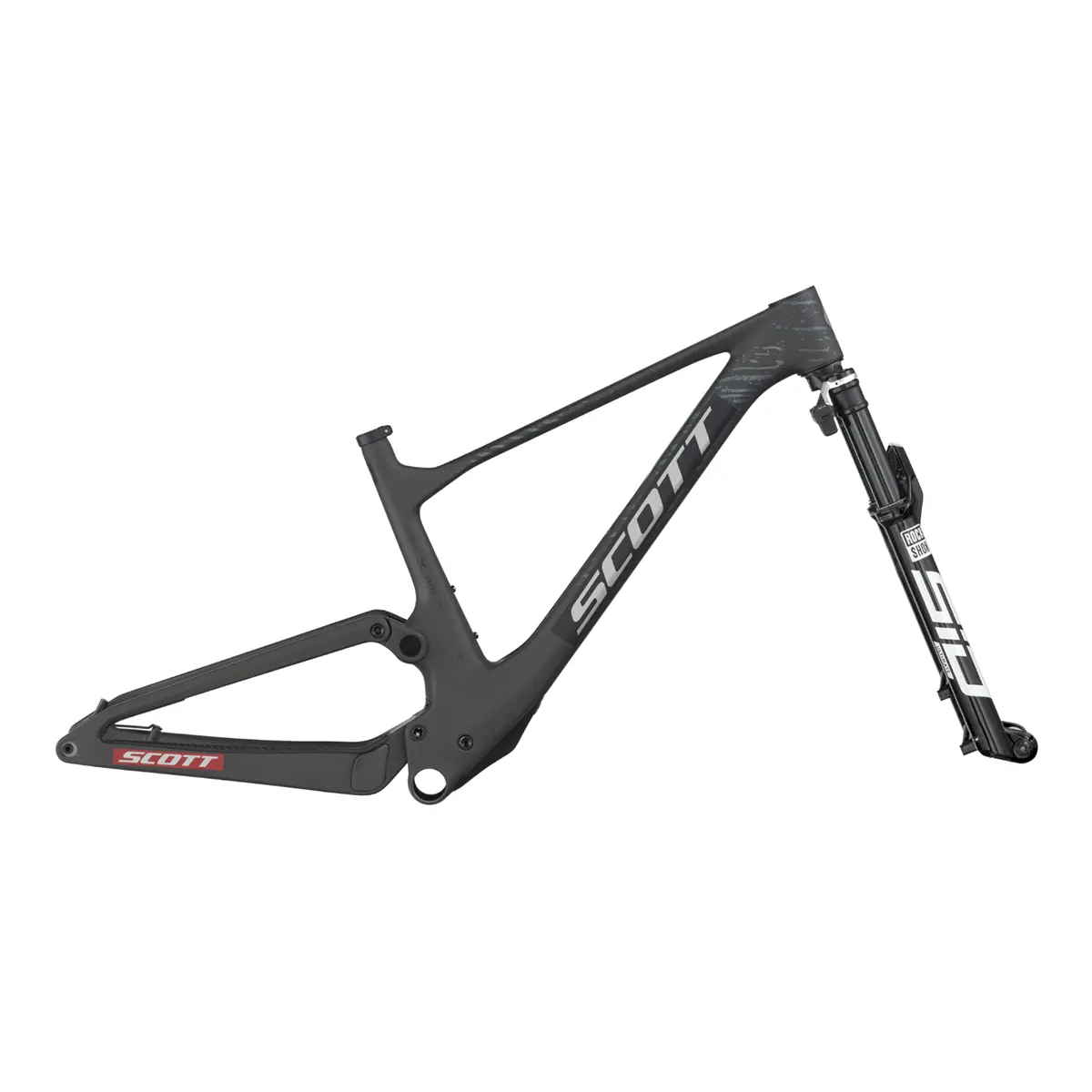

SCOTT Spark RC World Cup HMX Frame and Fork
$3,239.00
The SCOTT Spark RC World Cup HMX Frame and Fork is a 120mm mountain bike frame package with Spark RC Carbon HMX construction, Integrated Suspension Technology, Flex Pivot, adjustable head angle, RockShox SID Ultimate Flight Attendant fork, and RockShox SIDLuxe Ultimate Flight Attendant Custom rear shock.
SCOTT Spark RC World Cup HMX Frame and Fork Overview
The SCOTT Spark RC World Cup HMX Frame and Fork is a full suspension mountain bike frame package built around a Spark RC Carbon HMX frame with 120mm travel. The frame uses Integrated Suspension Technology, Flex Pivot, an adjustable head angle, Syncros Cable Integration System, BB92, UDH Interface, and 12x148mm spacing with a 55mm chainline. It is paired with a RockShox SID Ultimate Flight Attendant fork and a RockShox SIDLuxe Ultimate Flight Attendant Custom rear shock.
Key Features of SCOTT Spark RC World Cup HMX Frame and Fork
- Spark RC Carbon HMX frame gives the package a carbon full suspension foundation.
- Integrated Suspension Technology and Flex Pivot are built into the frame platform.
- Adjustable head angle allows the front-end setup to be configured within the frame design.
- Syncros Cable Integration System supports a cleaner cable layout through the frame.
- RockShox SID Ultimate Flight Attendant fork provides electronically controlled suspension with 120mm travel.
- RockShox SIDLuxe Ultimate Flight Attendant Custom rear shock includes 3 Modes Lockout-Pedal-Descend.
- BB92, UDH Interface, and 12x148mm spacing with 55mm chainline are built into the frame specification.
Frame Use
This frame package is made for a full suspension mountain bike frame build. Its 120mm travel, Spark RC Carbon HMX construction, Integrated Suspension Technology, Flex Pivot, and electronically controlled RockShox Flight Attendant suspension parts support a dedicated mountain bike setup.
Why Choose This Frameset
The SCOTT Spark RC World Cup HMX Frame and Fork combines a Spark RC Carbon HMX frame, 120mm travel, adjustable head angle, Syncros Cable Integration System, BB92, UDH Interface, and 12x148mm rear spacing with 55mm chainline. The package includes a RockShox SID Ultimate Flight Attendant fork, RockShox SIDLuxe Ultimate Flight Attendant Custom rear shock, Syncros – Acros Pro Headset System, UDH hanger, and small parts. It comes in carbon black and hush purple, with an approximate frame weight including shock of 1995g.
Product Specifications
| Feature | Details |
|---|---|
| Brand | SCOTT |
| Model | Spark RC World Cup HMX Frame and Fork |
| Product Type | Full Suspension Mountain Bike Frame and Fork |
| Frame | Spark RC Carbon HMX, Integrated Suspension Technology, Flex Pivot, adjustable head angle, Syncros Cable Integration System, BB92, UDH Interface, 12x148mm with 55mm Chainline |
| Travel | 120mm |
| Fork | RockShox SID Ultimate Flight Attendant, electronically controlled suspension, FA Race Day damper 3 Modes, 15x110mm Maxle Stealth, 44mm offset, tapered steerer, lockout, rebound adjustment, 120mm travel |
| Rear Shock | RockShox SIDLuxe Ultimate Flight Attendant Custom, electronically controlled suspension, 3 Modes Lockout-Pedal-Descend, Solo Air, rebound adjustment, lockout, 120mm travel, T165X45mm |
| Headset | Syncros - Acros Pro Headset System |
| Accessories | UDH Hanger and small parts |
| Color | Carbon black, hush purple |
| Size | S, M, L, XL |
| Bottom Bracket | BB92 |
| Dropout | UDH Interface |
| Axle Standard | 12x148mm with 55mm Chainline |
| Approx Weight | Frame incl. Shock 1995g / 4.4 lbs |
| Max. System Weight | 130kg |
| Manufacturer Warranty | SCOTT frames and rear ends are covered by a 5-year manufacturer guarantee. Category 5 frames/rear ends and SCOTT rigid forks are covered for 2 years. |
FAQ's SCOTT Spark RC World Cup HMX Frame and Fork
Is the SCOTT Spark RC World Cup HMX Frame and Fork a complete bicycle?
No. This product is a mountain bike frame package, not a complete bicycle. It includes the frame, fork, rear shock, Syncros - Acros Pro Headset System, UDH hanger, and small parts.
What suspension parts are included with this frame package?
The package includes a RockShox SID Ultimate Flight Attendant fork and a RockShox SIDLuxe Ultimate Flight Attendant Custom rear shock. Both suspension parts are listed with electronically controlled suspension.
How much travel does the SCOTT Spark RC World Cup HMX Frame and Fork have?
The frame package has 120mm travel. The fork is also listed with 120mm travel, and the rear shock specification includes 120mm travel with T165X45mm sizing.
What colors and sizes are available?

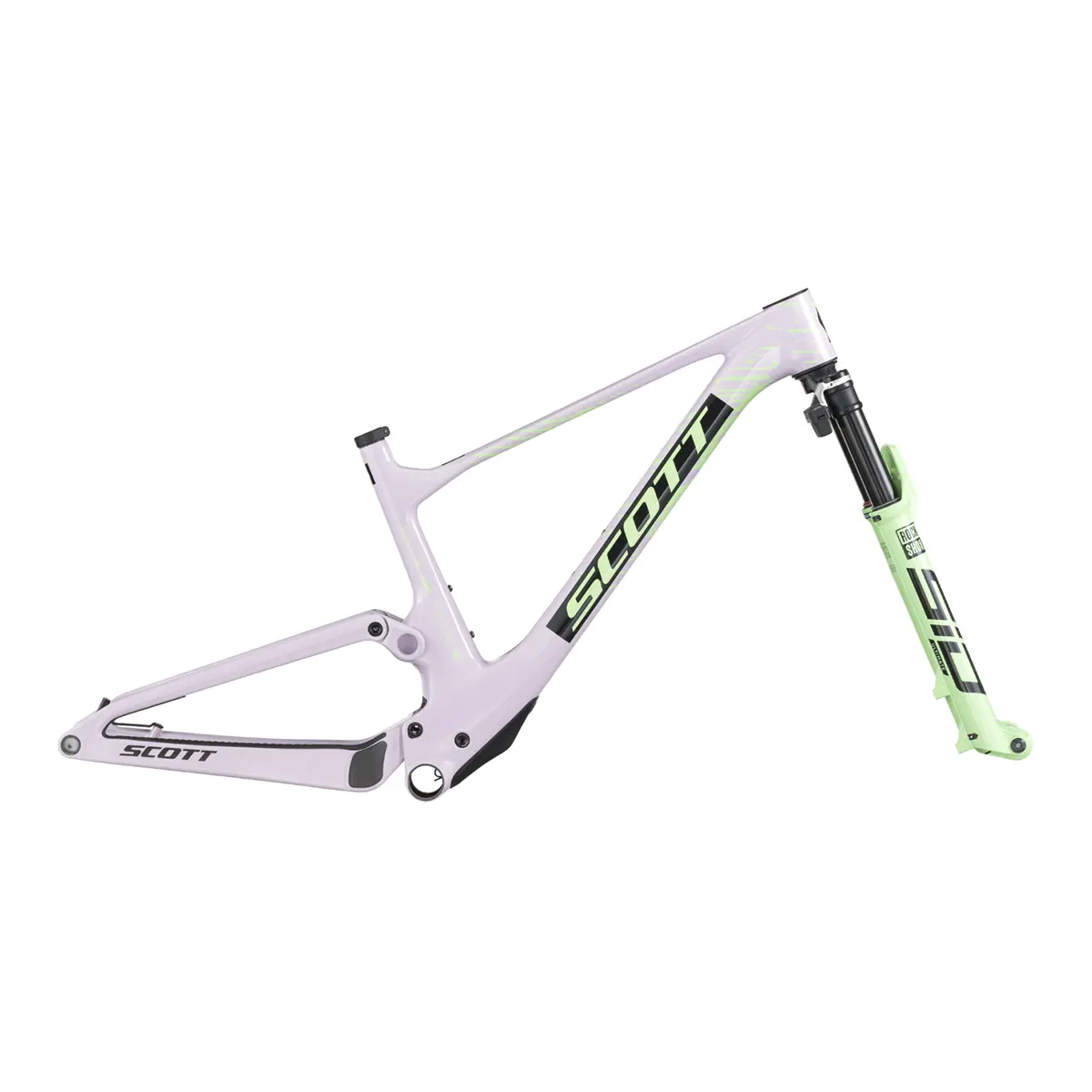

The SCOTT Spark RC World Cup HMX Frame and Fork comes in carbon black and hush purple. Available sizes are S, M, L, and XL.
