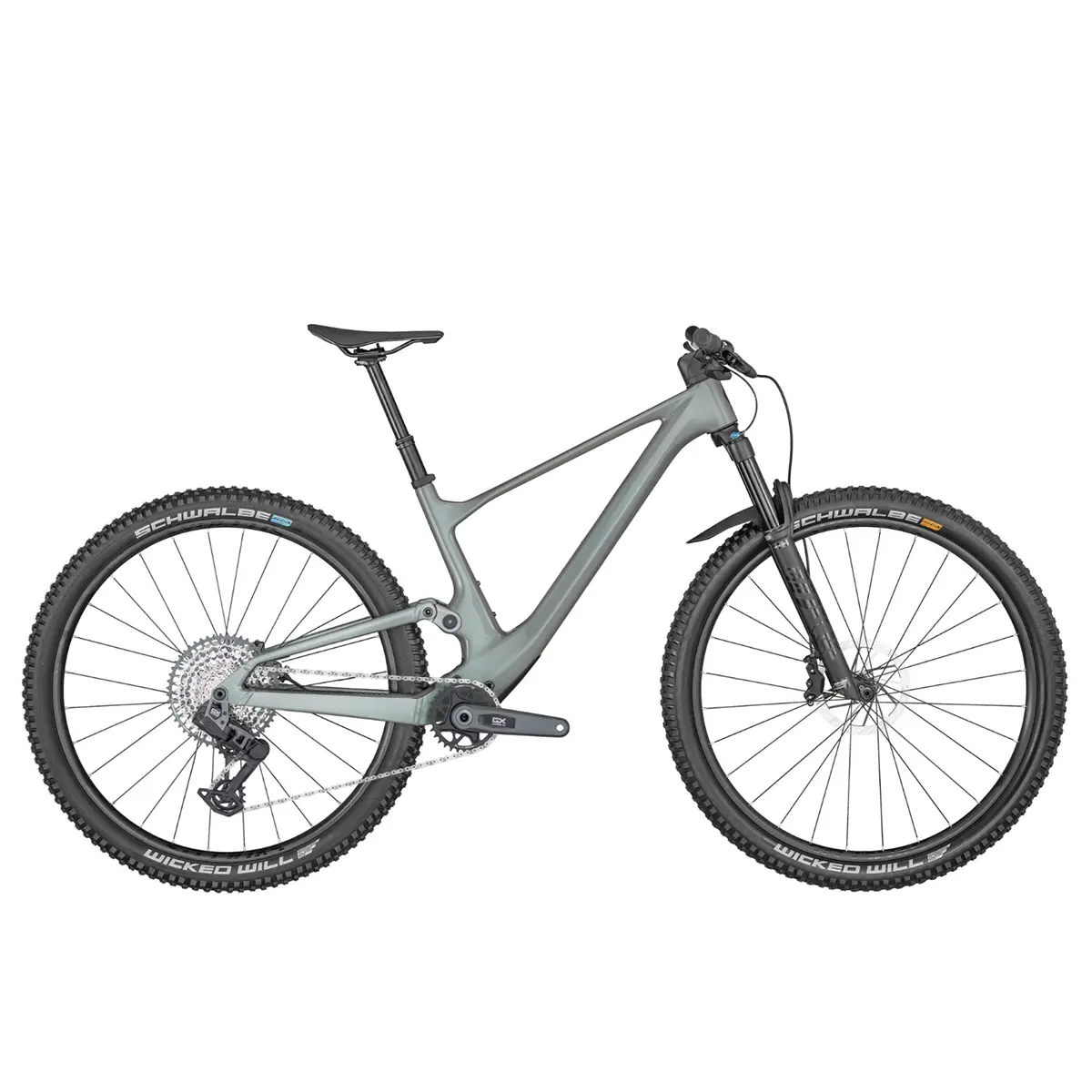

SCOTT Spark 920 TR Bike
$3,299.00
The SCOTT Spark 920 TR Bike is a cross country mountain bike with a Spark Carbon HMF mainframe, Alloy 6011 swingarm, FOX 34 Float Performance 130mm fork, FOX NUDE 5T EVOL rear shock, SRAM GX Eagle AXS Transmission, and SRAM DB8 4-piston disc brakes.
| Color | Grey |
|---|
SCOTT Spark 920 TR Bike Overview
The SCOTT Spark 920 TR Bike is a cross country mountain bike built around a Spark Carbon HMF mainframe with an Alloy 6011 swingarm, Integrated Suspension Technology, and Flex Pivot design. The frame includes an adjustable head angle, Syncros Cable Integration System, BB92 bottom bracket standard, UDH interface, and 12x148mm rear spacing with a 55mm chainline. The build combines a FOX 34 Float Performance Air Grip 130mm fork, FOX NUDE 5T EVOL Trunnion rear shock, SCOTT TwinLoc 2 remote system, SRAM GX Eagle AXS Transmission wireless drivetrain, SRAM DB8 4-piston disc brakes, and Syncros Silverton 2.5 tubeless-ready wheels.
Key Features of SCOTT Spark 920 TR Bike
- Spark Carbon HMF mainframe with Alloy 6011 swingarm gives the bike a carbon-alloy full suspension platform.
- Integrated Suspension Technology and Flex Pivot design are built into the Spark frame layout.
- FOX 34 Float Performance Air Grip fork provides 130mm travel with 3 modes, lockout, and rebound adjustment.
- FOX NUDE 5T EVOL Trunnion rear shock offers 120-80-Lockout travel settings through the SCOTT custom shock setup.
- SCOTT TwinLoc 2 Technology controls suspension and dropper functions from the handlebar remote.
- SRAM GX Eagle AXS Transmission provides wireless 12-speed shifting.
- SRAM GX Eagle XS 1275 Transmission 10-52 cassette gives the drivetrain a wide gear range.
- SRAM DB8 4-piston disc brakes are paired with SRAM HS2 6-bolt rotors in 180mm front and rear sizing.
- Syncros Silverton 2.5-30 wheels use 30mm tubeless-ready rims with Boost axle spacing and XD Driver specification.
- Schwalbe Wicked Will 29×2.4″ EVO tires use Super Race casing and TLE construction.
Ride Use
The SCOTT Spark 920 TR Bike is made for cross country mountain biking. Its Spark Carbon HMF-Alloy frame, 130mm FOX fork, 120mm FOX NUDE rear shock, SRAM GX Eagle AXS Transmission drivetrain, and Schwalbe Wicked Will tires match the cross country category. The TwinLoc 2 remote system and Syncros Duncan Dropper Post add cockpit control for suspension and dropper functions.
Why Choose This Bike
Choose the SCOTT Spark 920 TR Bike for a cross country mountain bike with a carbon HMF mainframe, alloy swingarm, FOX front and rear suspension, and wireless SRAM GX Eagle AXS Transmission shifting. It includes SRAM DB8 4-piston disc brakes, Syncros Silverton 2.5 tubeless-ready wheels, Schwalbe Wicked Will 29×2.4″ EVO tires, and a Syncros Duncan Dropper Post. The bike comes in Grey, with sizes S, M, L, and XL available.
Product Specifications
| Feature | Details |
|---|---|
| Brand | SCOTT |
| Model | Spark 920 TR Bike |
| Bike Type | Cross Country Mountain Bike |
| Color | Grey |
| Sizes | S, M, L, XL |
| Frame | Spark Carbon HMF Mainframe with Alloy 6011 Swingarm, Integrated Suspension Technology, Flex Pivot, Adjustable head angle, Syncros Cable Integration System, BB92, UDH Interface, 12x148mm with 55mm Chainline |
| Fork | FOX 34 Float Performance Air Grip, 3-Modes, Kabolt 15x110mm axle, tapered steerer, 44mm offset, rebound adjustment, lockout, 130mm travel |
| Rear Shock | FOX NUDE 5T EVOL Trunnion, SCOTT custom with travel and geometry adjustment, 3 modes: Lockout-Traction Control-Descend, custom large air volume, DPS, rebound adjustment, Travel 120-80-Lockout, T165X45mm |
| Remote System | SCOTT TwinLoc 2 Technology, Suspension & Dropper Remote, 3 Suspension modes |
| Rear Derailleur | SRAM GX Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System |
| Shifters | SRAM GX Eagle AXS Rocker Controller |
| Crankset | SRAM GX Eagle Transmission, DUB, 55mm chainline, 32T |
| Bottom Bracket | SRAM DUB PF 92 MTB Wide, shell 41x92mm |
| Chain | SRAM CN GX Eagle Transmission |
| Cassette | SRAM GX Eagle XS 1275 Transmission 10-52 |
| Brakes | SRAM DB8 4 Piston Disc |
| Rotors | SRAM HS2 Rotors, 6 Bolt, 180mm front and rear |
| Handlebar | Syncros Fraser 1.5 DC Alloy 7075 D.B., mini rise, 8° back sweep, 760mm, Syncros Performance XC lock-on grips |
| Stem | Syncros DC 1.5, Syncros Cable Integration System, 0° rise, 7050 Alloy, 31.8mm, 1 1/8" |
| Seatpost | Syncros Duncan Dropper Post 1.5, 31.6mm, S size 125mm, M size 140mm, L size 150mm, XL size 150mm |
| Saddle | Syncros Tofino 2.0 Regular, CRMO rails |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System, +/-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| Wheelset | Syncros Silverton 2.5-30 6 Bolt, front 15x110mm, rear 12x148mm, 30mm tubeless-ready rim, 28H, XD Driver, Syncros axle with removable lever and 6mm Allen, T30 and T25 tools |
| Front Tire | Schwalbe Wicked Will 29x2.4" EVO, Super Race, TLE, 67EPI, Addix Speed Soft |
| Rear Tire | Schwalbe Wicked Will 29x2.4" EVO, Super Race, TLE, 67EPI, Addix Speed Grip |
| Extras | Syncros Fork Fender |
| Approx. Weight | 12.9 kg / 28.44 lbs, tubeless setup |
| Max. System Weight | 128kg. The overall weight includes the bike, the rider, the equipment, and possible additional luggage. |
| Manufacturer Warranty | SCOTT frames and rear ends are covered by a 5-year manufacturer guarantee. Category 5 frames/rear ends and SCOTT rigid forks are covered for 2 years. |
FAQ's SCOTT Spark 920 TR Bike
What type of bike is the SCOTT Spark 920 TR Bike?
The SCOTT Spark 920 TR Bike is a cross country mountain bike. It uses a Spark Carbon HMF mainframe with an Alloy 6011 swingarm, Integrated Suspension Technology, Flex Pivot design, and adjustable head angle.
What suspension does the SCOTT Spark 920 TR Bike use?
This bike uses a FOX 34 Float Performance Air Grip fork with 130mm travel, 3 modes, lockout, and rebound adjustment. The rear shock is a FOX NUDE 5T EVOL Trunnion with 120-80-Lockout travel settings, Lockout-Traction Control-Descend modes, DPS, and rebound adjustment.
What drivetrain is on the SCOTT Spark 920 TR Bike?
The bike uses a SRAM GX Eagle AXS Transmission 12-speed wireless electronic shifting system. It includes a SRAM GX Eagle AXS Rocker Controller, SRAM GX Eagle Transmission crankset with 32T chainring, SRAM CN GX Eagle Transmission chain, and SRAM GX Eagle XS 1275 Transmission 10-52 cassette.
What is the warranty for the SCOTT Spark 920 TR Bike?
SCOTT frames and rear ends are covered by a 5-year manufacturer guarantee. Category 5 frames/rear ends and SCOTT rigid forks are covered for 2 years.
