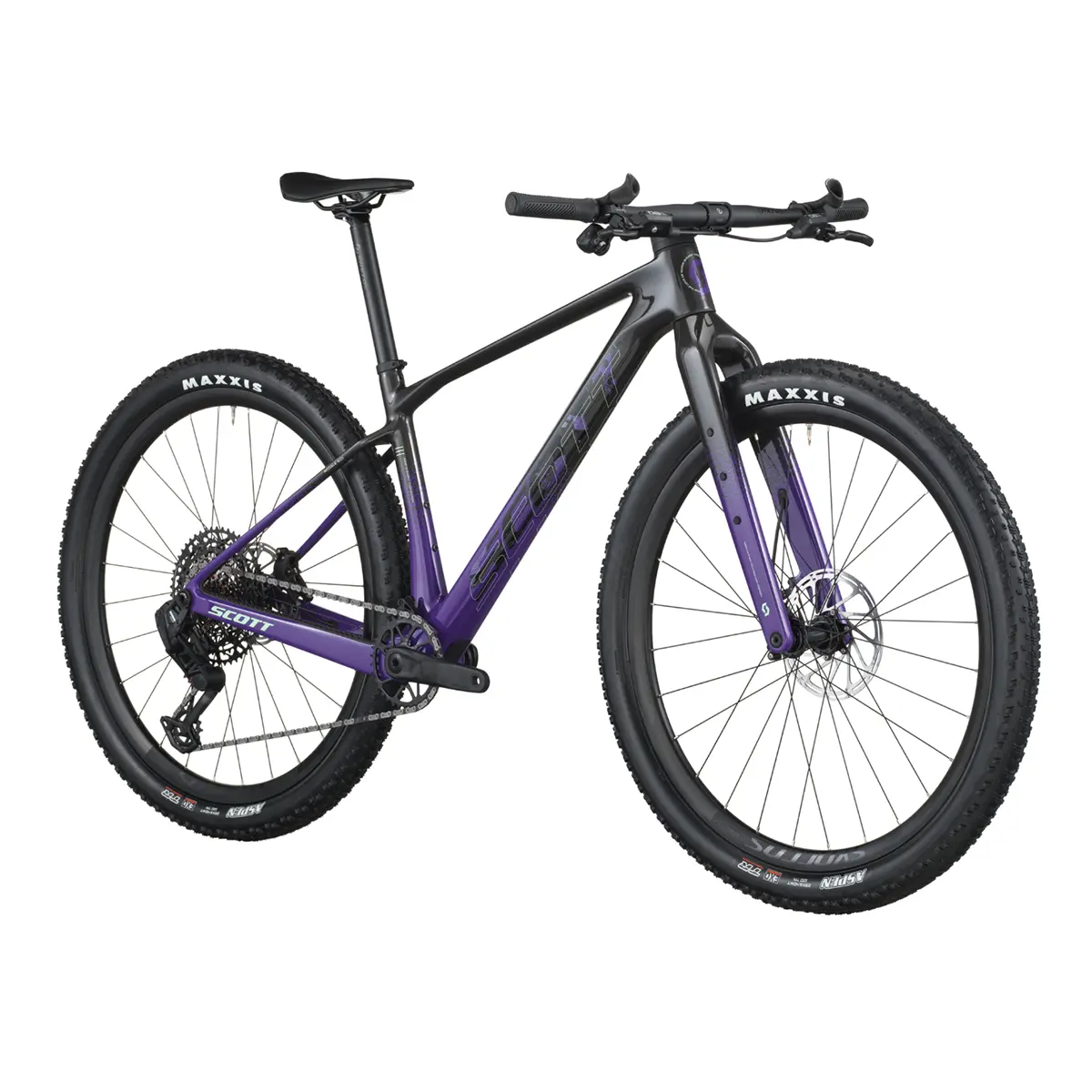

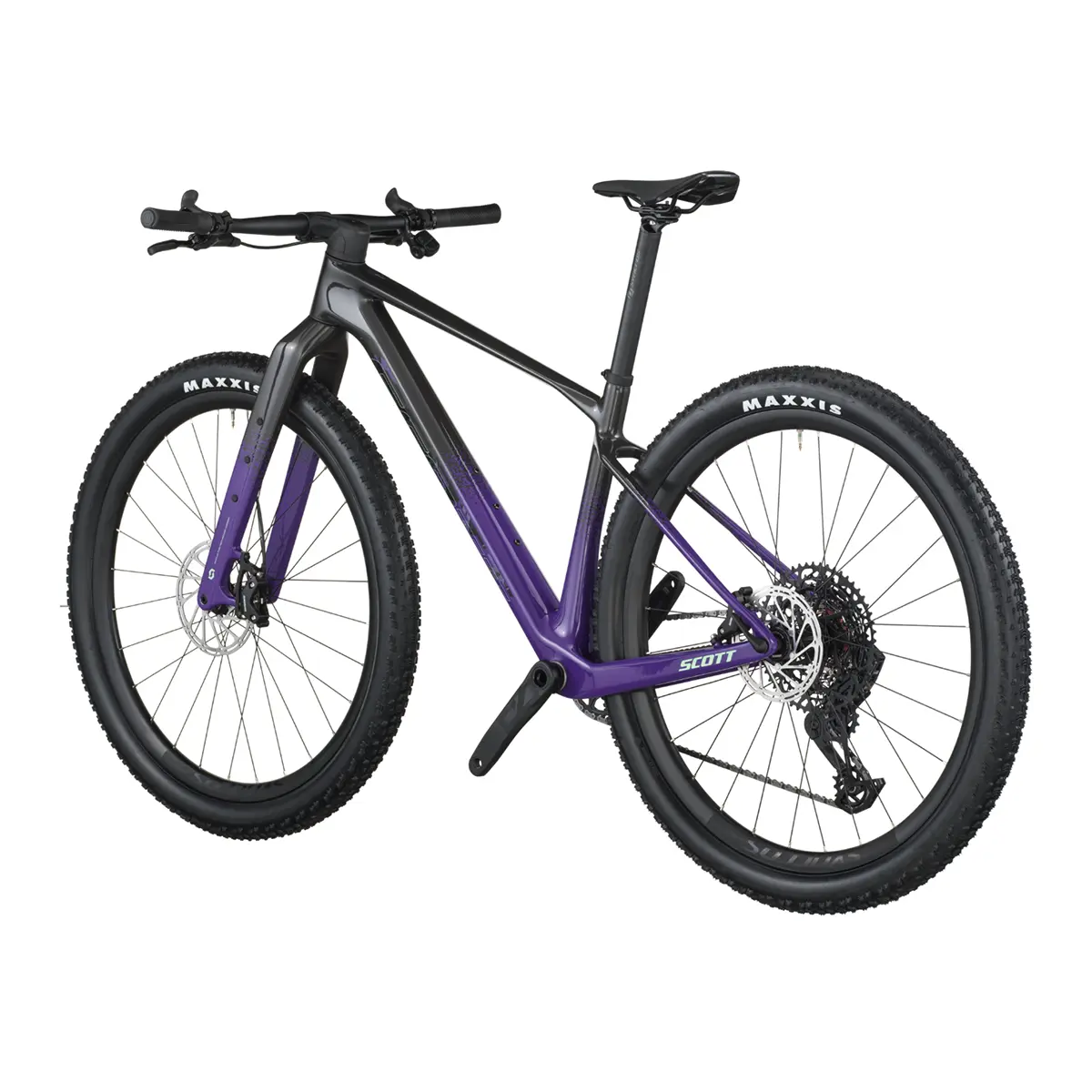

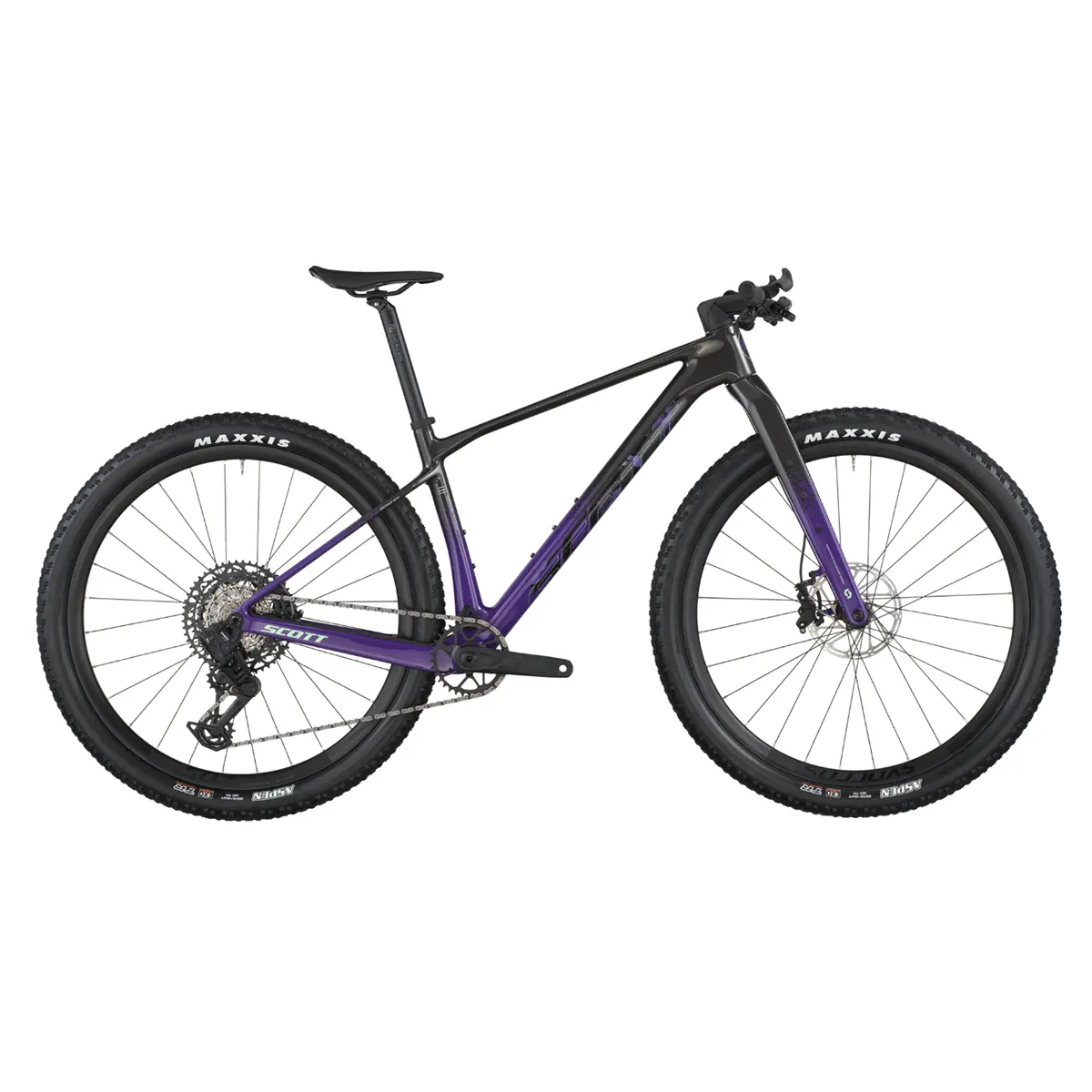

SCOTT Scale Gravel 10 Bike
$1,739.00
The SCOTT Scale Gravel 10 Bike features a Scale Carbon HMF frame, Scale Rigid HMF fork, SRAM S1000 Eagle AXS Transmission 12-speed wireless electronic drivetrain, SRAM DB6 4-piston disc brakes, Syncros X-28 tubeless-ready rims, and Maxxis Aspen 29×2.4″ tires.
| Color | Carbon black/indigo purple |
|---|
SCOTT Scale Gravel 10 Bike Overview
The SCOTT Scale Gravel 10 Bike is a gravel bike built with a Scale Carbon HMF frame and Scale Rigid HMF fork. The frame includes an adjustable head angle, Syncros Cable Integration System, Advanced Shock & Standing Damping System, BB92, UDH Interface, and 12x148mm spacing with a 55mm chainline. Its SRAM S1000 Eagle AXS Transmission 12-speed wireless electronic drivetrain is paired with a SRAM Eagle 70 Transmission crankset, 34T chainring, and SRAM Eagle XS 1270 V2 Transmission 10-52 cassette. SRAM DB6 4-piston disc brakes, SRAM Centerline rotors, Syncros X-28 tubeless-ready rims, and Maxxis Aspen 29×2.4″ tires complete the build.
Key Features of SCOTT Scale Gravel 10 Bike
- Scale Carbon HMF frame gives the bike a carbon platform with an adjustable head angle.
- Scale Rigid HMF fork uses a postmount disc standard and tapered carbon steerer.
- SRAM S1000 Eagle AXS Transmission 12-speed drivetrain provides wireless electronic shifting.
- SRAM Eagle 70 Transmission crankset uses a 34T chainring with a SRAM Eagle XS 1270 V2 10-52 cassette.
- SRAM DB6 4-piston disc brakes are paired with 180mm front and 160mm rear rotors.
- Syncros X-28 rims use a 28H tubeless-ready design.
- Maxxis Aspen 29×2.4″ tires feature 120TPI foldable bead, Tubeless Ready construction, and EXO protection.
- Syncros parts include the Fraser 2.0 XC alloy handlebar, XC 2.0 stem, Duncan 2.0 seatpost, and Belcarra V2.0 Cut Out saddle.
Ride Use
This bike is built for gravel riding. Its carbon frame, rigid HMF fork, SRAM AXS 12-speed wireless electronic drivetrain, 4-piston disc brakes, tubeless-ready rims, and 29×2.4″ Maxxis Aspen tires support a capable gravel setup.
Why Choose This Bike
The SCOTT Scale Gravel 10 Bike combines a Scale Carbon HMF frame, Scale Rigid HMF fork, SRAM S1000 Eagle AXS Transmission drivetrain, SRAM DB6 4-piston disc brakes, and Syncros X-28 tubeless-ready rims. The SRAM Eagle 70 Transmission crankset, 10-52 cassette, Maxxis Aspen 29×2.4″ tires, SRAM AXS Powerpack, Spirgrips+ Inner Bar ends, and carbon black/indigo purple finish create a detailed gravel build. SCOTT frames and rear ends are covered by a 5-year manufacturer guarantee. Category 5 frames/rear ends and SCOTT rigid forks are covered for 2 years.
Product Specifications
| Feature | Details |
|---|---|
| Brand | SCOTT |
| Model | Scale Gravel 10 Bike |
| Bike Type | Gravel Bikes |
| Color | Carbon black/indigo purple |
| Sizes | S, M, L, XL |
| Frame | Scale Carbon HMF, adjustable head angle, Syncros Cable Integration System, Advanced Shock & Standing Damping System, BB92, UDH Interface, 12x148mm with 55mm chainline |
| Fork | Scale Rigid HMF, postmount disc standard, tapered carbon steerer |
| Rear Derailleur | SRAM S1000 Eagle AXS Transmission 12 Speed, wireless electronic shift system |
| Shifters | SRAM AXS Pod Controller |
| Crankset | SRAM Eagle 70 Transmission, DUB, 55mm CL, 34T |
| Chainguide | SCOTT custom |
| Bottom Bracket | SRAM DUB PF 92 MTB Wide, shell 41x92mm |
| Chain | SRAM CN Eagle 70 Transmission |
| Cassette | SRAM Eagle XS 1270 V2 Transmission, 10-52 |
| Brakes | SRAM DB6 4-Piston Disc |
| Rotors | SRAM Centerline CL Rotors, 180/F and 160/R |
| Handlebar | Syncros Fraser 2.0 XC Alloy 6061 D.B., flat bar, 8°, 740mm, Syncros Performance XC lock-on grips |
| Stem | Syncros XC 2.0, Syncros Cable Integration System, -12° rise, 6061 alloy, 31.8mm, 1 1/8" |
| Seatpost | Syncros Duncan 2.0, 10mm offset, 31.6x400mm |
| Saddle | Syncros Belcarra V2.0 Cut Out, CRMO rails |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| Front Hub | Formula CL-811, 15x110mm |
| Rear Hub | Formula CL-3248, 12x148mm |
| Spokes | Stainless Black 15G, 1.8mm |
| Rims | Syncros X-28, 28H, tubeless ready |
| Front Tire | Maxxis Aspen, 29x2.4", 120TPI Foldable Bead, Tubeless Ready, EXO |
| Rear Tire | Maxxis Aspen, 29x2.4", 120TPI Foldable Bead, Tubeless Ready, EXO |
| Extras | SRAM AXS Powerpack |
| Accessories | Spirgrips+ Inner Bar ends |
| Approx Weight | 10.5 kg / 23.15 lbs, tubeless setup |
| Max System Weight | 120kg. The overall weight includes the bike, the rider, the equipment, and possible additional luggage. |
| Manufacturer Warranty | SCOTT frames and rear ends are covered by a 5-year manufacturer guarantee. Category 5 frames/rear ends and SCOTT rigid forks are covered for 2 years. |
FAQ's SCOTT Scale Gravel 10 Bike
What frame does the SCOTT Scale Gravel 10 Bike use?
The bike uses a Scale Carbon HMF frame. It includes an adjustable head angle, Syncros Cable Integration System, Advanced Shock & Standing Damping System, BB92, UDH Interface, and 12x148mm spacing with a 55mm chainline.
What drivetrain is on the SCOTT Scale Gravel 10 Bike?
The bike uses a SRAM S1000 Eagle AXS Transmission 12-speed drivetrain with a wireless electronic shift system. It includes a SRAM AXS Pod Controller, SRAM Eagle 70 Transmission crankset with a 34T chainring, and SRAM Eagle XS 1270 V2 Transmission 10-52 cassette.
What brakes does the SCOTT Scale Gravel 10 Bike use?
The bike uses SRAM DB6 4-piston disc brakes. The brake setup is paired with SRAM Centerline CL rotors in 180mm front and 160mm rear sizing.
What tires come on the SCOTT Scale Gravel 10 Bike?
The bike comes with Maxxis Aspen 29x2.4" tires. Both front and rear tires use a 120TPI foldable bead, Tubeless Ready construction, and EXO specification.
