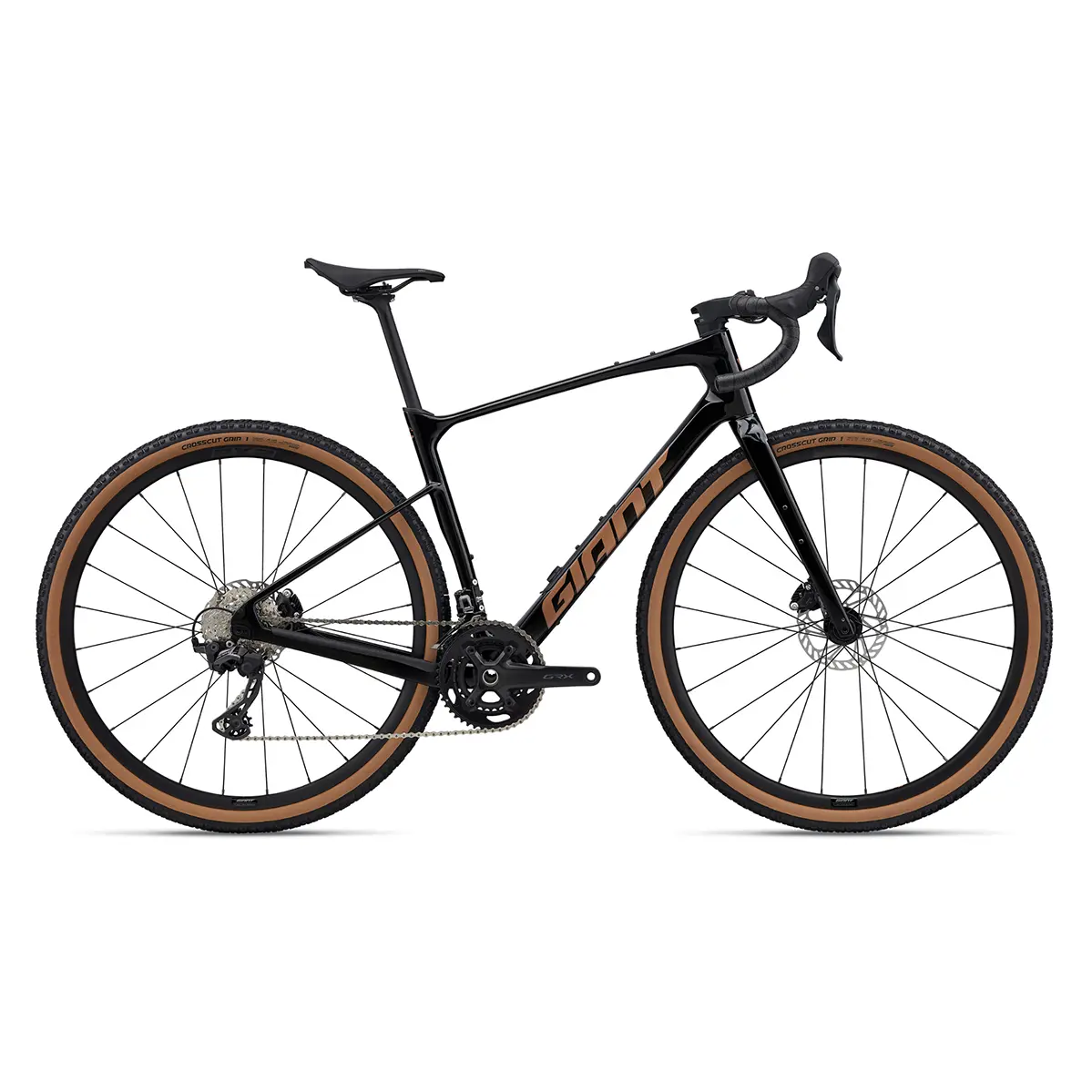

Giant Revolt Advanced 2

Giant Revolt Advanced 2 Overview

The Giant Revolt Advanced 2 is a composite gravel bike built for adaptable riding across changing gravel conditions. It uses an Advanced-grade composite frame and Advanced-grade composite fork with disc brake construction, 12mm thru-axles, internal cable routing, flip chip dropout adjustment, and down tube storage. The frame and fork save more than 160g compared to the previous model.

The updated geometry includes a lower bottom bracket, longer reach, and steeper head tube angle. A two-position flip chip on the rear dropout lets the wheelbase and tire clearance be adjusted. The short position supports quicker handling with tire clearance up to 45mm, while the long position increases tire clearance up to 53mm and adds stability at speed.

Shimano GRX components handle the 2×12 drivetrain, with Shimano GRX RX-610 shifters, Shimano GRX RX-820 front and rear derailleurs, a Shimano CS-HG710 11×36 cassette, and a Shimano FC-RX610-2 30/46 crankset. Shimano BR-RX410 hydraulic disc brakes use Giant MPH 160mm rotors front and rear for braking control on gravel rides.

The build uses Giant P-X2 alloy rims, Giant alloy 12mm thru-axle hubs, Sapim spokes, and Giant Crosscut Grip 700x45c tubeless tires. The D-Fuse handlebar and composite D-Fuse seatpost work with the dropped seatstay frame design to support comfort and control across rough gravel surfaces.

Key Features of Giant Revolt Advanced 2

• Advanced-grade composite frame and fork provide a carbon gravel platform with disc brake and thru-axle construction.
• Frame and fork save more than 160g compared to the previous model.
• Updated geometry includes a lower bottom bracket, longer reach, and steeper head tube angle.
• Flip chip dropout adjusts the wheelbase and supports up to 53mm tire clearance in the long position.
• Shimano GRX 2×12 drivetrain pairs a 30/46 crankset with an 11×36 cassette.
• Shimano BR-RX410 hydraulic disc brakes use 160mm Giant MPH rotors front and rear.
• Giant P-X2 alloy wheels use Giant alloy 12mm thru-axle hubs and Sapim spokes.
• Giant Crosscut Grip 700x45c tubeless tires support gravel riding with a tubeless prepared setup.

Ride Use

This bike is built for gravel riding, with a composite frame and fork, hydraulic disc brakes, wide tire clearance, and tubeless tires. The flip chip dropout lets the setup prioritize quicker handling or added tire clearance, while the D-Fuse handlebar and seatpost help add compliance across rough gravel surfaces.

Why Choose This Bike

The Giant Revolt Advanced 2 combines an Advanced-grade composite frame and fork with Shimano GRX 2×12 shifting, Shimano hydraulic disc brakes, Giant P-X2 alloy wheels, and Giant Crosscut Grip 700x45c tubeless tires. It also includes gravel-focused details such as adjustable flip chip dropout clearance, down tube storage, an in-frame storage bag, integrated mounts, and Giant Lifetime Limited Warranty coverage for the original owner.
