Canyon Grail CF SL 7 Gravel Bike
$1,619.00
The Canyon Grail CF SL 7 Gravel Bike is a carbon gravel bike with a Canyon Grail CF frame, Canyon FK0117 CF Disc carbon fork, Shimano GRX 2×12 drivetrain, DT Swiss Gravel LN wheels, and Schwalbe G-One R Performance 40 mm tyres.
Canyon Grail CF SL 7 Gravel Bike Overview
The Canyon Grail CF SL 7 Gravel Bike is a carbon gravel bike built around the latest-generation Canyon Grail CF frame and Canyon FK0117 CF Disc carbon fork. The frame uses carbon construction, aero tube forms, top tube mounts, strapless bag compatibility, and 42 mm tyre clearance. The fork is also carbon and supports the LOAD Fork Sleeve Quickloader system for modular storage.
The drivetrain combines Shimano GRX RD-RX820 12-speed rear shifting, a Shimano GRX FD-RX820 front derailleur, Shimano RX600 46/30 crank setup, and a Shimano 105 R7101 11-34 12-speed cassette. Braking and shifting are handled through Shimano GRX BL-RX610 shift/brake levers, paired with Shimano SM-RT70 160 mm rotors.
For wheels and tyres, the bike uses DT Swiss Gravel LN front and rear wheels with aluminium rims, 24 mm inner width, 25 mm rim height, and Center Lock rotor mounts. Schwalbe G-One R Performance 40 mm tyres complete the wheel setup. The cockpit includes a Canyon Cockpit CP0045 carbon one-piece cockpit with gravel-specific ergonomics, 16° flare at the drops, and 5° backsweep on the tops.
Key Features of Canyon Grail CF SL 7 Gravel Bike
- Carbon Canyon Grail CF frame with aero tube forms and top tube mounts for a clean gravel bike platform.
- Canyon FK0117 CF Disc carbon fork with 42 mm tyre clearance and LOAD Fork Sleeve Quickloader compatibility.
- Shimano GRX 2×12 drivetrain with 46/30 chainrings and an 11-34 cassette for a wide gear range.
- Shimano GRX BL-RX610 shift/brake levers paired with Shimano SM-RT70 160 mm rotors.
- DT Swiss Gravel LN wheels with aluminium rims, 24 mm inner width, and Center Lock rotor mounts.
- Schwalbe G-One R Performance 40 mm tyres matched to the frame and fork clearance.
- Canyon Cockpit CP0045 carbon one-piece cockpit with 16° drop flare and 5° backsweep.
- 6-year warranty on Canyon-manufactured parts.
Ride Use
The Canyon Grail CF SL 7 is a gravel bike with a carbon Grail CF frame, 42 mm tyre clearance, and a Shimano GRX drivetrain. Its product category and frame description place it clearly in the gravel bike segment, with gravel race bike frame details and storage-compatible mounting features.
Why Choose This Bike
Choose the Canyon Grail CF SL 7 for a carbon gravel bike with a clearly specified component package and practical frame details. The Grail CF frame and FK0117 CF Disc fork use carbon construction and both support 42 mm tyre clearance. The Shimano GRX drivetrain, Shimano 105 12-speed cassette, DT Swiss Gravel LN wheels, and Schwalbe G-One R Performance 40 mm tyres create a complete gravel-focused setup.

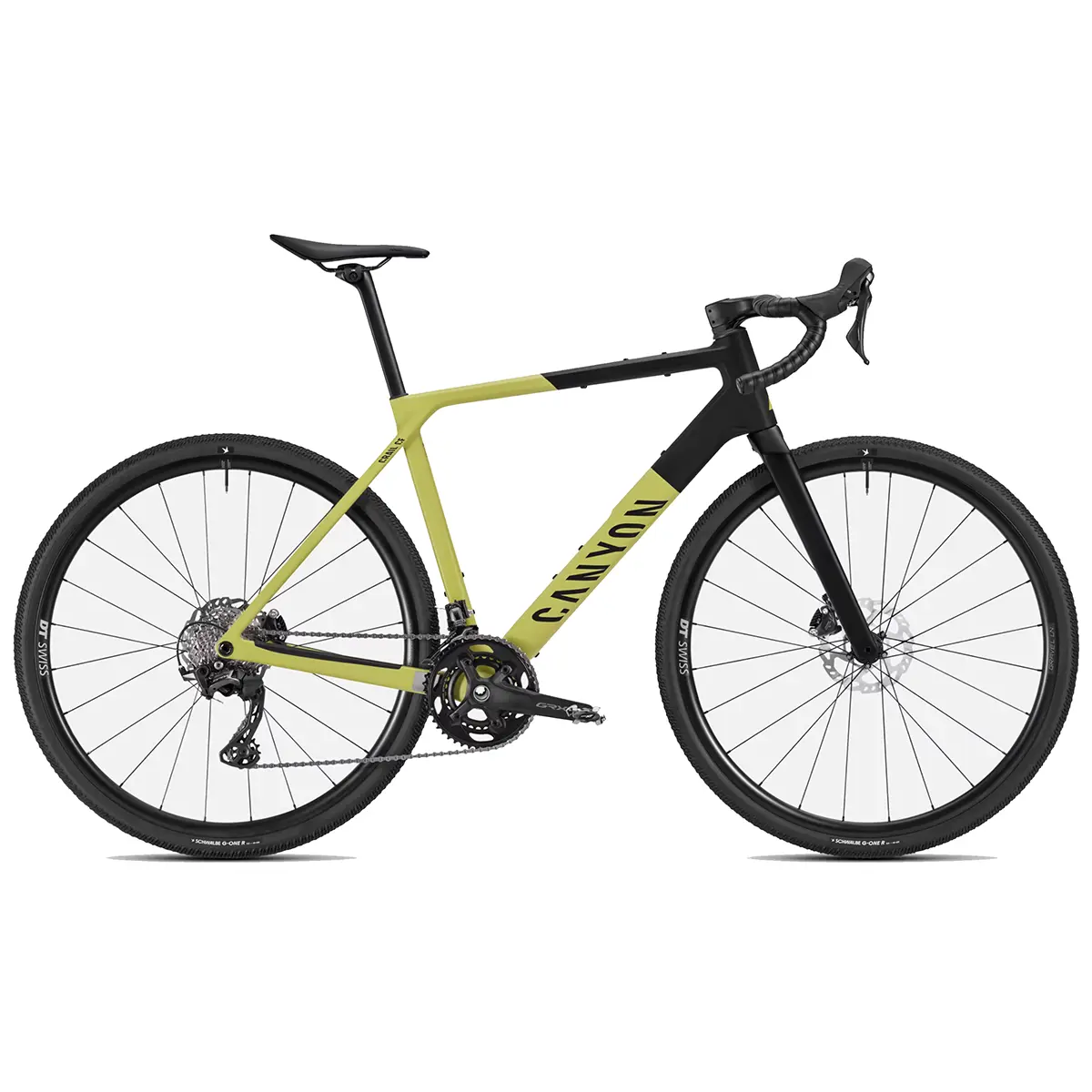

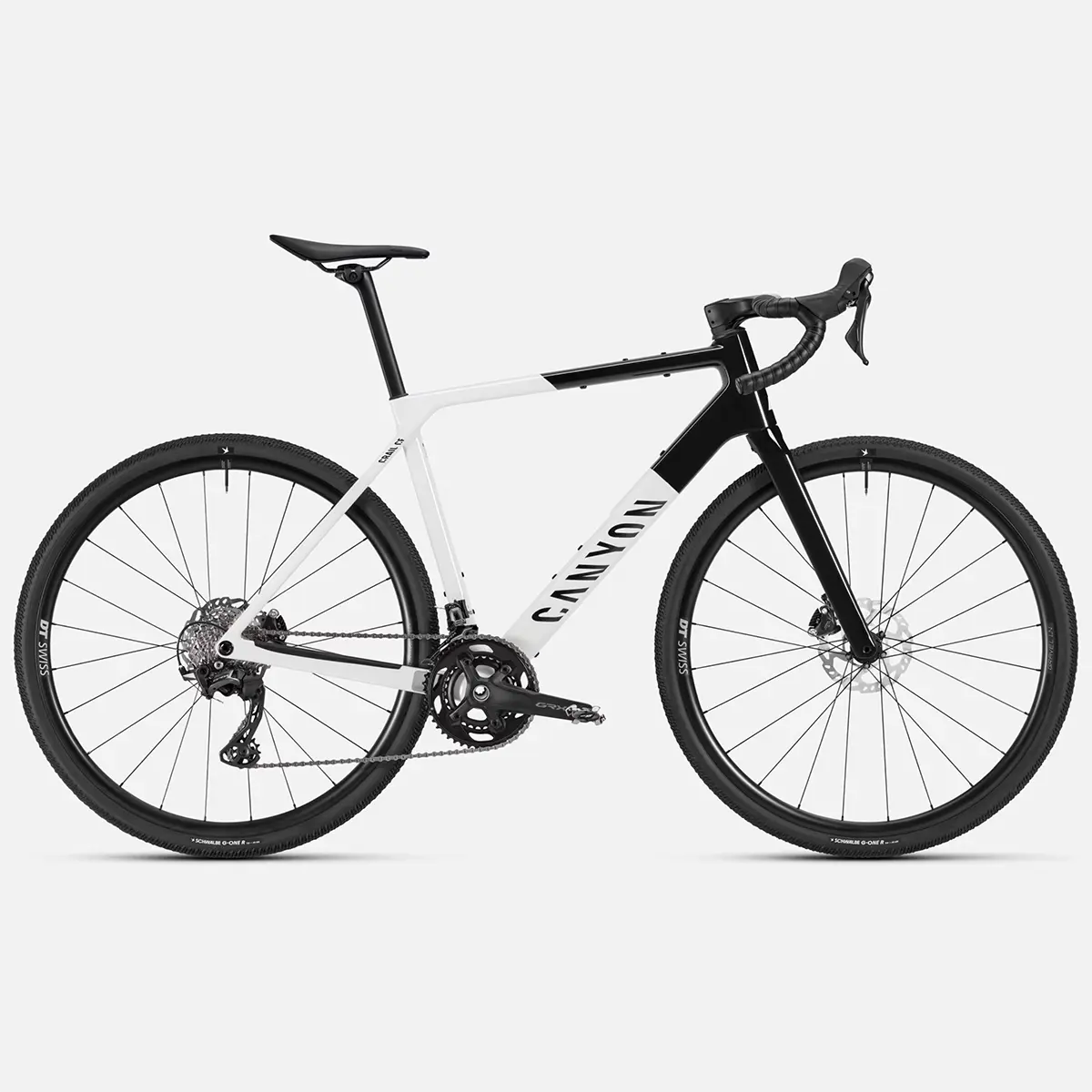

The Canyon Cockpit CP0045 adds a carbon one-piece cockpit with gravel ergonomics, while the Canyon SP0096-01 carbon seatpost adds a Canyon-engineered carbon finishing component. The bike is available in White Sprint and Blazing Mustard, and Canyon-manufactured parts are covered by a 6-year warranty.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Canyon |
| Model | Grail CF SL 7 |
| Bike Type | Gravel Bike |
| Frame | Canyon Grail CF carbon frame with aero tube forms, top tube mounts, strapless bag compatibility, 12x142 mm axle dimension, and 42 mm tyre clearance |
| Frame Material | Carbon (CF) |
| Frame Weight | 2.73 lbs |
| Fork | Canyon FK0117 CF Disc carbon fork with 12x100 mm axle dimension, 1 1/8" steerer tube, 42 mm tyre clearance, and LOAD Fork Sleeve Quickloader compatibility |
| Fork Weight | 1.04 lbs |
| Rear Derailleur | Shimano GRX RD-RX820 12s |
| Front Derailleur | Shimano GRX FD-RX820 |
| Cassette | Shimano 105 R7101 11-34 12s |
| Crank | Shimano RX600, 46/30, 2 chainrings |
| Bottom Bracket | Shimano Pressfit BB-RS500, PF 86 |
| Chain | Shimano Deore M6100 |
| Shift / Brake Levers | Shimano GRX BL-RX610, 2 pistons |
| Brake Rotors | Shimano SM-RT70, 160 mm |
| Front Wheel | DT Swiss Gravel LN, 12x100 mm axle dimension, Center Lock rotor mount, 25 mm rim height, 24 mm inner width, aluminium rim |
| Rear Wheel | DT Swiss Gravel LN, 12x142 mm axle dimension, Center Lock rotor mount, 25 mm rim height, Shimano freehub, 24 mm inner width, aluminium rim |
| Tyres | Schwalbe G-One R Performance, 40 mm |
| Cockpit | Canyon Cockpit CP0045 carbon one-piece cockpit with 16° flare at drops and 5° backsweep on tops |
| Handlebar Tape | Canyon Ergospeed Gel, black |
| Saddle | Vento Argo X5, 140 mm width, unisex |
| Seatpost | Canyon SP0096-01 carbon seatpost, 10 mm setback |
| Lights | Reflector Set |
| Pedals | None included |
| Colors | White Sprint, Blazing Mustard |
| Manufacturer Warranty | 6-year warranty on Canyon-manufactured parts |
FAQ's Canyon Grail CF SL 7 Gravel Bike
What frame does the Canyon Grail CF SL 7 Gravel Bike use?
The Canyon Grail CF SL 7 uses a Canyon Grail CF carbon frame. The frame has aero tube forms, top tube mounts, strapless bag compatibility, 12x142 mm axle dimension, and 42 mm tyre clearance.
What drivetrain is on the Canyon Grail CF SL 7?
The bike uses a Shimano GRX drivetrain with a Shimano GRX RD-RX820 12-speed rear derailleur and Shimano GRX FD-RX820 front derailleur. It also includes a Shimano 105 R7101 11-34 12-speed cassette and Shimano RX600 46/30 crank setup.
What wheels and tyres come with the Canyon Grail CF SL 7?
The Canyon Grail CF SL 7 comes with DT Swiss Gravel LN front and rear wheels. The tyres are Schwalbe G-One R Performance with a 40 mm width.
Are pedals included with the Canyon Grail CF SL 7?
Pedals are not included with this bike. Included accessories are the Canyon Organza Bag, Canyon Assembly Paste, Canyon Torque Wrench, Quick Start Guide, and Smallbox.
