Trek Supercaliber SLR 9.8 X0 AXS T-Type Gen 2
$5,399.00
The Trek Supercaliber SLR 9.8 X0 AXS T-Type Gen 2 is a carbon cross-country mountain bike with an SLR OCLV Mountain Carbon frame, IsoStrut suspension, RockShox SID Ultimate 110mm fork, SRAM X0 Eagle AXS T-Type drivetrain, Bontrager Kovee Elite 30 carbon wheels, SRAM Motive Silver hydraulic disc brakes, and a SRAM AXS battery pack with charger.
Trek Supercaliber SLR 9.8 X0 AXS T-Type Gen 2 Overview
The Trek Supercaliber SLR 9.8 X0 AXS T-Type Gen 2 is a carbon cross-country mountain bike built with an SLR OCLV Mountain Carbon frame, IsoStrut suspension, and SRAM X0 Eagle AXS T-Type wireless shifting. The frame uses UDH, 80mm of rear travel, and a Trek IsoStrut with RockShox SIDLuxe 2-position remote damper.
Front suspension comes from a RockShox SID Ultimate fork with DebonAir spring, Charger Race Day damper, dual remote lockout, tapered steerer, 44mm offset, Boost110 spacing, 15mm Maxle Stealth axle, and 110mm travel. The electronic drivetrain system includes a SRAM AXS battery pack with charger.
The drivetrain uses a SRAM AXS pod shifter, SRAM X0 Eagle AXS T-Type rear derailleur, SRAM Eagle XS-1295 10-52T 12-speed cassette, and SRAM X0 Eagle T-Type 12-speed chain. The SRAM X0 Eagle power meter crankset uses DUB, a 34T chainring, T-Type design, 55mm chainline, and size-specific crank lengths.
The wheel setup uses Bontrager Kovee Elite 30 OCLV Mountain Carbon 29-inch wheels with Tubeless Ready construction. The front wheel uses 6-bolt mounting, Boost110 spacing, and a 15mm thru axle, while the rear wheel uses Rapid Drive 108, 6-bolt mounting, Shimano Micro Spline freehub, Boost148 spacing, and a 12mm thru axle.
Tire specifications include Maxxis Aspen 29×2.4” and Pirelli Scorpion XC 29×2.20” tubeless-ready tires. Braking is handled by SRAM Motive Silver 4-piston hydraulic disc brakes with SRAM CenterLine 6-bolt rotors. Finishing parts include a Verse Short Elite saddle, Bontrager Line Dropper seatpost, Bontrager RSL integrated OCLV Carbon handlebar/stem, ESI Chunky grips, and FSA IS-2 headset.
Key Features of Trek Supercaliber SLR 9.8 X0 AXS T-Type Gen 2
- SLR OCLV Mountain Carbon frame with IsoStrut gives the bike a dedicated carbon cross-country platform with 80mm of rear travel.
- RockShox SID Ultimate fork uses a DebonAir spring, Charger Race Day damper, dual remote lockout, and 110mm travel.
- Trek IsoStrut rear suspension is paired with a RockShox SIDLuxe 2-position remote damper.
- SRAM X0 Eagle AXS T-Type drivetrain uses a 10-52T 12-speed cassette for a wide gear range.
- SRAM X0 Eagle power meter crankset includes a 34T chainring and size-specific crank lengths.
- Bontrager Kovee Elite 30 OCLV Mountain Carbon 29-inch wheels use Tubeless Ready construction.
- SRAM AXS battery pack with charger is included for the electronic AXS drivetrain.
- SRAM Motive Silver 4-piston hydraulic disc brakes are paired with SRAM CenterLine 6-bolt rotors.
Ride Use
This bike fits the cross-country mountain bike category, with an SLR OCLV Mountain Carbon frame, 80mm rear travel, a 110mm RockShox SID Ultimate fork, and 29-inch carbon wheels. The SRAM X0 Eagle AXS T-Type drivetrain, 10-52T cassette, power meter crankset, and tubeless-ready wheel setup support cross-country riding with an XC-focused frame and component package.
Why Choose This Bike

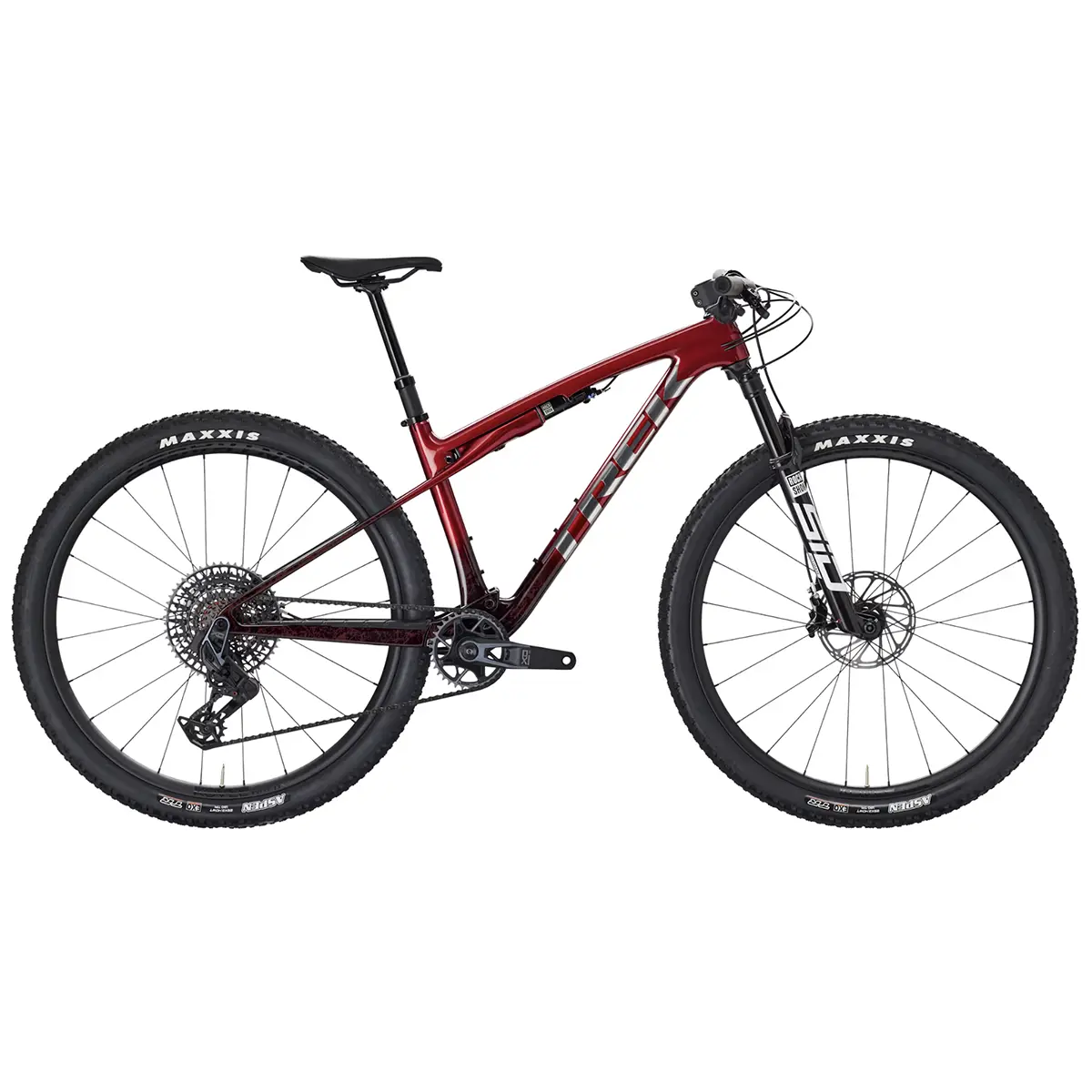

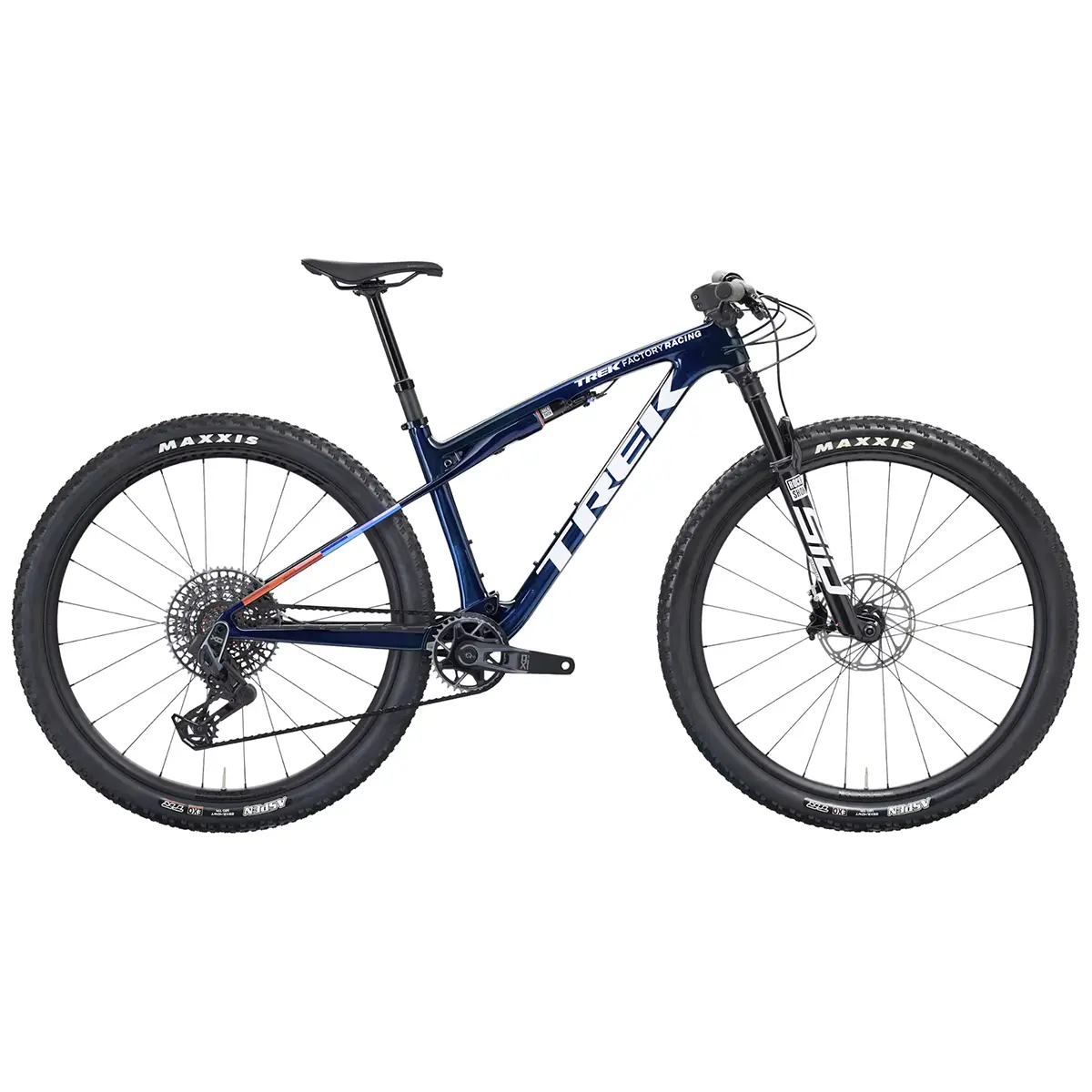

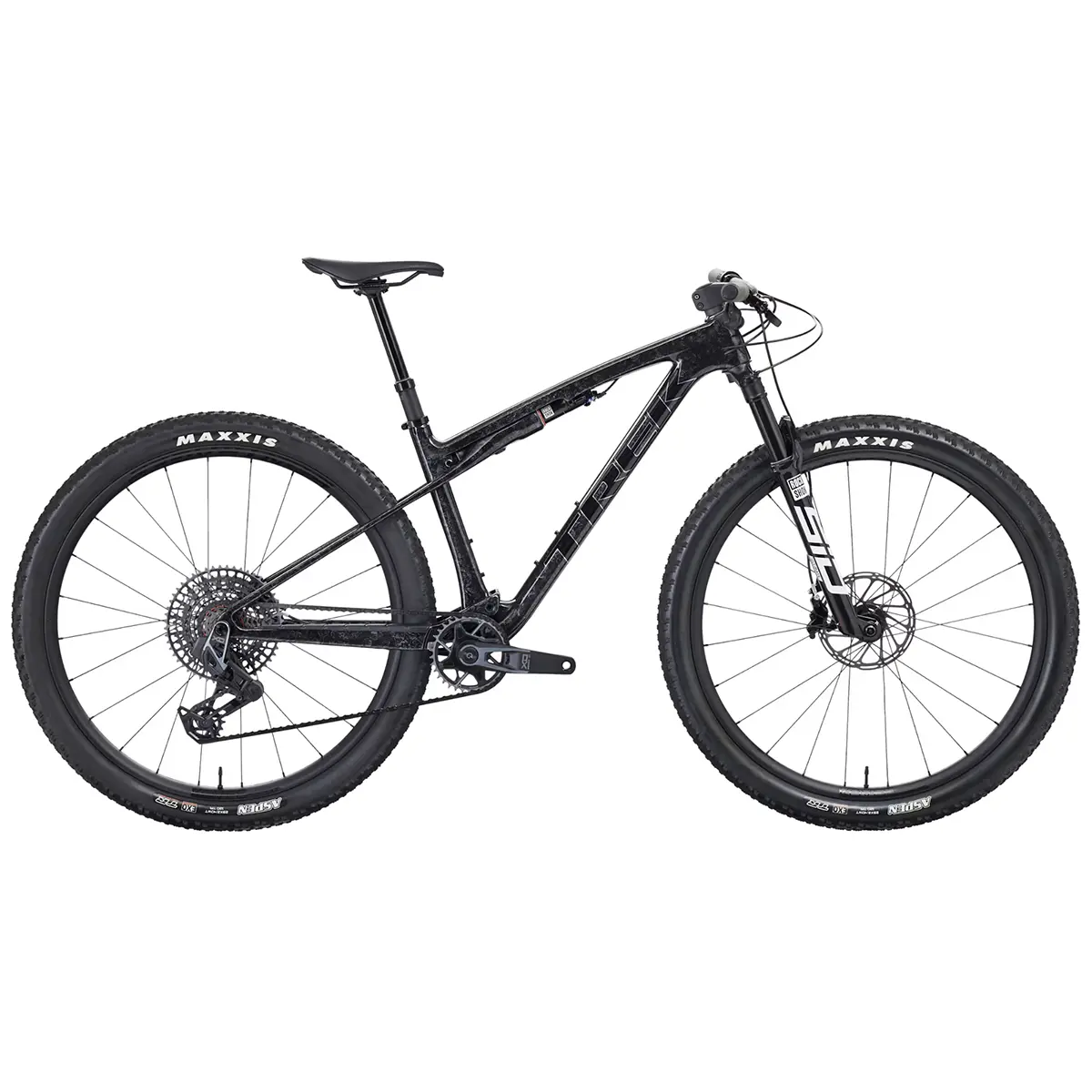

Choose this bike for a carbon cross-country build centered on Trek’s SLR OCLV Mountain Carbon Supercaliber frame, IsoStrut rear suspension, RockShox SID Ultimate fork, and SRAM X0 Eagle AXS T-Type drivetrain. It also includes Bontrager Kovee Elite 30 carbon 29-inch wheels, SRAM Motive Silver 4-piston hydraulic disc brakes, a SRAM X0 Eagle power meter crankset, a Bontrager Line Dropper seatpost, and an integrated Bontrager RSL OCLV Carbon handlebar/stem. It comes in Navy Smoke, Carbon Smoke, and Red Smoke, with a size M weight of 11.23 kg / 24.76 lbs with TLR sealant and no tubes.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Trek |
| Model | Supercaliber SLR 9.8 X0 AXS T-Type Gen 2 |
| Bike Type | Cross Country Mountain Bike |
| Frame | SLR OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel |
| Fork | RockShox SID Ultimate, DebonAir spring, Charger Race Day damper, dual remote lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 110mm travel |
| Shock | Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper |
| Front Wheel | Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' |
| Rear Wheel | Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle, 29'' |
| Rear Skewer | Bontrager Switch thru axle, removable lever |
| Tires | Maxxis Aspen, Tubeless Ready, EXO casing, folding bead, 29x2.4''; Pirelli Scorpion XC, Tubeless Ready, Team Edition Pro Wall, aramid bead, 120 tpi, 29x2.20'' |
| Tire Part | Bontrager TLR sealant, 6oz |
| Rim Strip | Bontrager TLR |
| Max Tire Size | Frame: 29x2.40", Fork: see manufacturer |
| Battery | SRAM AXS battery pack with charger |
| Shifter | SRAM AXS pod |
| Rear Derailleur | SRAM X0 Eagle AXS, T-Type |
| Crankset | SRAM X0 Eagle, power meter, DUB, 34T, T-Type, 55mm chainline; 170mm length on S, M, ML; 175mm length on L, XL |
| Bottom Bracket | SRAM DUB, 92mm, PressFit |
| Cassette | SRAM Eagle XS-1295, T-Type, 10-52, 12 speed |
| Chain | SRAM X0 Eagle, T-Type, 12 speed |
| Max Chainring Size | 1x: 38T, min 30T |
| Saddle | Verse Short Elite, hollow magnesium rails, 145mm width |
| Seatpost | Bontrager Line Dropper, MaxFlow, internal routing, 31.6mm; 100mm travel and 310mm length on S; 150mm travel and 410mm length on M, ML, L; 170mm travel and 450mm length on XL |
| Handlebar / Stem | Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0mm handlebar rise, 750mm width, -13 degree stem rise; 70mm length on S, M, ML; 80mm length on L; 90mm length on XL |
| Grips | ESI Chunky |
| Headset | FSA IS-2, 1-1/8'' top, 1.5'' bottom |
| Brake | SRAM Motive Silver 4-piston hydraulic disc |
| Brake Rotor | SRAM CenterLine, 6-bolt, round edge, 160mm and 180mm |
| Rotor Size | Max brake rotor sizes - Frame: 160mm |
| Weight | M - 11.23 kg / 24.76 lbs, with TLR sealant, no tubes |
| Weight Limit | Maximum total weight limit: 300 pounds / 136 kg, combined weight of bicycle, rider, and cargo |
| Color | Navy Smoke, Carbon Smoke, Red Smoke |
| Manufacturer Warranty | Trek frames and full-suspension swing arms are covered for the lifetime of the original owner. Other parts are covered under Trek’s limited warranty. |
FAQ's Trek Supercaliber SLR 9.8 X0 AXS T-Type Gen 2
What frame does the Trek Supercaliber SLR 9.8 X0 AXS T-Type Gen 2 use?
This bike uses an SLR OCLV Mountain Carbon frame with IsoStrut, UDH, and 80mm of rear travel. The rear suspension uses a Trek IsoStrut with RockShox SIDLuxe 2-position remote damper.
What drivetrain is on the Trek Supercaliber SLR 9.8 X0 AXS T-Type Gen 2?
The bike uses a SRAM X0 Eagle AXS T-Type drivetrain with a SRAM AXS pod shifter. It includes a SRAM Eagle XS-1295 T-Type 10-52T 12-speed cassette, SRAM X0 Eagle T-Type chain, and SRAM AXS battery pack with charger.
What wheels and tires come on the Trek Supercaliber SLR 9.8 X0 AXS T-Type Gen 2?
The bike uses Bontrager Kovee Elite 30 OCLV Mountain Carbon 29-inch wheels with Tubeless Ready construction. Tire specifications include Maxxis Aspen 29x2.4'' and Pirelli Scorpion XC 29x2.20'' tubeless-ready tires.
What is the weight of the Trek Supercaliber SLR 9.8 X0 AXS T-Type Gen 2?
The size M weight is 11.23 kg / 24.76 lbs with TLR sealant and no tubes. The maximum total weight limit is 300 pounds / 136 kg, including the bicycle, rider, and cargo.
