Trek Procaliber 9.5 Gen 3

Trek Procaliber 9.5 Gen 3 Overview

The Trek Procaliber 9.5 Gen 3 is a carbon cross-country mountain bike built with an OCLV Mountain Carbon frame, IsoBow design, and Shimano Deore M6100 12-speed drivetrain. The frame features a tapered head tube, internal routing, balanced post mount brake, and Boost148 rear spacing.

Front suspension comes from a RockShox Judy Gold fork with Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110 spacing, 15mm Maxle Stealth axle, and 120mm travel. The wheel setup uses Shimano TC500 alloy hubs with CenterLock mounting and Bontrager Kovee double-wall Tubeless Ready rims.

The drivetrain uses a Shimano Deore M6100 12-speed shifter, Shimano Deore M6100 long cage rear derailleur, Shimano Deore M6100 10-51T cassette, and Shimano Deore M6100 12-speed chain. The Shimano MT512 crankset uses a 32T chainring and 55mm chainline, with 170mm crank length on sizes S, M, and ML, and 175mm crank length on sizes L and XL.

Tire specifications include Bontrager Sainte-Anne Pro XR Tubeless Ready tires in 29×2.40” and 29×2.20”, with dual compound rubber, aramid beads, and 60 tpi construction. Braking is handled by Shimano MT200 hydraulic disc brakes with Shimano RT10 CenterLock rotors.

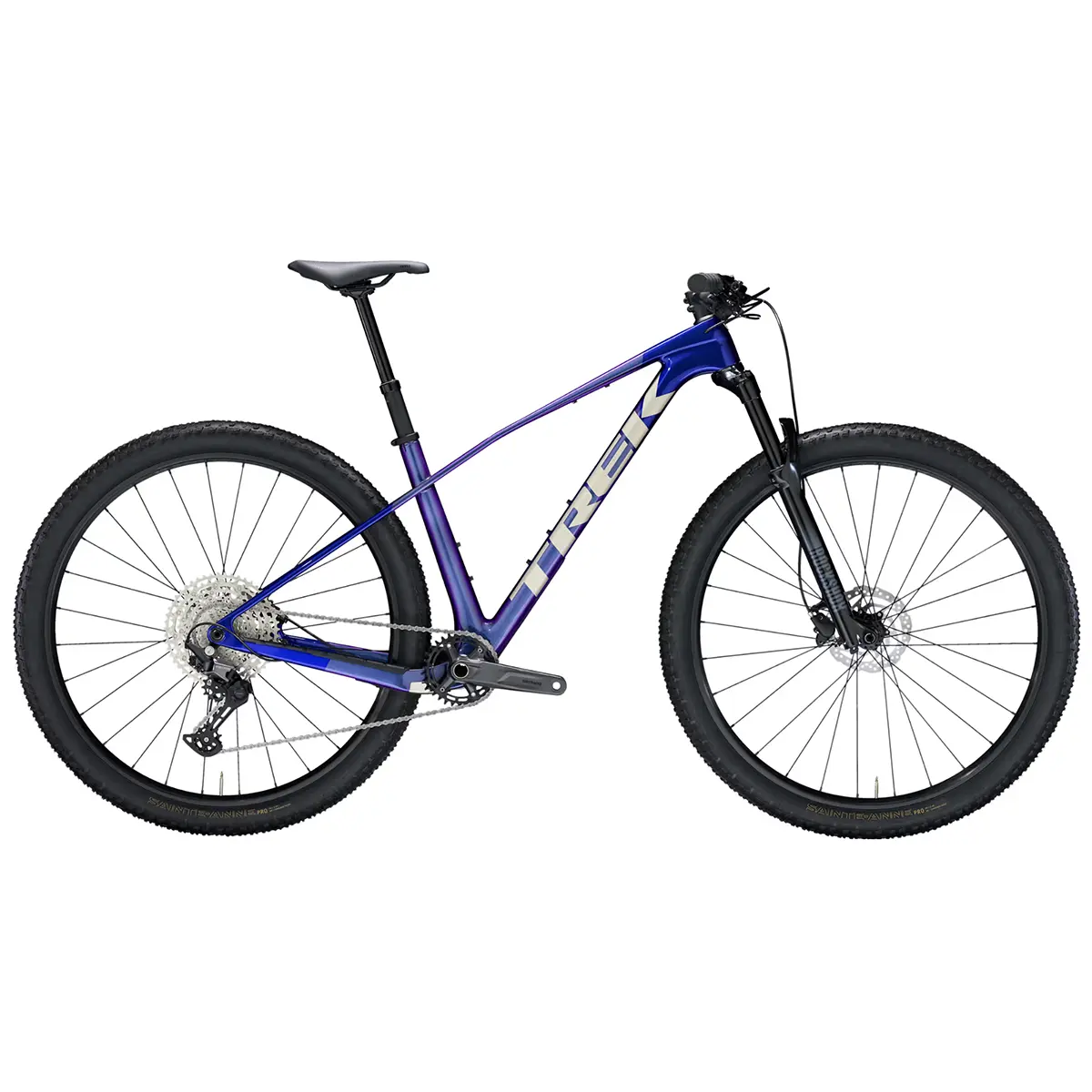

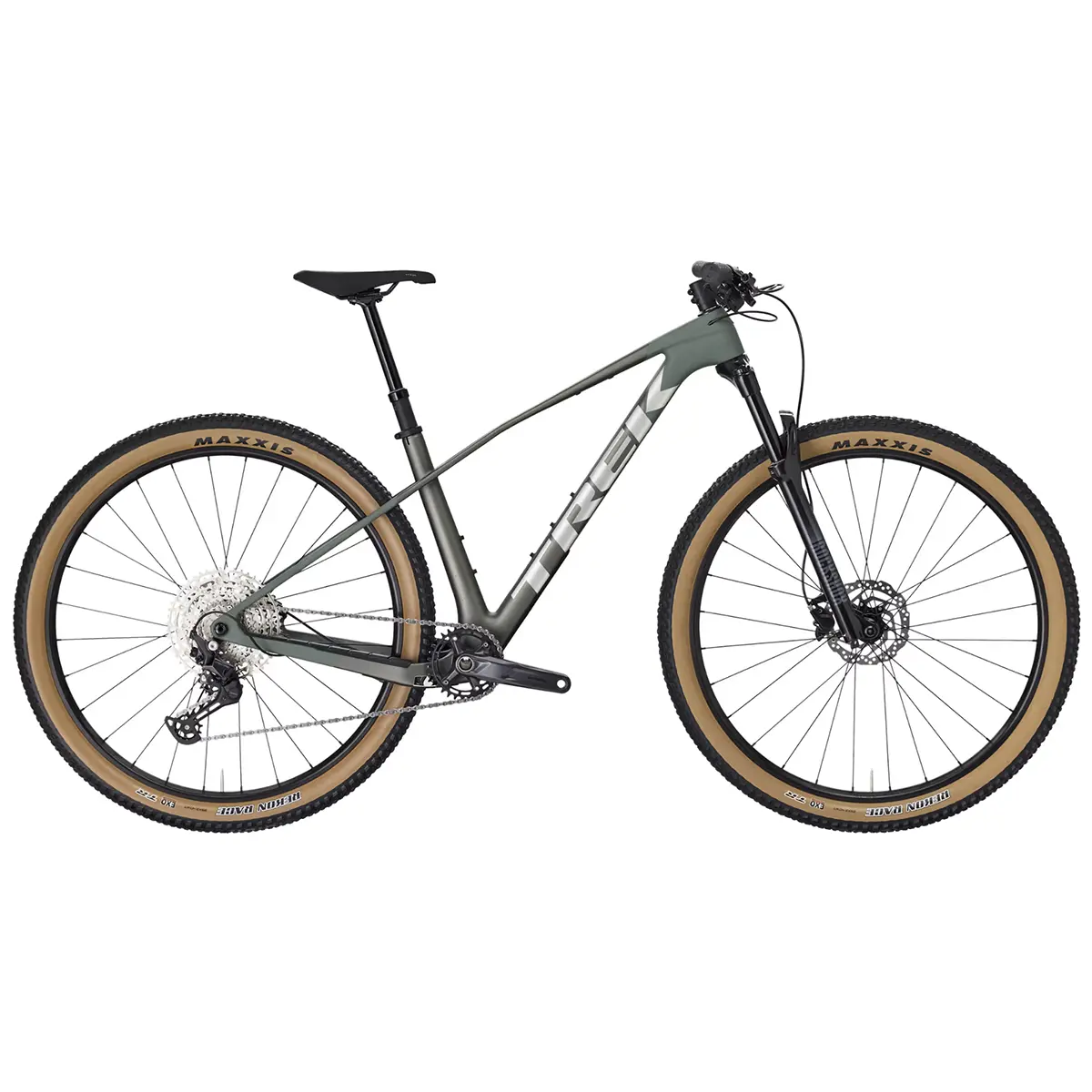

Finishing parts include a Verse Short saddle with chromoly rails, Bontrager Line Dropper seatpost, size-specific Bontrager alloy handlebar and stem, lock-on grips, and FSA IS-2 headset. The bike comes in Matte Keswick Green and Purple Flip, with a size M weight of 12.13 kg / 26.75 lbs with TLR sealant and no tubes.

Key Features of Trek Procaliber 9.5 Gen 3

• OCLV Mountain Carbon frame with IsoBow gives the bike a carbon cross-country platform with internal routing and Boost148 rear spacing.
• RockShox Judy Gold fork uses Solo Air spring, TurnKey lockout, and 120mm travel.
• Shimano Deore M6100 12-speed drivetrain is matched with a 10-51T cassette.
• Shimano MT512 crankset uses a 32T chainring, 55mm chainline, and size-specific crank lengths.
• Bontrager Kovee double-wall rims use Tubeless Ready construction with 23mm internal width.
• Bontrager Sainte-Anne Pro XR tires use Tubeless Ready construction, dual compound rubber, and aramid beads.
• Bontrager Line Dropper seatpost uses MaxFlow, internal routing, and size-specific travel.
• Shimano MT200 hydraulic disc brakes are paired with Shimano RT10 CenterLock rotors.

Ride Use

This bike fits the cross-country mountain bike category, with an OCLV Mountain Carbon frame, RockShox Judy Gold 120mm fork, 29-inch wheel setup, and tubeless-ready tires. The Shimano Deore 12-speed drivetrain, 10-51T cassette, Bontrager Line Dropper seatpost, and Shimano hydraulic disc brakes support XC riding with a practical off-road component package.

Why Choose This Bike

Choose this bike for a carbon cross-country build centered on Trek’s OCLV Mountain Carbon Procaliber frame, IsoBow design, RockShox Judy Gold fork, and Shimano Deore M6100 12-speed drivetrain. It also includes Bontrager Kovee Tubeless Ready rims, Shimano TC500 CenterLock hubs, Bontrager Sainte-Anne Pro XR tires, Shimano MT200 hydraulic disc brakes, and a Bontrager Line Dropper seatpost. It comes in Matte Keswick Green and Purple Flip, with a size M weight of 12.13 kg / 26.75 lbs with TLR sealant and no tubes.
