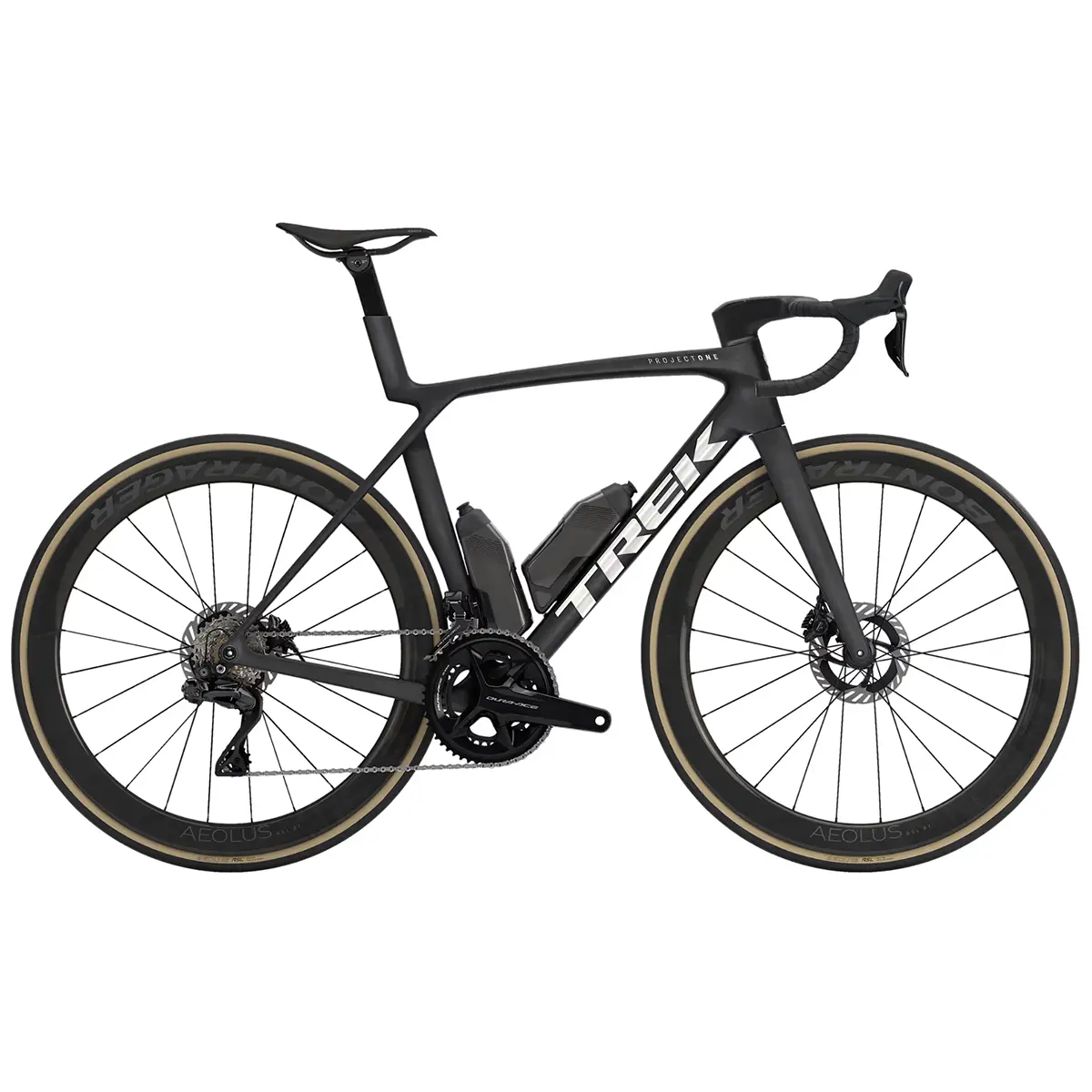

Trek Madone SLR 9 Gen 8
$7,739.00
The Trek Madone SLR 9 Gen 8 is a carbon race road bike with a 900 Series OCLV Carbon frame, Madone Gen 8 one-piece carbon fork, Shimano Dura-Ace Di2 12-speed drivetrain, Bontrager Aeolus RSL 51 carbon wheels, and multiple color options.
Trek Madone SLR 9 Gen 8 Overview
The Trek Madone SLR 9 Gen 8 is a carbon race road bike built with a 900 Series OCLV Carbon frame, Madone Gen 8 one-piece carbon fork, and Shimano Dura-Ace Di2 12-speed drivetrain. The frame uses Full System Foil tube shaping, IsoFlow seat tube design, the RCS Headset System, electronic-only routing, a removable aero chainkeeper, T47 bottom bracket, flat mount disc mounts, UDH, and a 142x12mm thru axle.
The drivetrain includes Shimano Dura-Ace R9270 Di2 12-speed shifters, Shimano Dura-Ace R9250 Di2 front and rear derailleurs, and a Shimano Dura-Ace R9200 52/36 crankset. It is paired with a Shimano Dura-Ace R9200 11-30 12-speed cassette and Shimano Dura-Ace/XTR M9100 12-speed chain. The Shimano BT-DN300 battery supports the electronic system.
For the wheel setup, the Madone SLR 9 Gen 8 uses Bontrager Aeolus RSL 51 OCLV Carbon Tubeless Ready wheels with a 51mm rim depth. The front wheel uses a 100x12mm thru axle, while the rear wheel uses a Shimano 11/12 freehub and 142x12mm thru axle. Tire specifications include Pirelli P Zero Race 700x28mm, Pirelli P Zero Race TLR RS 700x28mm, and Bontrager Aeolus RSL RD 700x28mm tire listings, with Bontrager TLR sealant and Pirelli P Zero SmarTube TPU also included in the wheel system data.
The cockpit uses a Trek Aero RSL Road integrated bar/stem made from OCLV Carbon with Race Fit geometry. The bike also includes Trek EcoTack handlebar tape, Madone aero carbon seatpost with 0mm offset, and Aeolus RSL or Aeolus RSL AirLoom carbon-rail saddle listings. Braking is handled by Shimano Dura-Ace hydraulic disc brakes with Shimano CL900 centerlock 160mm rotors.
Key Features of Trek Madone SLR 9 Gen 8
- 900 Series OCLV Carbon frame with Full System Foil tube shaping for a race road bike platform.
- IsoFlow seat tube design integrated into the Madone Gen 8 frame structure.
- Madone Gen 8 one-piece carbon fork with tapered carbon steerer and internal brake routing.
- Shimano Dura-Ace Di2 12-speed drivetrain with electronic shifting.
- Shimano Dura-Ace R9200 52/36 crankset paired with an 11-30 12-speed cassette.
- Bontrager Aeolus RSL 51 OCLV Carbon Tubeless Ready wheels with 51mm rim depth.
- Trek Aero RSL Road integrated OCLV Carbon bar/stem with Race Fit geometry.
- Shimano Dura-Ace hydraulic disc brakes with Shimano CL900 centerlock 160mm rotors.
Ride Use
This bike is built for race road riding, with a 900 Series OCLV Carbon frame, one-piece carbon fork, Shimano Dura-Ace Di2 drivetrain, and Bontrager Aeolus RSL 51 carbon wheels. The integrated OCLV Carbon bar/stem, hydraulic disc brakes, 700x28mm tire listings, and 7.05 kg ML weight support its race-focused road category.
Why Choose This Bike
The Trek Madone SLR 9 Gen 8 combines a 900 Series OCLV Carbon frame, Madone Gen 8 one-piece carbon fork, Shimano Dura-Ace Di2 12-speed drivetrain, and Bontrager Aeolus RSL 51 carbon wheels in a focused race road bike build. It also includes Shimano Dura-Ace hydraulic disc brakes, Shimano CL900 centerlock rotors, Trek Aero RSL Road integrated carbon bar/stem, Trek EcoTack handlebar tape, Madone aero carbon seatpost, and carbon-rail saddle listings from Aeolus RSL and Aeolus RSL AirLoom. The color choices include Matte Deep Smoke, Purple Phaze, Carbon Red Smoke, Era White, Lidl-Trek Team Replica, Matte Carbon Smoke, and Team Replica.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Trek |
| Model | Madone SLR 9 Gen 8 |
| Bike Type | Race Road Bike |

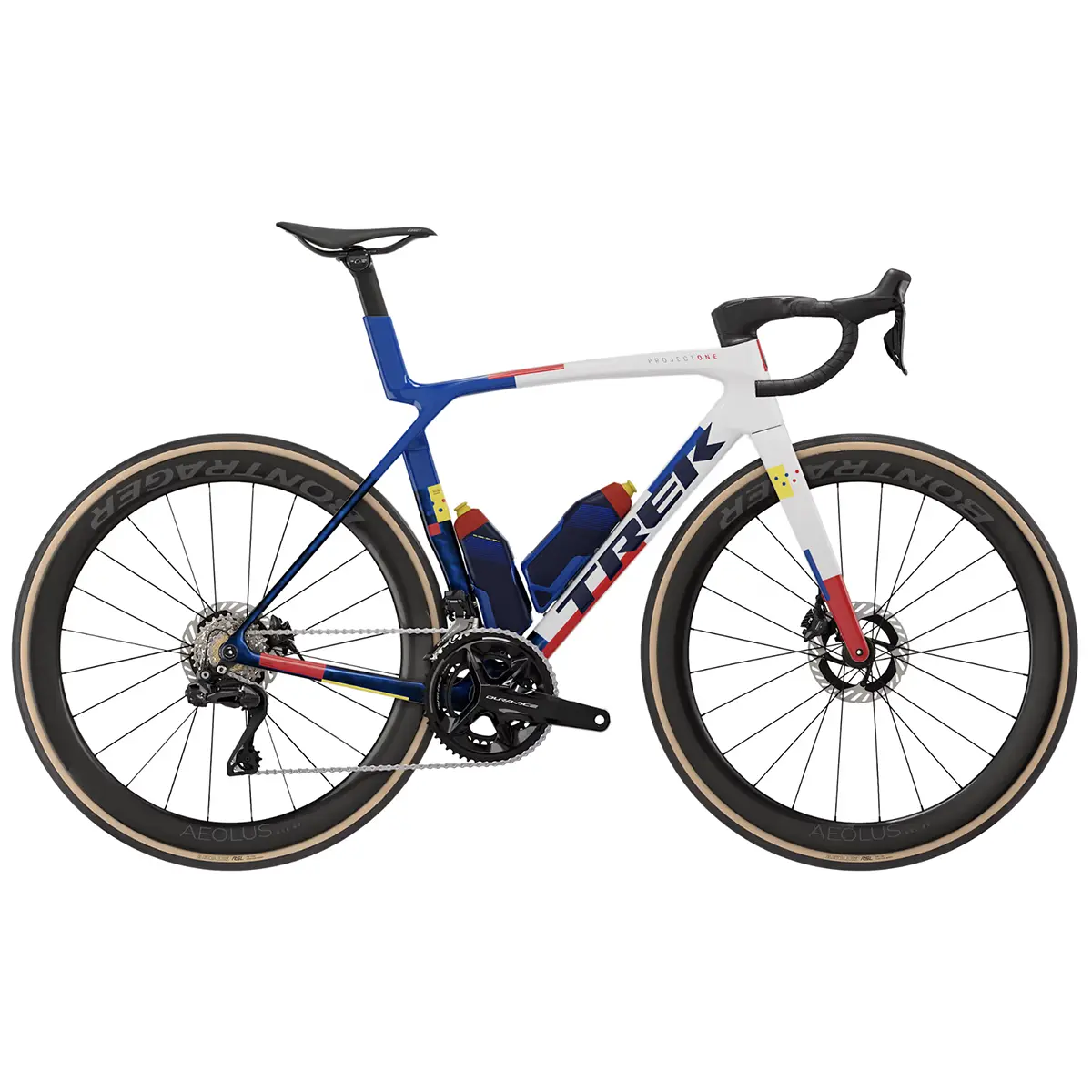

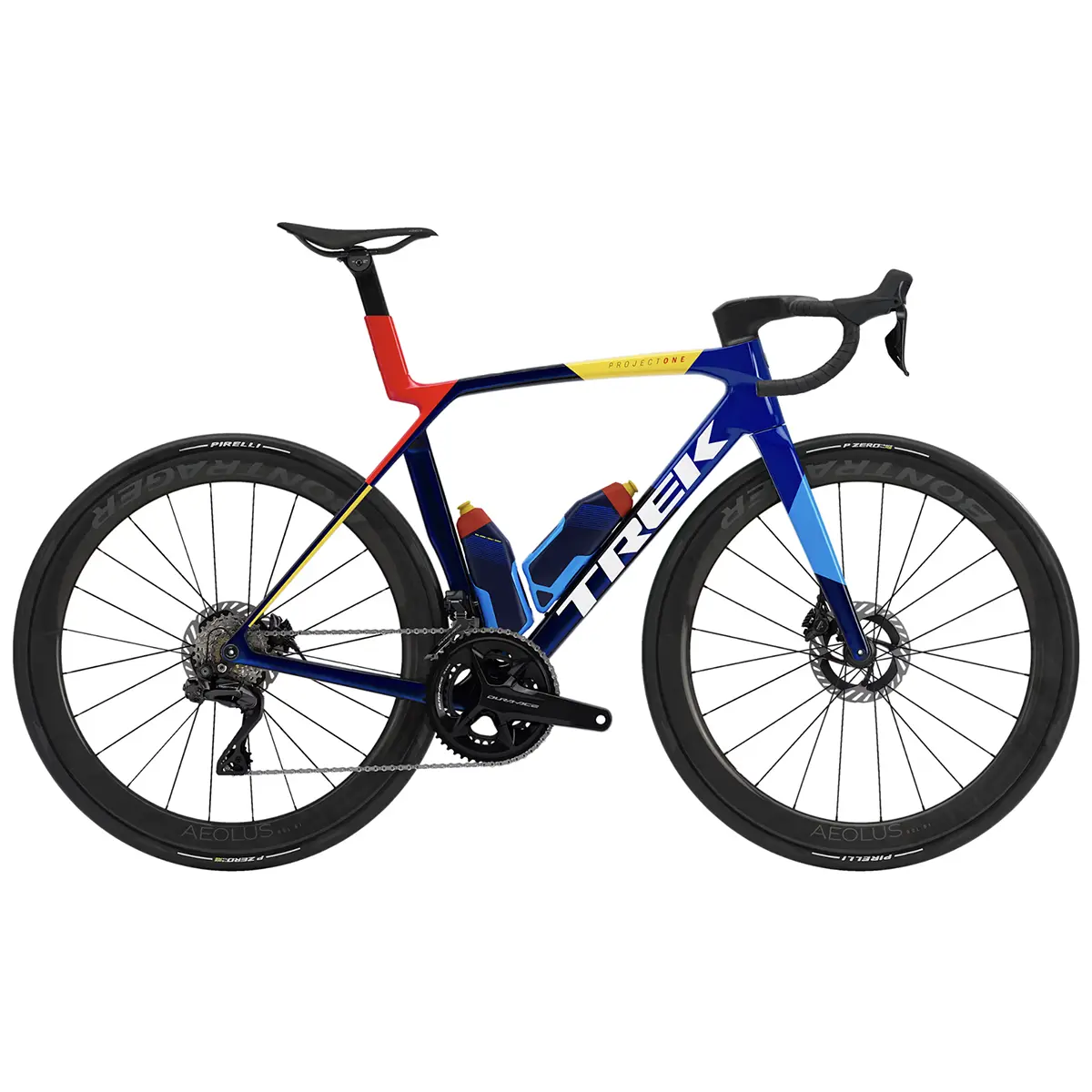

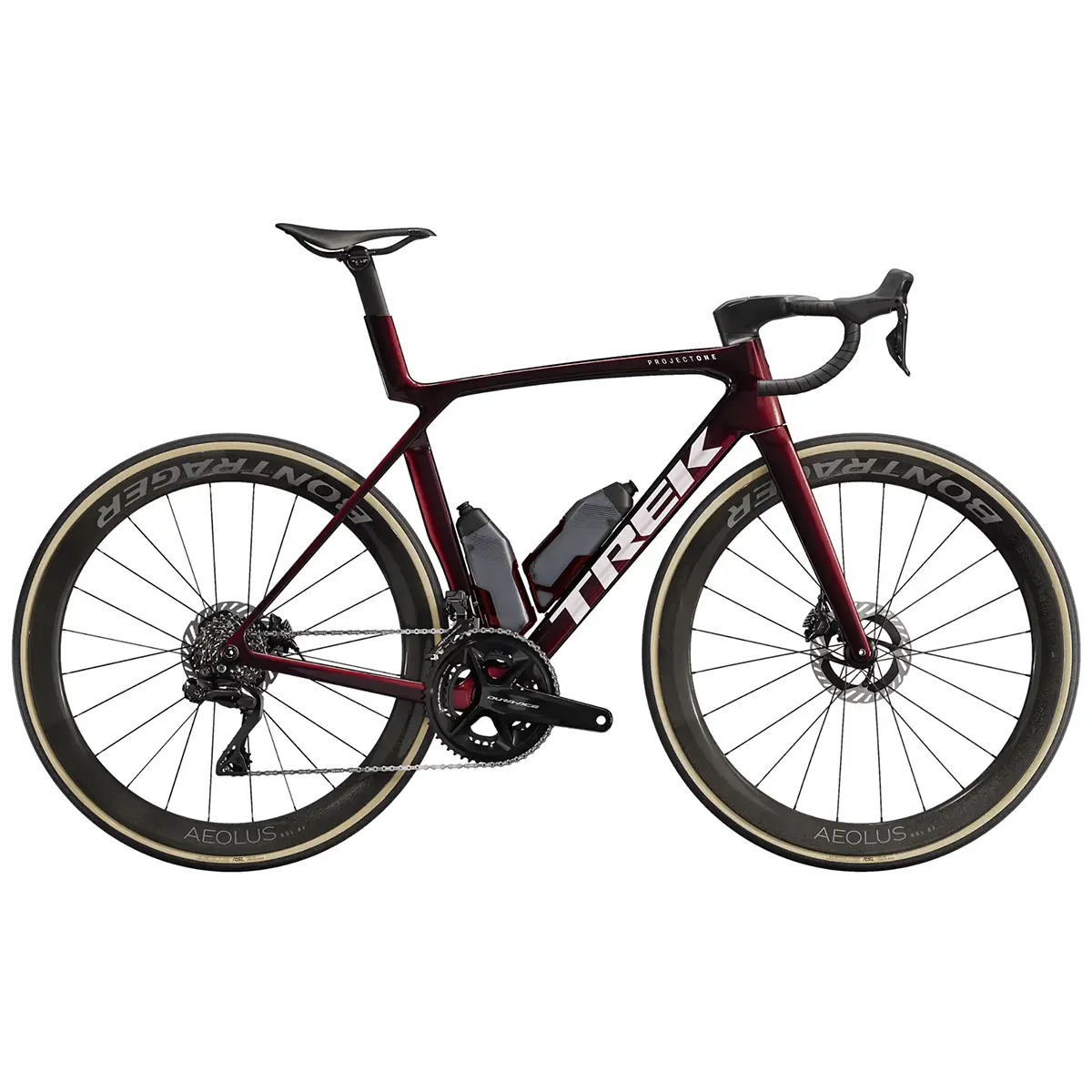

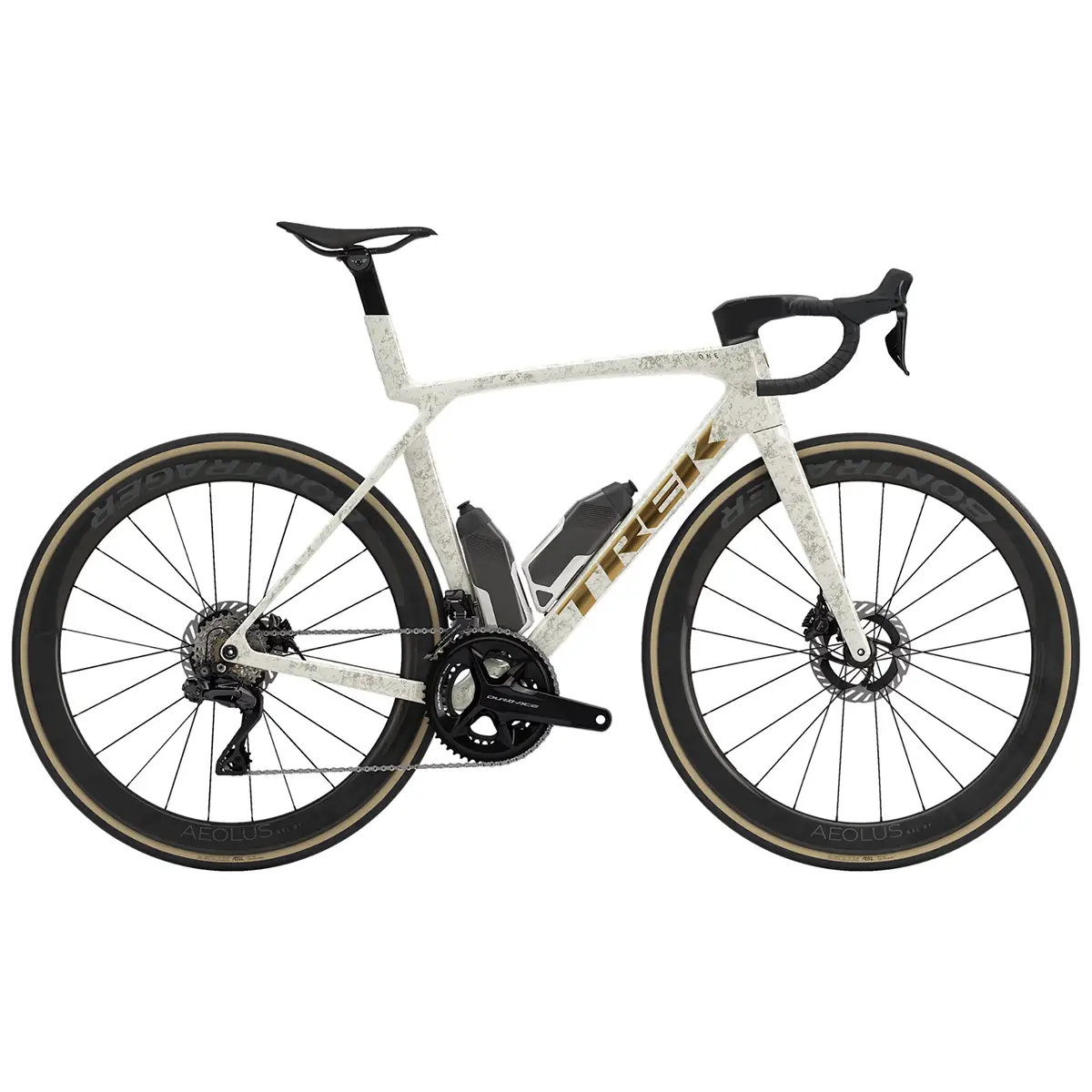

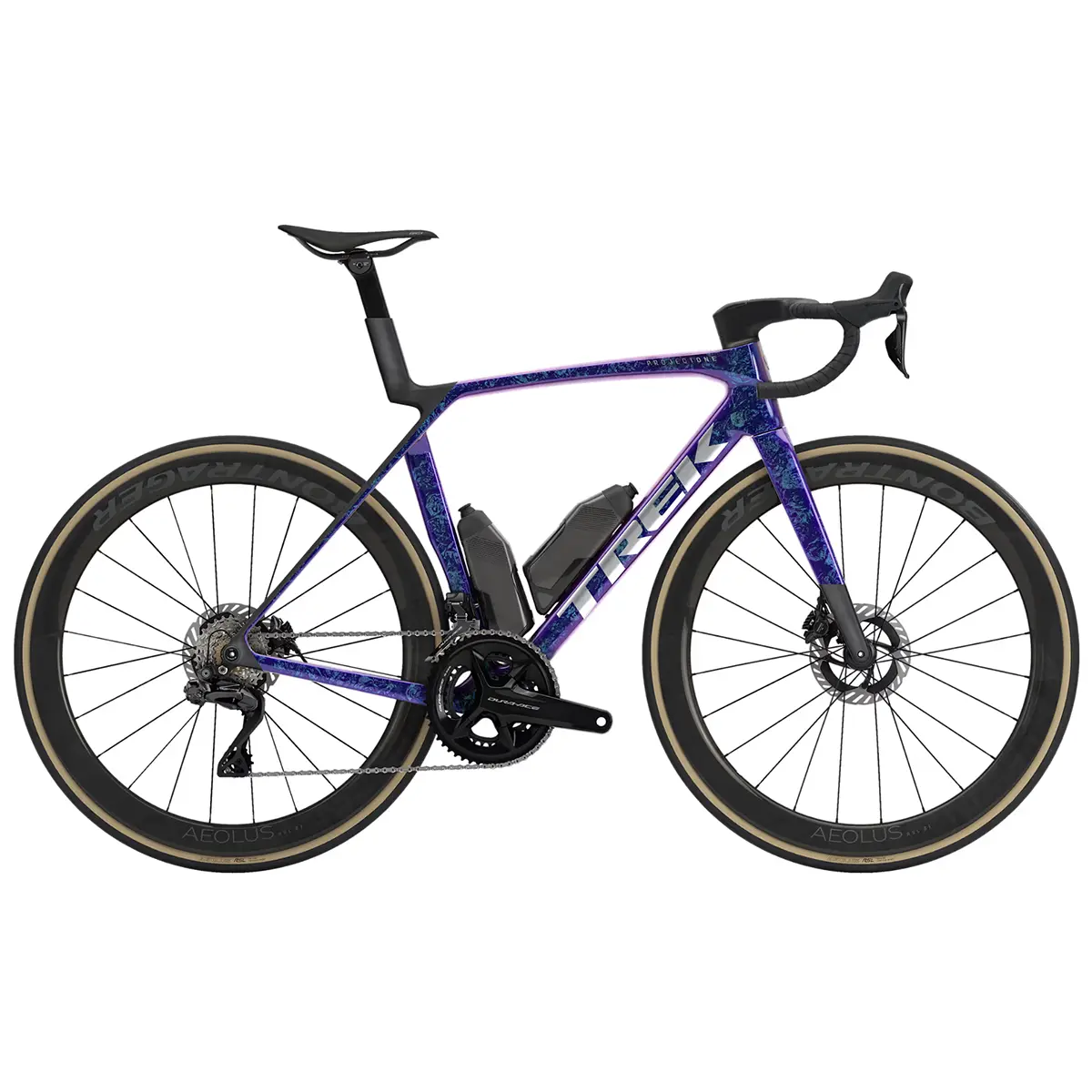

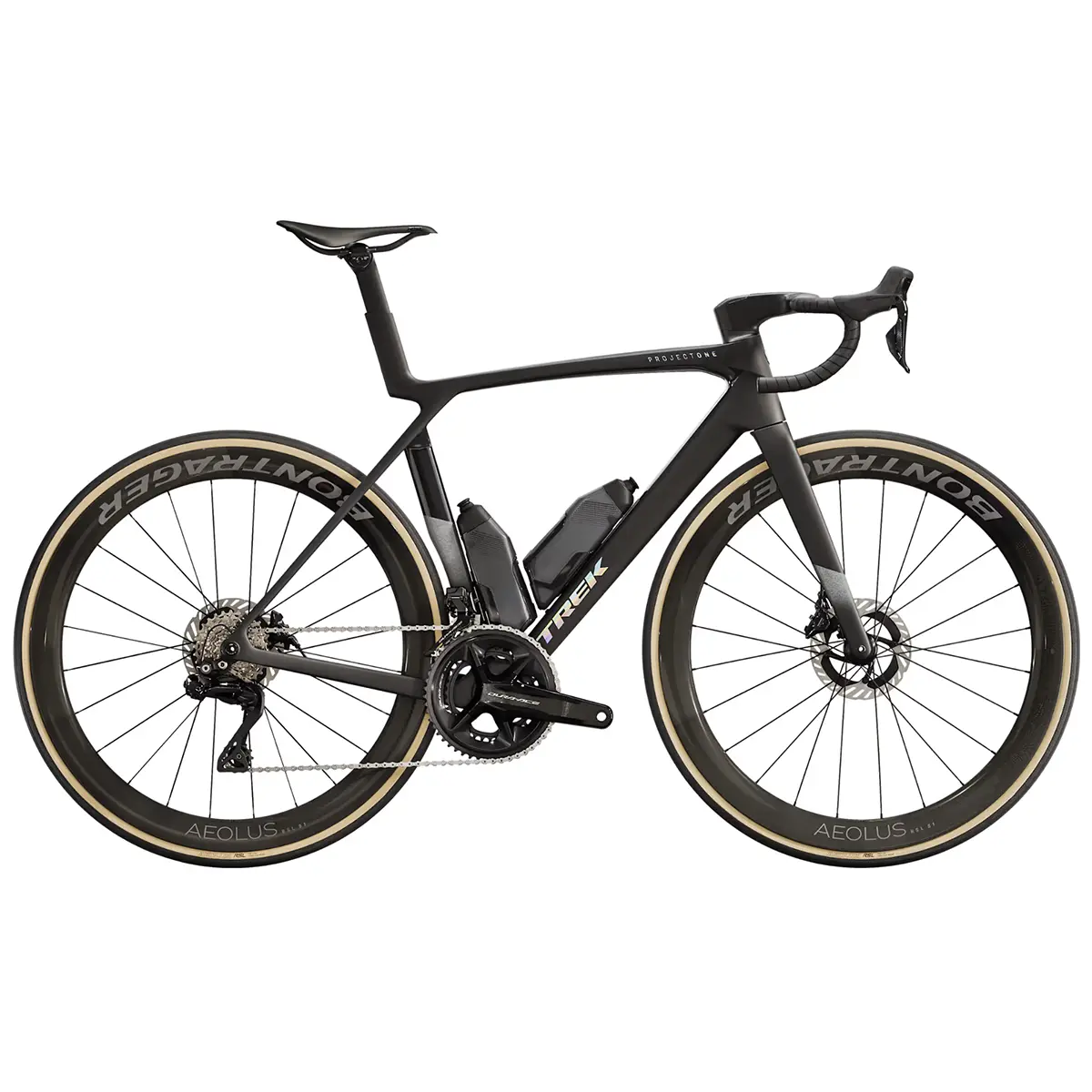

| Color | Matte Deep Smoke, Purple Phaze, Carbon Red Smoke, Era White, Lidl-Trek Team Replica, Matte Carbon Smoke, Team Replica |
| Frame | 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle |
| Fork | Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Battery | Shimano BT-DN300 |
| Shifter | Shimano Dura-Ace R9270 Di2, 12 speed |
| Front Derailleur | Shimano Dura-Ace R9250 Di2, braze-on, down swing |
| Rear Derailleur | Shimano Dura-Ace R9250 Di2, 34T max cog |
| Crankset | Shimano Dura-Ace R9200, 52/36. XS and S: 160mm length; XS, S, M, and ML: 165mm length; M, ML, L, and XL: 170mm length; ML, L, and XL: 172.5mm length; XL: 175mm length |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano Dura-Ace R9200, 11-30, 12 speed |
| Chain | Shimano Dura-Ace/XTR M9100, 12 speed |
| Max Chainring Size | 1x: 54T, 2x: 56/43 |
| Front Wheel | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, 100x12mm thru axle |
| Rear Wheel | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, Shimano 11/12 freehub, 142x12mm thru axle |
| Front Skewer | Bontrager Switch chamfered thru axle |
| Rear Skewer | Bontrager Switch chamfered thru axle, removable lever |
| Tires | Pirelli P Zero Race, 120 tpi, tubeless compatible, 700x28mm; Pirelli P Zero Race TLR RS, 120 tpi, tubeless compatible, 700x28mm; Bontrager Aeolus RSL RD, Tubeless Ready, cotton construction, aramid bead, 170 tpi, 700x28mm |
| Tire Part | Bontrager TLR sealant, 6oz |
| Tube | Pirelli P Zero SmarTube, TPU |
| Max Tire Size | 32mm as measured |
| Saddle | Aeolus RSL, carbon rails, 155mm width; Aeolus RSL, carbon rails, 145mm width; Aeolus RSL AirLoom, carbon rails, 145mm width |
| Seatpost | Madone aero carbon seatpost, 0mm offset, short length |
| Handlebar/Stem | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop. XS: 35cm control width, 38cm drop width, 80mm stem length; S: 37cm control width, 40cm drop width, 90mm stem length; M: 39cm control width, 42cm drop width, 90mm stem length; ML and L: 39cm control width, 42cm drop width, 100mm stem length; XL: 41cm control width, 44cm drop width, 110mm stem length |
| Handlebar Tape | Trek EcoTack |
| Brake | Shimano Dura-Ace hydraulic disc, flat mount |
| Brake Rotor | Shimano CL900, centerlock, 160mm |
| Rotor Size | Maximum brake rotor sizes: 180mm front, 160mm rear |
| Weight | ML - 7.05 kg / 15.55 lbs with TLR sealant, no tubes, no bottles/cages |
| Weight Limit | Maximum total weight limit: 275 pounds / 125 kg, combined weight of bicycle, rider, and cargo |
| Manufacturer Warranty | Trek frames and full-suspension swing arms are covered for the lifetime of the original owner. Other parts are covered under Trek’s limited warranty. |
FAQ's Trek Madone SLR 9 Gen 8
What frame does the Trek Madone SLR 9 Gen 8 use?
The bike uses a 900 Series OCLV Carbon frame with Full System Foil tube shaping and IsoFlow seat tube design. It also includes the RCS Headset System, electronic-only routing, removable aero chainkeeper, T47 bottom bracket, flat mount disc mounts, UDH, and a 142x12mm thru axle.
What drivetrain is on the Trek Madone SLR 9 Gen 8?
This bike uses Shimano Dura-Ace Di2 12-speed shifting. It includes Shimano Dura-Ace R9270 Di2 shifters, Shimano Dura-Ace R9250 Di2 front and rear derailleurs, a Shimano Dura-Ace R9200 52/36 crankset, Shimano Dura-Ace R9200 11-30 cassette, and Shimano Dura-Ace/XTR M9100 12-speed chain.
What wheels and tires come on this Madone SLR 9 Gen 8?
The bike uses Bontrager Aeolus RSL 51 OCLV Carbon Tubeless Ready wheels with a 51mm rim depth. Tire listings include Pirelli P Zero Race 700x28mm, Pirelli P Zero Race TLR RS 700x28mm, and Bontrager Aeolus RSL RD 700x28mm.
What is the weight limit for the Trek Madone SLR 9 Gen 8?
The ML size weighs 7.05 kg / 15.55 lbs with TLR sealant, no tubes, and no bottles or cages. The maximum total weight limit is 275 pounds / 125 kg, including the combined weight of the bicycle, rider, and cargo.
