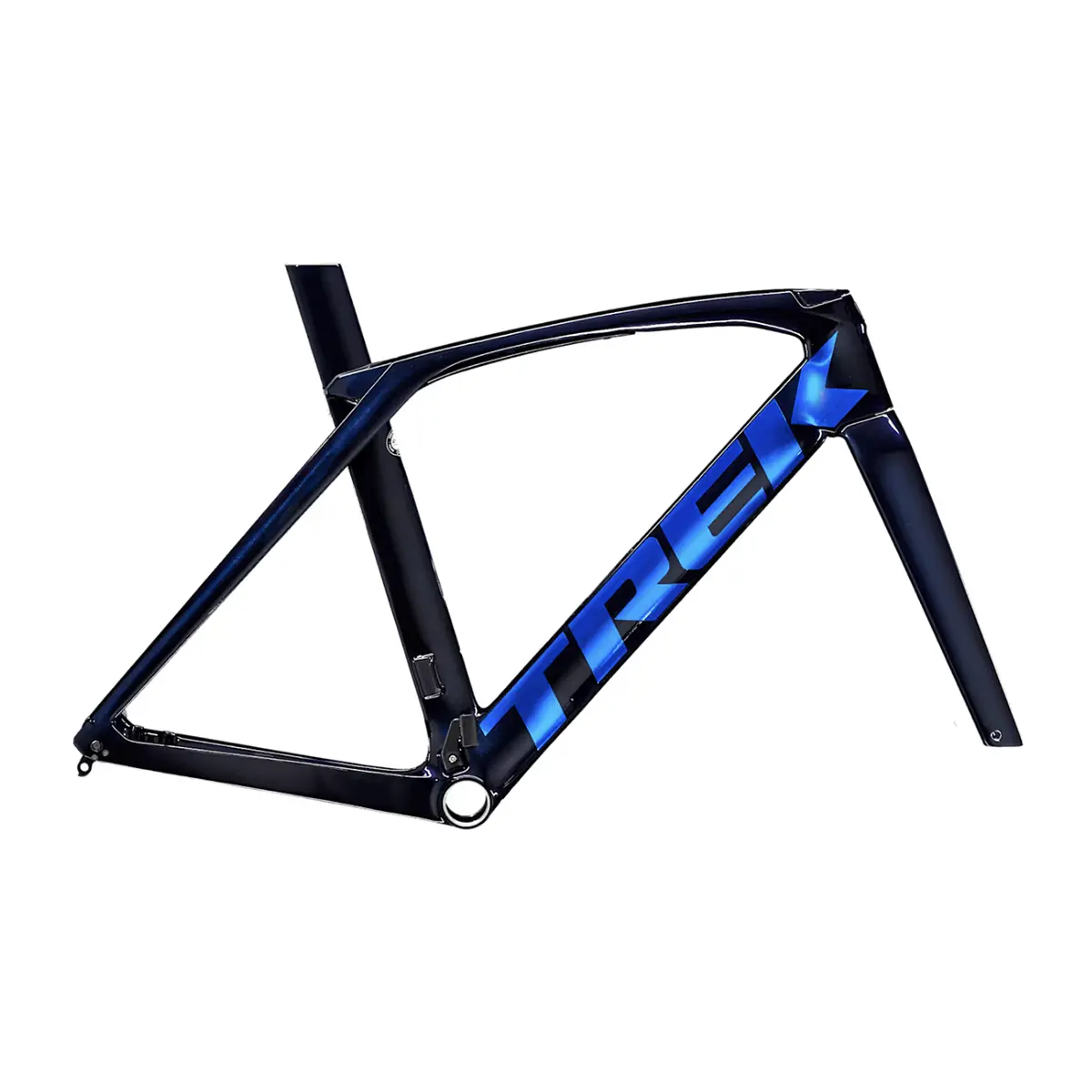

Trek Madone SL Disc Gen 6 Frameset
$959.00
The Trek Madone SL Disc Gen 6 Frameset is a carbon road frameset built with a 500 Series OCLV Carbon frame, KVF tube shape, adjustable top tube IsoSpeed, T47 bottom bracket, and Madone KVF full carbon fork. It comes in Deep Dark Blue with H1.5 Race frame fit.
| Color | Deep Dark Blue |
|---|
Trek Madone SL Disc Gen 6 Frameset Overview
The Trek Madone SL Disc Gen 6 Frameset is a carbon road frameset built with a 500 Series OCLV Carbon frame and Madone KVF full carbon fork. The frame features KVF tube shaping, adjustable top tube IsoSpeed, invisible cable routing, a 3S aero chain keeper, T47 bottom bracket, flat mount disc mounts, DuoTrap S compatibility, and a 142x12mm rear thru axle. It comes in Deep Dark Blue with an H1.5 Race frame fit.
Key Features of Trek Madone SL Disc Gen 6 Frameset
- 500 Series OCLV Carbon frame gives the frameset a carbon foundation for a road bike build.
- KVF tube shape gives the frame a Kammtail Virtual Foil profile.
- Adjustable top tube IsoSpeed is built into the frame design.
- Invisible cable routing keeps the frame layout clean.
- T47 bottom bracket gives the frame a defined bottom bracket format for the build.
- Madone KVF full carbon fork includes a tapered carbon steerer, invisible cable routing, flat mount disc interface, carbon dropouts, and 12x100mm thru axle.
- Flat mount disc brake interface is used on both the frame and fork.
- Bontrager Switch thru axles are used at the front and rear, with a removable lever on the rear axle.
- Maximum tire size is 28mm.
Frame Use
This is a road bike frameset with an H1.5 Race frame fit. Its 500 Series OCLV Carbon frame, KVF tube shaping, adjustable top tube IsoSpeed, invisible cable routing, T47 bottom bracket, flat mount disc setup, and thru axle standards support a focused road frame build. The frame supports 1x chainrings up to 50T, 2x chainrings up to 54/40, tires up to 28mm, and brake rotors up to 160mm front and rear.
Why Choose This Frameset
Choose this frameset for a Trek Madone SL Disc Gen 6 platform built around 500 Series OCLV Carbon, KVF tube shaping, adjustable top tube IsoSpeed, T47 bottom bracket, and a Madone KVF full carbon fork. The Deep Dark Blue finish, H1.5 Race frame fit, invisible cable routing, 3S aero chain keeper, DuoTrap S compatibility, flat mount disc mounts, thru axles, and 28mm maximum tire size give the frame clear build direction. Trek frames are covered for the lifetime of the original owner.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Trek |
| Model | Madone SL Disc Gen 6 Frameset |
| Product Type | Road Bike Frameset |
| Frame Material | 500 Series OCLV Carbon |
| Frame | 500 Series OCLV Carbon, KVF tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, DuoTrap S compatible, 142x12mm thru axle |
| Fork | Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle |
| Frame Fit | H1.5 Race |
| Routing | Invisible cable routing |
| Bottom Bracket | T47 BB |
| Brake Mount | Flat mount disc |
| Front Skewer | Bontrager Switch thru axle |
| Rear Skewer | Bontrager Switch thru axle, removable lever |
| Max Tire Size | 28mm |
| Max Chainring Size | 1x: 50T, 2x: 54/40 |
| Front Derailleur Requirement | Mechanical front derailleurs must have a full-housing stop, such as Shimano toggle front derailleurs |
| Max Brake Rotor Size | 160mm front and rear |
| Color | Deep Dark Blue |
| Weight | 2.12 kg / 4.68 lbs - size 56 |
| Weight Limit | Maximum total weight limit: 275 pounds / 125 kg, including bicycle, rider, and cargo |
| Manufacturer Warranty | Trek frames are covered for the lifetime of the original owner. |
FAQ's Trek Madone SL Disc Gen 6 Frameset
Is the Trek Madone SL Disc Gen 6 Frameset a complete bike?
No. The Trek Madone SL Disc Gen 6 Frameset is not a complete bicycle. It includes the frame and fork for a custom road bike frame build.
What material is used for the Trek Madone SL Disc Gen 6 Frameset?
The frame is made from 500 Series OCLV Carbon. The fork is a Madone KVF full carbon fork with a tapered carbon steerer, invisible cable routing, flat mount disc interface, carbon dropouts, and 12x100mm thru axle.
What brake type does the Trek Madone SL Disc Gen 6 Frameset use?
The frameset uses flat mount disc brake mounts. The maximum brake rotor size is 160mm at the front and rear.
What is the maximum tire size for the Trek Madone SL Disc Gen 6 Frameset?
The maximum tire size is 28mm. The frameset uses a 142x12mm rear thru axle and a 12x100mm front thru axle.
