Trek Fuel+ EX 5 Gen 2

Trek Fuel+ EX 5 Gen 2 Overview

The Trek Fuel+ EX 5 Gen 2 is an aluminum electric mountain bike built with a TQ-HPR60 motor, TQ 580Wh battery, RockShox fork, Shimano Deore drivetrain, and Bontrager Line TLR 30 rims. The Alpha NEXT Platinum aluminum frame uses a removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148 spacing, and adaptable travel from 145mm to 160mm.

The suspension setup pairs a RockShox Recon Silver RL fork with an X-Fusion Pro 2 rear shock. The fork uses a Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110 spacing, 15mm Maxle Stealth axle, and 150mm travel. The rear shock includes a 2-position damper and measures 205mm x 60mm.

The electric system is built around a TQ-HPR60 motor with 60 Nm of torque, 250 watt maximum continuous rated power, and 350 watt peak power. It is paired with a TQ 580Wh battery, TQ 4A charger, and TQ LED display with Bluetooth and ANT+ connectivity. The bike is classified as a Class 1 e-bike.

The Shimano Deore drivetrain includes a Shimano Deore M6100 12-speed shifter, Shimano Deore M6100 long cage rear derailleur, E*thirteen E*spec Plus 160mm crank arm, E*Thirteen Helix Core Steel 32T chainring, Shimano Deore M6100 10-51T 12-speed cassette, and Shimano Deore M6100 12-speed chain. Shimano 4-piston hydraulic disc brakes use MT4100 levers, MT420 calipers, and Shimano RT64 203mm centerlock rotors.

Key Features of Trek Fuel+ EX 5 Gen 2

• Alpha NEXT Platinum aluminum frame uses a removable battery design, ABP suspension, UDH, Boost148 spacing, and adaptable 145mm-160mm travel.
• TQ-HPR60 motor delivers 60 Nm of torque with 250 watt maximum continuous rated power and 350 watt peak power.
• TQ 580Wh battery works with a TQ 4A charger and TQ LED display with Bluetooth and ANT+ connectivity.
• RockShox Recon Silver RL fork provides 150mm travel with Solo Air spring, Motion Control damper, and lockout.
• X-Fusion Pro 2 rear shock includes a 2-position damper and measures 205mm x 60mm.
• Shimano Deore M6100 12-speed drivetrain pairs a long cage rear derailleur with a 10-51T cassette.
• Bontrager Line TLR 30 Tubeless Ready rims are paired with Shimano TC500 centerlock hubs.
• Shimano 4-piston hydraulic disc brakes use MT4100 levers, MT420 calipers, and 203mm centerlock rotors.

Ride Use

This bike is built for electric mountain biking, with an aluminum full-suspension frame, TQ-HPR60 motor, 580Wh battery, and 150mm fork travel. The Shimano Deore 12-speed drivetrain, Bontrager Line TLR 30 rims, RockShox fork, X-Fusion rear shock, and Shimano 4-piston brakes match its electric MTB build.

Why Choose This Bike

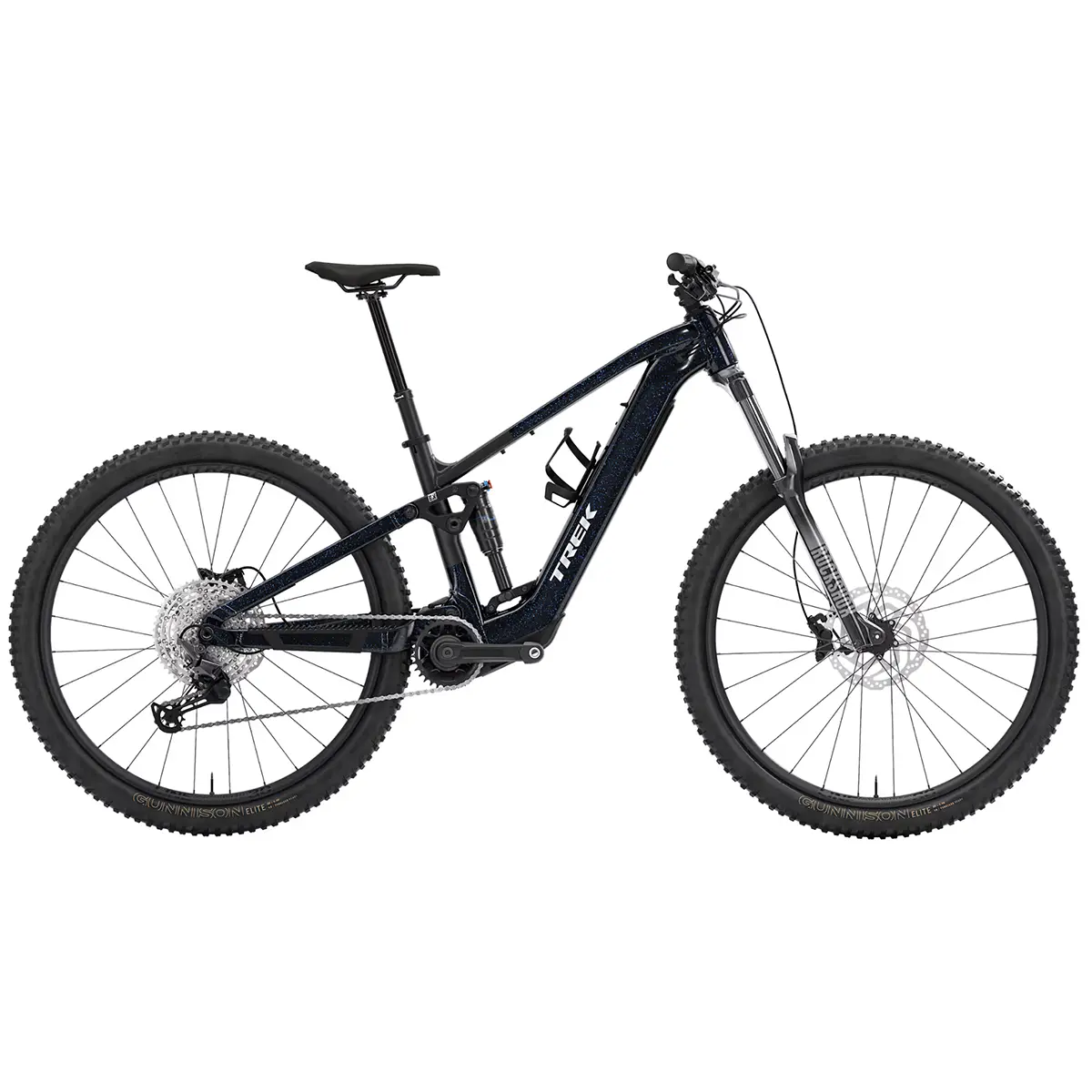

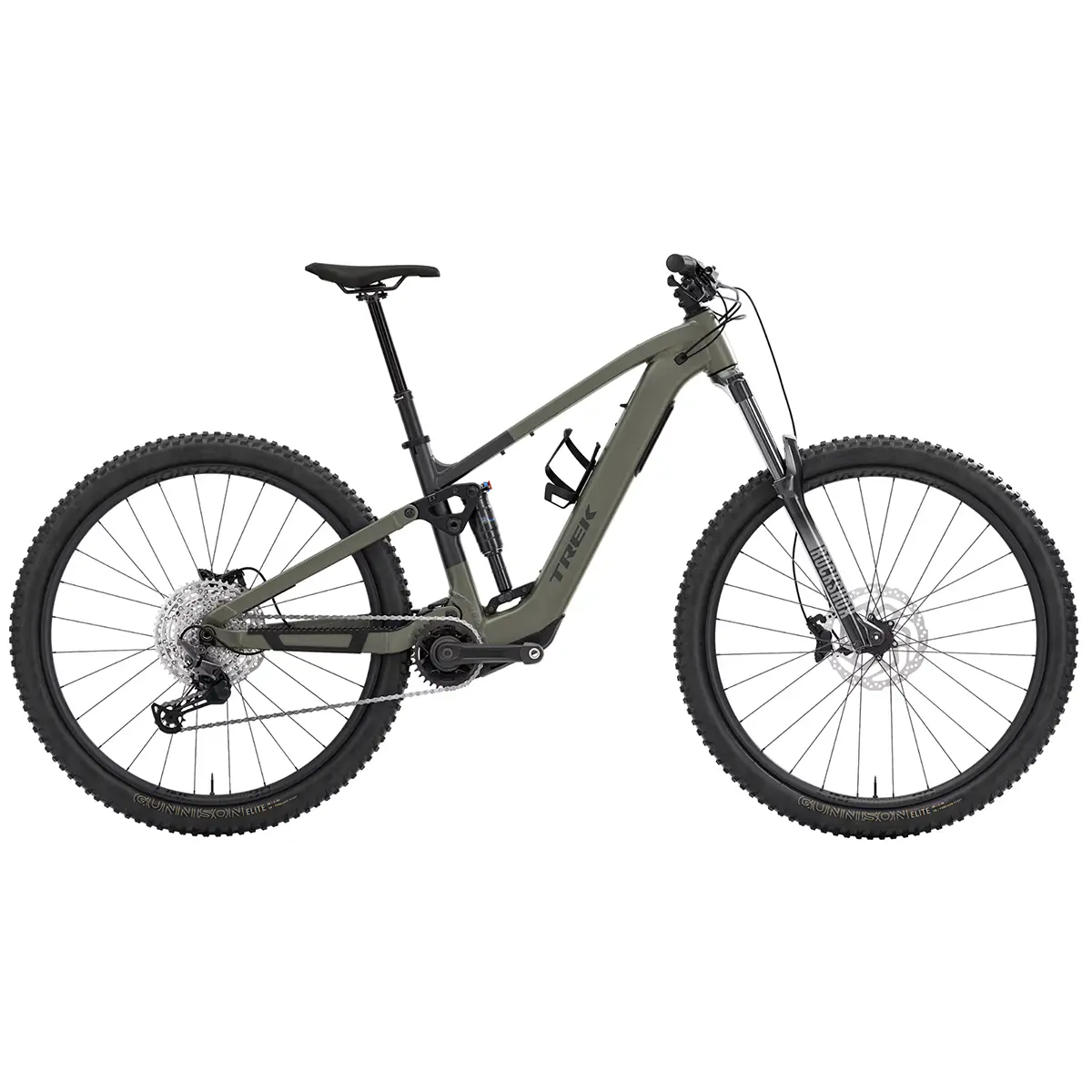

The Trek Fuel+ EX 5 Gen 2 combines a Trek aluminum e-MTB frame, TQ electric system, RockShox Recon Silver RL fork, X-Fusion Pro 2 rear shock, Shimano Deore 12-speed drivetrain, Bontrager Line TLR 30 rims, and Shimano 4-piston hydraulic disc brakes. It is available in Purple Flip Splatter and Matte Olive Grey, with a size M weight of 21.92 kg / 48.33 lbs with TLR sealant and no tubes. Trek frames and full-suspension swing arms are covered for the lifetime of the original owner, while other parts are covered under Trek’s limited warranty.
