Trek Domane+ ALR 6 AXS

Trek Domane+ ALR 6 AXS Overview

The Trek Domane+ ALR 6 AXS is an electric gravel bike built with a 300 Series Alpha Aluminum frame, TQ drive system, hidden fender mounts, rack mounts, integrated frame bag mounts, internal cable routing, flat mount disc fitment, integrated chainkeeper, UDH, and a 142x12mm chamfered thru axle. It uses a Domane+ carbon fork with a tapered carbon steerer, fender mounts, flat mount disc fitment, and a 12x100mm thru axle.

The e-system uses a TQ-HPR60 motor with 60 Nm of torque, 250 watt maximum continuous rated power, and 350 watt peak power. A TQ 360Wh battery powers the system, and the bike includes a TQ 2A charger. The cockpit display setup includes TQ LED display connectivity with Bluetooth and ANT+ support, and this model is classified as a Class 3 e-bike.

The drivetrain uses SRAM Apex AXS 12-speed shifting with a SRAM Apex XPLR eTap AXS rear derailleur and 44T max cog capacity. A SRAM XPLR PG-1231 11-44 12-speed cassette pairs with a SRAM Apex 12-speed chain, while the Praxis Alloy crankset uses size-specific crank lengths. The frame supports a maximum 1x chainring size of 46T.

The wheel setup includes Bontrager alloy sealed bearing hubs, Bontrager Paradigm 23 Tubeless Ready rims, 14g stainless steel spokes, and Bontrager Kwaremont Pro TLR 700x32mm tires. The tires use a folding bead, Race Dual-Compound construction, and 120 tpi casing. Finishing parts include a Verse Short Comp saddle, Bontrager carbon seatpost, Bontrager Comp alloy handlebar, Trek EcoTack handlebar tape, and a Bontrager Elite Blendr-compatible stem.

Key Features of Trek Domane+ ALR 6 AXS

• 300 Series Alpha Aluminum frame with TQ drive system, hidden fender mounts, rack mounts, integrated frame bag mounts, UDH, and internal cable routing.
• Domane+ carbon fork with tapered carbon steerer, fender mounts, flat mount disc fitment, and 12x100mm thru axle.
• TQ-HPR60 motor delivers 60 Nm torque with 250 watt maximum continuous rated power and 350 watt peak power.
• TQ 360Wh battery works with a TQ LED display system featuring Bluetooth and ANT+ connectivity.
• SRAM Apex AXS 12-speed drivetrain includes an Apex XPLR eTap AXS rear derailleur and 11-44 cassette.
• SRAM Apex AXS hydraulic disc brakes use flat mount calipers with 160mm SRAM Paceline centerlock rotors.
• Bontrager Paradigm 23 Tubeless Ready rims use a 23mm width and Presta valve setup.
• Bontrager Kwaremont Pro TLR 700x32mm tires use a folding bead, Race Dual-Compound construction, and 120 tpi casing.

Ride Use

This bike is categorized for gravel riding with an electric TQ drive system. Its Alpha Aluminum frame, Domane+ carbon fork, rack mounts, fender mounts, 700x32mm tubeless ready tires, and SRAM Apex AXS 1×12 drivetrain support its gravel bike category. The Class 3 e-bike system includes a TQ-HPR60 motor, TQ 360Wh battery, and TQ LED display connectivity.

Why Choose This Bike

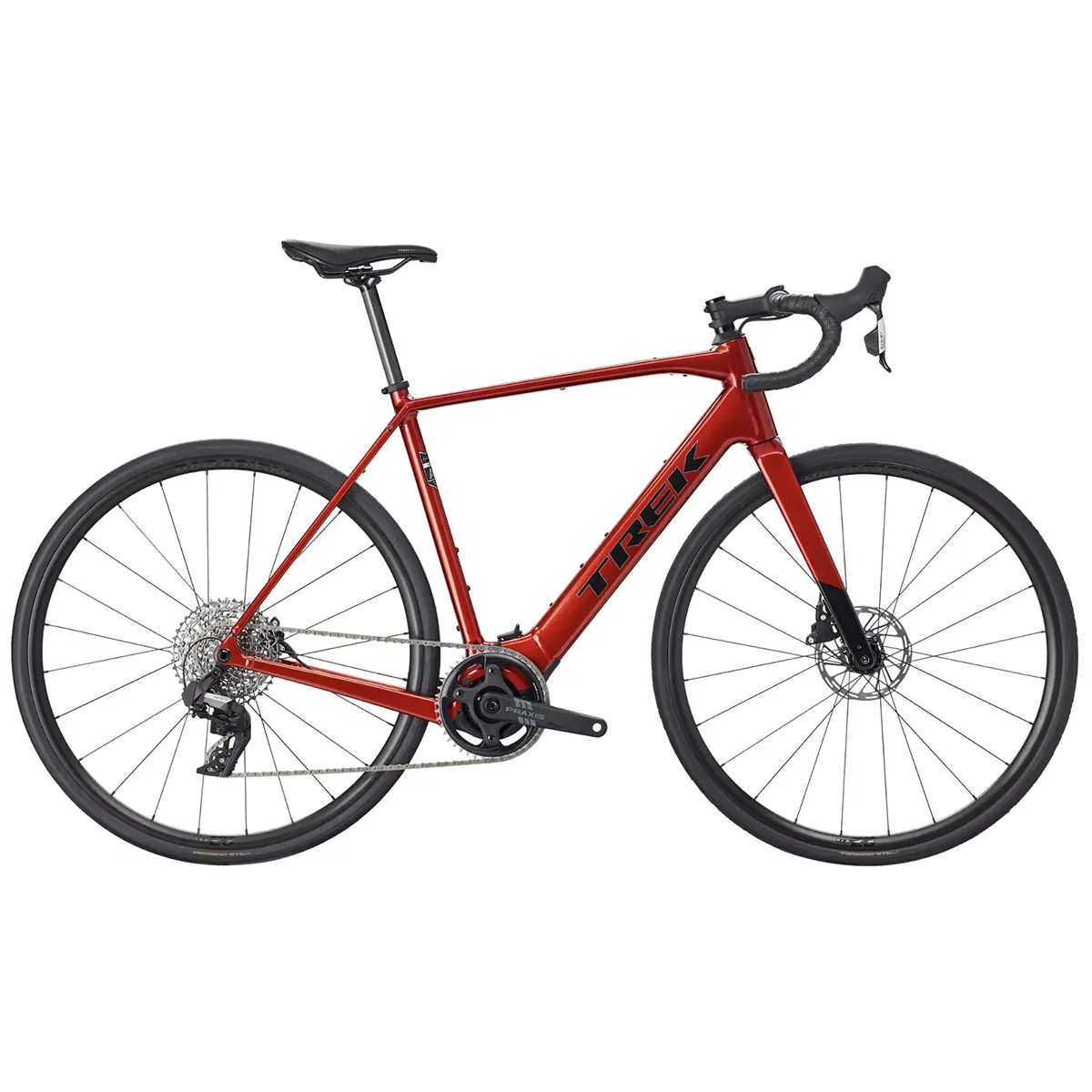

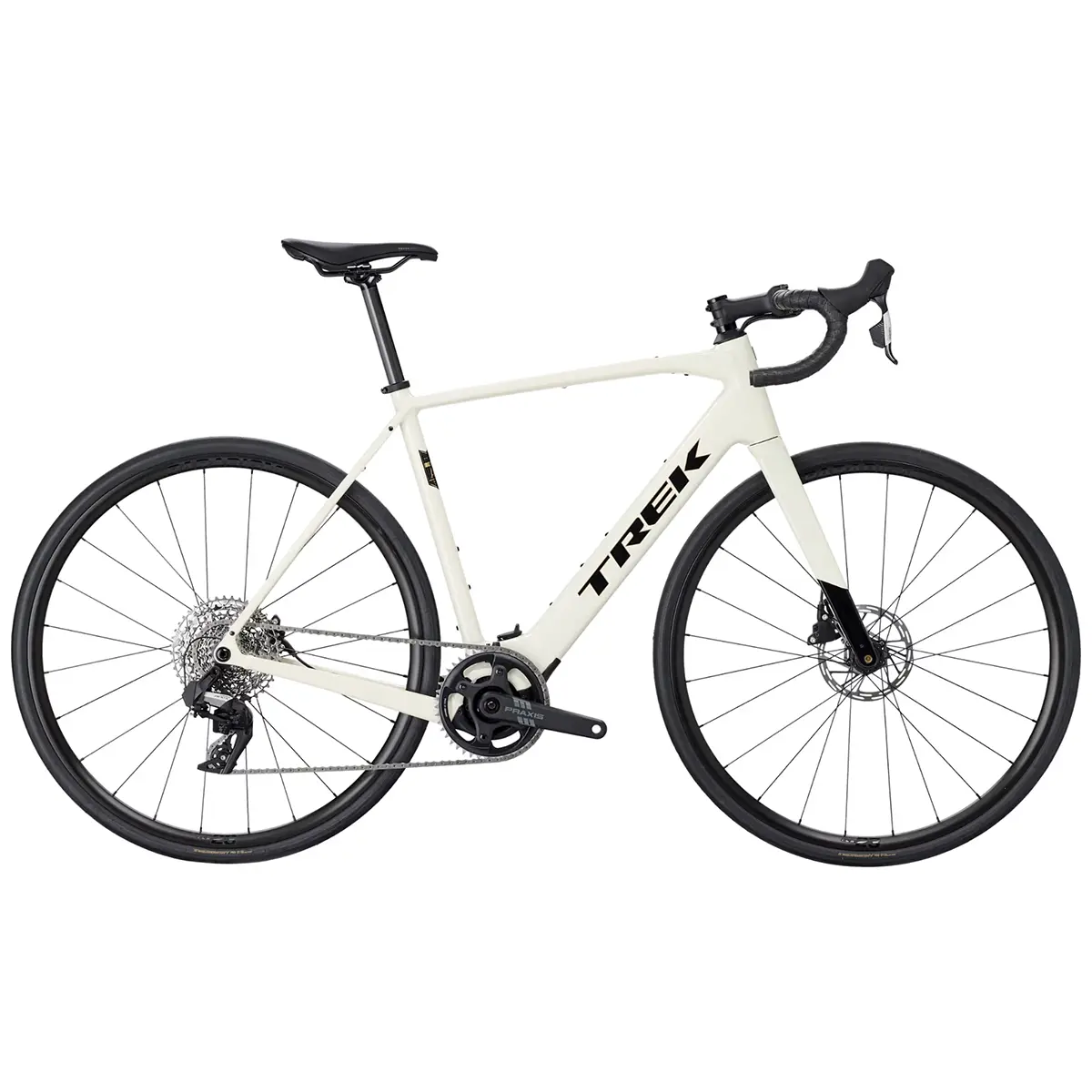

The Trek Domane+ ALR 6 AXS combines a 300 Series Alpha Aluminum frame, Domane+ carbon fork, TQ-HPR60 motor, TQ 360Wh battery, SRAM Apex AXS 12-speed drivetrain, and SRAM Apex AXS hydraulic disc brakes. Its Bontrager Paradigm 23 Tubeless Ready rims, Bontrager Kwaremont Pro TLR 700x32mm tires, carbon seatpost, and Fury Red or Era White color options complete a detailed electric gravel bike build. The ML size weighs 14.24 kg / 31.4 lbs with TLR sealant and no tubes, and Trek frames and full-suspension swing arms are covered for the lifetime of the original owner, while other parts are covered under Trek’s limited warranty.
