Santa Cruz Stigmata Force 1x AXS RSV
$4,109.00
The Santa Cruz Stigmata Force 1x AXS RSV is a Carbon CC gravel bike with a carbon fork, SRAM Force AXS controls, SRAM X0 Eagle AXS T-Type drivetrain parts, Reserve 25|GR wheels, and 700x45c Maxxis Rambler tires.
Santa Cruz Stigmata Force 1x AXS RSV Overview
The Santa Cruz Stigmata Force 1x AXS RSV is a gravel bike built with a Carbon CC Gravel frame, carbon fork, and 700c wheels. The drivetrain combines a SRAM Force XPLR 42t crankset, SRAM Force AXS right shifter, SRAM X0 Eagle AXS T-Type 12-speed rear derailleur, SRAM X0 1295 Eagle T-Type 10-52t cassette, and SRAM X0 Eagle T-Type Flattop chain. Braking is handled by SRAM Force brakes with 160mm SRAM Centerline Centerlock rotors front and rear. The build is completed with Reserve 25|GR rims, DT Swiss 350 hubs, Maxxis Rambler 700x45c tires, Easton EC70 seatpost, and two color options: Matte Carbon and British Racing Green.
Key Features of Santa Cruz Stigmata Force 1x AXS RSV
- Carbon CC Gravel frame gives the bike a dedicated gravel platform.
- Carbon fork is paired with the 700c wheel setup.
- SRAM Force XPLR crankset uses a 42t chainring with size-specific crank lengths.
- SRAM X0 Eagle AXS T-Type 12-speed rear derailleur works with a 10-52t cassette.
- SRAM Force brakes are paired with 160mm SRAM Centerline Centerlock rotors front and rear.
- Reserve 25|GR rims are matched with DT Swiss 350 Centerlock hubs.
- Maxxis Rambler 700x45c DC EXO tires are fitted at the front and rear.
- Easton EC70 27.2mm zero-offset seatpost uses a 350mm length across all sizes.
Ride Use
This bike is built for gravel riding. Its Carbon CC Gravel frame, carbon fork, SRAM AXS drivetrain setup, Reserve 25|GR wheels, and Maxxis Rambler 700x45c tires support the gravel category. The Zipp Service Course SL-70 XPLR handlebar and 700c wheel size complete the gravel-focused build.
Why Choose This Bike
The Santa Cruz Stigmata Force 1x AXS RSV combines a Carbon CC Gravel frame, carbon fork, SRAM Force AXS controls, SRAM X0 Eagle AXS T-Type drivetrain parts, and Reserve 25|GR wheels in one gravel bike build. It also includes SRAM Force brakes, Maxxis Rambler 700x45c tires, a Zipp Service Course SL-70 XPLR handlebar, Easton EC70 seatpost, and Reserve Fillmore Valves. The frame includes three water bottle mounts and carries Santa Cruz warranty coverage for the original owner.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Santa Cruz |
| Model | Stigmata Force 1x AXS RSV |
| Bike Type | Gravel Bike |

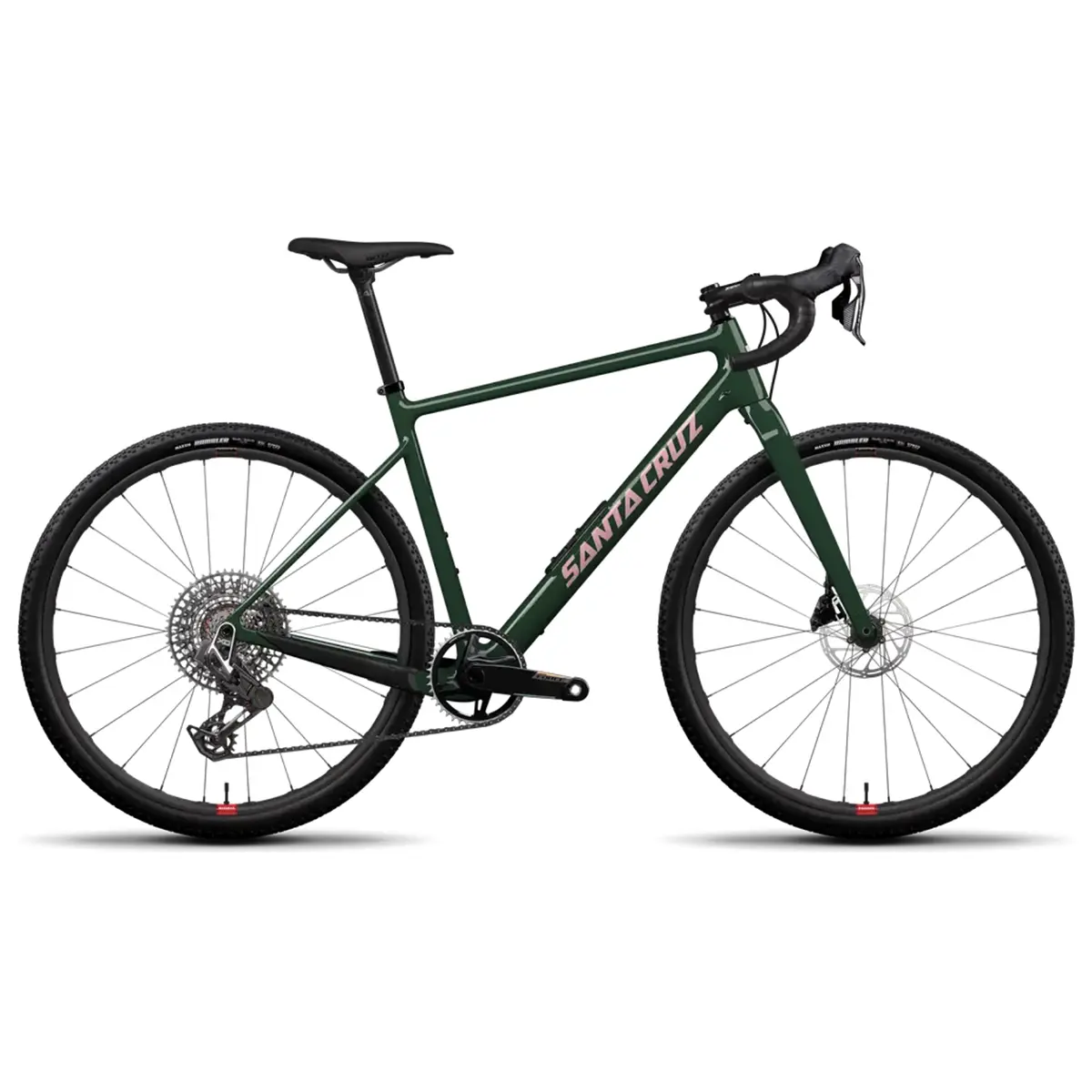

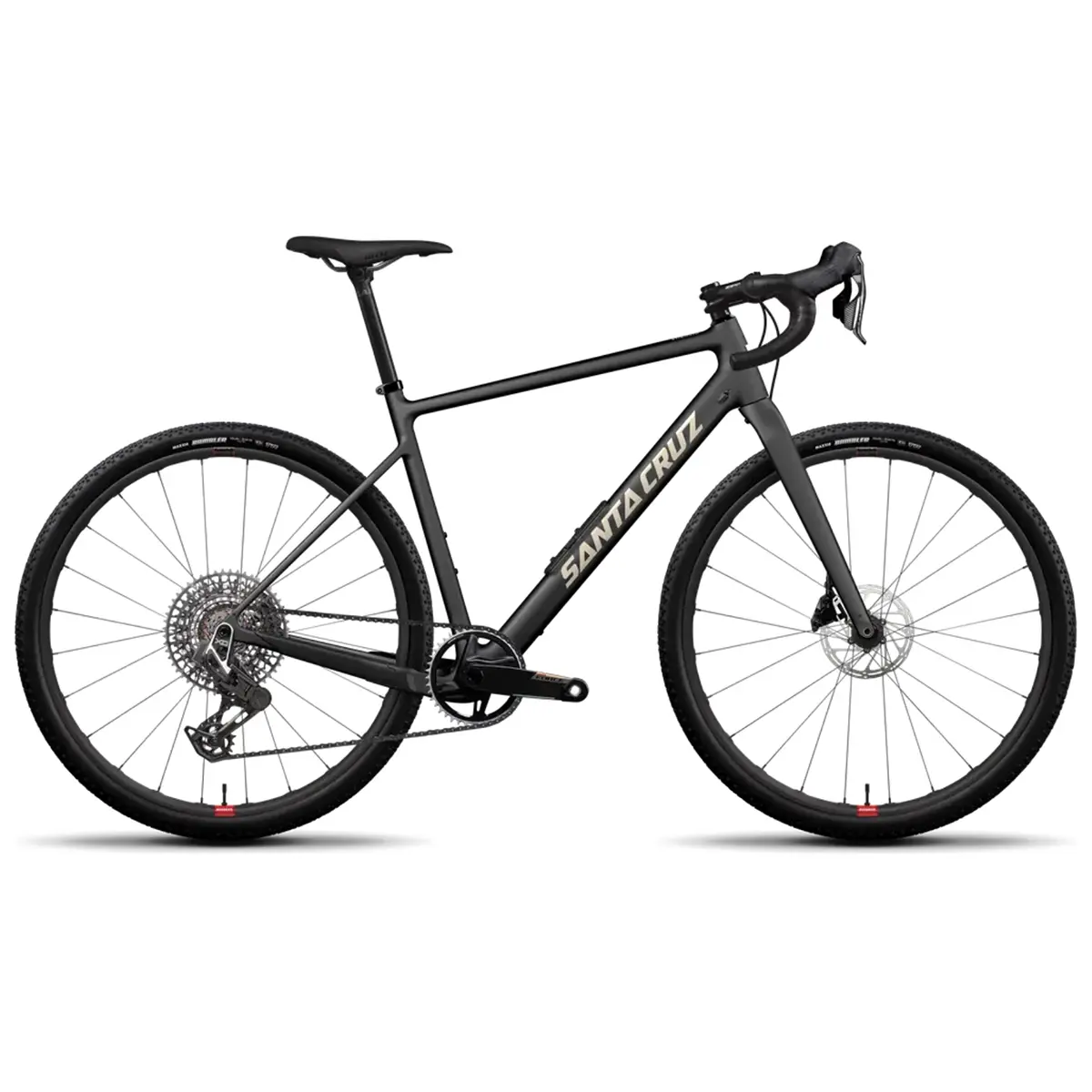

| Color | Matte Carbon, British Racing Green |
| Sizes | XS, S, M, L, XL |
| Frame Material | Carbon CC |
| Frame | Carbon CC Gravel |
| Weight | 19.14lbs / 8.68kg |
| Wheel Size | 700c |
| Fork | Carbon |
| Bottom Bracket | SRAM DUB 68mm Road Wide BB |
| Cassette | SRAM X0 1295 Eagle T-Type, 10-52t |
| Chain | SRAM X0 Eagle T-Type, Flattop, 12spd |
| Crankset | SRAM Force XPLR, 42t XS/S: 165mm, M/L: 170mm, XL: 172.5, XXL: 175mm |
| Rear Derailleur | SRAM X0 Eagle AXS T-Type, 12spd |
| Right Shifter | SRAM Force AXS |
| Brakes | SRAM Force |
| Front Rotor | SRAM Centerline, Centerlock, 160mm |
| Rear Rotor | SRAM Centerline, Centerlock, 160mm |
| Grips / Bar Tape | Velo Bar Tape |
| Handlebars | Zipp Service Course SL-70 XPLR Bar, 31.8 XS/S: 42cm, M: 44cm, L/XL/XXL: 46cm |
| Headset | Cane Creek 50 IS Integrated Headset or Cane Creek 40 IS Integrated Headset |
| Saddle | WTB Silverado Medium Fusion, CroMo SL |
| Seatpost | Easton EC70, 27.2, Zero Offset All Sizes: 350mm |
| Stem | Zipp Service Course Stem All Sizes: 70mm |
| Front Rim | Reserve 25|GR |
| Front Hub | DT Swiss 350, 12x100, Centerlock, 24h |
| Front Tire | Maxxis Rambler, 700x45c, DC, EXO |
| Rear Rim | Reserve 25|GR |
| Rear Hub | DT Swiss 350, 12x142, XDR, Centerlock, 36t, 24h |
| Rear Tire | Maxxis Rambler, 700x45c, DC, EXO |
| Valves | Reserve Fillmore Valves |
| Bottom Bracket Shell | Threaded 68mm |
| Rear Brake Mount | 160mm FM |
| Fork Axle to Crown | 430mm |
| Fork Compatibility | 40mm |
| Fork Offset | 45mm |
| Front Derailleur Mount | Clamp On |
| Headset Standard | Integrated IS41/52 |
| Max Chainring Size | 42t 1x | 50t 2x |
| Max Tire Clearance | 50mm 1x | 45mm 2x |
| Rear Spacing | 142mm |
| Seat Clamp Diameter | 31.8mm |
| Seat Post Diameter | 27.2mm |
| UDH Compatible | Yes |
| Water Bottle Mounts | 3 |
| Manufacturer Warranty | Santa Cruz offers a lifetime warranty on frames and rigid forks for the original owner. Paint, finishes, and decals are covered for 3 years. Pivot bearings, Santa Cruz carbon handlebars, bottle cages, and Reserve carbon rims are covered for life for the original owner. |
FAQ's Santa Cruz Stigmata Force 1x AXS RSV
What frame does the Santa Cruz Stigmata Force 1x AXS RSV use?
The Santa Cruz Stigmata Force 1x AXS RSV uses a Carbon CC Gravel frame with a carbon fork. The complete bike weight is 19.14lbs / 8.68kg.
What drivetrain is included on the Santa Cruz Stigmata Force 1x AXS RSV?
The bike uses a SRAM Force XPLR 42t crankset with a SRAM Force AXS right shifter, SRAM X0 Eagle AXS T-Type 12-speed rear derailleur, SRAM X0 1295 Eagle T-Type 10-52t cassette, and SRAM X0 Eagle T-Type Flattop 12-speed chain.
What wheels and tires come on this bike?
The bike uses Reserve 25|GR rims with DT Swiss 350 Centerlock hubs. It comes with Maxxis Rambler 700x45c, DC, EXO tires at the front and rear.
What handlebar and seatpost come on this bike?
The bike uses a Zipp Service Course SL-70 XPLR Bar with size-specific widths. It also includes an Easton EC70 27.2mm zero-offset seatpost with a 350mm length across all sizes.
