Giant Trance X Advanced E+ EL 0 20MPH
$6,600.00

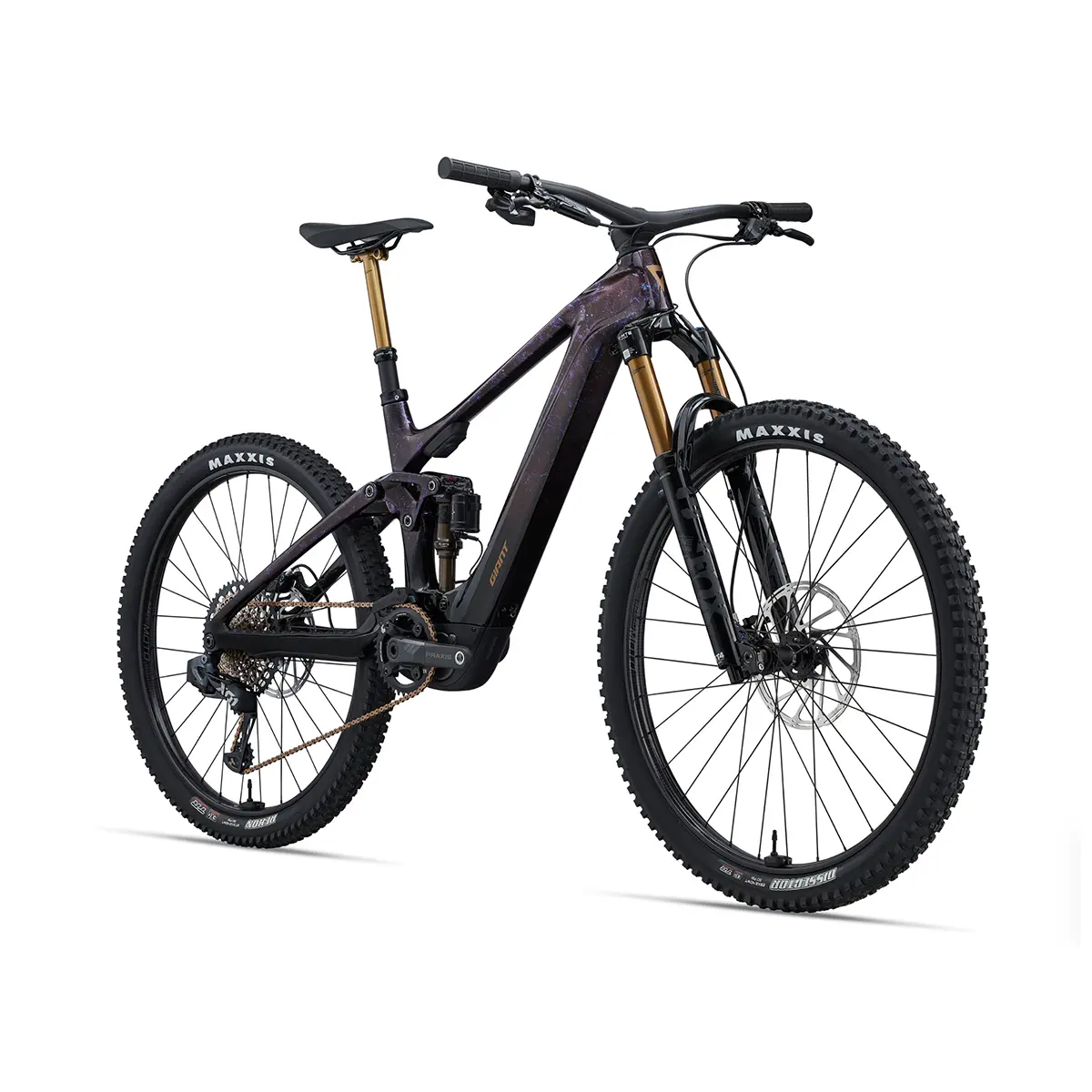

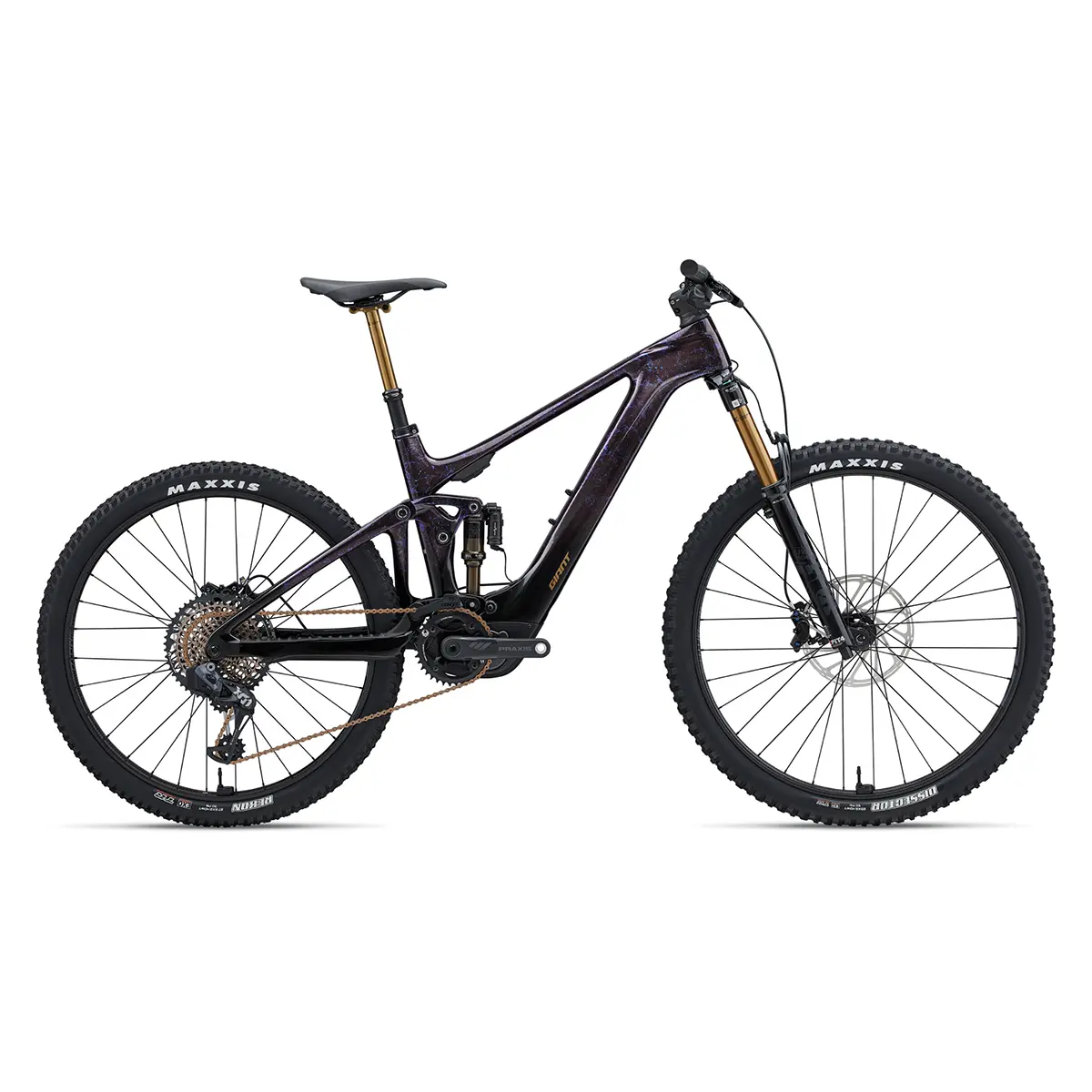

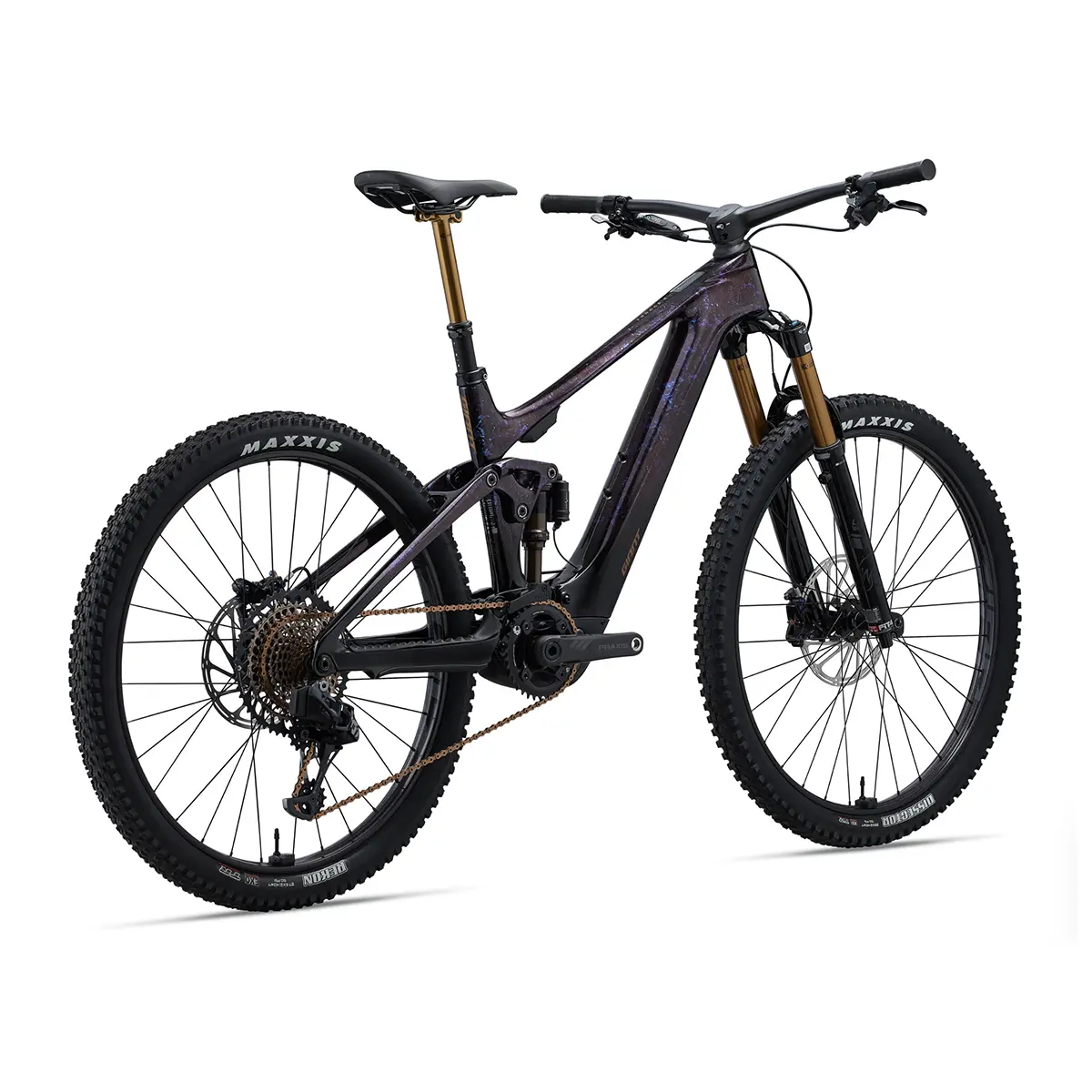

The Giant Trance X Advanced E+ EL 0 20MPH is an electric mountain bike with an Advanced-grade composite frame, 140mm Maestro suspension, SyncDrive Pro2 85Nm motor, EnergyPak 400Wh battery, Fox 36 Factory Live Valve 150mm fork, SRAM X01 Eagle AXS drivetrain, and Zipp 3MOTO carbon wheels.
| Color | Mirage/Black |
|---|
Giant Trance X Advanced E+ EL 0 20MPH Overview
The Giant Trance X Advanced E+ EL 0 20MPH is an electric mountain bike built with an Advanced-grade composite frame, Advanced-grade rear triangle, and 140mm Maestro suspension system. The frame is powered by a Giant SyncDrive Pro2 85Nm motor and Giant EnergyPak 400Wh battery. The build includes Fox 36 Factory Live Valve E-Tuned suspension, SRAM X01 Eagle AXS wireless electronic shifting, SRAM Code RSC 4-piston brakes, Zipp 3MOTO carbon mixed wheels, and Maxxis tubeless-ready tires.
Key Features of Giant Trance X Advanced E+ EL 0 20MPH
- Advanced-grade composite frame uses an Advanced-grade rear triangle and Advanced forged composite upper rocker.
- 140mm Maestro suspension system works with a Fox Float X Factory EVOL rear shock.
- Giant SyncDrive Pro2 motor delivers 85Nm of torque with PedalPlus 6-Sensor technology.
- Class 1 e-bike system has a max assist speed of 20MPH.
- Giant EnergyPak 400Wh battery is integrated with the composite frameset and is Giant EnergyPak Plus 200 range extender compatible.
- Fox 36 Factory Live Valve E-Tuned fork provides 150mm travel with electronic adaptive suspension.
- SRAM AXS Rocker Paddle delivers wireless electronic shifting with a SRAM X01 Eagle AXS rear derailleur.
- SRAM Code RSC 4-piston hydraulic disc brakes use a 200mm front rotor and 180mm rear rotor.
- Zipp 3MOTO carbon wheels use a mixed setup with 29-inch front and 27.5-inch rear sizing.
- Maxxis Dissector front and Maxxis Rekon rear tires complete the electric trail setup.
Ride Use
This bike is made for electric mountain biking on technical trails. Its SyncDrive Pro2 motor, EnergyPak 400Wh battery, 140mm Maestro suspension, 150mm Fox 36 Factory Live Valve fork, and mixed-wheel setup support powered trail riding. The SRAM X01 Eagle AXS drivetrain and SRAM Code RSC 4-piston brakes complete the electric mountain bike build.
Why Choose This Bike
The Giant Trance X Advanced E+ EL 0 20MPH combines an Advanced-grade composite electric mountain bike frame, 140mm Maestro suspension, SyncDrive Pro2 85Nm motor, EnergyPak 400Wh battery, Fox Live Valve suspension, SRAM X01 Eagle AXS wireless shifting, SRAM Code RSC brakes, and Zipp 3MOTO carbon wheels. It comes in Mirage/Black with size options from S to XL. Weight: 19.13 kg / 42 lbs 02 oz, size S. Manufacturer Warranty: Giant Lifetime Limited Warranty for the original owner: lifetime frame warranty, 10-year rigid fork warranty, and limited coverage for original Giant parts.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Giant |
| Model | Trance X Advanced E+ EL 0 20MPH |
| Bike Type | Electric Mountain Bike |
| Sizes | S, M, L, XL |
| Color | Mirage/Black |
| Frame | Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system |
| Fork | Fox 36 Factory Live Valve E-Tuned, 29er, 150mm travel, 44mm offset, FIT4 damper, Kabolt-X 110, electronic adaptive suspension, e-bike integrated |
| Shock | Fox Float X Factory, EVOL, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30% |
| Motor | Giant SyncDrive Pro2, 85Nm, PedalPlus 6-Sensor technology, Class 1, max assist speed 20MPH |
| Controller | Giant RideControl Ergo3, grip integrated remote |
| Display | Giant RideControl GO, frame integrated LED console; optional wireless ANT+ display |
| Battery | Giant EnergyPak 400Wh, aluminum casing with EN50604 safety standard, CO2 neutral production, Giant EnergyPak Plus 200 range extender compatible |
| Charger | Giant EnergyPak 4A smart charger, 60% in 1:45 |
| Connectivity | Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile |
| Handlebar | Giant Contact SLR Trail, carbon, 800mm |
| Grips | Giant Tactal Pro-E, tapered design, 135mm Ø28-30mm for S/M, 142mm Ø29-32mm for L/XL |
| Stem | Giant Contact SLR Trail, integrated, 40/45/50mm reach, 7/9-degree sweep adjust system |
| Seatpost | Fox Transfer Factory S:125mm, M:150mm, L:175mm, XL:200mm, Fox MMX Remote |
| Saddle | Giant Romero SL, Neutral |
| Pedals | N/A |
| Shifters | SRAM AXS Rocker Paddle, wireless electronic shifting |
| Chain Guide | MRP HD2 co-moulded chain guide |
| Rear Derailleur | SRAM X01 Eagle AXS |
| Brakes | SRAM Code RSC, 4-piston hydraulic disc, 200mm front and 180mm rear |
| Brake Levers | SRAM Code RSC |
| Cassette | SRAM XG-1299, 10-52T, 12-speed |
| Chain | SRAM XX1 Eagle PowerLock |
| Crankset | Praxis Carbon e-crank arms S/M:160mm, L/XL:165mm; SRAM Eagle Transmission E-MTB steel 36T chainring |
| Bottom Bracket | N/A |
| Rims | Zipp 3MOTO carbon, 29" front / 27.5" rear |
| Hubs | Zipp 3MOTO ZM2 |
| Spokes | Zipp 3MOTO |
| Tires | Front: Maxxis Dissector 29x2.40", foldable, TLR, EXO; Rear: Maxxis Rekon 27.5x2.4", foldable, TLR, EXO+ |
| Extras | Tubeless kit: sealant, levers, manual |
| Lighting | Optional Giant Recon series e-bike lights available and direct connectable |
| Weight | 19.13 kg / 42 lbs 02 oz, size S |
| Manufacturer Warranty | Giant Lifetime Limited Warranty for the original owner: lifetime frame warranty, 10-year rigid fork warranty, and limited coverage for original Giant parts. |
FAQ's Giant Trance X Advanced E+ EL 0 20MPH
What type of bike is the Giant Trance X Advanced E+ EL 0 20MPH?
The Giant Trance X Advanced E+ EL 0 20MPH is an electric mountain bike. It uses an Advanced-grade composite frame, 140mm Maestro suspension system, SyncDrive Pro2 motor, and EnergyPak 400Wh battery.
What motor and battery does the Giant Trance X Advanced E+ EL 0 20MPH use?
The bike uses a Giant SyncDrive Pro2 motor with 85Nm of torque and PedalPlus 6-Sensor technology. The battery is a Giant EnergyPak 400Wh with Giant EnergyPak Plus 200 range extender compatibility.
What suspension comes on the Giant Trance X Advanced E+ EL 0 20MPH?
The bike uses a 140mm Maestro suspension system with a Fox Float X Factory rear shock. The fork is a Fox 36 Factory Live Valve E-Tuned 29er fork with 150mm travel, FIT4 damper, 44mm offset, and Kabolt-X 110 axle.
What wheel and tire setup does the Giant Trance X Advanced E+ EL 0 20MPH use?
The bike uses Zipp 3MOTO carbon mixed wheels with a 29-inch front wheel and 27.5-inch rear wheel. The front tire is a Maxxis Dissector 29x2.40, and the rear tire is a Maxxis Rekon 27.5x2.4.
