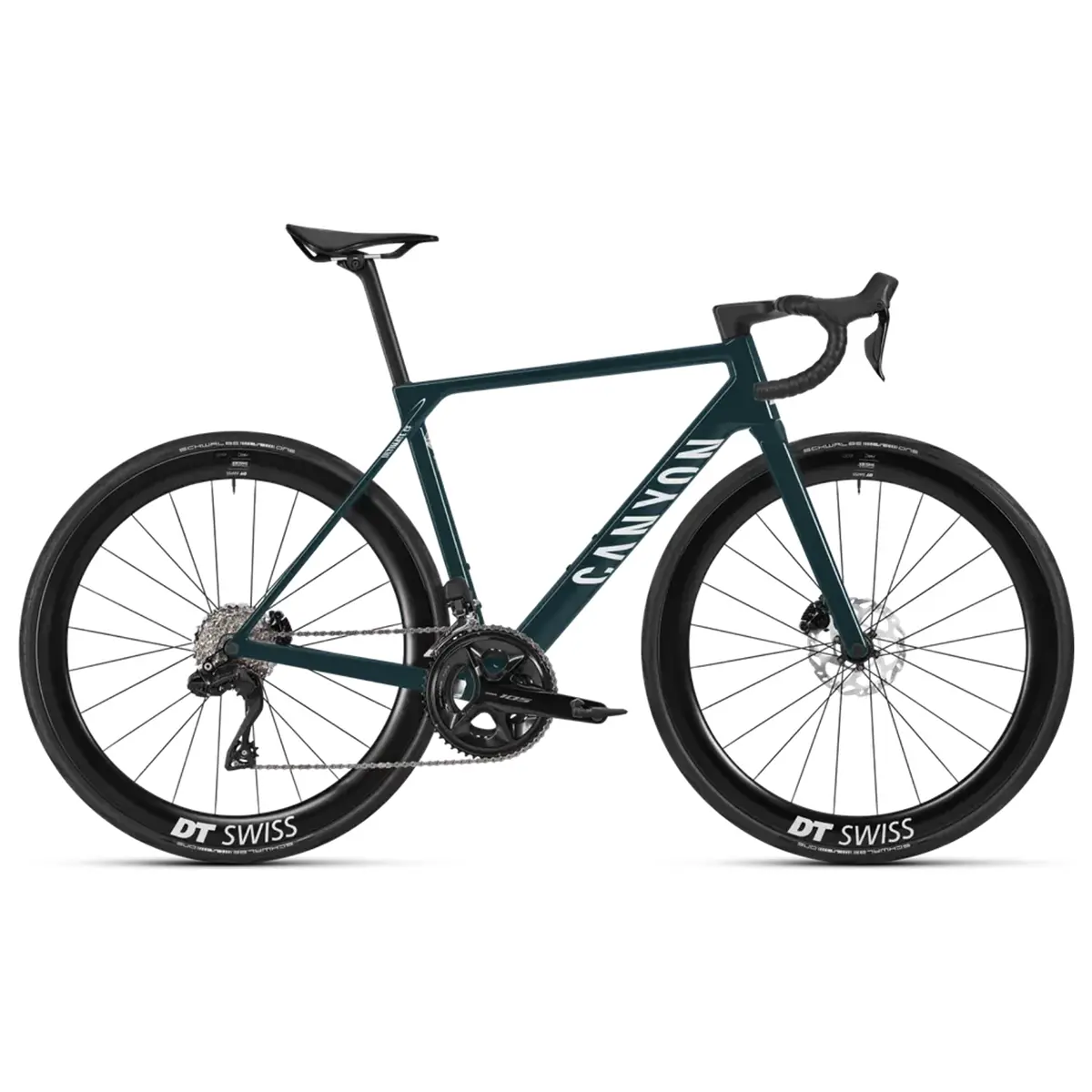

Canyon Ultimate CF 7 Di2 AERO
$2,579.00
The Canyon Ultimate CF 7 Di2 AERO is a carbon race road bike built with a Canyon Ultimate CF frame, Shimano 105 Di2 12-speed shifting, DT Swiss ARC 1600 Dicut carbon wheels, Schwalbe One 28 mm tires, and a one-piece carbon cockpit.
| Color | Teal |
|---|
Canyon Ultimate CF 7 Di2 AERO Overview
The Canyon Ultimate CF 7 Di2 AERO is a carbon race road bike built around the Canyon Ultimate CF 5th-generation frame and Canyon FK0146 CF Disc fork. It uses Shimano 105 Di2 electronic 12-speed shifting with a Shimano 105 R7101 11-34 cassette and Shimano 105 crankset. DT Swiss ARC 1600 Dicut carbon wheels, Schwalbe One 28 mm tires, and the CP0048 one-piece carbon cockpit complete a clean road-focused build.
Key Features of Canyon Ultimate CF 7 Di2 AERO
- Canyon Ultimate CF carbon frame uses a 12×142 mm axle dimension and provides 33 mm tyre clearance.
- Canyon FK0146 CF Disc carbon fork has a 12×100 mm axle dimension, 1 1/4″ steerer tube diameter, and 33 mm tyre clearance.
- Shimano 105 Di2 drivetrain delivers electronic 12-speed shifting with a Shimano BT-DN300 Di2 battery.
- Shimano 105 R7101 11-34 cassette provides a 12-speed road drivetrain setup.
- Shimano 105 crankset uses 2 chainrings for a dedicated road configuration.
- Shimano 105 R7170 Di2 shift / brake levers are paired with Shimano brake rotors.
- DT Swiss ARC 1600 Dicut carbon wheels feature 50 mm rim height, 20 mm inner width, and Center Lock rotor mounts.
- Schwalbe One Tire 28mm gives the bike a road-specific tire setup.
- CP0048 one-piece carbon cockpit includes interchangeable drops, 20 mm height adjustment, and 50 mm width adjustment without cutting.
- Canyon SP0094 CF carbon seatpost has a 10 mm setback and a listed weight of 0.26 lbs.
Ride Use
This bike is made for race road riding, with a carbon frame, carbon fork, electronic Shimano 105 Di2 shifting, and DT Swiss carbon wheels. The 50 mm rim height and 28 mm Schwalbe One tires keep the build focused on paved road riding. Its one-piece carbon cockpit and 12-speed drivetrain support a clean road-racing setup.
Why Choose This Bike
Choose the Canyon Ultimate CF 7 Di2 AERO if you want a Canyon carbon race road bike with Shimano 105 Di2 shifting, DT Swiss ARC 1600 Dicut carbon wheels, and Schwalbe One 28 mm tires. The build includes a Canyon Ultimate CF frame, Canyon FK0146 CF Disc fork, CP0048 one-piece carbon cockpit, Selle Italia Model X saddle, and Canyon SP0094 CF carbon seatpost. It comes in Teal, with a 6-year warranty on Canyon-manufactured parts.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Canyon |
| Model | Ultimate CF 7 Di2 AERO |
| Bike Type | Race Road Bikes |
| Frame | Canyon Ultimate CF, carbon CF, 12x142 mm axle dimension, 33 mm tyre clearance, 2.45 lbs |
| Fork | Canyon FK0146 CF Disc, carbon CF, 12x100 mm axle dimension, 1 1/4" steerer tube diameter, 33 mm tyre clearance, 0.85 lbs |
| Seatpost Clamp | Canyon EP2352-01 Saddle Clamp for saddles with 7x7 mm steel rails |
| Battery | Shimano BT-DN300 Di2 Battery |
| Rear Derailleur | Shimano 105 Di2, 0.66 lbs |
| Front Derailleur | Shimano 105 Di2 FD-R7150, 0.30 lbs |
| Cassette | Shimano 105 R7101 11-34 12s, 12 sprockets, 11-34 range |
| Crank | Shimano 105 Crankset, 2 chainrings |
| Bottom Bracket | Shimano Pressfit BB-RS500, PF 86 standard, 0.18 lbs |
| Chain | Shimano CN-M7100 12s |
| Shift / Brake Levers | Shimano 105 R7170 Di2, 2 pistons |
| Brake Rotors | Shimano SM-RT70 160 mm rotor and Shimano 140 mm brake rotor |
| Front Wheel | DT Swiss ARC 1600 Dicut, carbon rim, 50 mm rim height, 20 mm inner width, Center Lock rotor mount, 12x100 mm axle dimension, 1.60 lbs |
| Rear Wheel | DT Swiss ARC 1600 Dicut, carbon rim, 50 mm rim height, 20 mm inner width, Center Lock rotor mount, 12x142 mm axle dimension, 2.03 lbs |
| Tyres | Schwalbe One Tire 28mm, 28 mm width, 0.79 lbs |
| Thru Axles | Canyon Steckachse, 12x100 mm and 12x142 mm |
| Cockpit | CP0048 one-piece carbon cockpit with interchangeable drops, 20 mm height adjustment, and 50 mm width adjustment, 0.49 lbs |
| Handlebar Tape | Canyon Ergospeed Gel, black |
| Saddle | Selle Italia Model X, 145 mm width, unisex, 0.68 lbs |
| Seatpost | Canyon SP0094 CF carbon seatpost, 10 mm setback, 0.26 lbs |
| Pedals | None included |
| Included Accessories | Canyon Organza Bag, Canyon Assembly Paste, Canyon Torque Wrench, Quick Start Guide, Smallbox |
| Color | Teal |
| Manufacturer Warranty | 6-year warranty on Canyon-manufactured parts |
FAQ's Canyon Ultimate CF 7 Di2 AERO
What frame does the Canyon Ultimate CF 7 Di2 AERO use?
The Canyon Ultimate CF 7 Di2 AERO uses the Canyon Ultimate CF carbon frame. The frame has a 12x142 mm axle dimension, 33 mm tyre clearance, and a listed weight of 2.45 lbs.
What drivetrain is on the Canyon Ultimate CF 7 Di2 AERO?
This bike uses Shimano 105 Di2 electronic shifting with a Shimano BT-DN300 Di2 battery. It includes a Shimano 105 Di2 rear derailleur, Shimano 105 Di2 FD-R7150 front derailleur, Shimano 105 R7101 11-34 12-speed cassette, and Shimano 105 crankset.
What wheels and tires come with the Canyon Ultimate CF 7 Di2 AERO?
The bike comes with DT Swiss ARC 1600 Dicut carbon wheels. The wheels have a 50 mm rim height, 20 mm inner width, and Center Lock rotor mounts, paired with Schwalbe One Tire 28mm.
Are pedals included with the Canyon Ultimate CF 7 Di2 AERO?
Pedals are not included with this bike. Included accessories are the Canyon Organza Bag, Canyon Assembly Paste, Canyon Torque Wrench, Quick Start Guide, and Smallbox.
