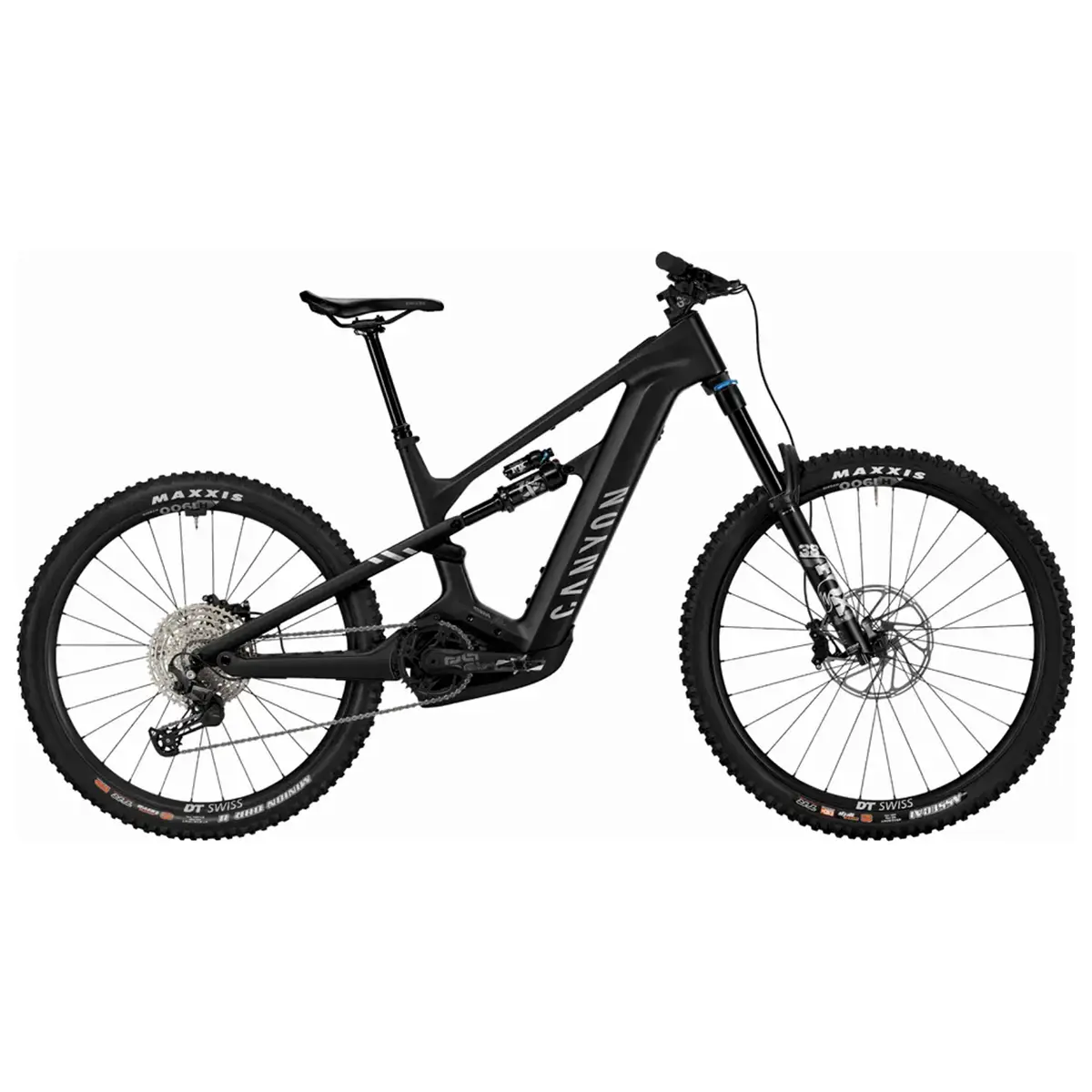

Canyon Strive:ON CFR Underdog
$3,899.00
The Canyon Strive:ON CFR Underdog is an electric enduro mountain bike with a CFR carbon Strive:ON frame, Bosch Performance Line CX motor, Bosch PowerTube 750Wh battery, Fox suspension, Shimano Deore 12-speed drivetrain, SRAM DB8 brakes, and DT Swiss H1900 wheels.
| Color | New Stealth |
|---|
Canyon Strive:ON CFR Underdog Overview
The Canyon Strive:ON CFR Underdog is an electric enduro mountain bike built with a Canyon Strive:ON CFR carbon e-enduro frame, Bosch Performance Line CX motor, Bosch PowerTube 750Wh battery, Fox suspension, Shimano Deore 12-speed drivetrain, SRAM DB8 brakes, and DT Swiss H1900 wheels. The frame uses discreetly integrated battery and motor placement, with a 12×148 mm rear axle dimension and carbon construction.
The suspension setup pairs a Fox Float X Evol rear shock with a Fox 38 Rhythm Grip fork. The fork has 170 mm travel, 38 mm stanchions, 15×110 mm axle spacing, 44 mm offset, and one volume spacer.
Shifting is handled by Shimano Deore M6100 12-speed components with a Shimano Deore M6100 10-51T cassette, e*thirteen E-Spec Plus BOSCH crank, FSA Megatooth 36T chainring, and Shimano Deore M6100 chain. The bike also uses SRAM DB8 disc brakes, SRAM Centerline 200 mm and 220 mm rotors, DT Swiss H1900 wheels, and Maxxis Minion DHR II and Maxxis Assegai tires.
Key Features of Canyon Strive:ON CFR Underdog
- Canyon Strive:ON CFR carbon e-enduro frame with discreetly integrated battery and motor.
- Bosch Performance Line CX motor powers the electric mountain bike system.
- Bosch PowerTube 750Wh battery is paired with a Bosch 4A charger.
- Fox Float X Evol rear shock supports the bike’s e-enduro suspension platform.
- Fox 38 Rhythm Grip fork delivers 170 mm travel with 38 mm stanchions.
- Shimano Deore M6100 12-speed drivetrain uses a 10-51T cassette.
- SRAM DB8 disc brakes are paired with SRAM Centerline 200 mm and 220 mm rotors.
- DT Swiss H1900 aluminium wheels are paired with Maxxis Minion DHR II and Maxxis Assegai tires.
Ride Use
This bike is built for electric enduro mountain biking and challenging trail riding. The Canyon Strive:ON CFR carbon frame, Bosch Performance Line CX motor, Fox suspension, SRAM DB8 brakes, DT Swiss H1900 wheels, and Maxxis tires support demanding e-MTB use.
Why Choose This Bike
The Canyon Strive:ON CFR Underdog combines a CFR carbon e-enduro frame with Bosch motor support, a Bosch PowerTube 750Wh battery, Fox suspension, Shimano Deore 12-speed shifting, SRAM DB8 braking, DT Swiss H1900 wheels, and Maxxis tires. The Stealth color gives the bike a clean finish, while the included Bosch 4A charger, VP-536 flat pedals, Canyon torque wrench, and shock pump add practical setup support.
Product Specifications
| Feature | Details |
|---|---|
| Frame | Canyon Strive:ON CFR carbon e-enduro frame, 12x148 mm axle dimension, 3.53 lbs |
| Rear Shock | Fox Float X Evol, CL+, RM, Rezi LMB1 tune, 1.76 lbs |
| Fork | Fox 38 Rhythm Grip, 170 mm travel, 15x110 mm axle dimension, 38 mm stanchions, 44 mm offset, 1 volume spacer, 4.80 lbs |
| Motor | Bosch Performance Line CX |
| Battery | Bosch PowerTube 750Wh |
| Rear Derailleur | Shimano Deore M6100, 12-speed, long cage, 0.78 lbs |
| Shift Lever | Shimano Deore M6100, 12-speed, 0.30 lbs |
| Cassette | Shimano Deore M6100, 12-speed, 10-51T |
| Crank | e*thirteen E-Spec Plus BOSCH |
| Chainring | FSA Megatooth 36T |
| Chain | Shimano Deore M6100 |
| Chainguide | Canyon GP0437-01 Chainguide |
| Brakes | SRAM DB8 disc brakes |
| Brake Rotors | SRAM Centerline 200 mm, SRAM Centerline 220 mm |
| Front Wheel | DT Swiss H1900 Spline Hybrid 29, IS 6-bolt rotor mount, 20 mm rim height, 30 mm inner width, aluminium rim, 2.26 lbs |
| Rear Wheel | DT Swiss H1900, 12x148 mm axle dimension, IS 6-bolt rotor mount, Shimano freehub, Ratchet standard hub technology, 30 mm inner width, straight pull spokes, aluminium rim, 2.47 lbs |
| Tires | Maxxis Minion DHR II 3C MaxxTerra 2.4", Maxxis Assegai 3C MaxxGrip 2.5" |
| Thru Axle | Canyon GP0255-01, 12x148 mm axle dimension |
| Stem | Canyon G5 aluminium stem, 1 1/8" steerer tube diameter, 31.8 mm clamp diameter |
| Handlebar | Canyon G5 aluminium handlebar, 31.8 mm clamp diameter, 30 mm rise |
| Grips | Canyon G5 |
| Saddle | ERGON SM10 EMTB, 0.66 lbs |
| Seatpost | Iridium Dropper aluminium seatpost, 30.9 mm diameter, 1.33 lbs |
| Lights | Reflector Set |
| Battery Charger | Bosch 4A |
| Pedals | VP-536 flat pedals |
| Included Accessories | Canyon Organza Bag, Wrench Tool 15mm, Canyon Assembly Paste, Canyon Torque Wrench, Pedelec Manual 005-V04, Canyon Smallbox, Quick Start Guide, Canyon Shock Pump 300 Psi |
| Color | Stealth |
| Manufacturer Warranty | 6-year warranty on Canyon-manufactured parts |
FAQ's Canyon Strive:ON CFR Underdog
What frame does the Canyon Strive:ON CFR Underdog use?
The Canyon Strive:ON CFR Underdog uses a Canyon Strive:ON CFR carbon e-enduro frame. The frame has a 12x148 mm rear axle dimension, discreetly integrated battery and motor placement, and a frame weight of 3.53 lbs.
What motor and battery come with the Canyon Strive:ON CFR Underdog?
This bike uses a Bosch Performance Line CX motor and a Bosch PowerTube 750Wh battery. A Bosch 4A battery charger is included with the bike.
What drivetrain is fitted to the Canyon Strive:ON CFR Underdog?
The bike uses a Shimano Deore M6100 12-speed drivetrain. It includes a Shimano Deore M6100 10-51T cassette, e*thirteen E-Spec Plus BOSCH crank, FSA Megatooth 36T chainring, and Shimano Deore M6100 chain.
What items are included with the Canyon Strive:ON CFR Underdog?
The bike includes a reflector set, Bosch 4A charger, VP-536 flat pedals, Canyon Organza Bag, Wrench Tool 15mm, Canyon Assembly Paste, Canyon Torque Wrench, Pedelec Manual 005-V04, Canyon Smallbox, Quick Start Guide, and Canyon Shock Pump 300 Psi.
