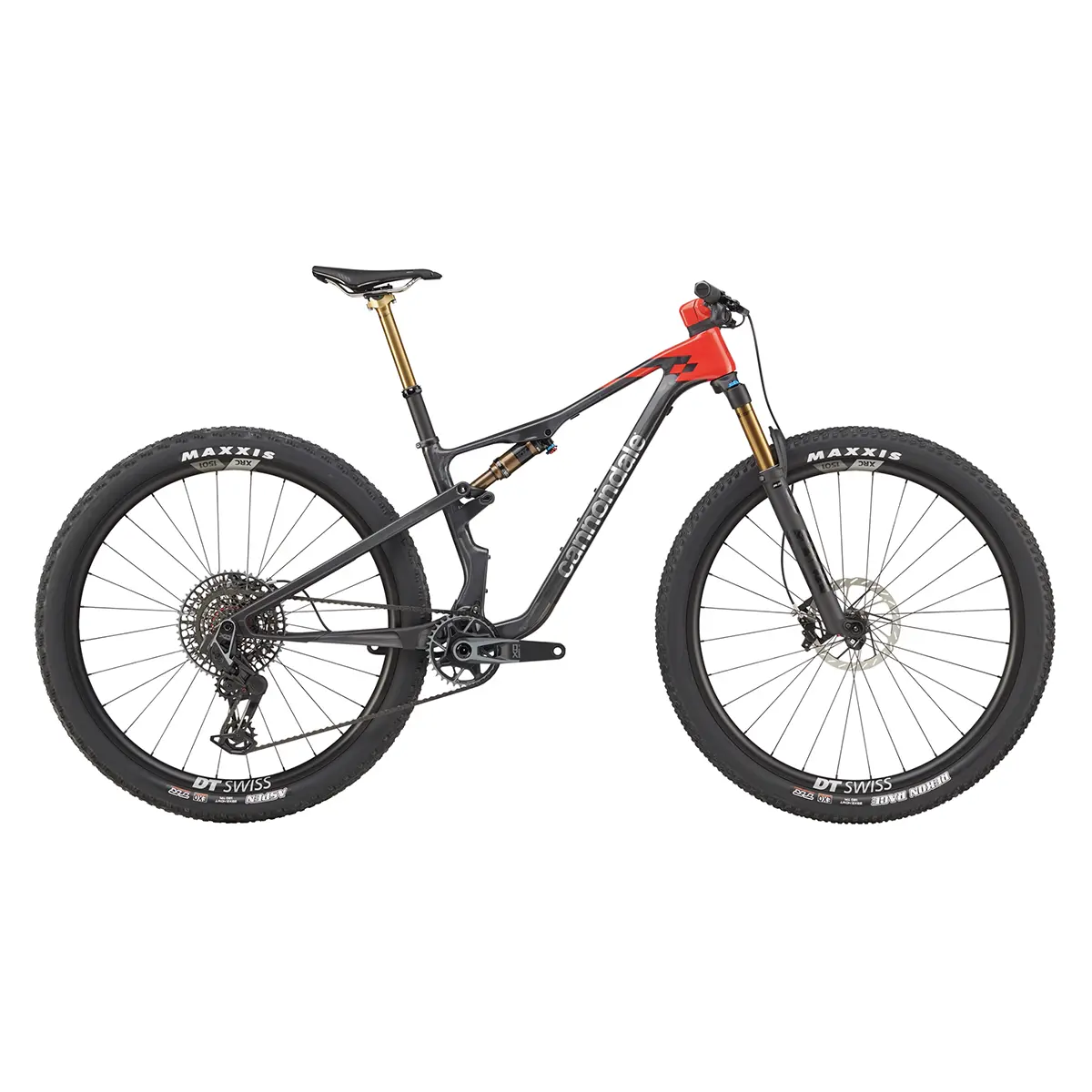

Cannondale Scalpel 1
$5,099.00
Cannondale Scalpel 1 is a cross country mountain bike with a lightweight carbon frame, 120mm travel, FlexPivot suspension, Fox Factory suspension, SRAM XO Eagle AXS wireless 12-speed shifting, and DT Swiss XRC 1501 SPLINE ONE carbon wheels.
| Color | Rally Red |
|---|
Cannondale Scalpel 1 Overview
Cannondale Scalpel 1 is a cross country mountain bike built around a lightweight carbon Scalpel frame with 120mm travel, FlexPivot Chainstay design, and Proportional Response Suspension and Geometry. The Rally Red build uses a Fox Float Factory 34 SC fork, Fox Float SL Factory EVOL SV rear shock, and Fox Transfer SL Factory seatpost. Its SRAM XO Eagle AXS T-Type wireless electronic 12-speed drivetrain works with a 34T crank and 10-52 cassette for a wide-range XC setup.
The wheel package features DT Swiss XRC 1501 SPLINE ONE carbon rims with a 30mm inner width, hookless construction, and TSS tubeless-ready design. The tire setup pairs a front Maxxis Rekon Race WT 29×2.4″ with a rear Maxxis Aspen WT 29×2.4″, both with EXO Protection and tubeless-ready casings. SRAM Level Silver Stealth 4-piston hydraulic disc brakes and SRAM HS2 180/160mm rotors complete the control-focused build.
Key Features of Cannondale Scalpel 1
- Lightweight carbon Scalpel frame with 120mm travel and FlexPivot Chainstay suspension design.
- Proportional Response Suspension and Geometry support the bike’s cross country platform.
- Fox Float Factory 34 SC fork delivers 120mm front suspension with Kashima coating and a 15x110mm thru-axle.
- Fox Float SL Factory EVOL SV rear shock adds a custom-tuned rear suspension setup.
- SRAM XO Eagle AXS T-Type wireless electronic drivetrain uses a 12-speed 10-52 cassette.
- SRAM Level Silver Stealth 4-piston hydraulic disc brakes use SRAM HS2 180/160mm rotors.
- DT Swiss XRC 1501 SPLINE ONE carbon wheels feature a 30mm inner width and tubeless-ready hookless rims.
- SystemBar XC-One Flat carbon cockpit integrates the handlebar and stem with internal cable routing.
Ride Use
This bike is built for cross country mountain biking, XC racing, Marathon racing, and high-speed trail riding. Its 120mm carbon frame platform, Fox Factory suspension, SRAM XO Eagle AXS drivetrain, and DT Swiss carbon wheels support demanding XC use. The 29×2.4″ Maxxis tire setup gives the bike a race-focused mountain bike build.
Why Choose This Bike
Choose the Cannondale Scalpel 1 for a cross country bike with a lightweight carbon frame, Fox Factory suspension package, SRAM XO Eagle AXS T-Type wireless drivetrain, and DT Swiss XRC 1501 SPLINE ONE carbon wheels. The integrated SystemBar XC-One carbon cockpit, Fox Transfer SL Factory seatpost, Maxxis 29×2.4″ tires, and Rally Red finish create a complete Scalpel build focused on XC riding and racing. Cannondale limited warranty covers frames, swing arms, chainstays, seatstays, full suspension shock links, and fork structure for the lifetime of the product. Paint, decals, and Cannondale branded components are covered for one year.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Cannondale |
| Platform | Scalpel |
| Model Name | Scalpel 1 |
| Model Code | C24254U |
| Bike Type | Cross Country Mountain Bike |
| Color | Rally Red |
| Frame | Scalpel, lightweight carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5" headtube with 1-1/8" upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc – 160mm native |
| Fork | Fox Float Factory 34 SC, Kashima, 120mm, 15x110mm thru-axle, tapered steerer, 44mm offset |
| Headset | Acros ICR |
| Rear Shock | Fox Float SL Factory EVOL SV, Kashima, 190x45, custom tune |
| Rear Derailleur | SRAM XO Eagle AXS, T-Type |
| Shifters | SRAM AXS T-Type Pod Controller |
| Chain | SRAM XO, T-Type, 12-speed |
| Crank | SRAM XO T-Type, 34T |
| Rear Cogs | SRAM XO Eagle, 10-52, T-Type, 12-speed |
| Bottom Bracket | SRAM DUB BSA 73mm MTB Wide |
| Brakes | SRAM Level Silver Stealth, 4-piston hydraulic disc, SRAM HS2 180/160mm rotors |
| Brake Levers | SRAM Level Silver Stealth |
| Rims | DT Swiss XRC 1501 SPLINE ONE, carbon, 30mm inner width, hookless, TSS tubeless ready |
| Spokes | DT Competition Race, straight pull |
| Hubs | DT Swiss 240 15x110, 6-bolt front / 240 Ratchet EXP 36, 6-bolt, XD driver rear |
| Wheel Size | 29 |
| Tire Size | 2.4 |
| Tires | Front Maxxis Rekon Race WT, 29x2.4", EXO Protection, tubeless ready / Rear Maxxis Aspen WT, 29x2.4", EXO Protection, tubeless ready |
| Handlebar | SystemBar XC-One Flat, carbon, integrated bar/stem, internal cable routing, 5° upsweep, 8° backsweep, 760mm width, -6° stem, 1-1/8" clamp |
| Stem | SystemBar XC-One Flat, carbon integrated bar/stem |
| Grips | Cannondale XC Silicone |
| Saddle | Prologo Dimension NDR, Tirox rails |
| Seatpost | Fox Transfer SL Factory, Kashima, 31.6, 125mm small, 150mm medium to extra large |
| Extra | Tubeless valves, SRAM AXS charger |
| Manufacturer Warranty | Cannondale limited warranty covers frames, swing arms, chainstays, seatstays, full suspension shock links, and fork structure for the lifetime of the product. Paint, decals, and Cannondale branded components are covered for one year. |
FAQ's Cannondale Scalpel 1
What type of bike is the Cannondale Scalpel 1?
The Cannondale Scalpel 1 is a cross country mountain bike. It uses a lightweight carbon Scalpel frame with 120mm travel, FlexPivot Chainstay design, and Proportional Response Suspension and Geometry.
What drivetrain does the Cannondale Scalpel 1 use?
This bike uses a SRAM XO Eagle AXS T-Type wireless electronic 12-speed drivetrain. The drivetrain includes a SRAM XO T-Type 34T crank, SRAM XO Eagle 10-52 cassette, SRAM XO T-Type chain, and SRAM AXS T-Type Pod Controller.
What suspension comes on the Cannondale Scalpel 1?
The front suspension is a Fox Float Factory 34 SC fork with 120mm travel, Kashima coating, a 15x110mm thru-axle, tapered steerer, and 44mm offset. The rear shock is a Fox Float SL Factory EVOL SV with Kashima coating, 190x45 sizing, and custom tune.
What wheels and tires are fitted to the Cannondale Scalpel 1?
The bike uses DT Swiss XRC 1501 SPLINE ONE carbon rims with a 30mm inner width, hookless construction, and TSS tubeless-ready design. It comes with a front Maxxis Rekon Race WT 29x2.4" tire and a rear Maxxis Aspen WT 29x2.4" tire, both with EXO Protection and tubeless-ready casings.
