Roval Control World Cup Wheels
$1,139.00

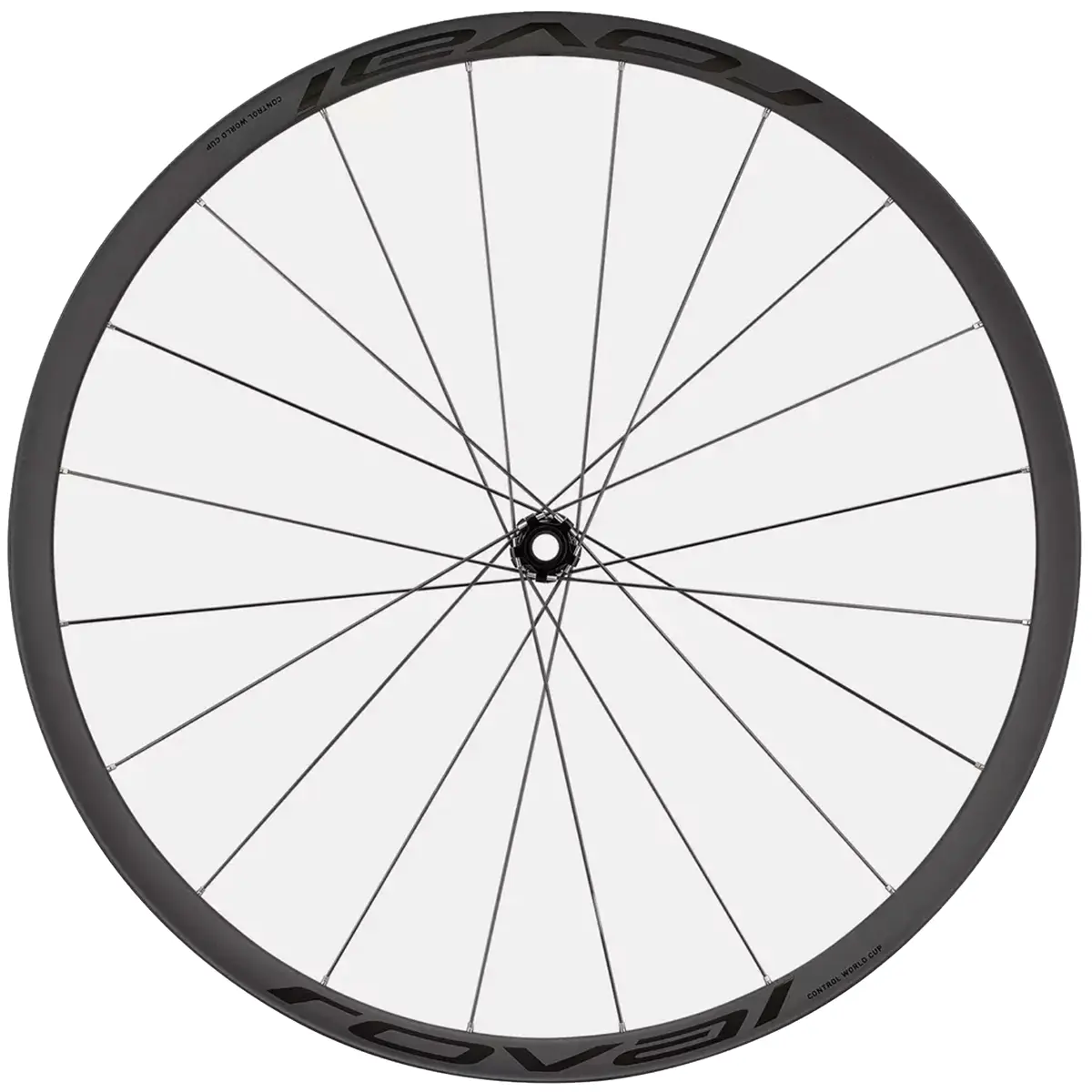

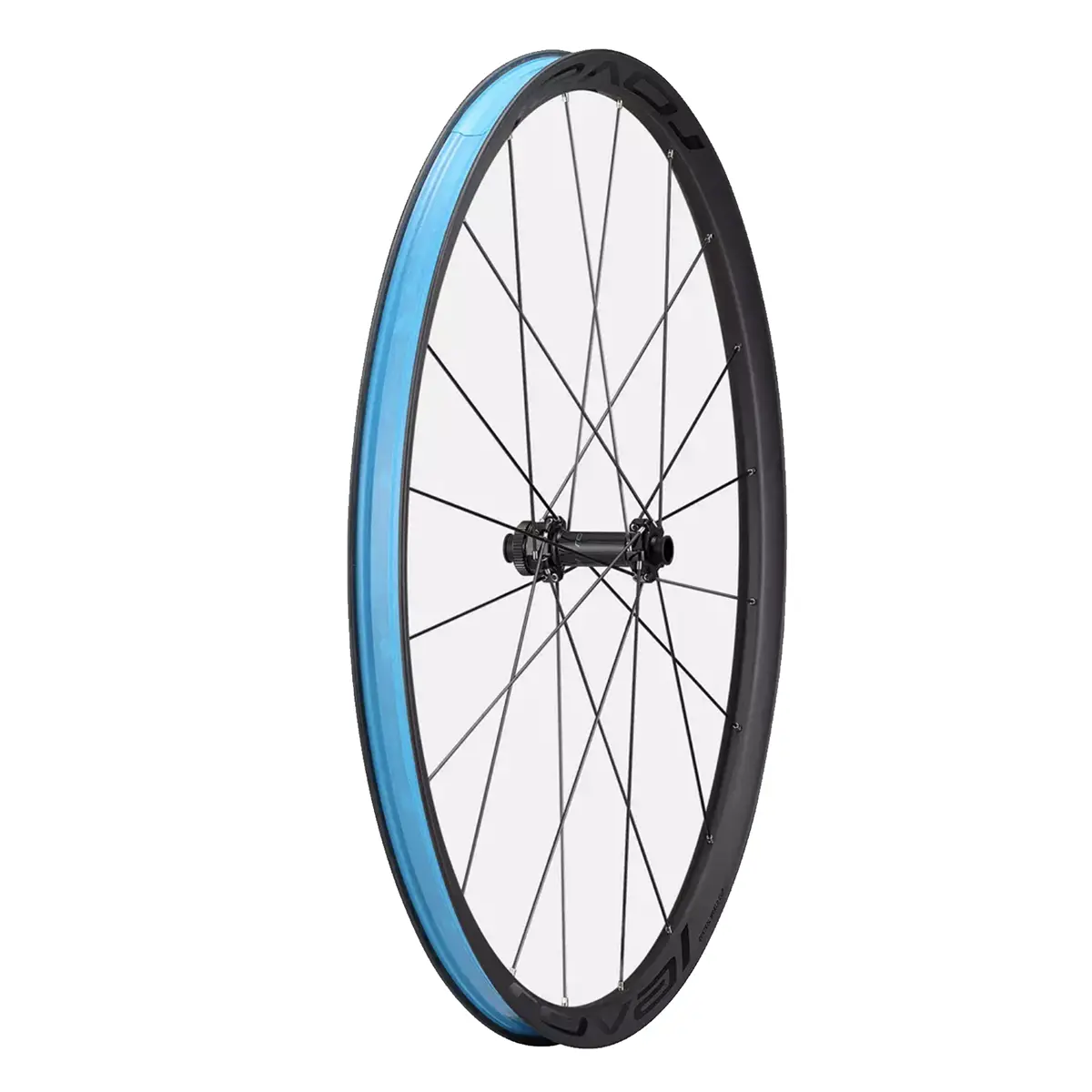

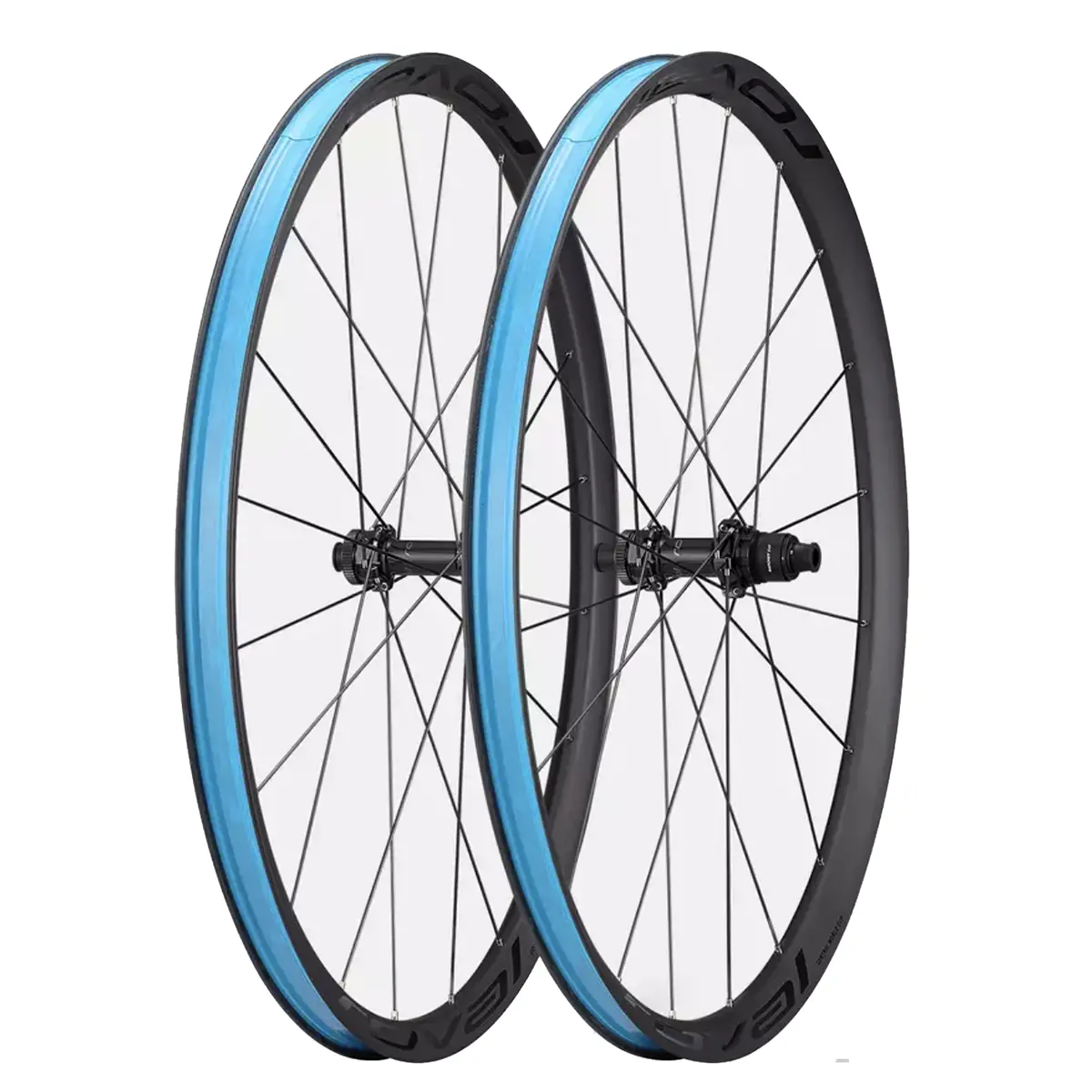

Roval Control World Cup Wheels are 29-inch carbon mountain bike wheels built with carbon clincher mini hooked rims, Roval low flange mountain hubs, DT Sinc ceramic bearings, Centerlock disc compatibility, and a SRAM XD freehub body. The wheelset weighs 998g with valves and tape.
| Color | Satin Carbon |
|---|
Description
Roval Control World Cup Wheels Overview
Roval Control World Cup Wheels are 29-inch carbon mountain bike wheels built around a 998g wheelset weight with valves and tape. The wheelset uses Control World Cup Carbon 29″ rims with a 26mm depth, 36.5mm external width, 28.5mm internal width, and carbon clincher mini hooked construction. Tubeless compatibility, insert compatibility, and a 30mm tubeless tape width support modern mountain bike tire setups.
The front wheel uses a Roval Low Flange Mountain Hub with Center Lock compatibility, 15x110mm spacing, and 19mm OD end caps installed. The rear wheel uses a Roval Low Flange Mountain Hub with Center Lock compatibility, 12x148mm spacing, and a DT Swiss Ratchet EXP 36T SRAM XD freehub body. Both wheels use Vonoa carbon straight-pull spokes with titanium end pieces and VONOA internal carbon spoke nipples.
Key Features of Roval Control World Cup Wheels
- 29″ / 622 mm wheel size for mountain bike use.
- Carbon Clincher Mini Hooked rim construction with 26mm rim depth.
- 28.5mm internal rim width and approved tire widths from 1.9 to 2.6.
- Tubeless and tube type clincher compatibility with a 40psi maximum pressure.
- Centerlock disc brake compatibility on both front and rear hubs.
- DT Sinc ceramic bearings used in the front and rear hubs.
- DT Swiss Ratchet EXP 36T SRAM XD rear freehub body.
- 998g wheelset weight with valves and tape.
Wheel Use
This is a mountain bike wheelset designed around 29-inch Control World Cup carbon rims, 20H spoke counts, Centerlock disc compatibility, and tubeless compatibility. The SRAM XD freehub body, Roval low flange mountain hubs, and 1.9-2.6 approved tire width range make it specific to mountain bike wheel applications.
Why Choose This Wheelset
The Roval Control World Cup wheelset combines Satin Carbon rims, Roval low flange mountain hubs, DT Sinc ceramic bearings, Vonoa carbon straight-pull spokes, and VONOA internal carbon spoke nipples in a hand-built wheelset. It includes tubeless compatibility, insert compatibility, Centerlock disc brake compatibility, a SRAM XD freehub body, and a 998g wheelset weight with valves and tape. The package also includes a Roval Single Wheel Bag, extra spokes and nipples, 31mm OD end caps, and two sets of Roval decal stickers.
Specifications
Product Specifications
| Feature | Details |
| Brand | Roval |
| Model | Control World Cup |
| Product Type | Mountain Bike Wheelset |
| Color | Satin Carbon |
| Wheel Size / ETRTO | 29" / 622 mm |
| Front Wheel Size | 29 Front 20H |
| Rear Wheel Size | 29 Rear 20H |
| Front Rim | Control World Cup Carbon 29" (WC042) |
| Rear Rim | Control World Cup Carbon 29" (WC042) |
| Rim Construction | Carbon Clincher Mini Hooked |
| Rim Depth | 26mm |
| External Rim Width | 36.5mm |
| Internal Rim Width | 28.5mm |
| Bead Hook Width | 4mm |
| Hole Count | 20H |
| Tubeless Compatibility | Yes |
| Insert Compatibility | Yes |
| Brake Compatibility | Disc, Centerlock |
| Front Hub | Roval Low Flange Mountain Hub, Center Lock, 15x110mm, 19mm OD End Caps Installed (LFM23) |
| Rear Hub | Roval Low Flange Mountain Hub, Center Lock, 12x148mm (LFM24) |
| Front Hub Bearing | DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5 mm), NDS: 6802 (15 x 24 x 5 mm) |
| Rear Hub Bearing | DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7 mm), NDS: 6802 (15 x 24 x 5 mm) |
| Freehub Body | DT Swiss Ratchet EXP (36T): SRAM XD |
| Front Spokes | Custom Tuned for Roval, Vonoa Carbon w/Ti End Pcs: Straight-Pull, 20qty |
| Rear Spokes | Custom Tuned for Roval, Vonoa Carbon w/Ti End Pcs: Straight-Pull, 20qty |
| Lacing Pattern | Two-cross/Two-cross (1:1) |
| Nipples | VONOA Internal Carbon Spoke Nipple, Alloy, 8.1mm |
| Approved Tire Widths | 1.9-2.6 |
| Max Pressure | Tubeless 40psi, Tubed 40psi |
| Tire Type | Tubeless, Tube Type Clincher |
| Tubeless Tape Width | 30mm |
| Valve Stem Length | Roval Tubeless Valve, Alloy 34mm |
| Design Tire | Specialized Air Trak 29x2.35 Flex Lite |
| Front Weight | 452g with valves and tape |
| Rear Weight | 546g with valves and tape |
| Wheelset Weight | 998g with valves and tape |
| Weight Limit | 275 lbs. / 125 kg |
| E-bike Approved | No |
| Assembly Method | Hand Built |
| Extras | Roval Single Wheel Bag, 4 Extra Spokes and Nipples, 31mm OD End Caps, 2 sets of Roval Decal Stickers: Liquid Silver, Metallic White |
| Warranty | Limited Lifetime Warranty |
FAQ
FAQ's Roval Control World Cup Wheels
Are Roval Control World Cup Wheels tubeless compatible?
Yes, Roval Control World Cup Wheels are tubeless compatible. They also support tube type clincher tire use and have a 30mm tubeless tape width.
What freehub body does this wheelset use?
The rear wheel uses a DT Swiss Ratchet EXP 36T freehub body for SRAM XD. This detail applies to the rear Roval Low Flange Mountain Hub.
What is the weight of the Roval Control World Cup wheelset?
The front wheel weighs 452g with valves and tape, and the rear wheel weighs 546g with valves and tape. The full wheelset weighs 998g with valves and tape.
What comes with the Roval Control World Cup Wheels?
The package includes the front wheel, rear wheel, Roval Single Wheel Bag, 4 extra spokes and nipples, 31mm OD end caps, and 2 sets of Roval decal stickers in Liquid Silver and Metallic White.
